Product Features
Gooseneck Hoist System Options
Equipped with a 5" x 16" single push cylinder (15,000 lb lift) on 12' models, and a 6" x 21" cylinder (20,000 lb lift) on 14'-16' models. An optional telescopic cylinder is available for increased dump height and lift capacity.
7 Gauge Steel Bed with Rounded Sides
Built with heavy-duty 7 gauge steel flooring for maximum durability against abrasion and impact. Combined with rounded 10 gauge steel sides, the design increases strength and resists material hang-up for faster, cleaner dumping.
Side-Mounted LED Light Boxes
Features welded, side-mounted light boxes on the dump bed. This placement protects the DOT-approved LED lights from damage during loading and provides optimal rearward visibility, unlike traditional lights mounted low near the ramps.

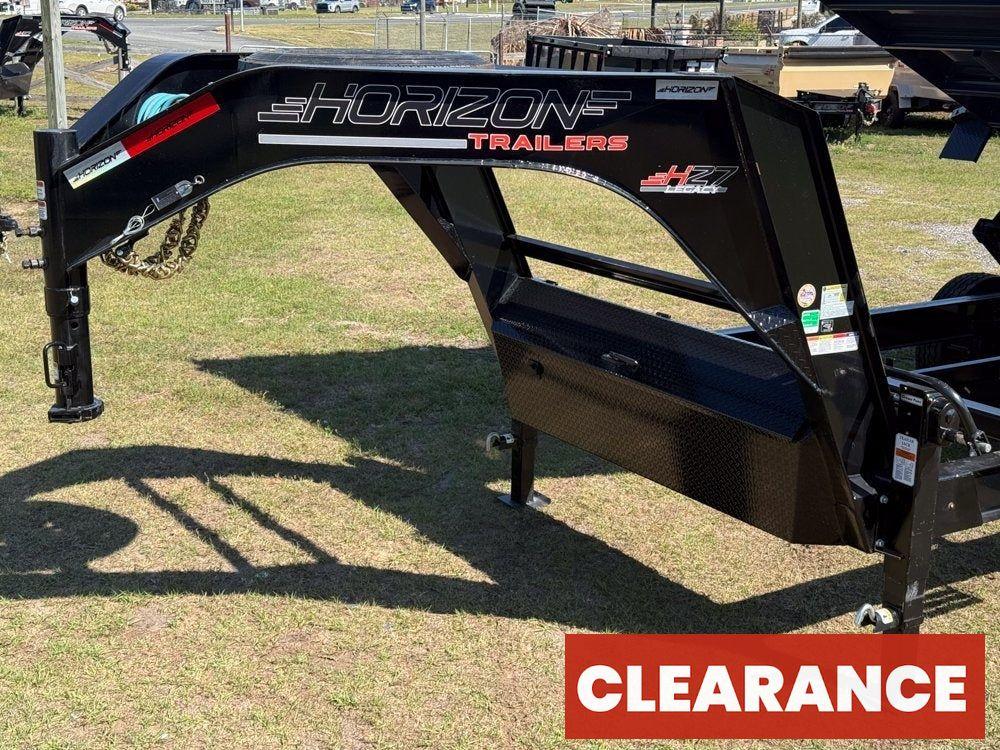

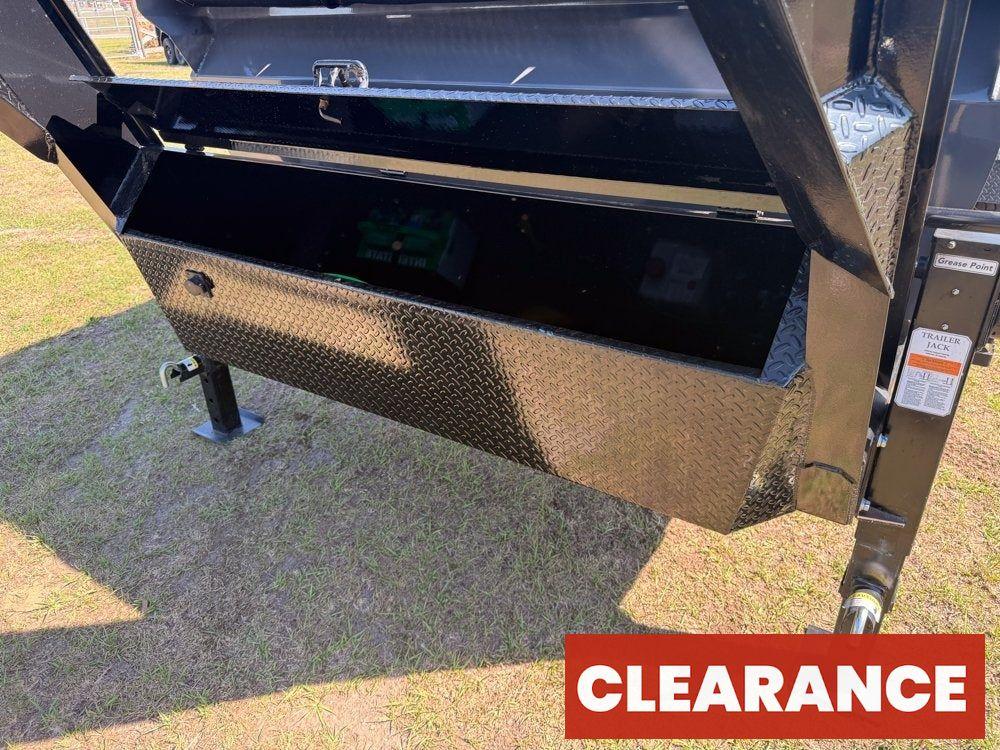

Mega Lockable Gooseneck Toolbox
Includes a large, lockable "Mega" toolbox mounted on the gooseneck. The new design provides significant secure storage for straps, chains, tools, and the hydraulic controller, keeping them organized and protected.
Gooseneck Hoist System Options
Equipped with a 5" x 16" single push cylinder (15,000 lb lift) on 12' models, and a 6" x 21" cylinder (20,000 lb lift) on 14'-16' models. An optional telescopic cylinder is available for increased dump height and lift capacity.
Gooseneck Dexter Axle and Frame Warranty
Built with your choice of 7k EZ Lube or 8k Oil Bath Dexter axles, backed by a 5-year warranty. The trailer frame itself is protected by a 3-year structural and 1-year parts warranty.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 28"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 15.2k - 17k

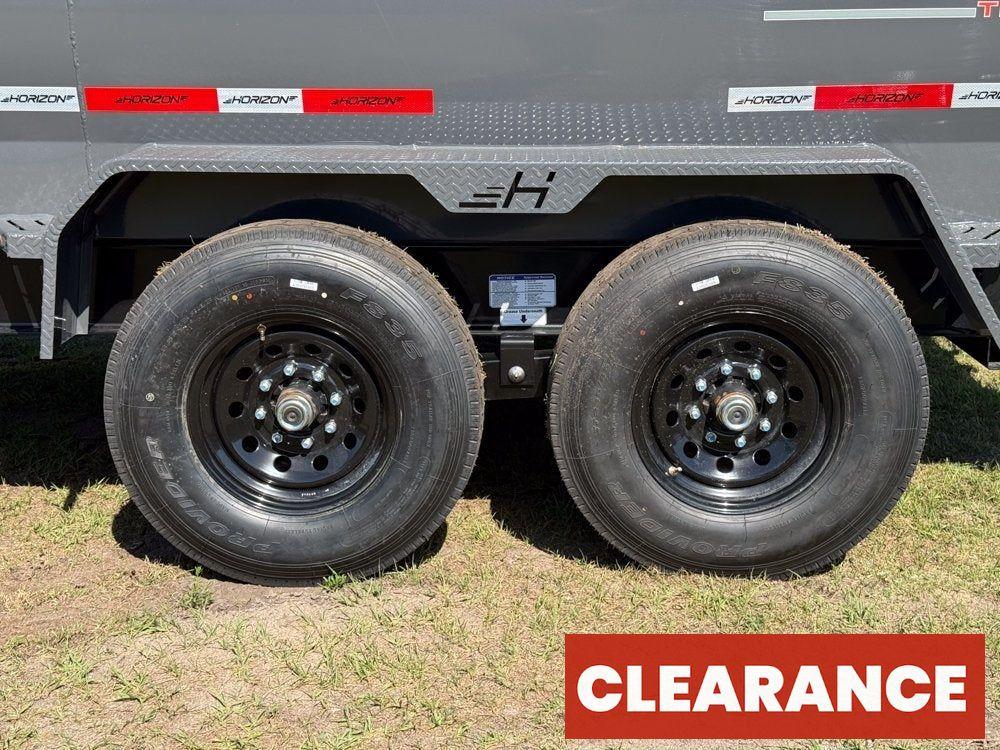

RUNNING GEAR

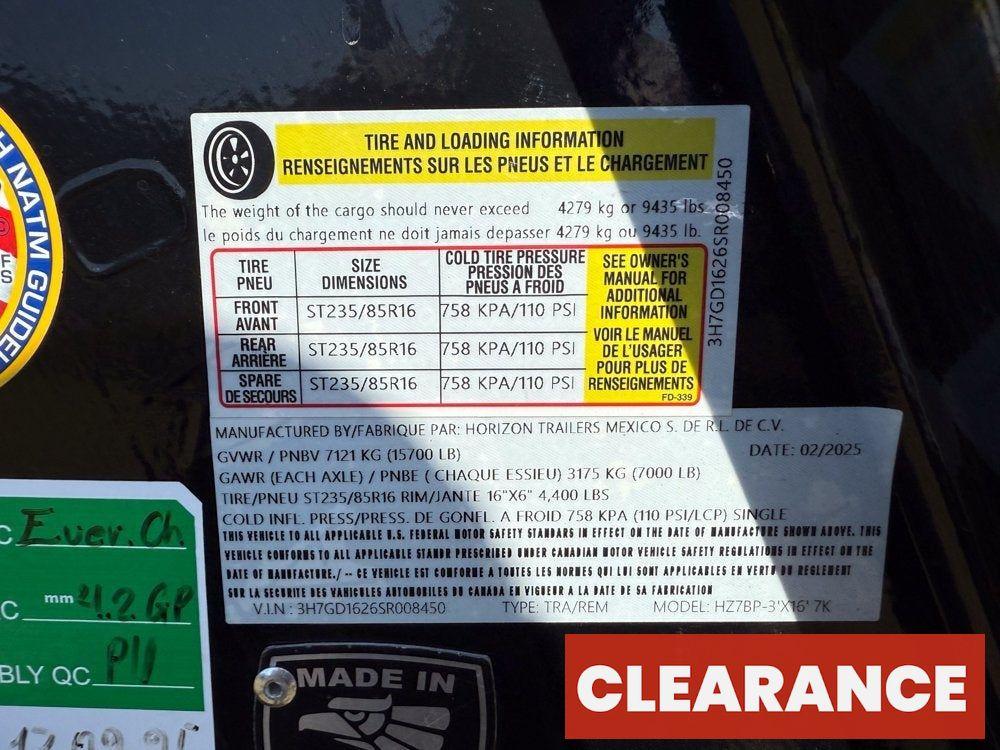

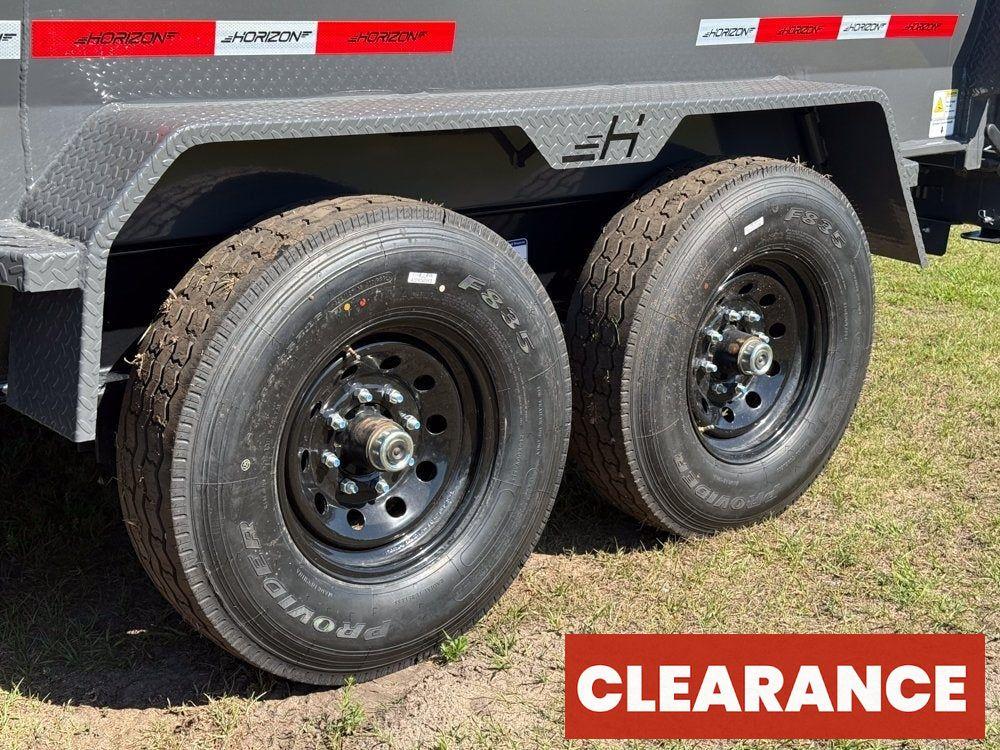

- TIRES:
- ST235/80R16 Radial
- TIRE PLY:
- 10 Ply / 14 Ply (8k)
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter EZ Lube
2 - 8k Dexter Oil Bath
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION:
- Spring
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness

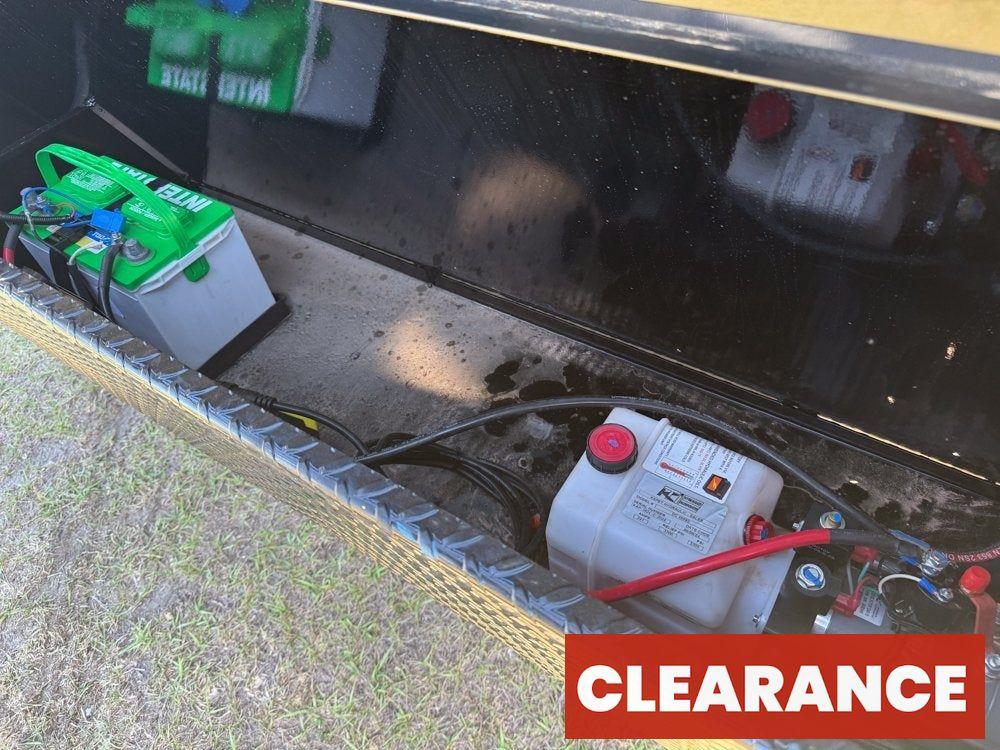

- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 110V Trickle Charger
- BREAKAWAY SYSTEM:
- Safety System w/ Cable

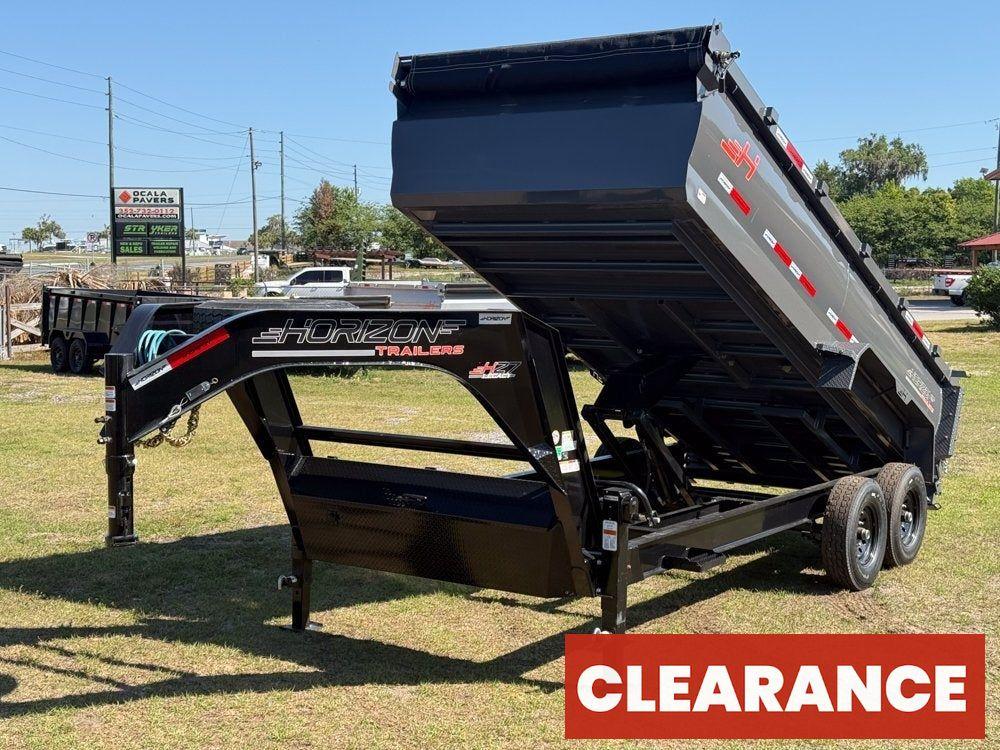

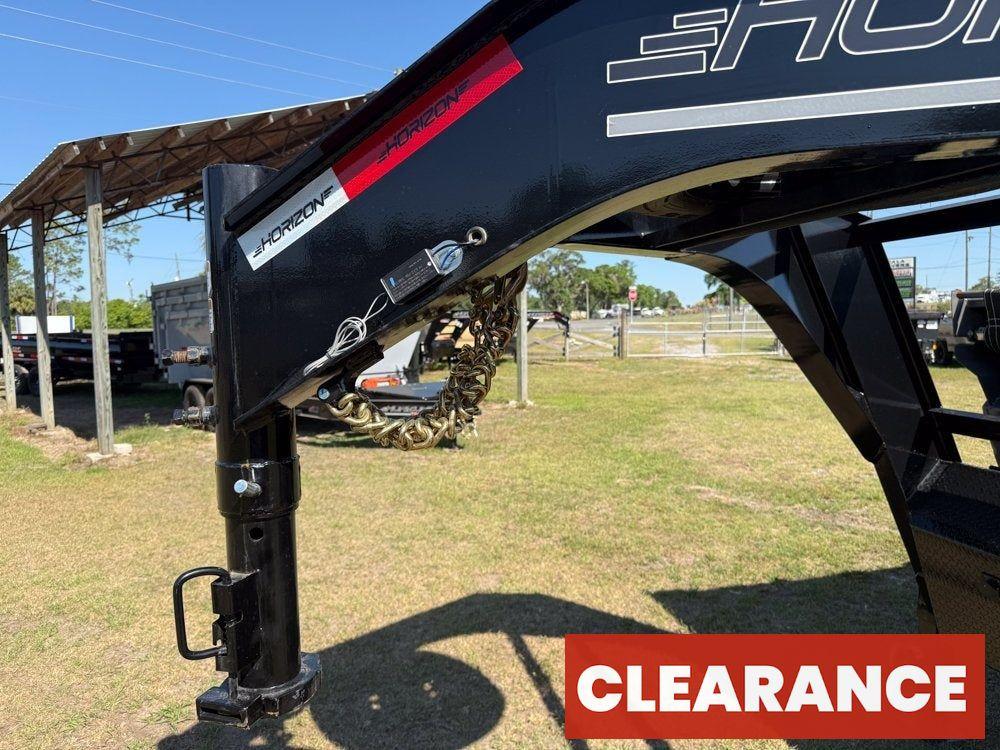

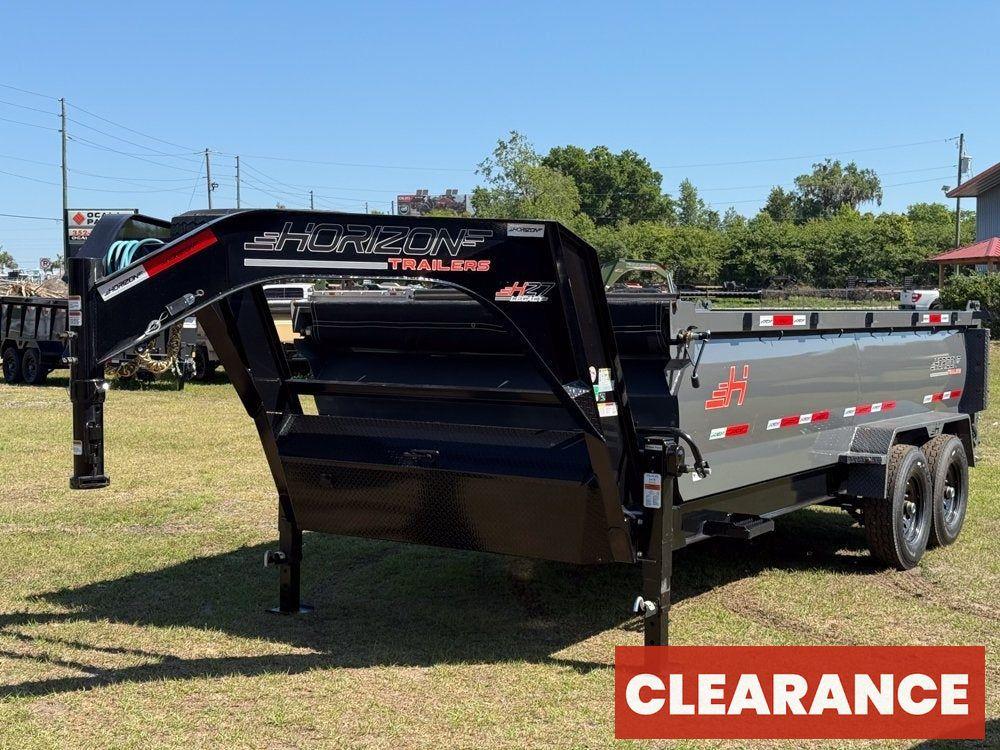

GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I Beam
- LENGTH:
- 94" From Riser
- JACKS:
- Dual 12k Side-Wind Drop-Leg Jacks
- COUPLER:
- Adjustable 2 5/16" (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (13lb/ft - 15lb/ft)
- BED FRAME:
- 3" x 5" x 1/4" Angle Iron
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- FLOORING:
- 7ga. Steel Bed
- SIDES:
- 10 Ga. Rounded Steel
- FENDERS:
- 12 Ga. Diamond Plate
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- D-RINGS:
- 4 D-Rings
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue

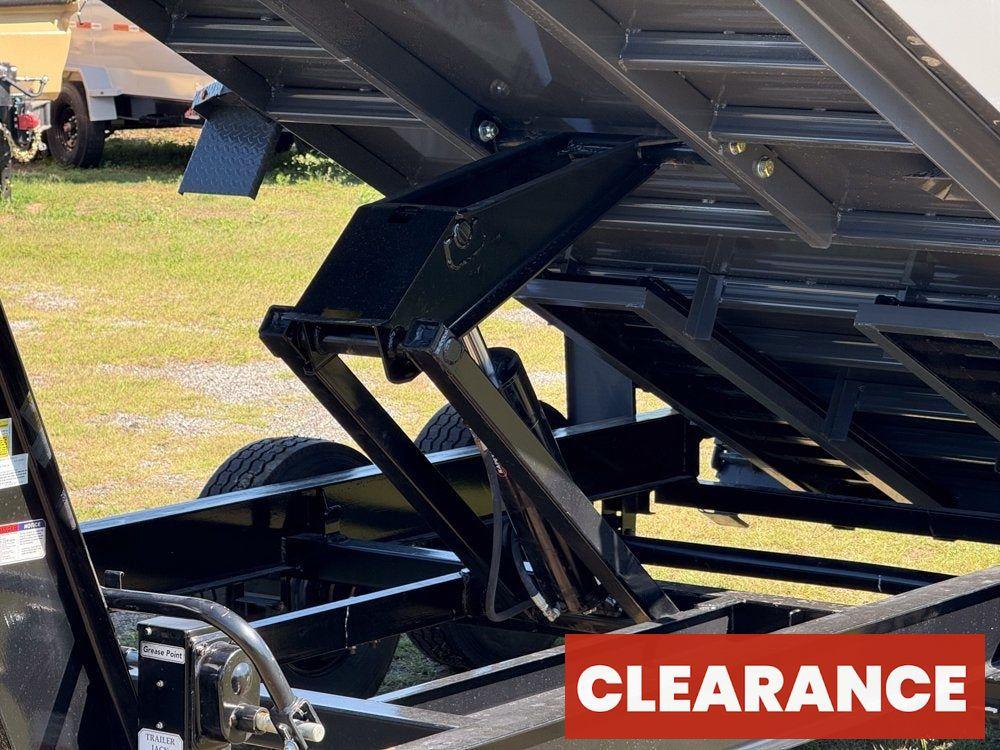

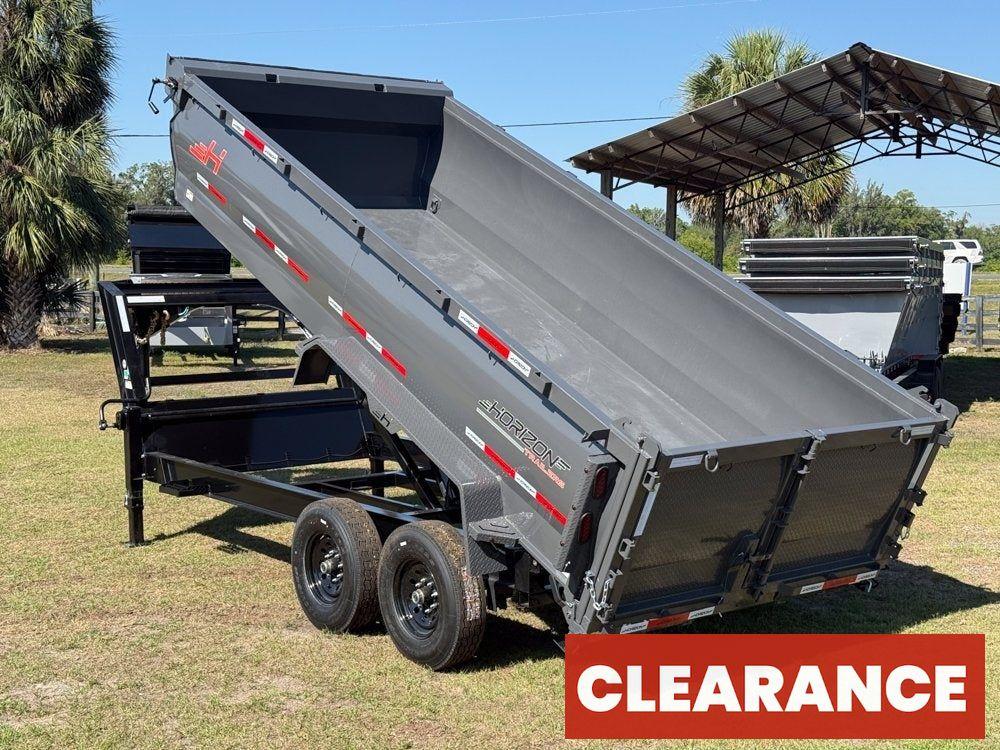

LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- 12' CYLINDER:
- 5" x 16" Single Push
- 12' CAPACITY:
- 15,000 lbs
- 14', 16'+ CYLINDER:
- 6" x 21" Single Push
- 14', 16'+ CAPACITY:
- 20,000 lbs
- DUMP ANGLE:
- 39 - 49 Degrees

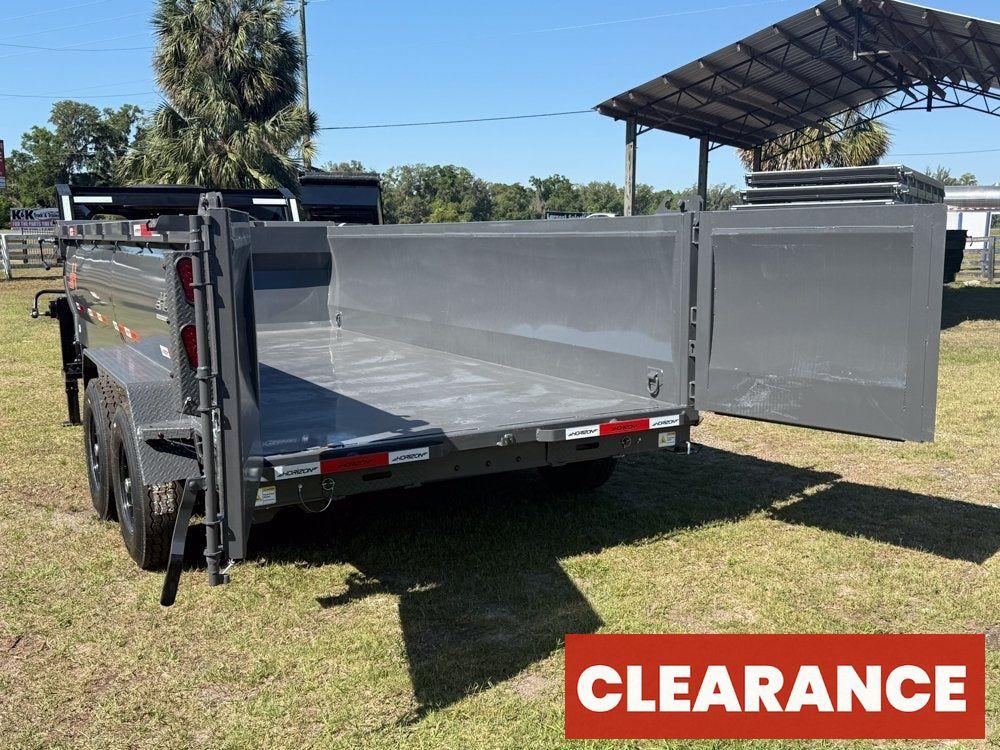

CARGO & BODY

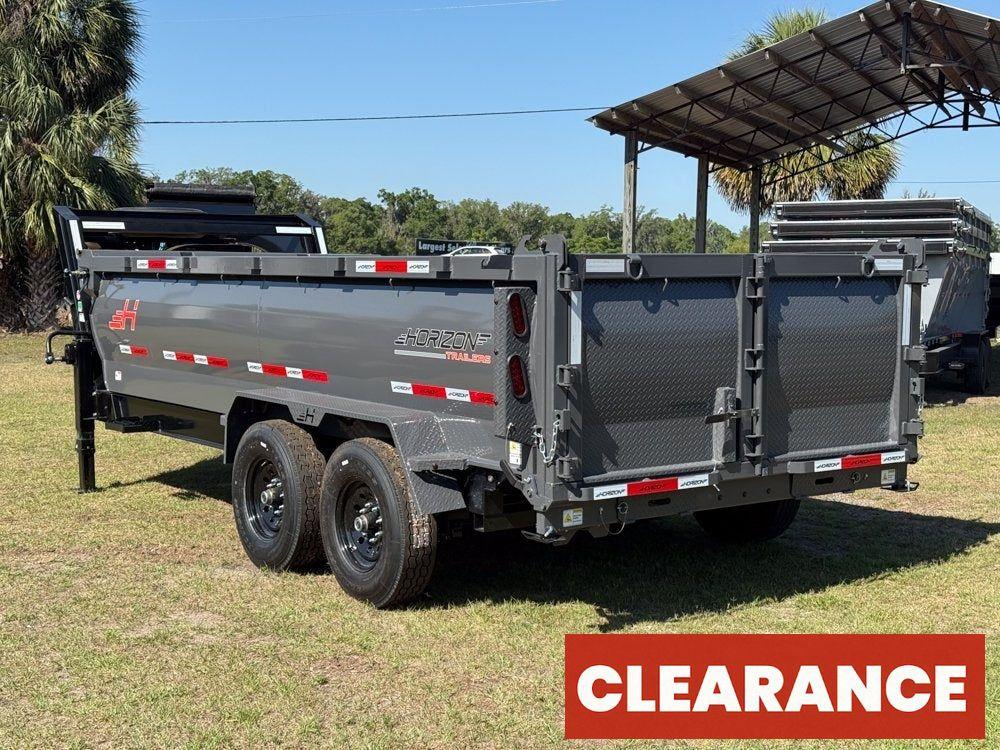

- GATE:
- 3 Way Spreader Gate
- RAMPS:
- 6'4" Slide In Ramps

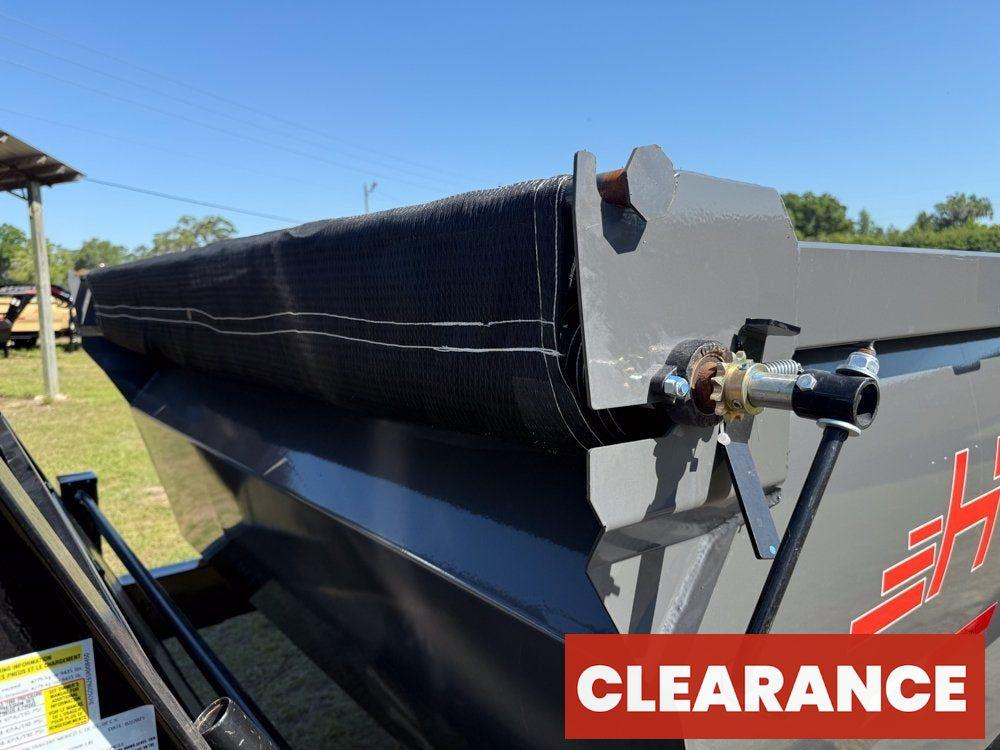

- TARP:
- Crank Style Roll-Up Tarp
- HOOKS:
- 3/8" Round J Hooks
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts
