Horizon

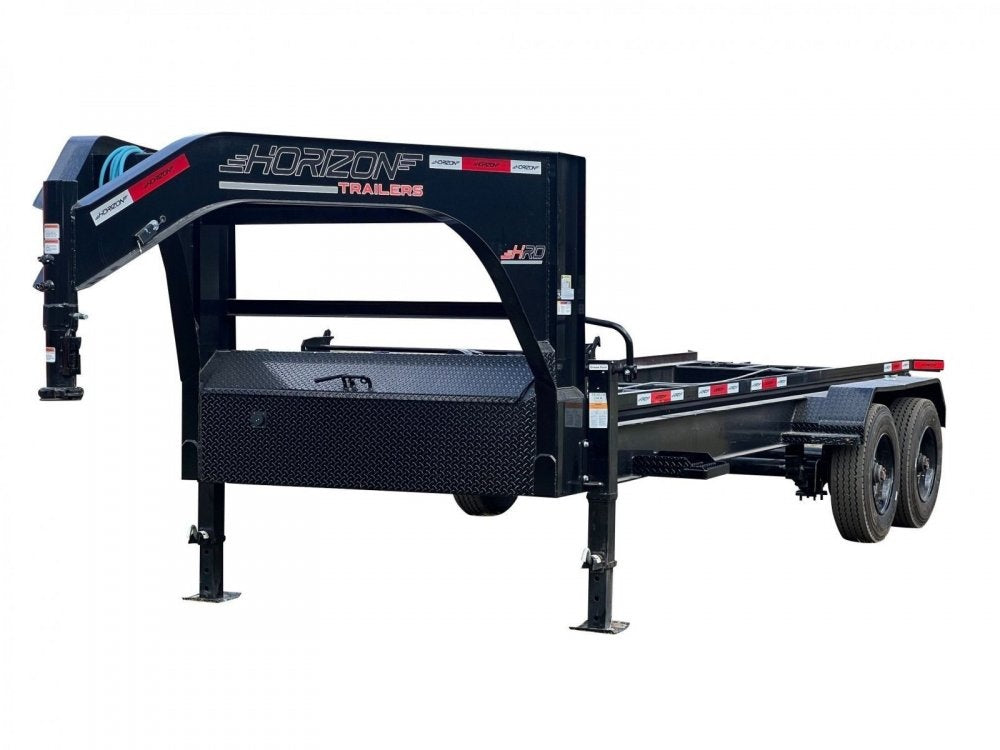

16' HRD GN Roll Off Base 2 - 10k Axles 009525
16' HRD GN Roll Off Base 2 - 10k Axles 009525
In Stock at Ocala, Florida
Stock Number:009525
Condition:Sold
Regular price
End of Year Price
$16,195.00
* Plus Tax, Title, and License
Regular price
$18,495.00
Sale price
Unit price
per
Sale Price
End of Year Price
$16,195.00
* Plus Tax, Title, and License
At a Glance
Brand
Horizon
Model
HRD
Pull type
Gooseneck
Trailer Type
Roll Off Base Trailer
GVWR
24,000
Length
16'
Axles
2
Axle Capacity
10,000
Description
83"x16' Horizon HRD Roll Off Base Trailer
Trailer Info
- In Stock Florida
- axles 2
- axle capacity 10,000
- brand Horizon
- color Black
- condition Sold
- gvwr 24,000
- length 16'
- lift type 6x21 Scissor 20k
- pull type Gooseneck
- stock number 9525
- trailer sku HRDGN1610K
- width 83"
Featured Video
Loading title...
--:--
Product Features
HD One-Piece Door and Latch System
A dumpster door must contain the load absolutely. The one-piece heavy-duty door eliminates weak seam points, and the robust latch system ensures it stays securely closed under the shifting forces of transport and the 55-degree dump angle.
20k Winchmax Winch with Dual Control
Loading is about control and power. The 20,000 lb winch has the cable strength to confidently drag a loaded dumpster, and the dual wired/wireless remotes give the operator the flexibility to position themselves safely for the best view.
Premium 10" Engineered I-Beam Neck
The neck is the critical link between truck and load. The 10-inch engineered I-beam is designed for torsional strength, providing precise control when towing and a rigid platform for the winch and lift to operate from.
Solar Panel Included to Keep You Tilting
The integrated solar panel solves the worksite power problem. It continuously charges the twin deep-cycle batteries, ensuring the hydraulic lift and winch are always ready to operate, eliminating downtime from a dead battery.
10k Oil Bath Axles with Super Single Tires
This is your foundation for capacity. The 10k oil bath axles are built for high-load, high-mileage service, while the 18-ply super single tires provide a wider footprint and greater puncture resistance than duals, boosting both stability and durability.
3-Stage Telescopic Lift System
The 12-ton 3-stage cylinder is the core of the system. Its staged design and optimal leverage point multiply force efficiently, translating to reliable, long-term lifting power with less strain on the pump and frame.
Product Details
DIMENSIONS
- AVAILABLE LENGTHS:
- 14', 16', 20'
- DECK WIDTH:
- 61"
- DECK HEIGHT:
- 30"
- LOADING ANGLE:
- 60°
- DUMP ANGLE:
- 55°
- BOTTOM RAIL DECK WIDTH:
- 61"
WEIGHT RATINGS
- GVWR:
- 25,000 lbs
- GAWR:
- 10,000 lbs
- AXLE COUNT:
- 2
- AXLE RATING:
- 10,000 lbs (Super Singles)
FRAME CONSTRUCTION
- MAIN FRAME:
- 10" I-Beam (17 lbs/ft)
- BED FRAME:
- 2" x 5" x 7ga. Tubing
- CROSSMEMBERS:
- 2" x 5" x 7ga. Crossmembers
- SIDES:
- 3" x 4" x 3/8" Angle Iron
- FENDERS:
- Mega Diamond Plate Steel Fenders
- SIDE STEP:
- Side Step on Both Sides
HDZ BIN CONSTRUCTION
- BIN FRAME:
- 1-1/2" x 3" x 7ga. Tube Frame
- BIN FLOORING:
- 14ga. Steel Floor
- BIN SIDES:
- Reinforced Steel (14ga.)
- TOP RAIL:
- 3" x 4" x 7ga. Tubing
- D-RINGS:
- 4 D-Rings Welded Inside Box
- REAR DOOR:
- 1 Heavy Duty Rear Door
RUNNING GEAR
- AXLE TYPE:
- 10K Lippert Electric Brake Auto Adjust S-Cam Super Single Oil Bath Spring Axles (8 on 6.5")
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
- TIRES:
- ST235/75R17.5, Super Single 10,000 lbs
- RIMS:
- 17.5" Black Mod Wheels
- SUSPENSION:
- Spring
- WINCH:
- 20K Steel Cable WinchMax Winch
HYDRAULIC SYSTEM
- SYSTEM:
- 2 Button Hydraulic - Power Up / Power Down
- HOIST 14':
- 20K Hoist w/ 6" x 21" Single Push Cylinder
- HOIST 16':
- 20K Hoist w/ 6" x 40" Single Push Cylinder
- PUMP:
- K11 LV Hydraulic Pump
- CONTROLLER:
- K1 Control Cable
