At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features

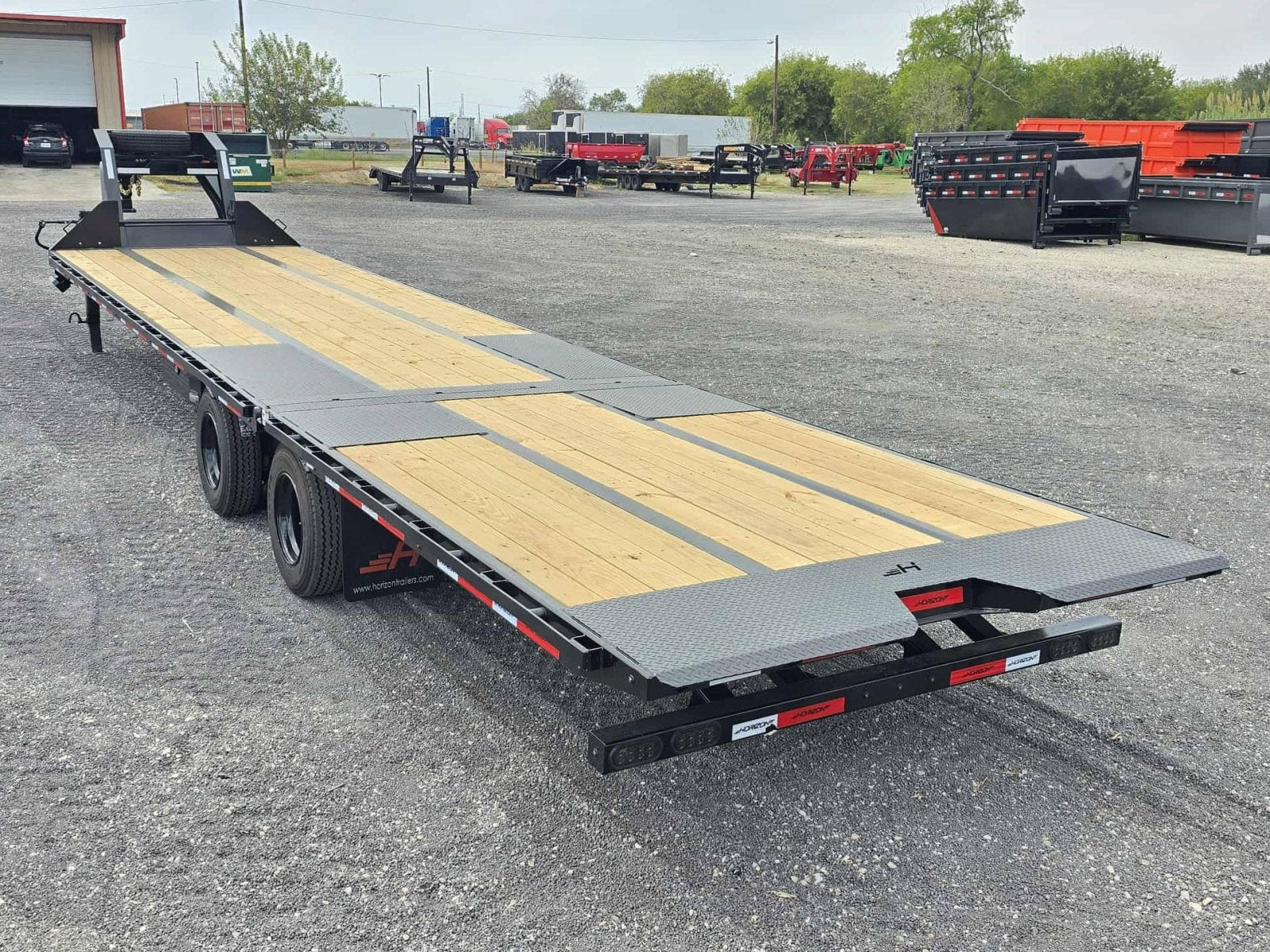

Heavy-Duty Frame & Deck
Built on a 14" I-Beam (22 lbs/ft) with 3" I-Beam crossmembers spaced every 16", this trailer offers a sturdy wood deck and a 4½" torque tube (30'+) for superior load support. Deck height is 35" for easy loading and transport.

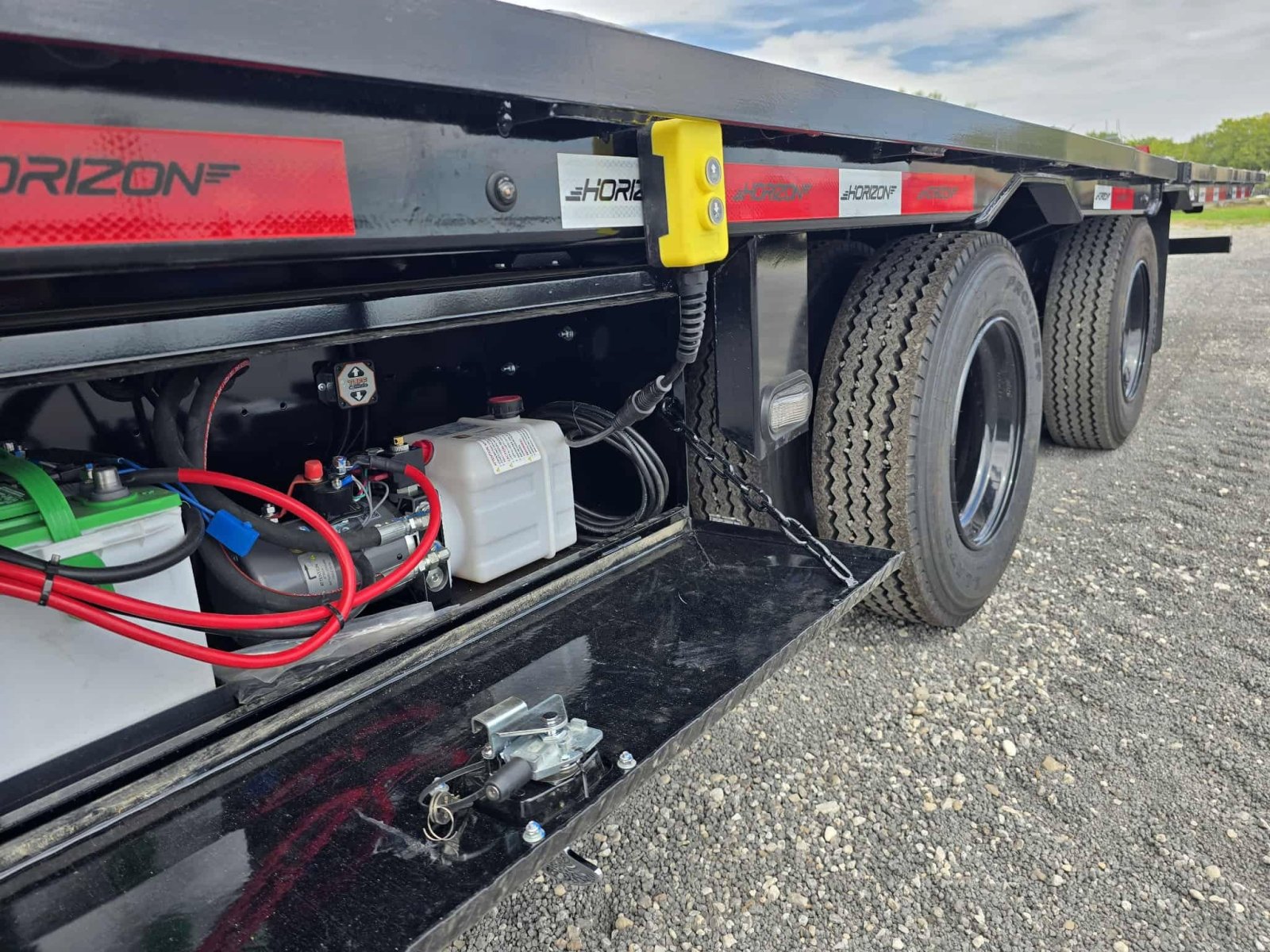

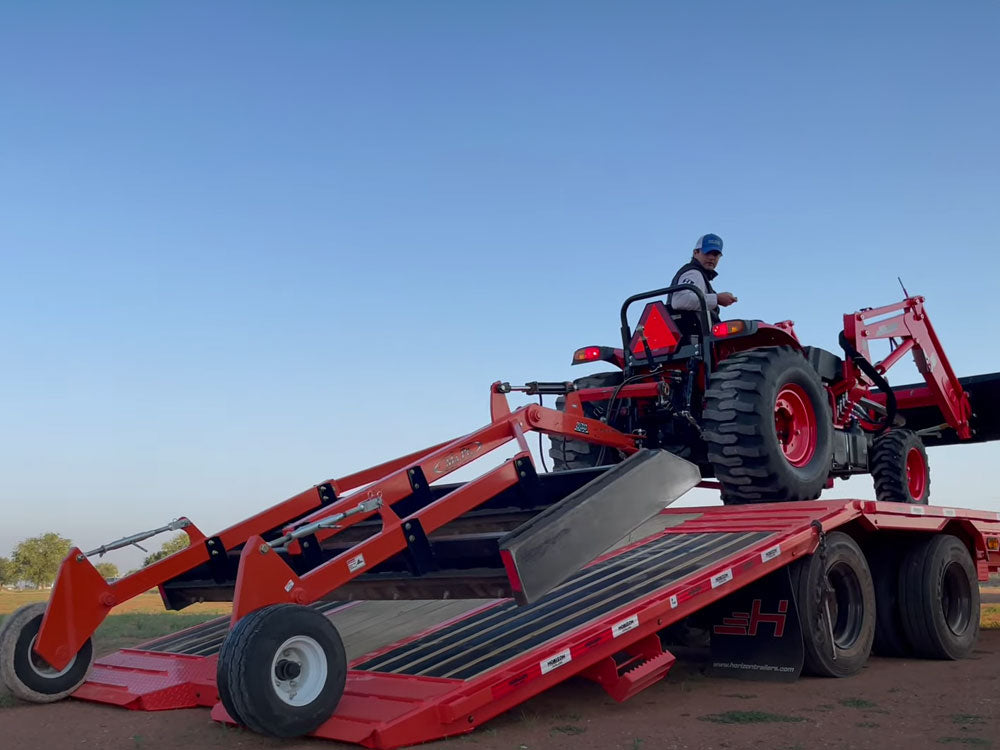

Powerful Hydraulic System
Equipped with a KTI 12V hydraulic pump, the HYZ trailer delivers efficient lifting capabilities with a 10,000 lb lift capacity. The hydraulic system, powered by 2 - 4" x 16" single push cylinders, provides smooth and controlled operation for easy and precise loading and unloading.

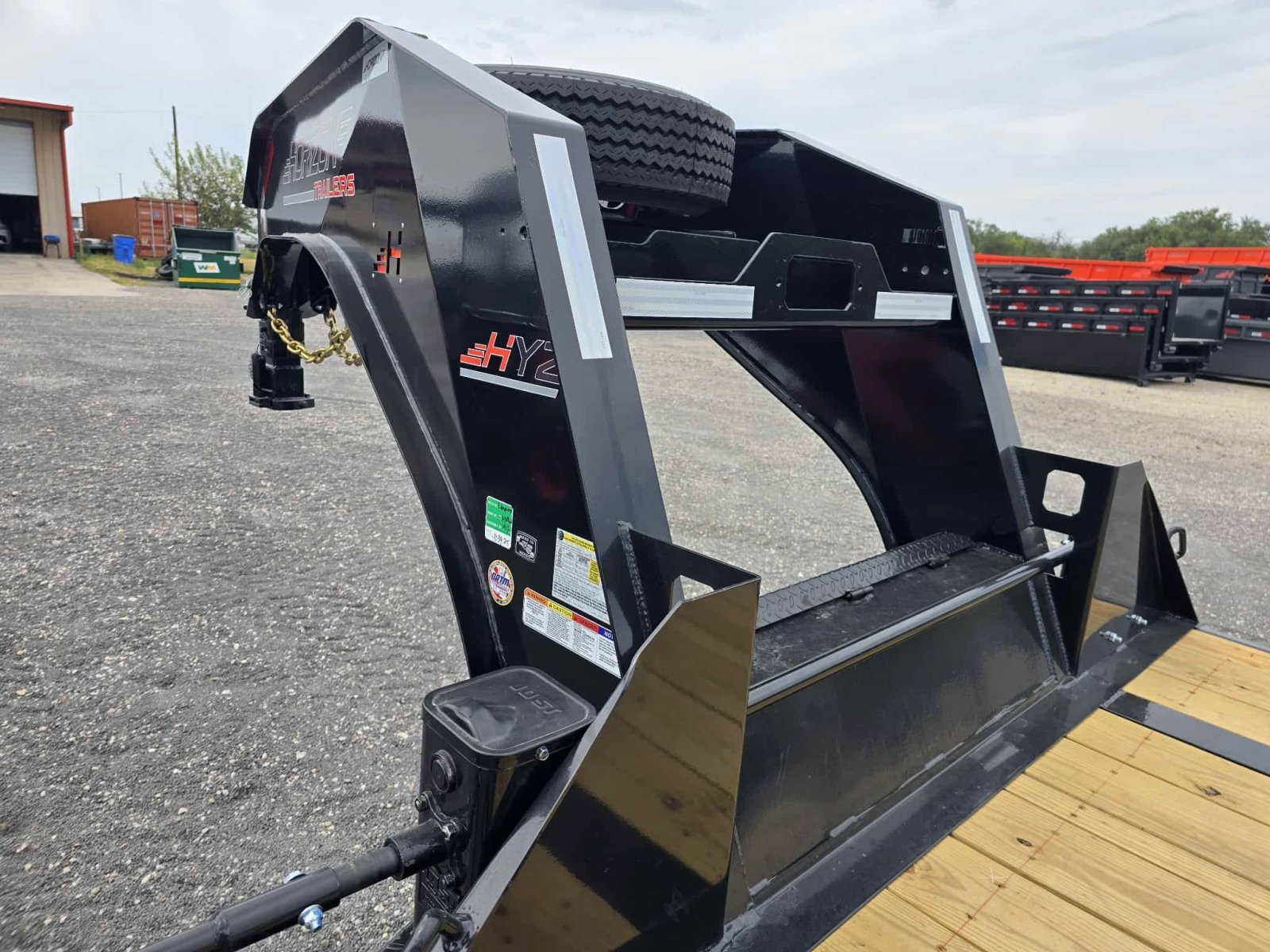

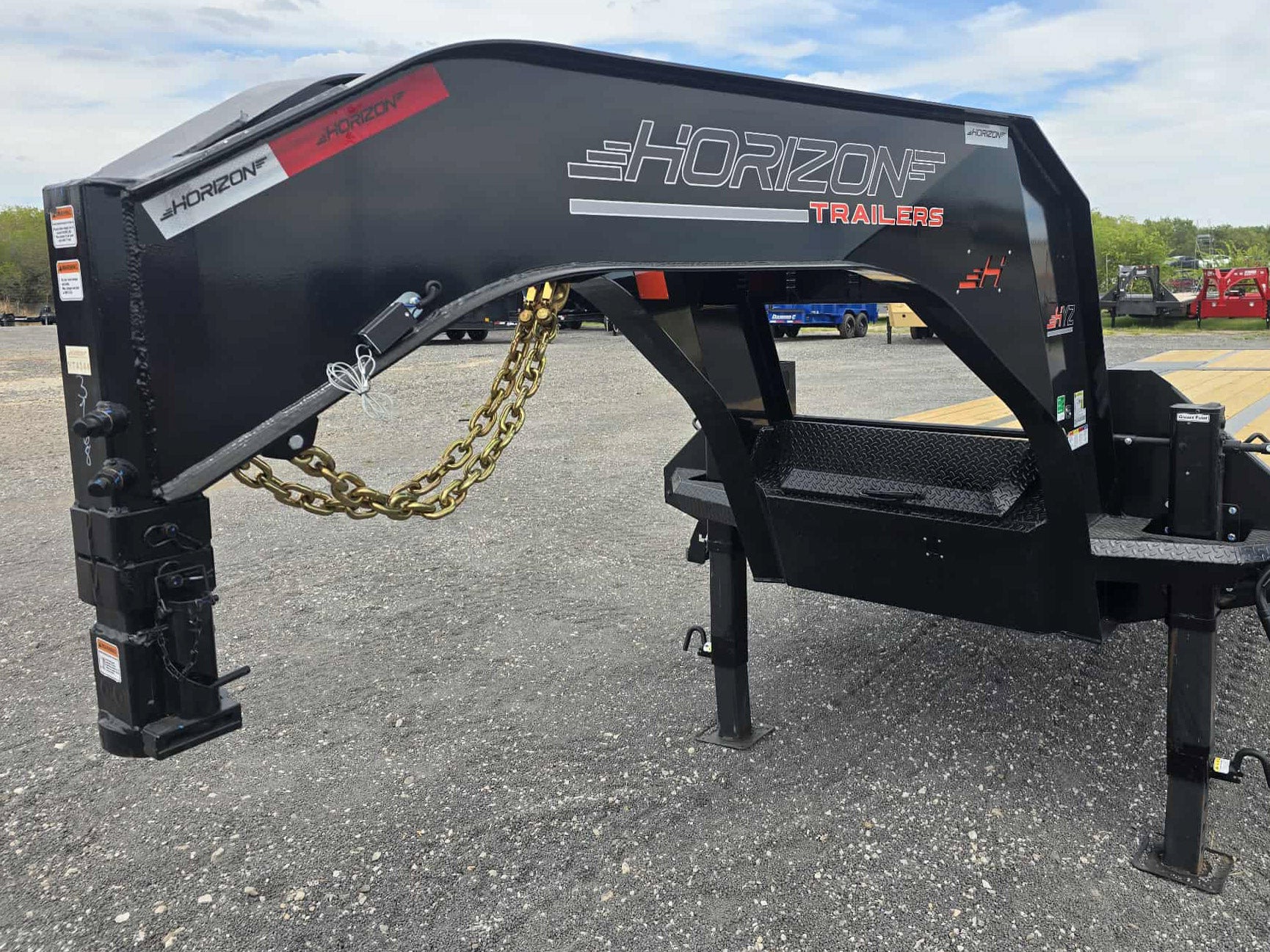

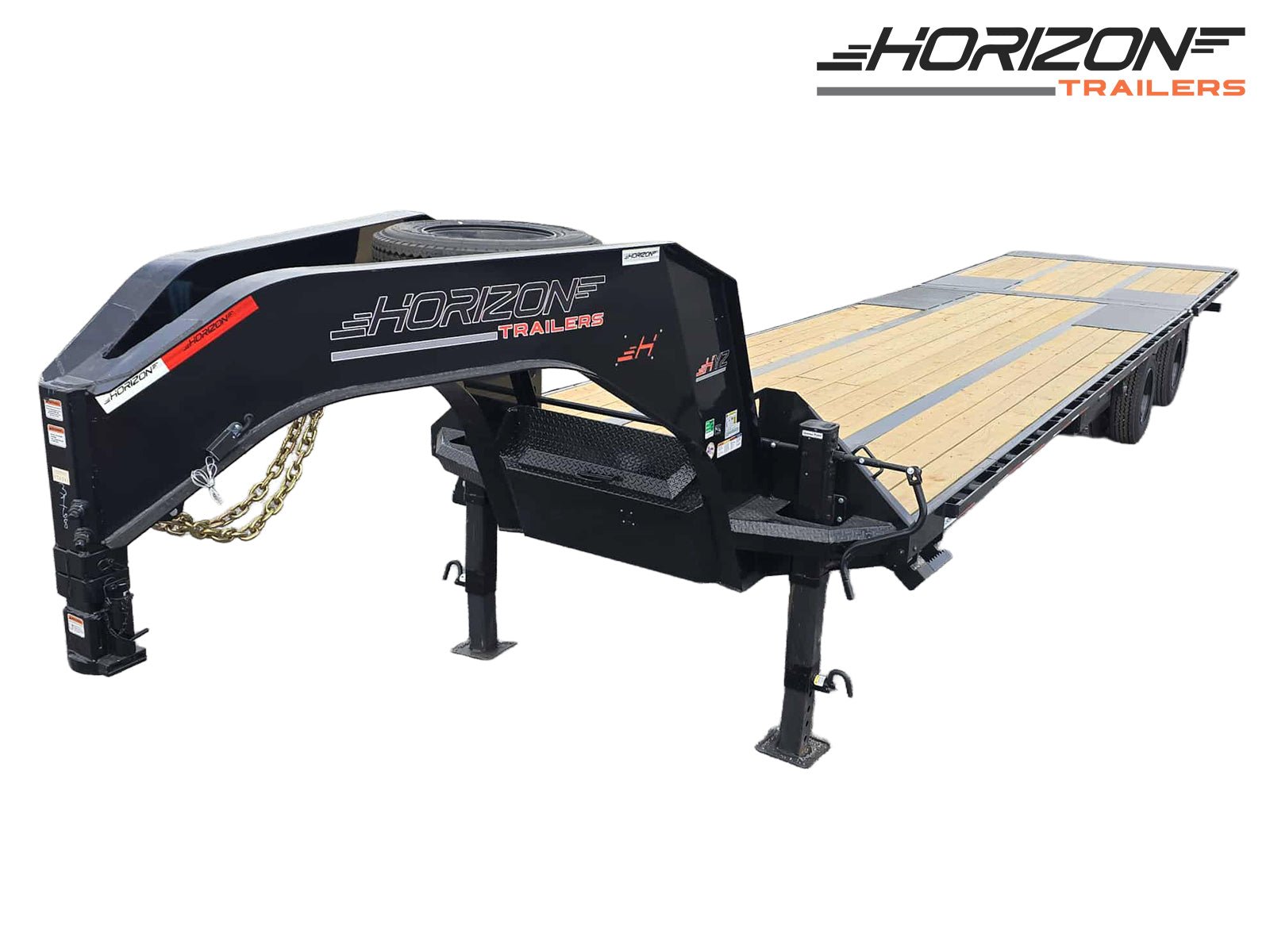

Gooseneck & Coupler

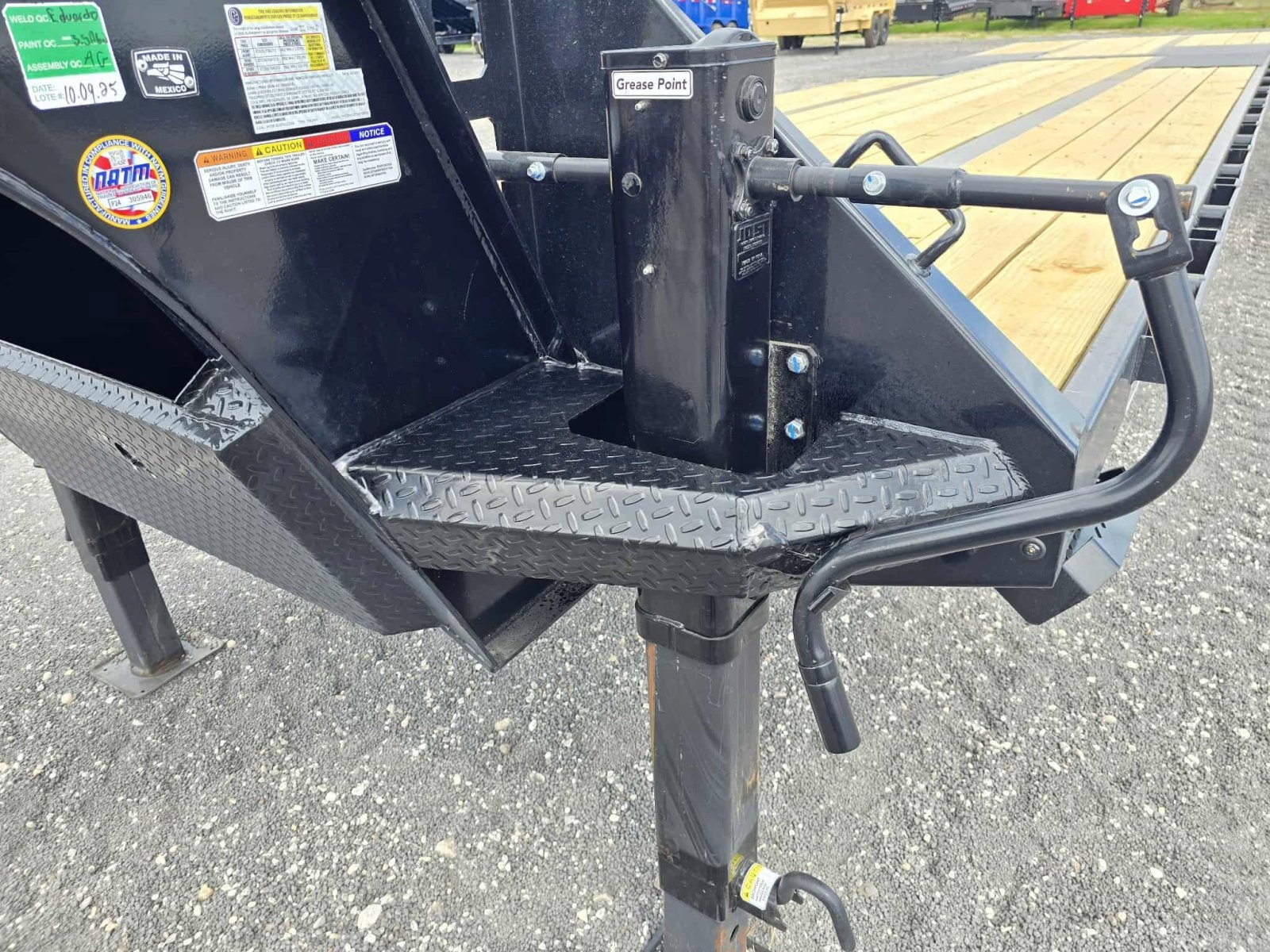

Features a curved engineered I-beam gooseneck (108" long from behind riser, 70" height from underneath neck) with an adjustable 3" coupler rated for 40,000 lbs. Front support includes two 17,500 lb Jost 2-speed drop jacks.

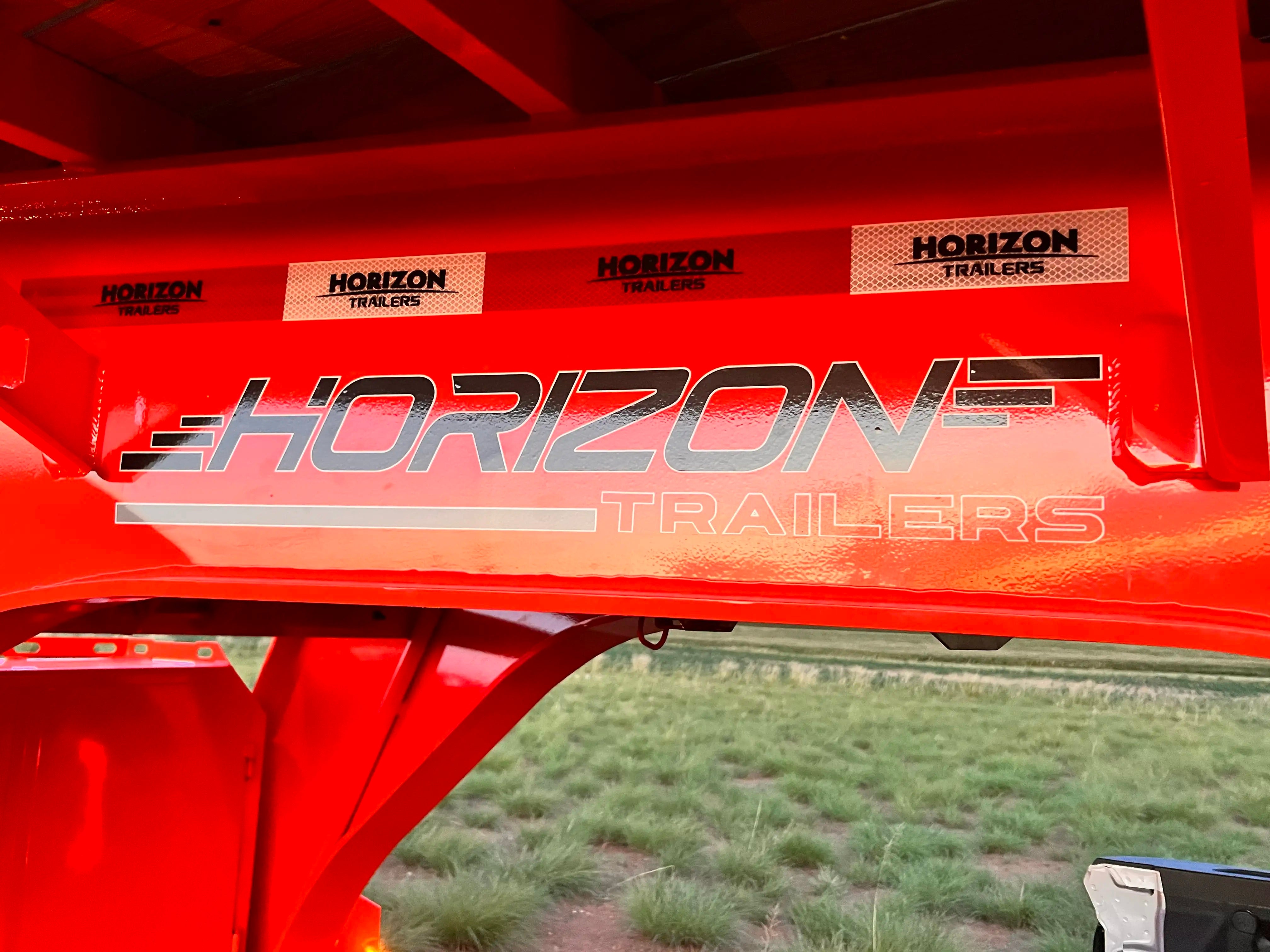

DURABLE POWDER COAT FINISH
Finished with a high-quality powder coat and steel grit blasted prep, the HYZ trailer is built to withstand the elements and resist corrosion. Its durable construction and weather-resistant finish ensure long-lasting performance, maintaining the trailer's appearance and structural integrity over time.

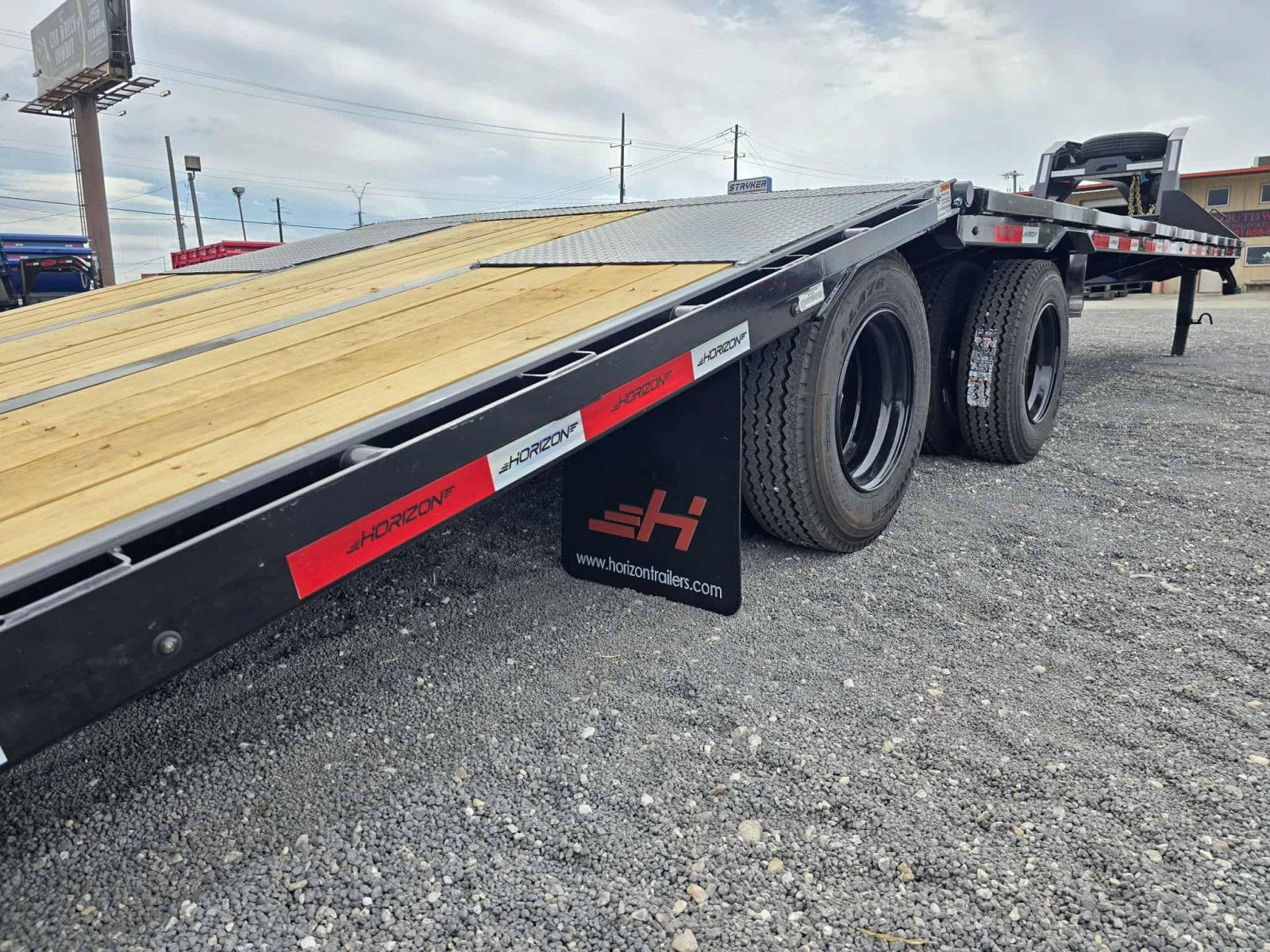

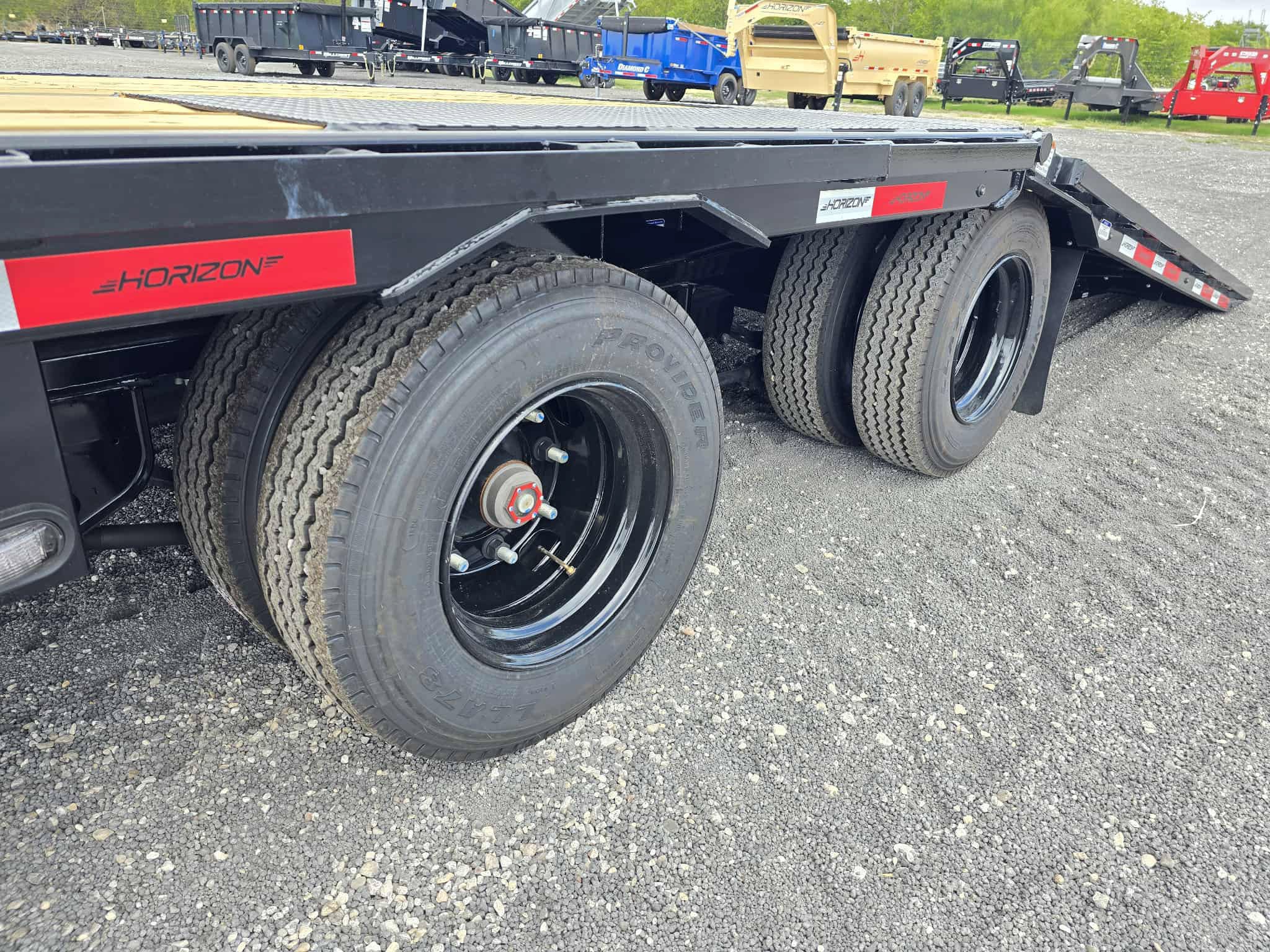

Axles and Tires
Two 16k Electric Brake dual oil bath axles paired with HD double slipper mechanical suspension ensure stability and reliable handling. Tires are 18-ply, ST235/75R17.5, mounted on 17.5" black mod wheels.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 30' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 35"
WEIGHT RATINGS
- GAWR:
- 16k
- GVWR:
- 40k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 1/2" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 108" Long
- COUPLER:
- Adjustable 3" Coupler (40,000 lbs)

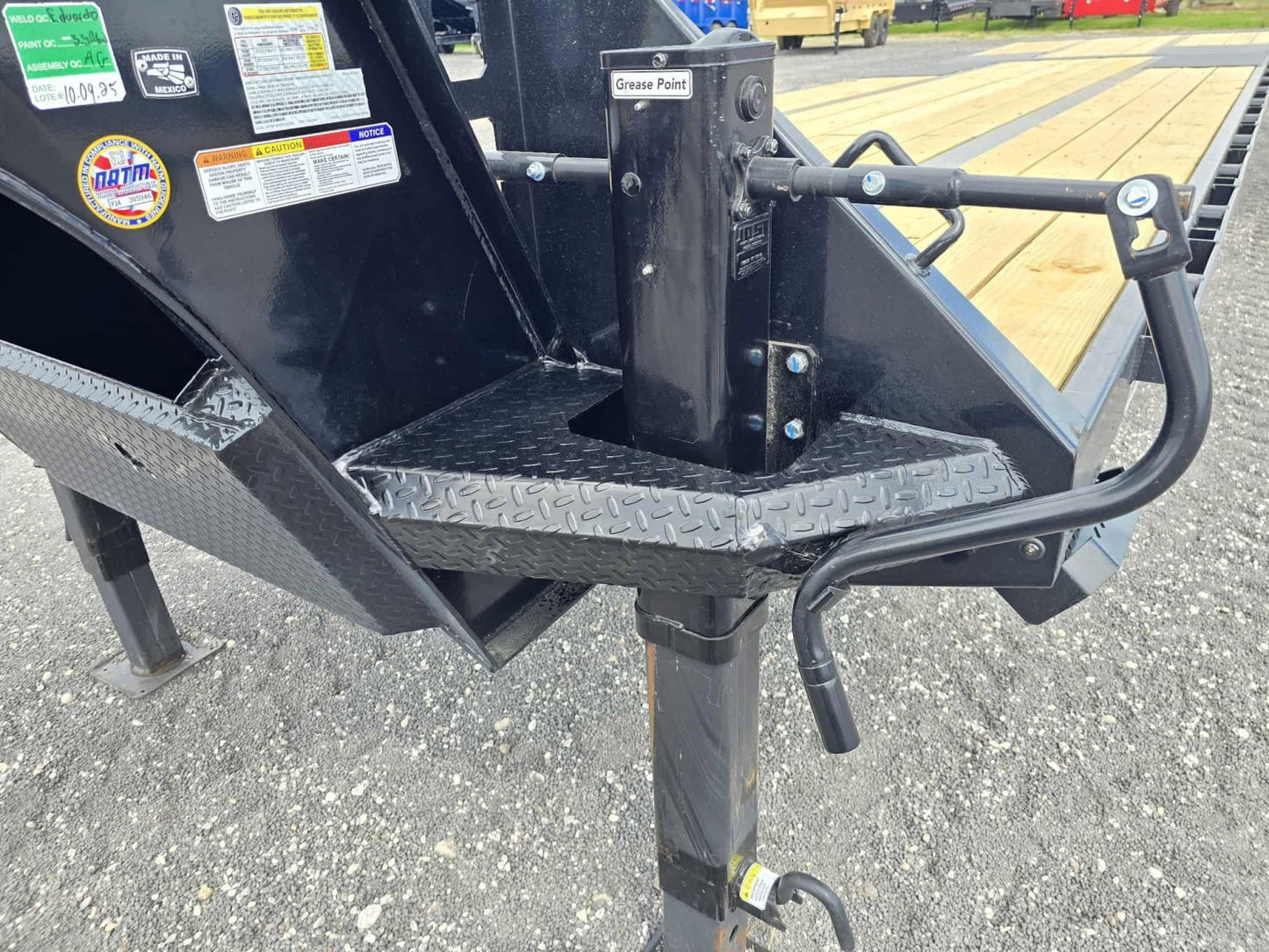

- JACKS:
- 2 Side Wind Jost 2 Speed Drop Jack (17,500 lbs)

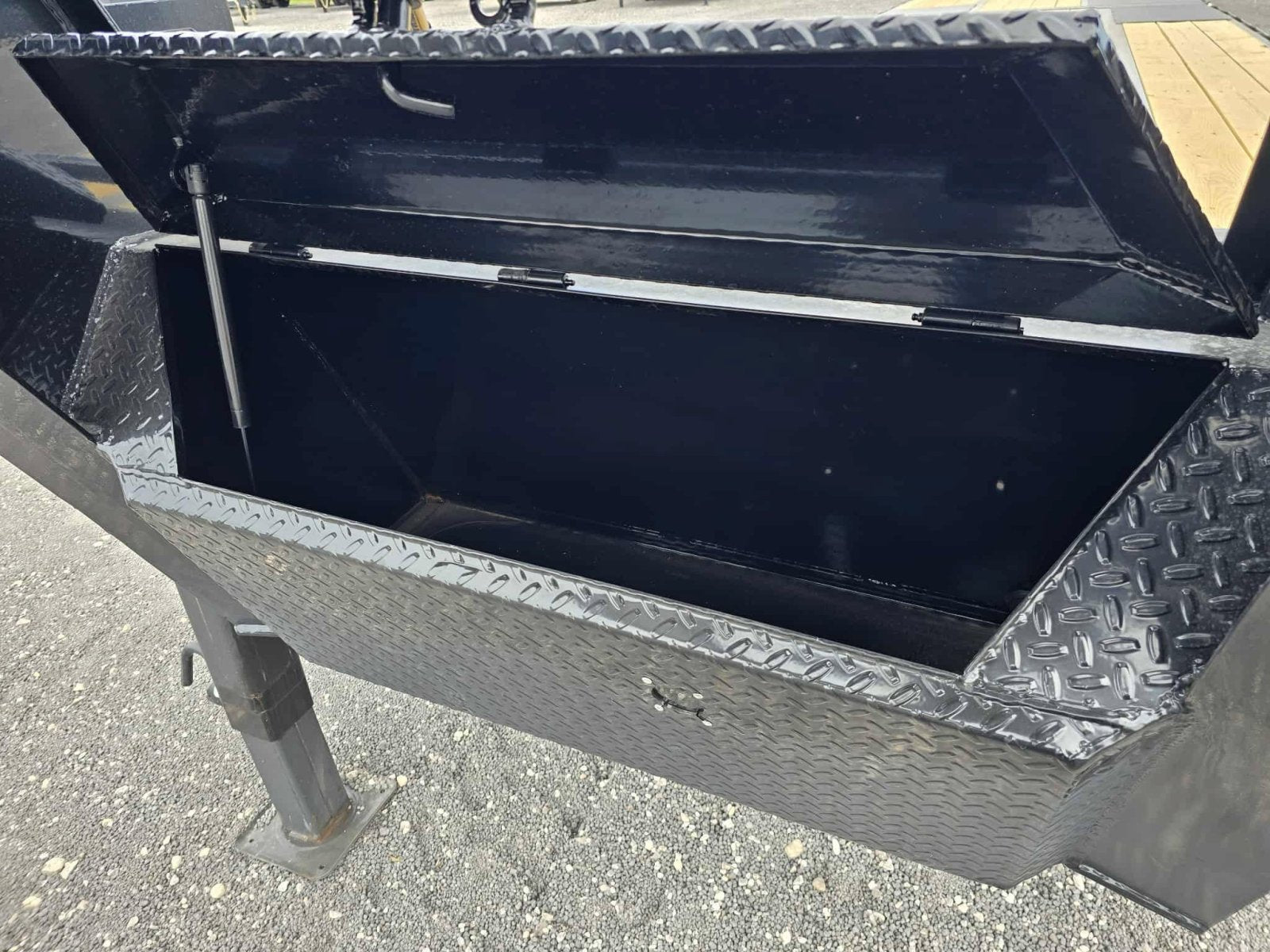

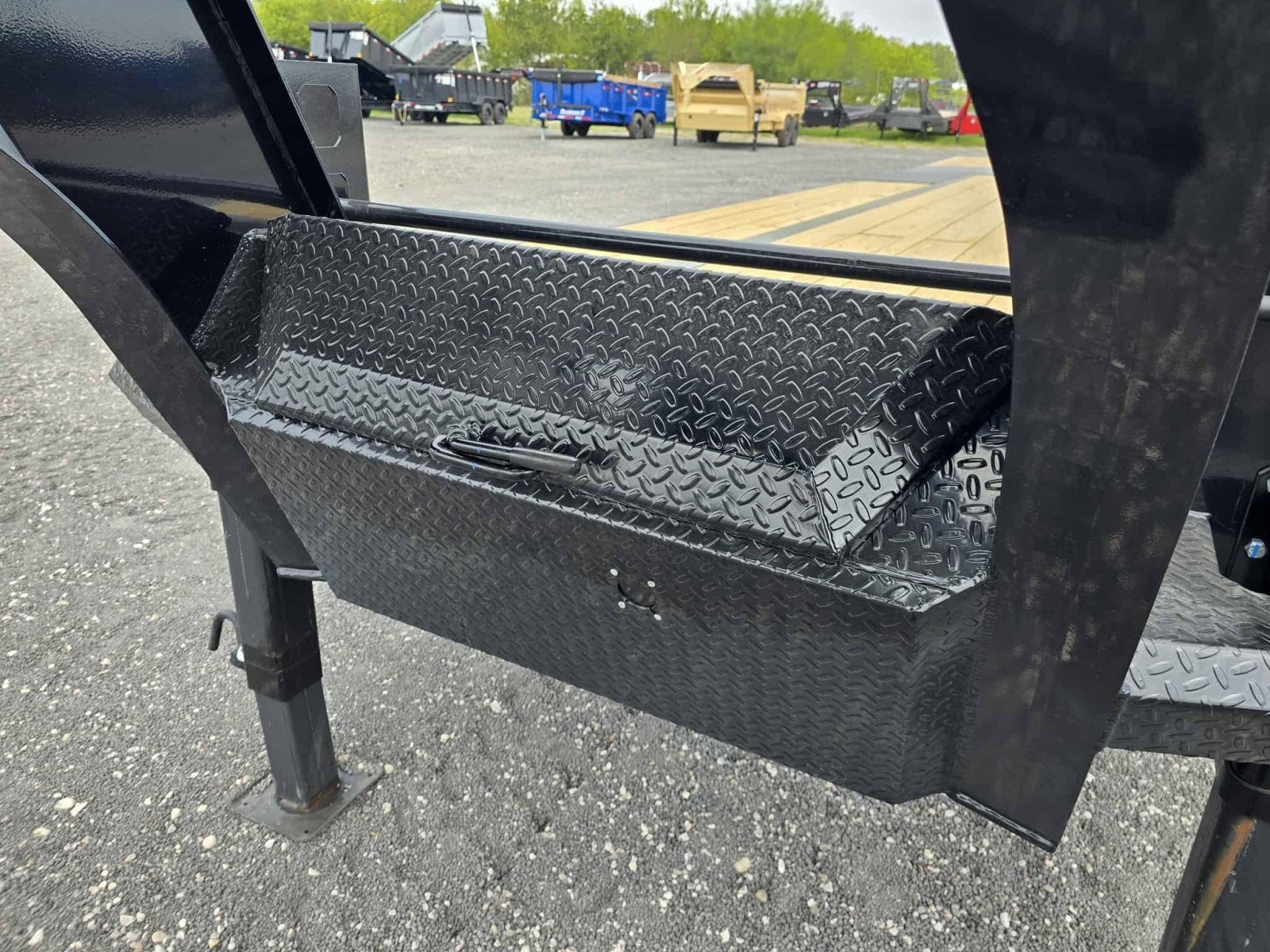

- TOOLBOX GN:
- Mega Lockable Toolbox

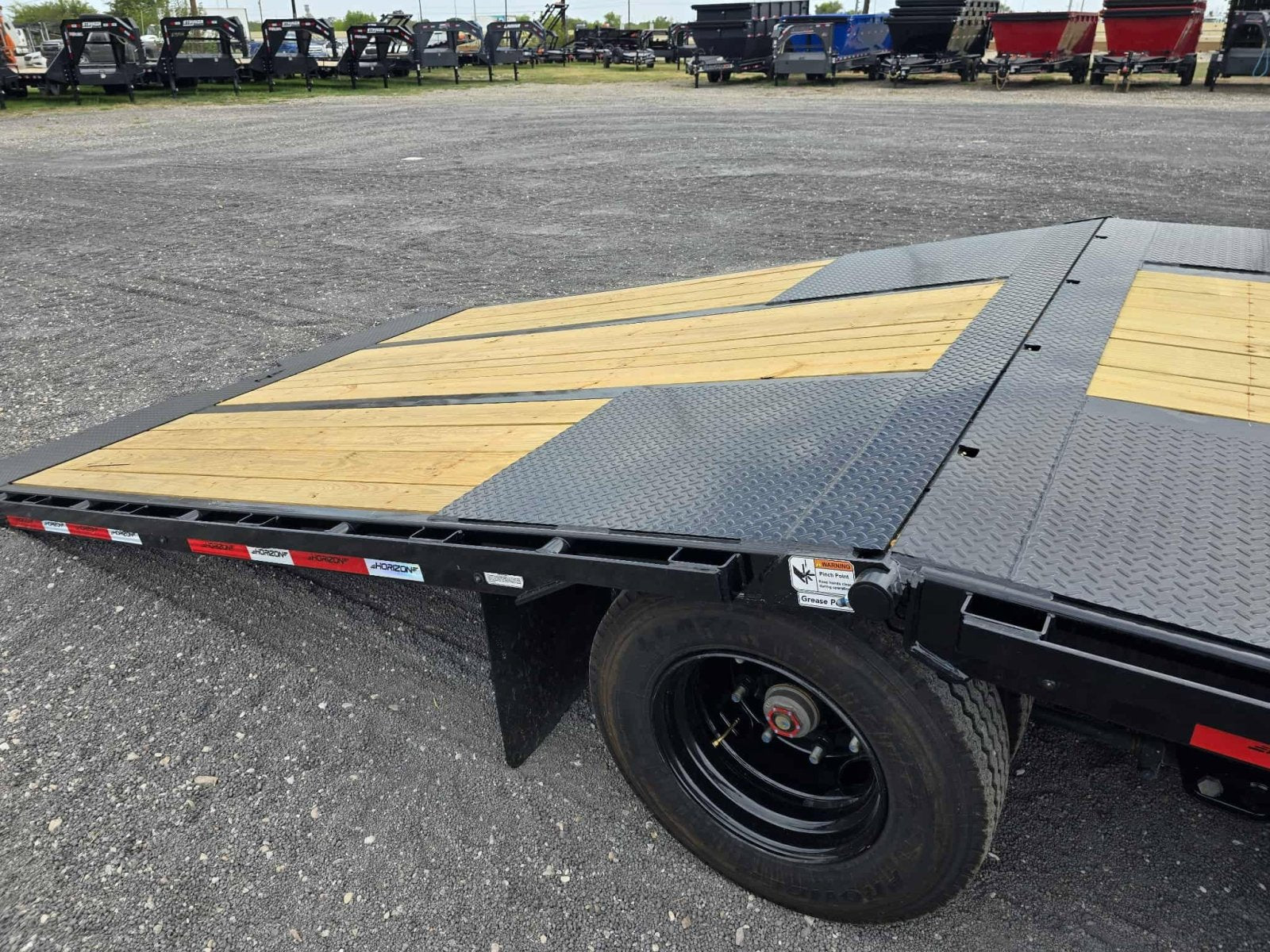

DECK & LOADING
- DECK TYPE:
- Wood
- RAMPS:
- 12' Hydraulic Dovetail
- SWAY CONTROL:
- 4 1/2" Torque Tube (30'+)
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, ST235/75R17.5, 18 Ply
- RIMS:
- 17.5" Black Mod Wheels
- AXLE TYPE:
- 2 - 16k Electric Brake Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 10.83"
- SUSPENSION TYPE:
- HD Double Slipper Mechanical Suspension
HYDRAULIC SYSTEM
- SYSTEM:
- 2 Button - Power Up/Power Down
- PUMP:
- KTI 12V Hydraulic Pump
- CYLINDERS:
- 2 - 4x16" Single Push Cylinders
- LIFT CAPACITY:
- 10,000 lbs
FRAME & CONSTRUCTION
- MAIN FRAME:
- 14" I-Beam (22lbs/ft)
- CROSSMEMBERS:
- 3" I-Beam, 16" Spacing
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
