Featured Video
Product Features

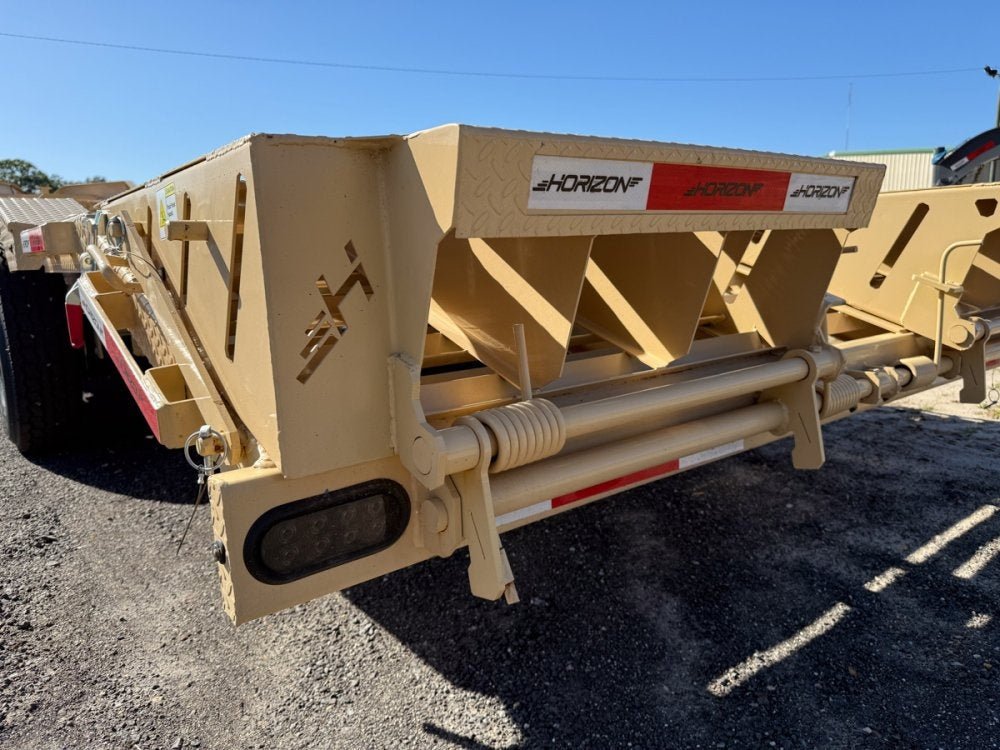

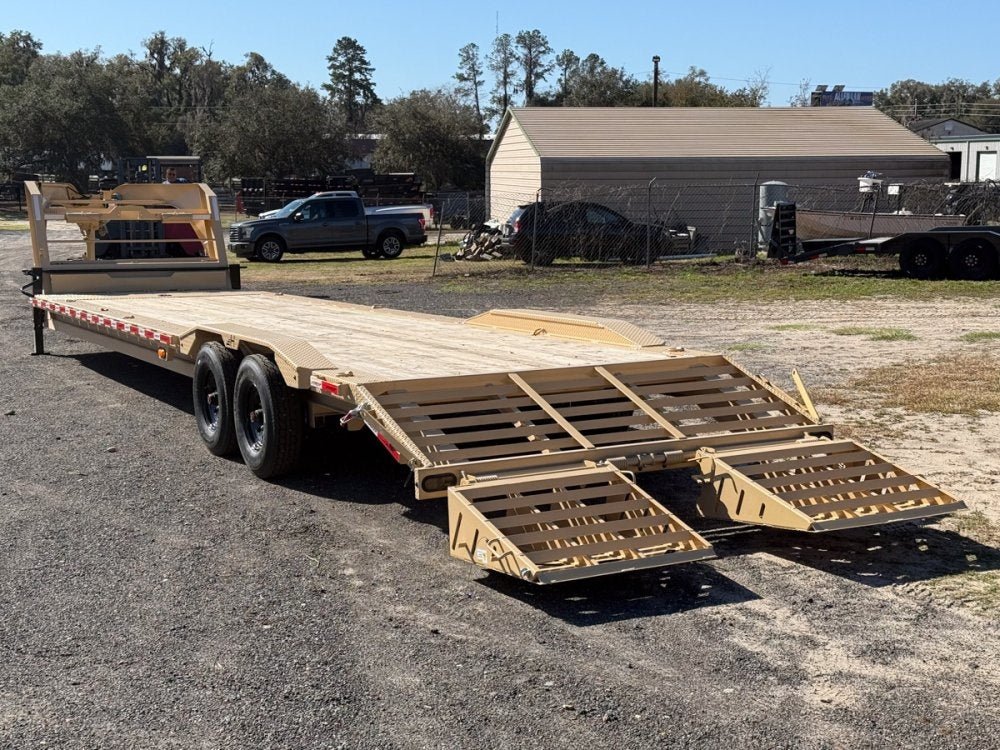

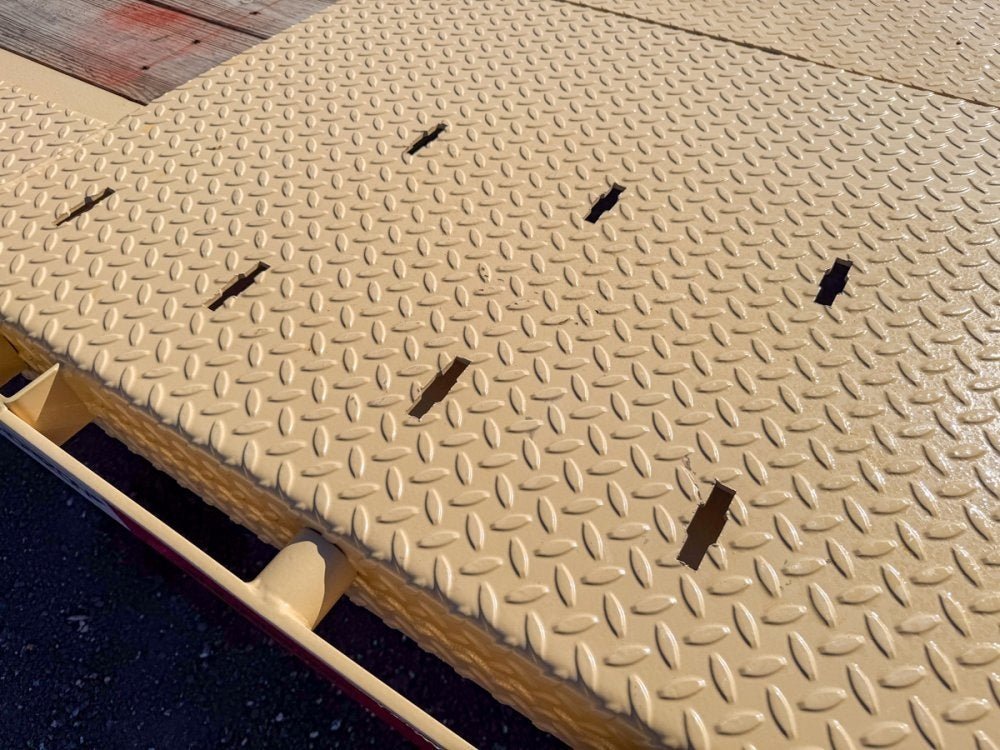

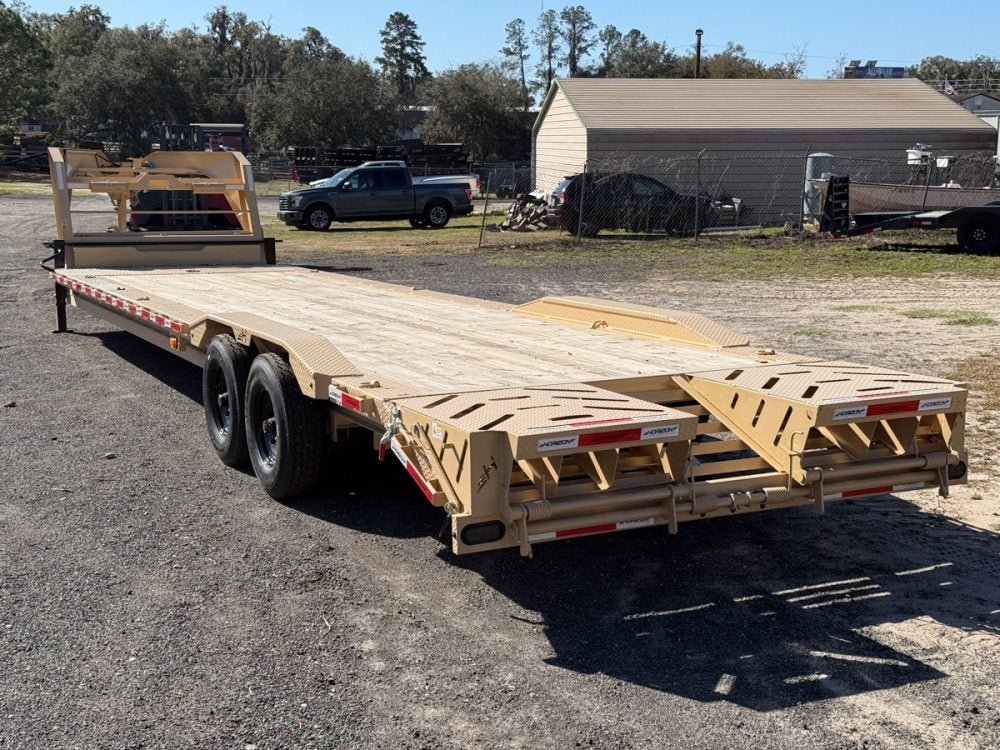

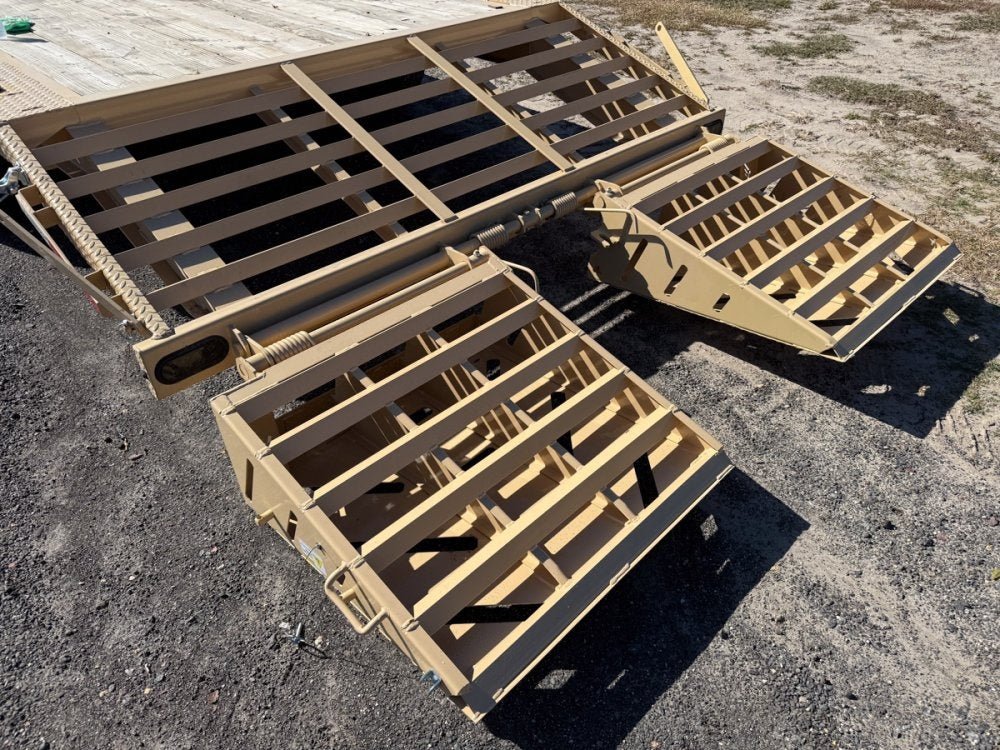

Stand-Up Ramps
Available with an optional stand-up ramp package. This includes a 2-foot dovetail and 24-inch wide by 5-foot-6-inch long ramps that store in an upright position at the rear of the trailer when not in use.
Heavy-Duty 4.5" Torque Tube (30'+)
Models 30 feet and longer are equipped with a heavy-duty 4.5-inch torque tube. This cross-axle structural component significantly increases frame rigidity and towing stability for extended-length trailers.
10" I-Beam Frame with 30" Deck Height
Built on a 10-inch I-beam main frame with a 30-inch deck height. This provides a balanced combination of heavy-duty strength and optimal loading clearance for larger equipment.
Axle Options from 7k to 10k Oil Bath
Configurable with Dexter axles ranging from 7k to 10k capacities. The top-tier option features 10k oil bath axles with electric brakes, paired with 17.5" wheels and 18-ply tires.

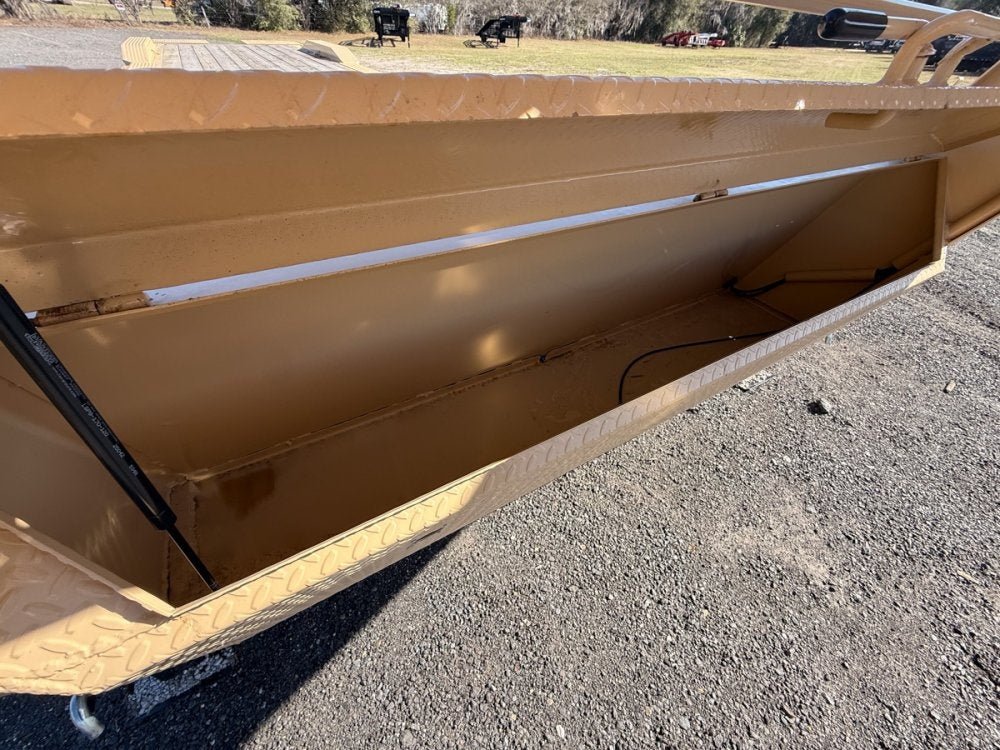

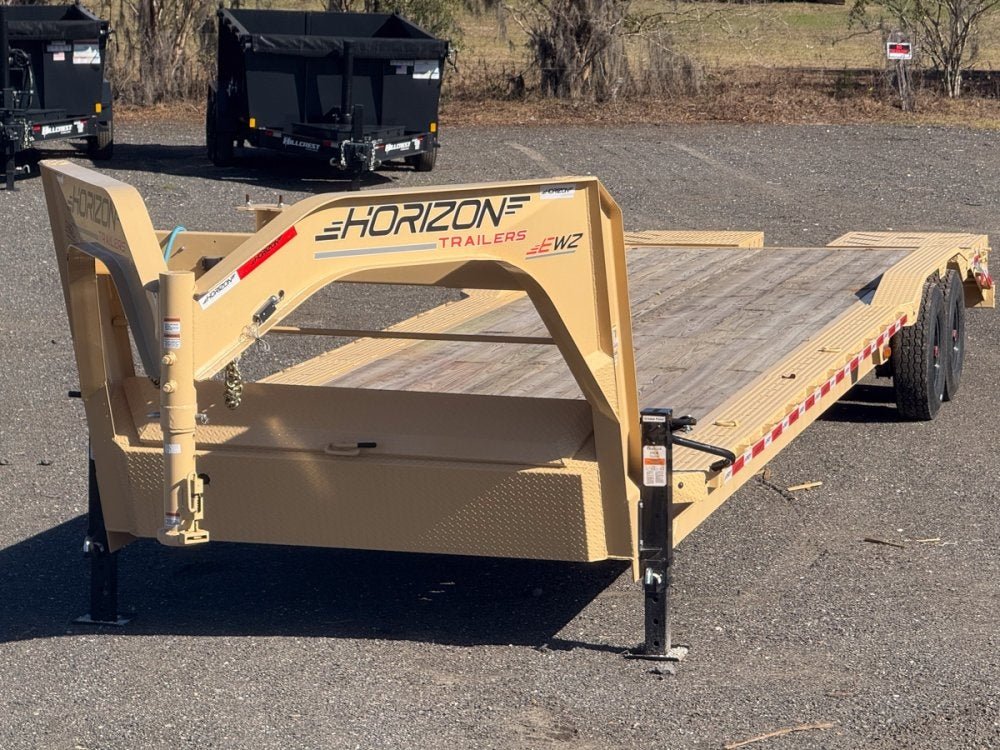

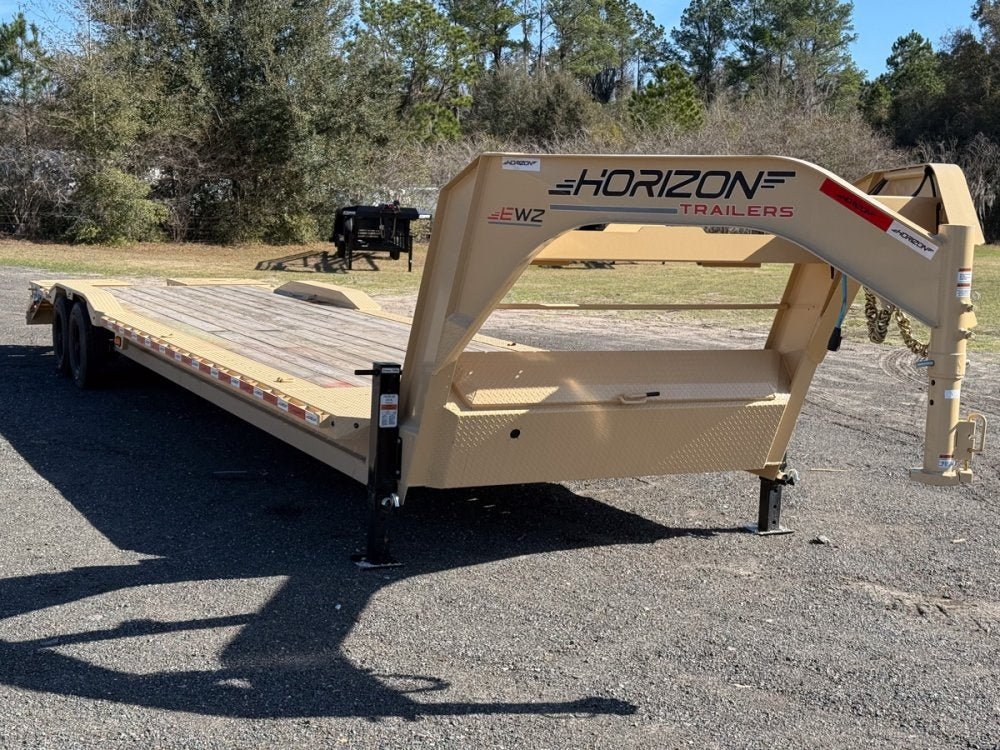

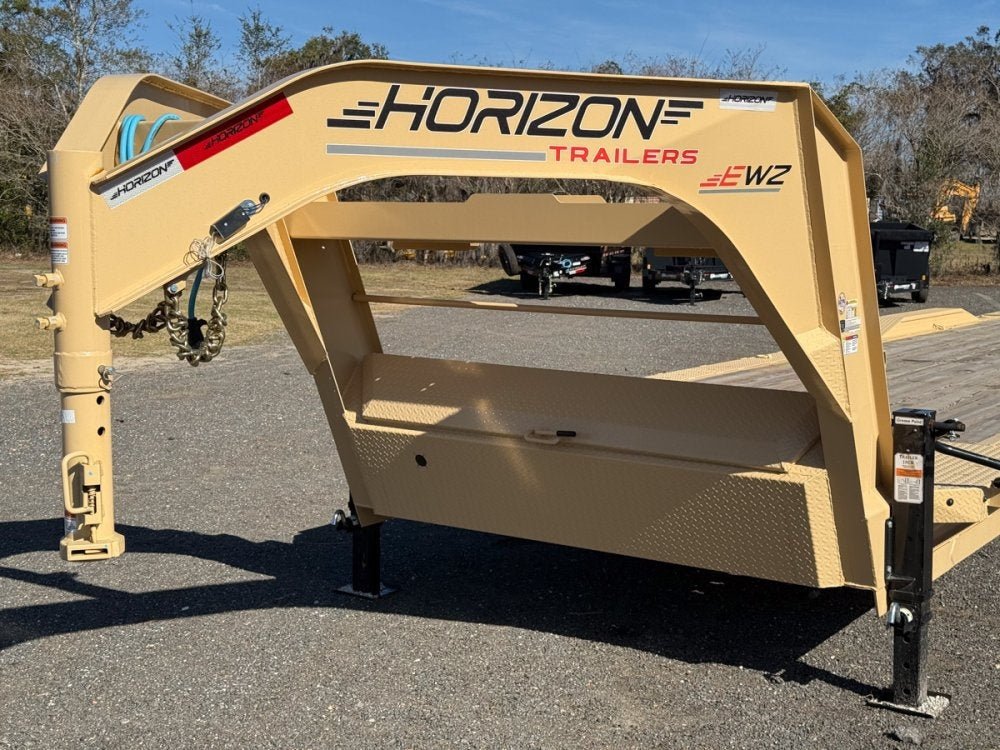

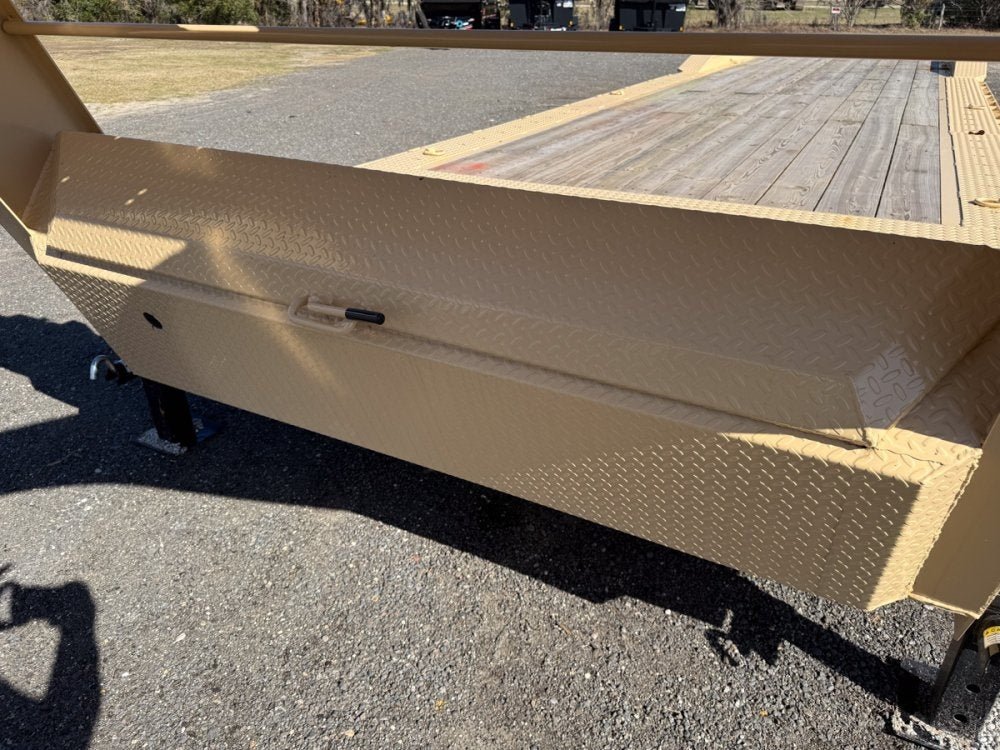

98" Engineered Neck with Mega Toolbox
Features a long 98-inch engineered 10-inch I-beam gooseneck neck. The neck is equipped with a large, lockable mega toolbox mounted on top for significant secure storage.
Product Details
DIMENSIONS
- LENGTH:
- 28' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 30"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k, 10k SS
- GVWR:
- 15.7k - 22.4k

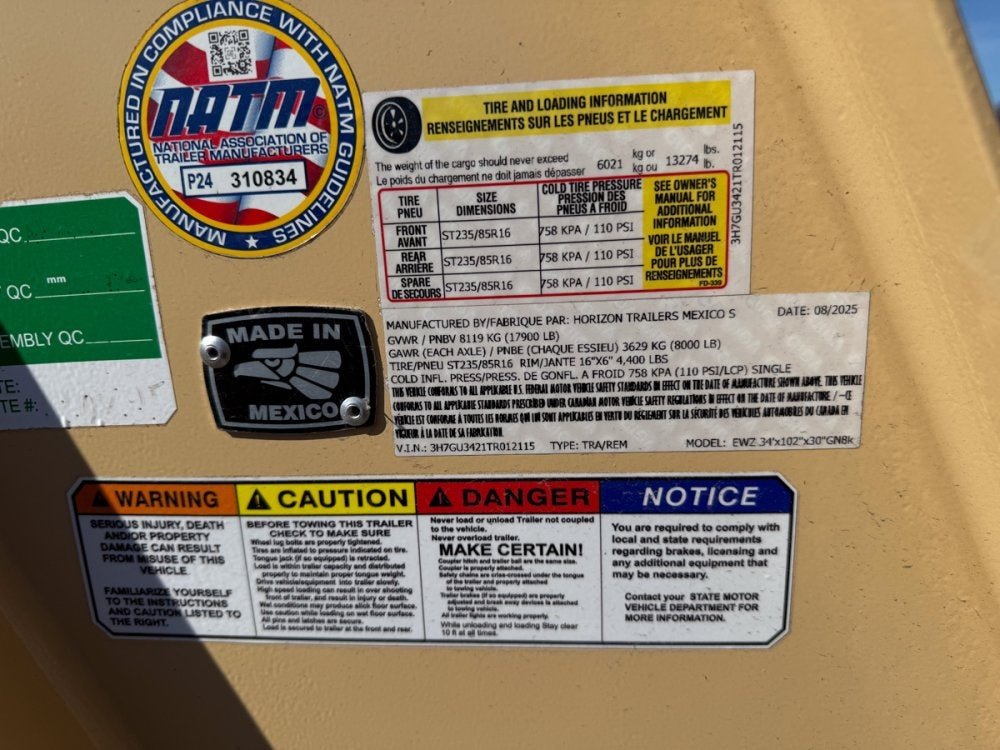

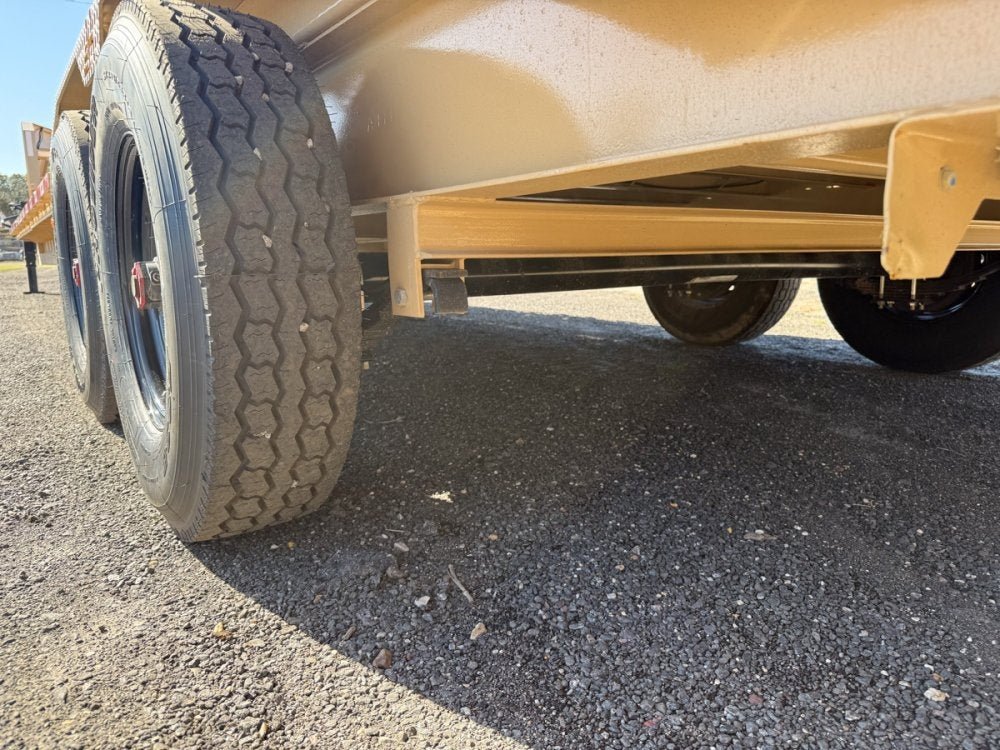

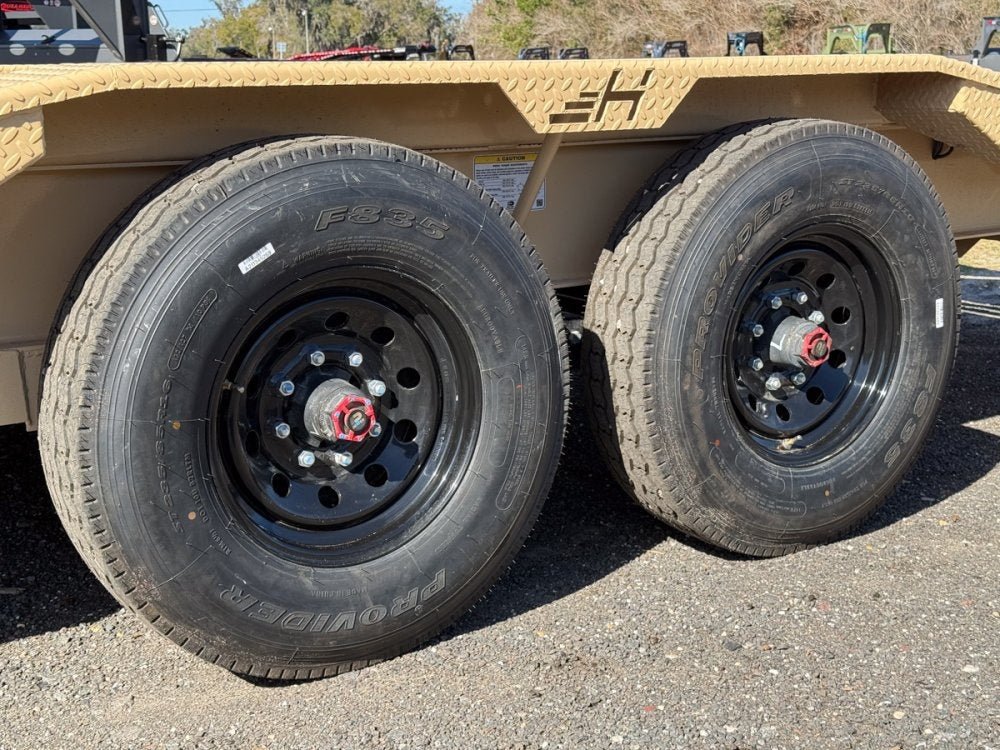

RUNNING GEAR
- TIRES:
- ST235/80R16 / ST235/85R16 (8k)
- TIRE PLY:
- 10 Ply
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Electric Brake Dexter Axles
2 - 8k Electric Brake Dexter Axles
2 - 10k SS Oil Bath Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- BRAKES:
- Electric Brake
- SUSPENSION:
- Spring

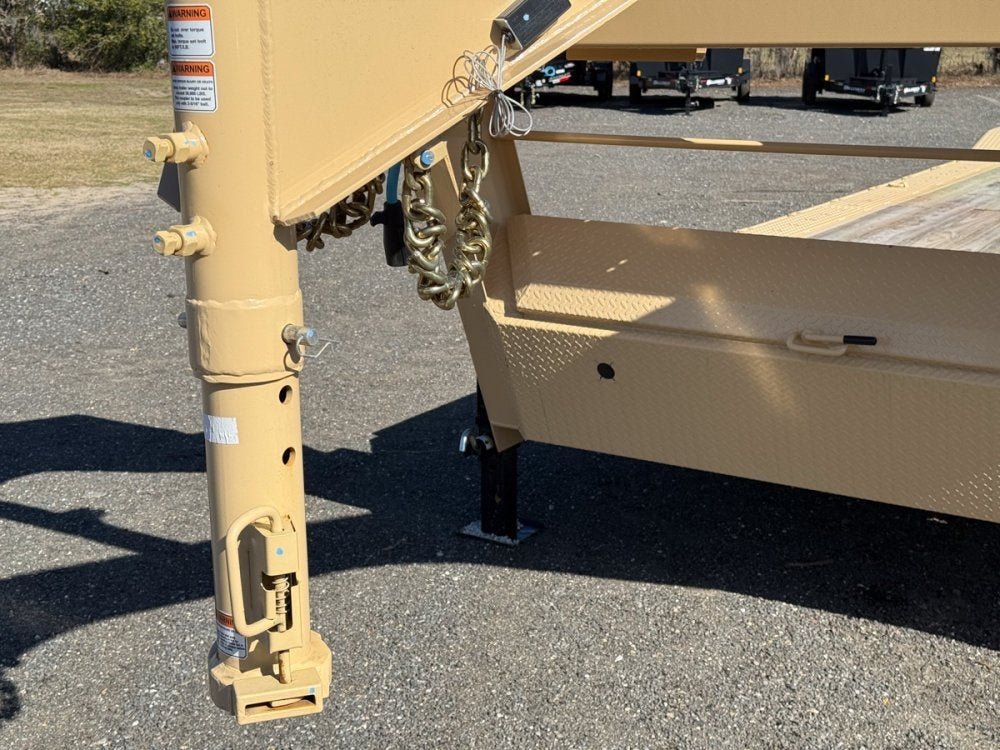

GOOSENECK
- PULL TYPE:
- Gooseneck
- TYPE:
- 10" Engineered I-Beam
- LENGTH:
- 98" Long (From Behind Riser)
- HEIGHT:
- 70" High (From Underneath Neck)
- JACKS:
- 2 - Dual Side 12,000 lb Drop-Leg Jacks
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 10" (15lbs/ft on 7k & 17lbs/ft on 8k) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing

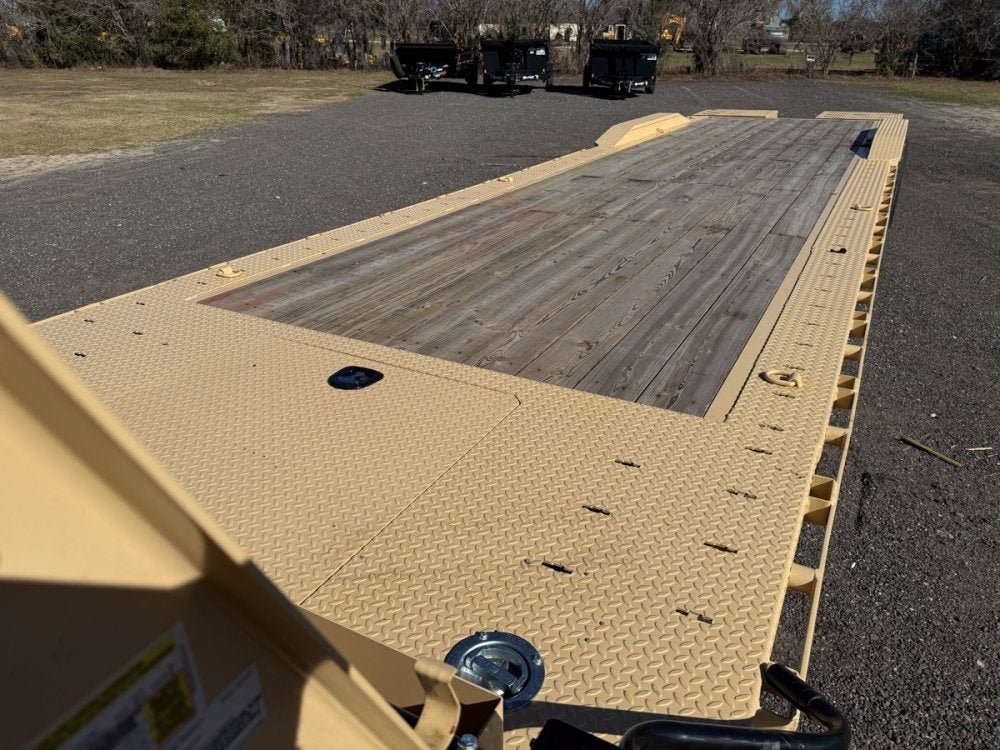

- DECK:
- Wood
- FENDERS:
- 3/16" Diamond Plate DOF
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
- RAMPS:
- 5'6" HD Slide In Ramps
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lighting
- WIRING:
- All-Weather Wiring Harness (7-Way RV)
Double Insulated Wiring Harness
CARGO OPTIONS
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both

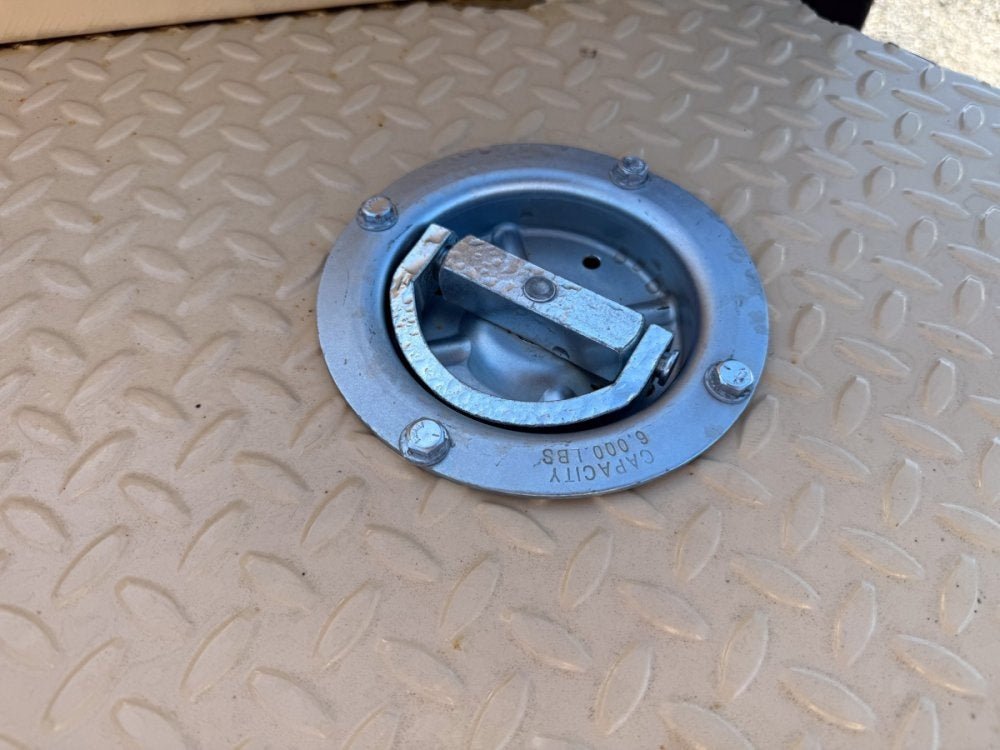

- D-RINGS:
- Additional D-Rings
- RATCHETS:
- Weld On Ratchets
Sliding Ratchets

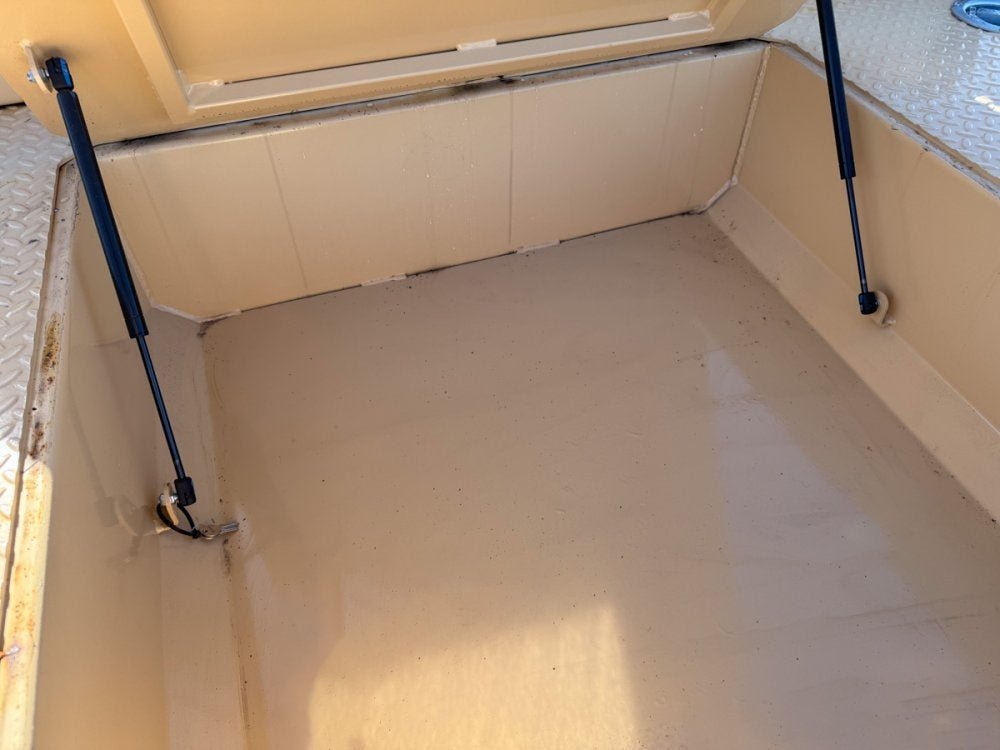

- TOOLBOX:

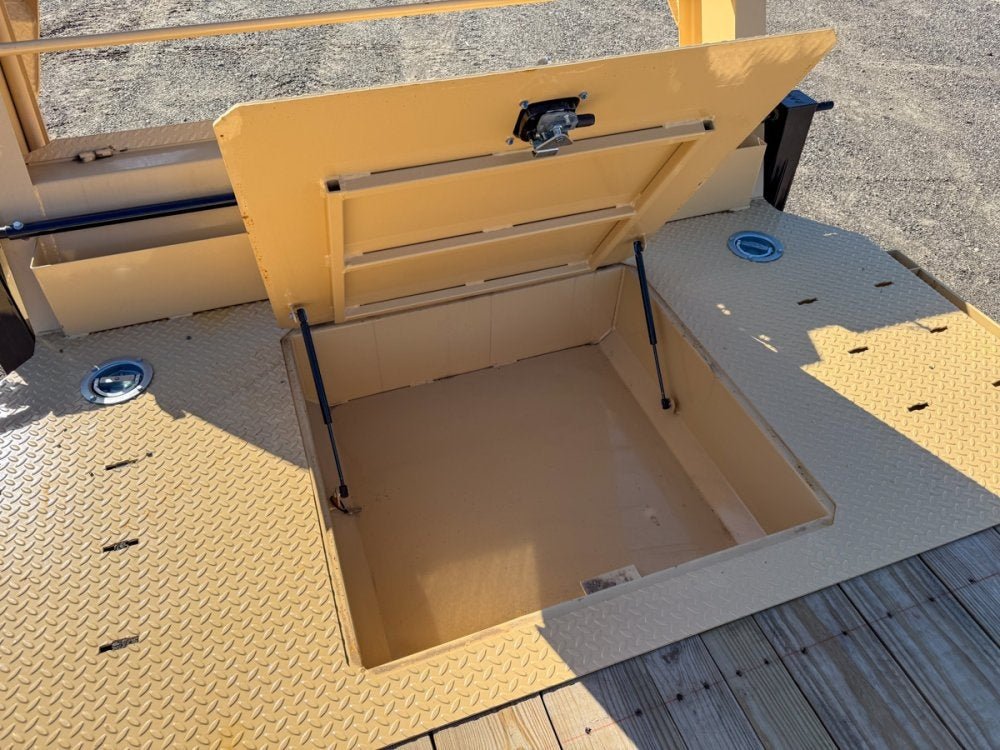

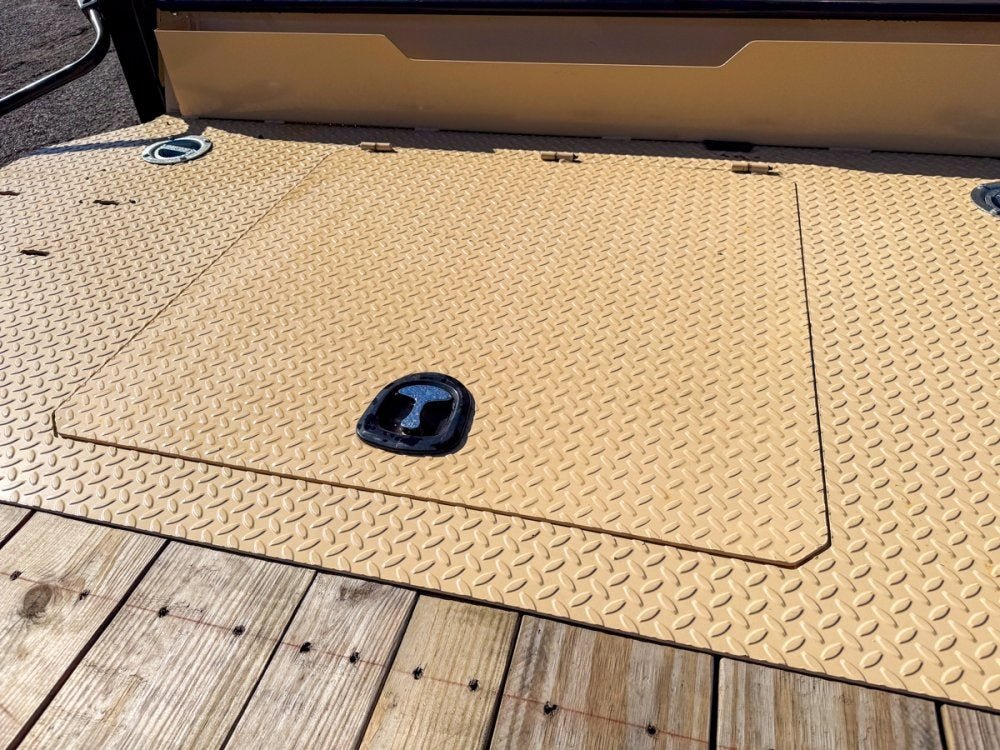

- Integrated Storage Box In Deck
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green(#949C78), Desert Tan(#D0BCA8), Flame Orange(#DD4B31), Midnight Black(#0B050D), Spectra Yellow(#C0973B), Blue Horizon(#1C4B92), Lime Green(#01A154), Ash Grey(#4F5154), True Red(#C03534), Pearl White(#C4CBCE), Cloud Grey(#ADADAC), Navy Blue(#26245B)
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
