Product Features

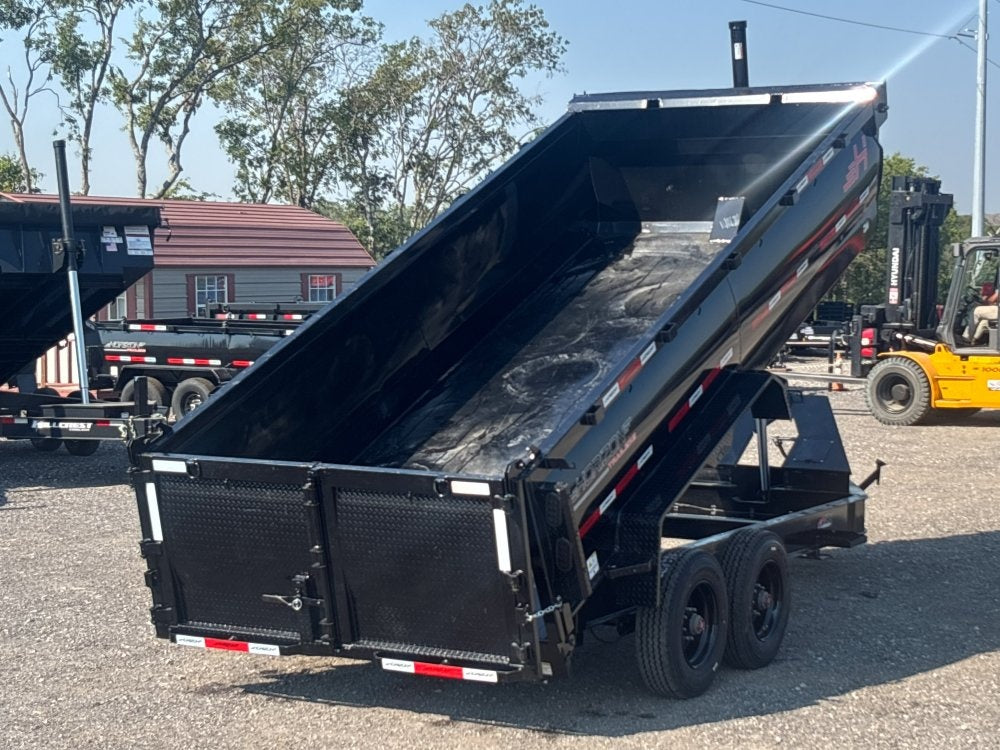

Telescopic Lift Cylinder System
Features a telescopic cylinder lift system for increased dump height and greater lifting capacity. This system provides superior performance for heavy, dense loads.

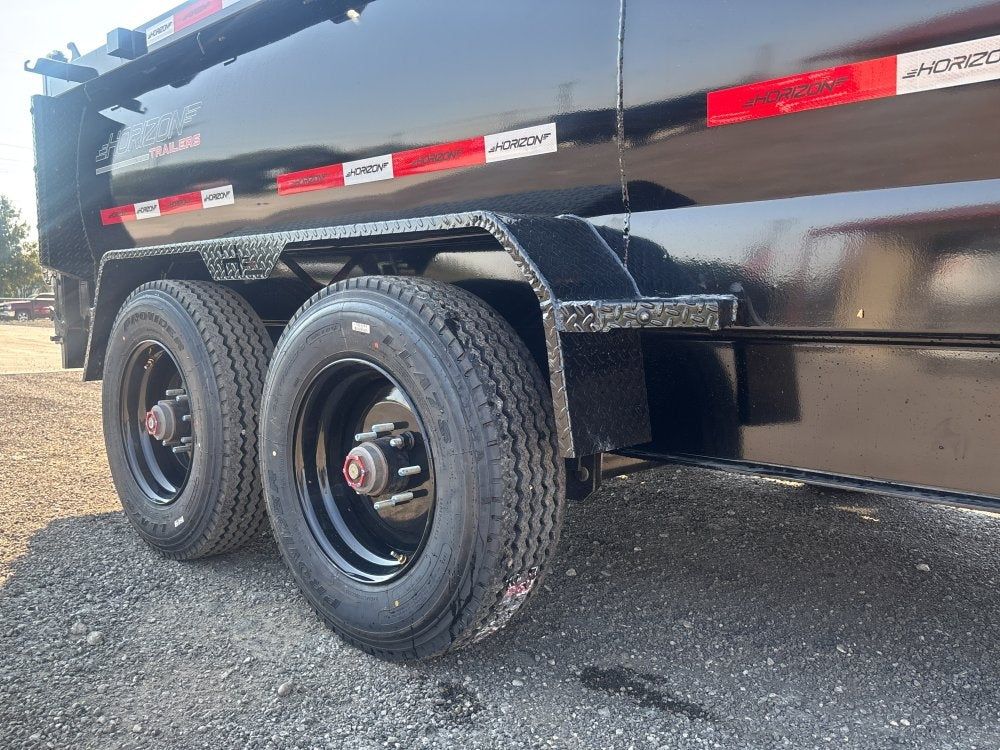

10k Super Single Axle Configuration
Equipped with 10k super single axles with torsion suspension and 18-ply 17.5" tires rated at 6,005 lbs each. This heavy-duty configuration supports the trailer's 21,000 lb GVWR capacity.

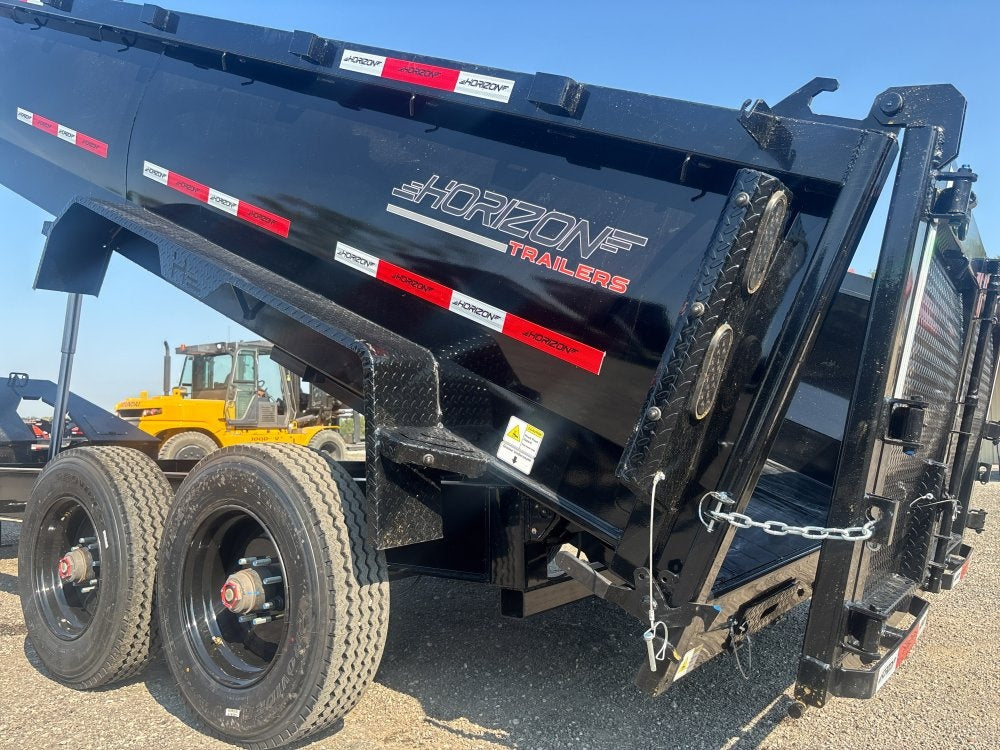

Side-Mounted LED Light Boxes
Features welded, side-mounted light boxes on the dump bed. This placement protects the DOT-approved LED lights from damage during loading and provides optimal rearward visibility, unlike traditional lights mounted low near the ramps.

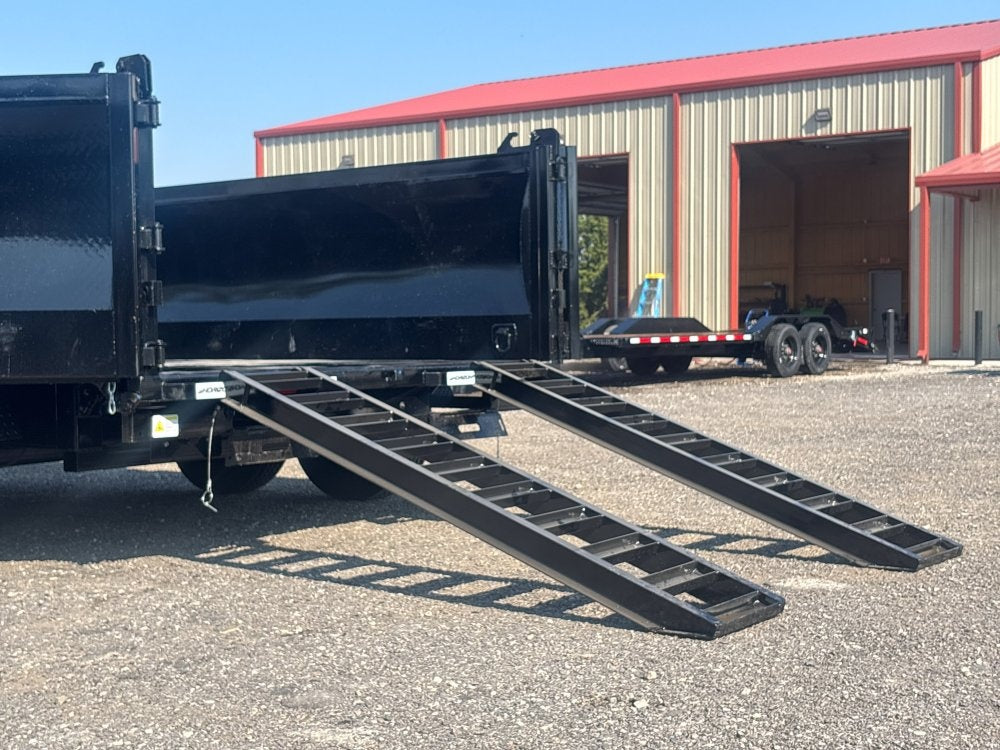

6-Foot 4-Inch Heavy-Duty Ramps
Utilizes 6-foot 4-inch slide-in ramps rated for a 7,000 lb transfer weight. The heavy-duty construction supports full-sized skid steers and compact excavators.

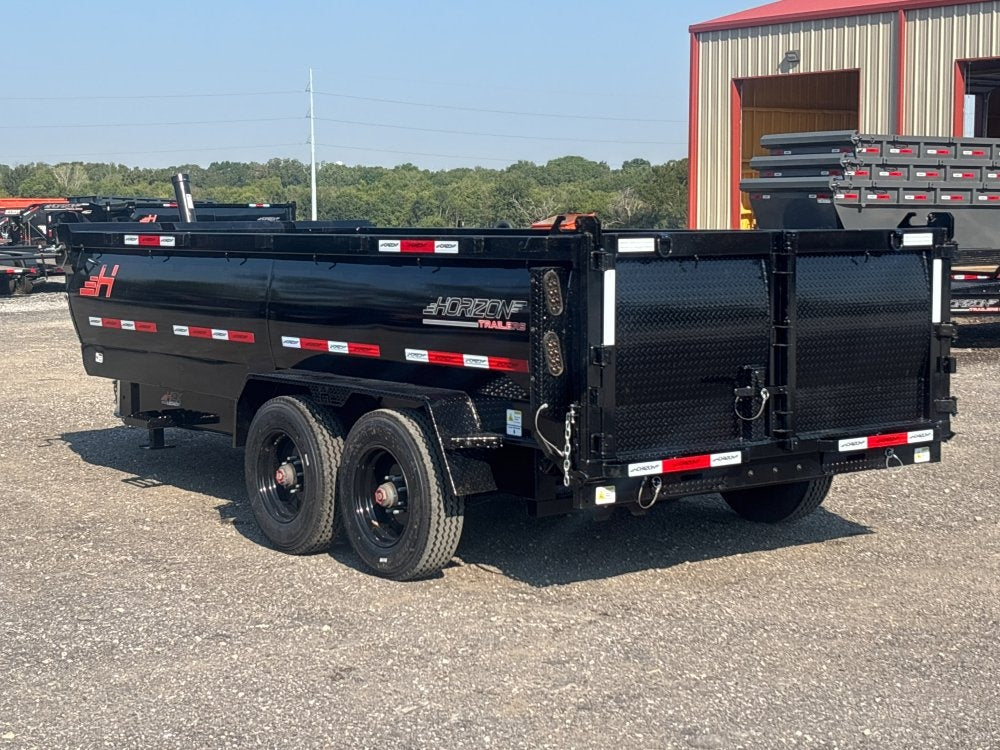

Rounded Steel Bed
Built with heavy-duty 10-gauge rounded steel sides and a 7-gauge steel floor. The combination provides maximum durability for commercial use and high-volume material handling.
10-Inch I-Beam Construction
Built on a heavy 10-inch I-beam main frame weighing 17 lbs/ft. The robust construction provides the necessary backbone for the 21,000 lb GVWR capacity and heavy commercial use.
Product Details
DIMENSIONS
- LENGTH:
- 14' - 20'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 28"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k SS
- GVWR:
- 21k
RUNNING GEAR

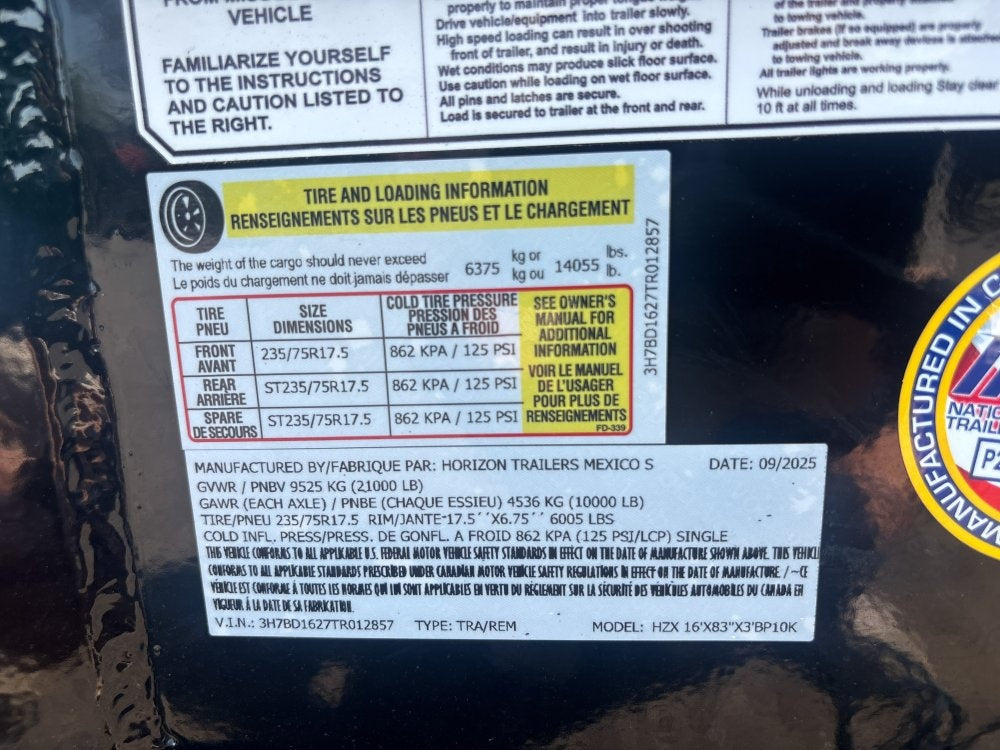

- TIRES:
- ST235/75R17.5 Radial
- TIRE PLY:
- 18 Ply
- RATING:
- 6,005 lbs
- RIMS:
- 17.5" Black Mod Wheels
- AXLE TYPE:
- 2 - 10k SS Dexter Oil Bath Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION:
- Torsion

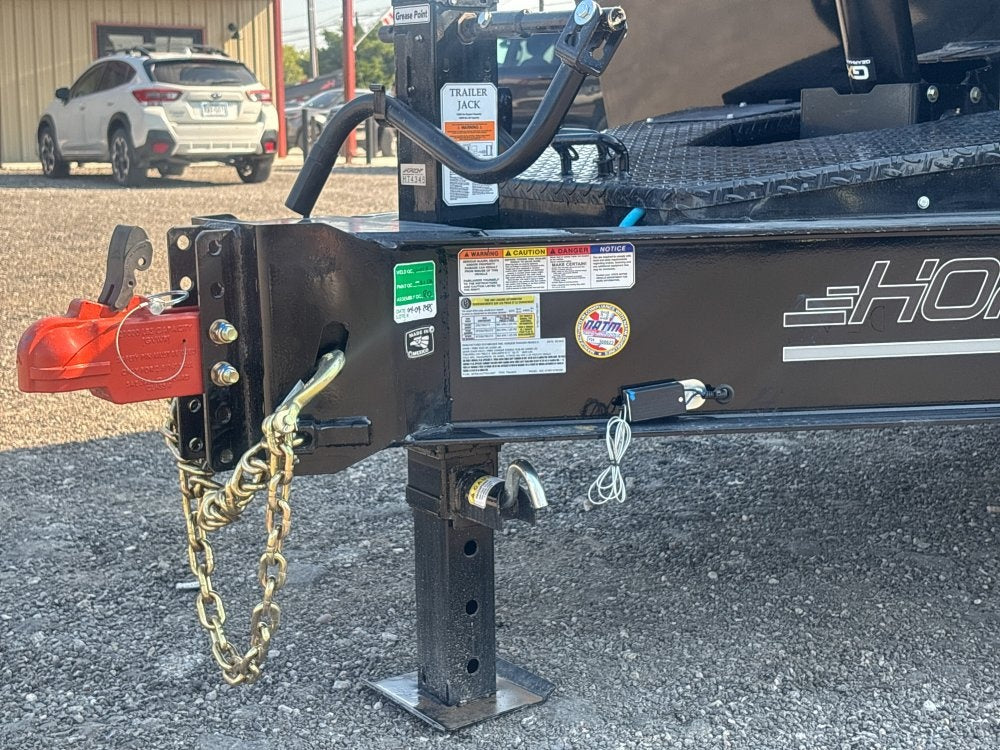

BUMPER PULL
- PULL TYPE:
- Bumper Pull
- TYPE:
- 10" Engineered I Beam
- LENGTH:
- 60"
- JACK:
- Single 12k Drop-Leg Jack
- COUPLER:
- Adjustable 2 5/16" (21,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 10" I-Beam (17lb/ft)
- BED FRAME:
- 3" x 5" x 1/4" Angle Iron
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- FLOORING:
- 7ga. Steel Bed
- SIDES:
- 10 Ga. Rounded Steel
- FENDERS:
- 12 Ga. Diamond Plate
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains

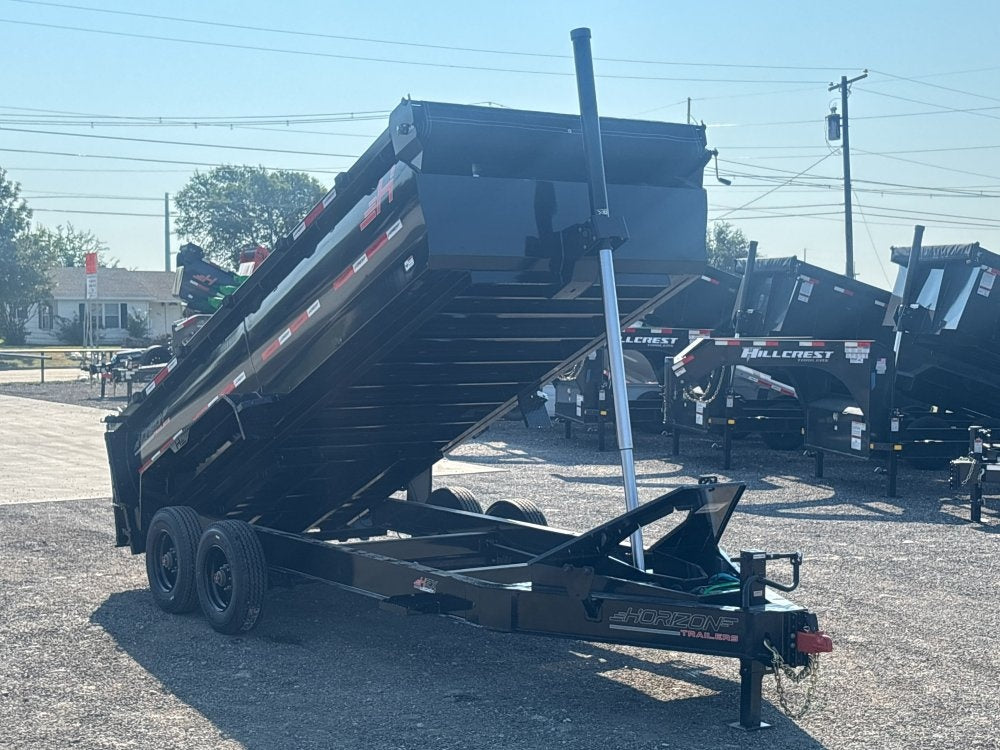

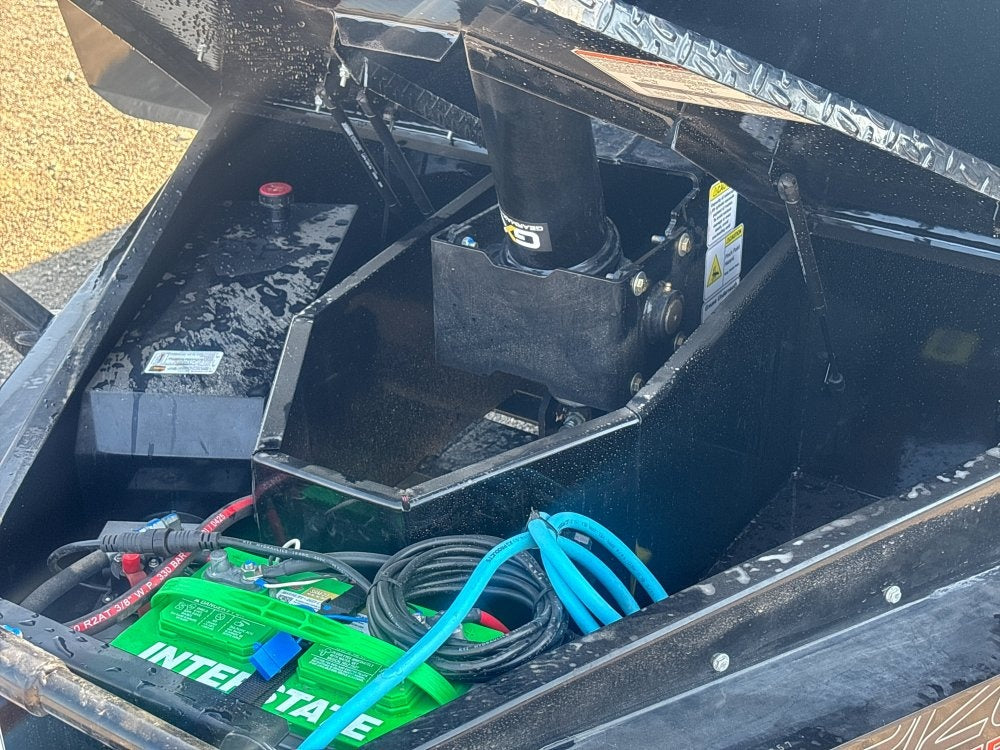

LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- CYLINDER TYPE:
- Telescopic Cylinder
- DUMP ANGLE:
- 44 - 48 Degrees
- STABILIZERS:
- Rear Stabilizer Stands
CARGO & BODY
- GATE:
- 3 Way Spreader Gate
- RAMPS:
- 6'4" Slide In Ramps
- TARP:
- Crank Style Roll-Up Tarp
- HOOKS:
- 3/8" Round J Hooks
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 110V Trickle Charger
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts
