At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features

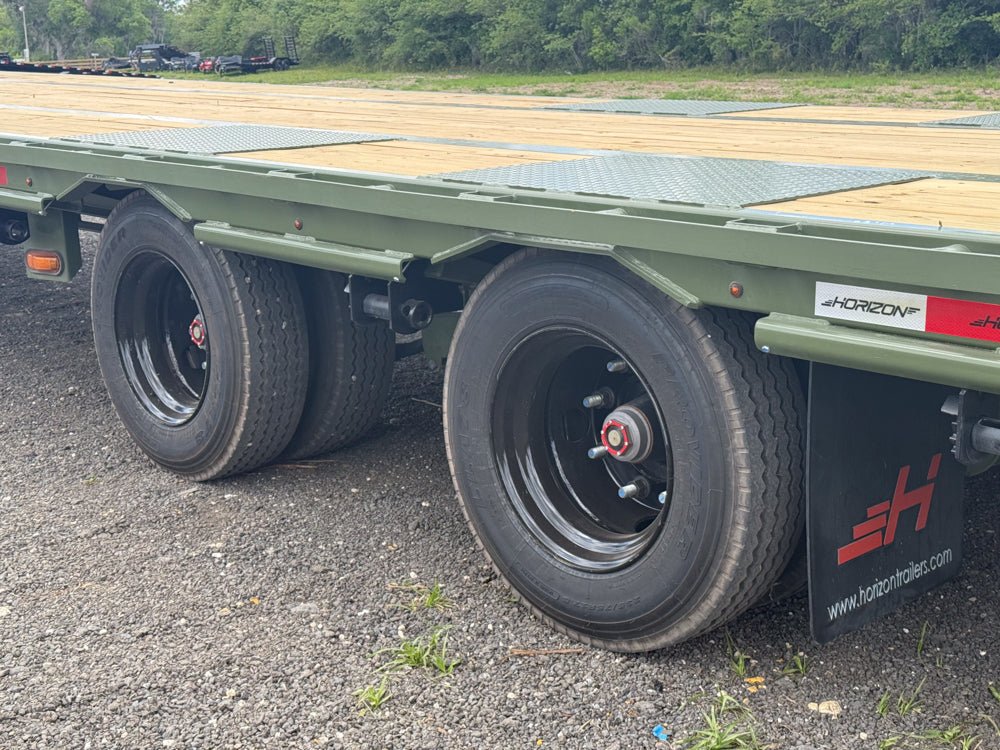

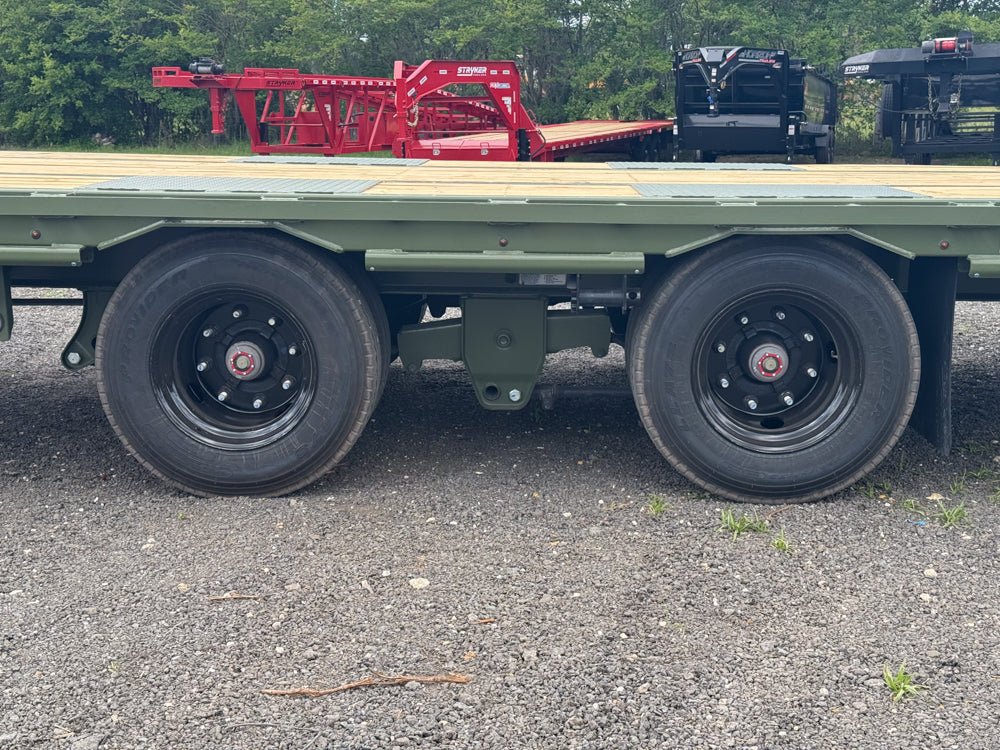

High-Capacity Axles & Tires
Dual 16k electric brake dual oil bath axles paired with 18-ply ST235/75R17.5 radial tires provide superior load-bearing capacity and stability. Optional 14-ply tires enhance durability for the toughest hauls.
Reinforced Heavy-Duty Frame
Built with a 14" I-beam main frame (22 lbs/ft) and 3" I-beam crossmembers on 16" spacing, this trailer resists twist and flex under extreme weight. Optional zinc primer undercoat and powder-coated finish maximize corrosion resistance and durability.

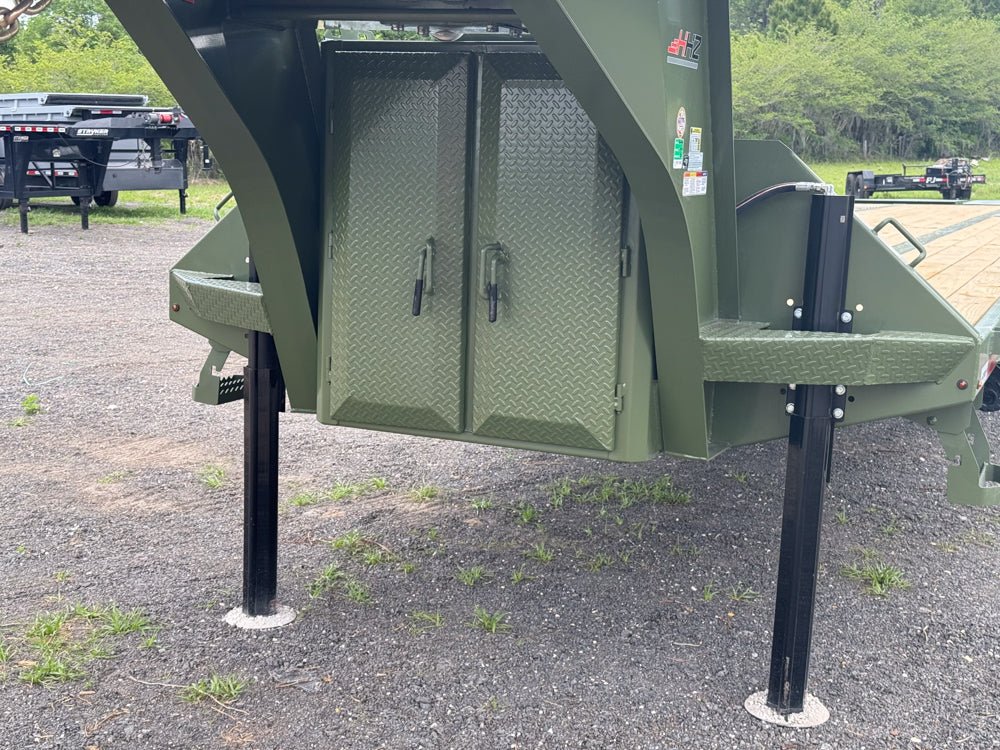

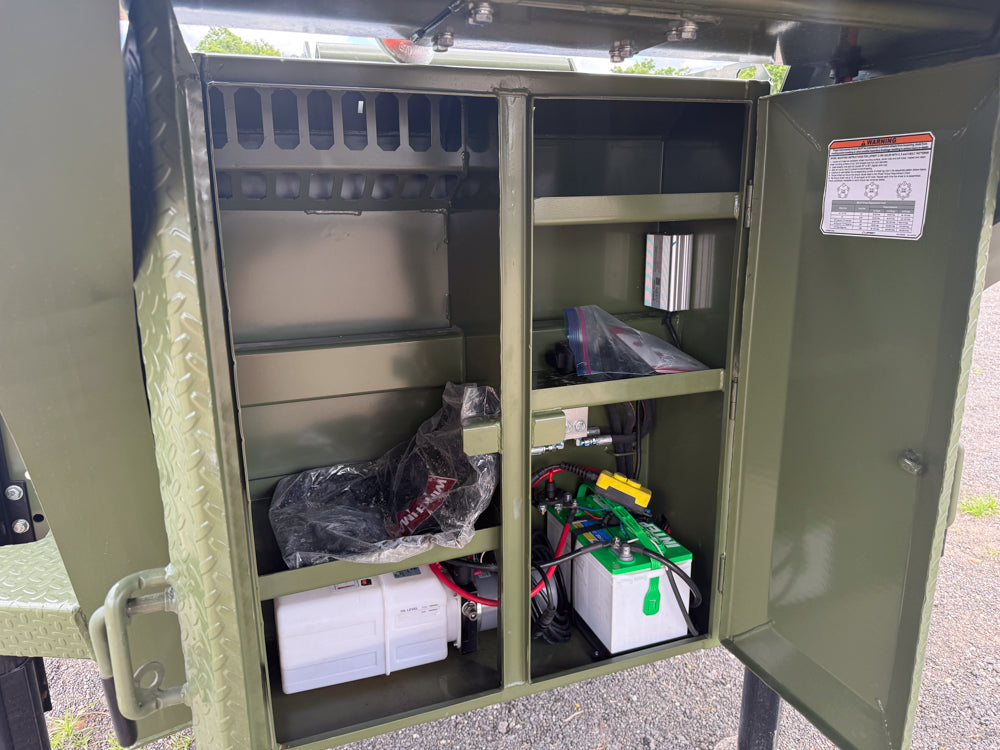

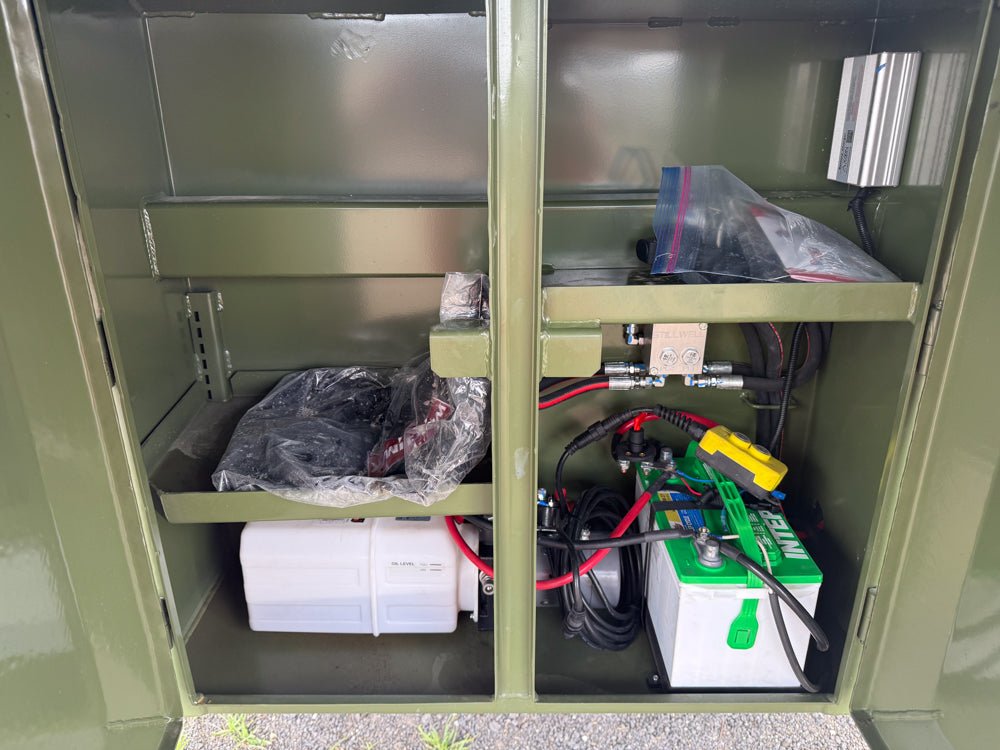

Secure Equipment Storage
Mega lockable toolbox keeps gear and tools safe. Optional locker-style or side-mounted toolboxes provide easy access and additional storage flexibility for operators on the go.

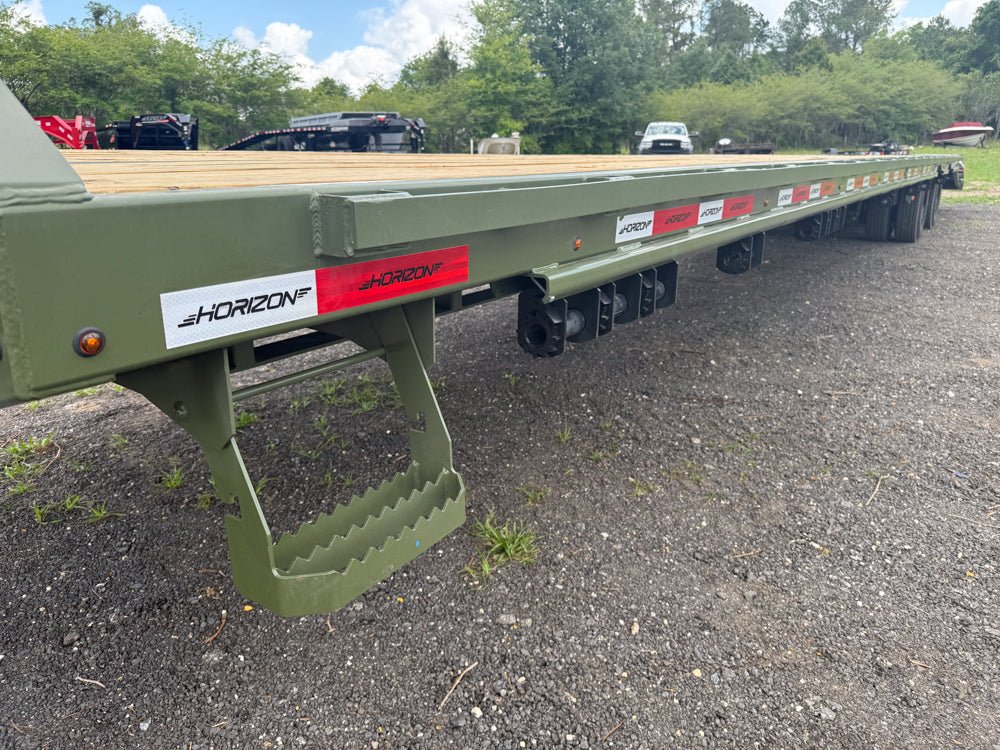

Flexible Load Securement

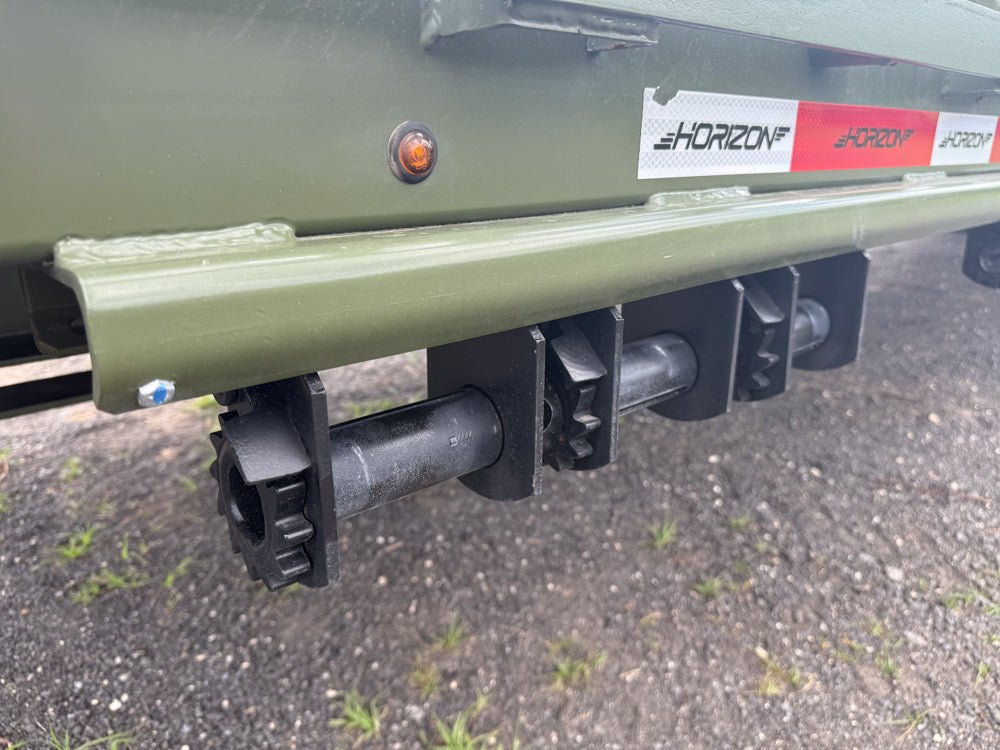

Slide rails, D-rings, and adjustable weld-on or sliding ratchets provide multiple securement options for equipment of any size. Operators can configure tie-downs for maximum safety and stability.

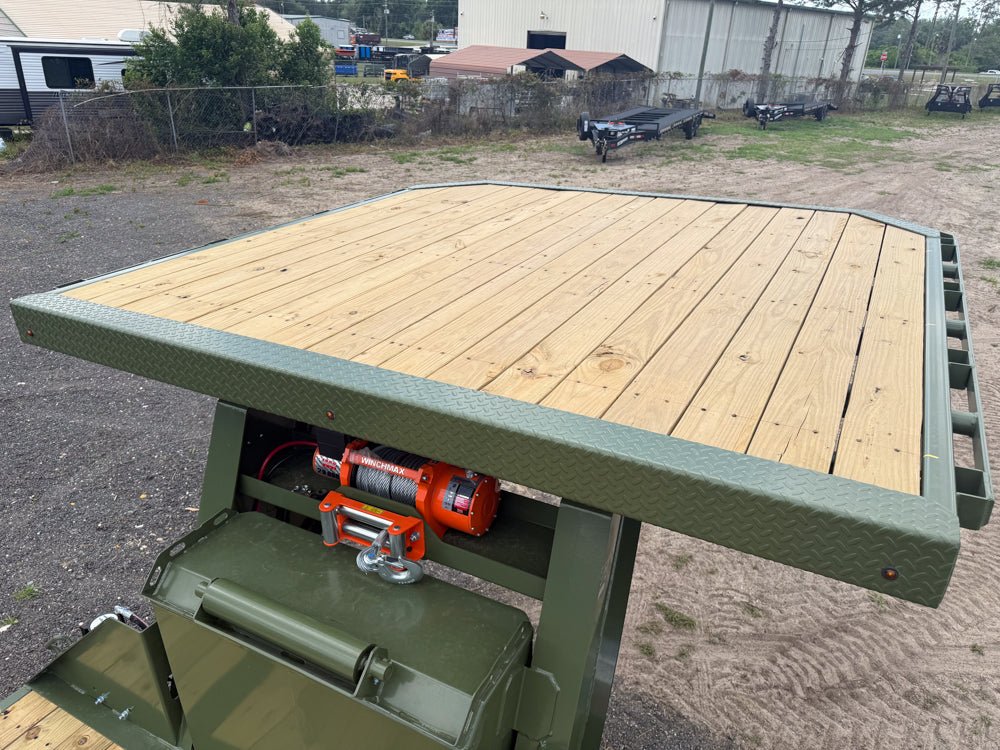

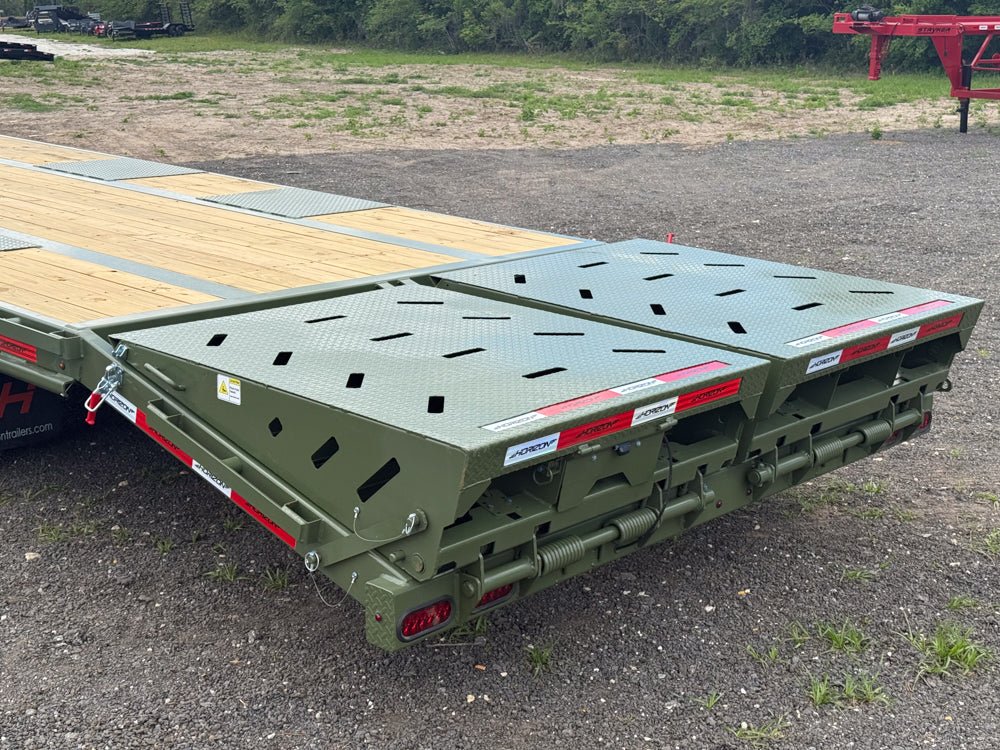

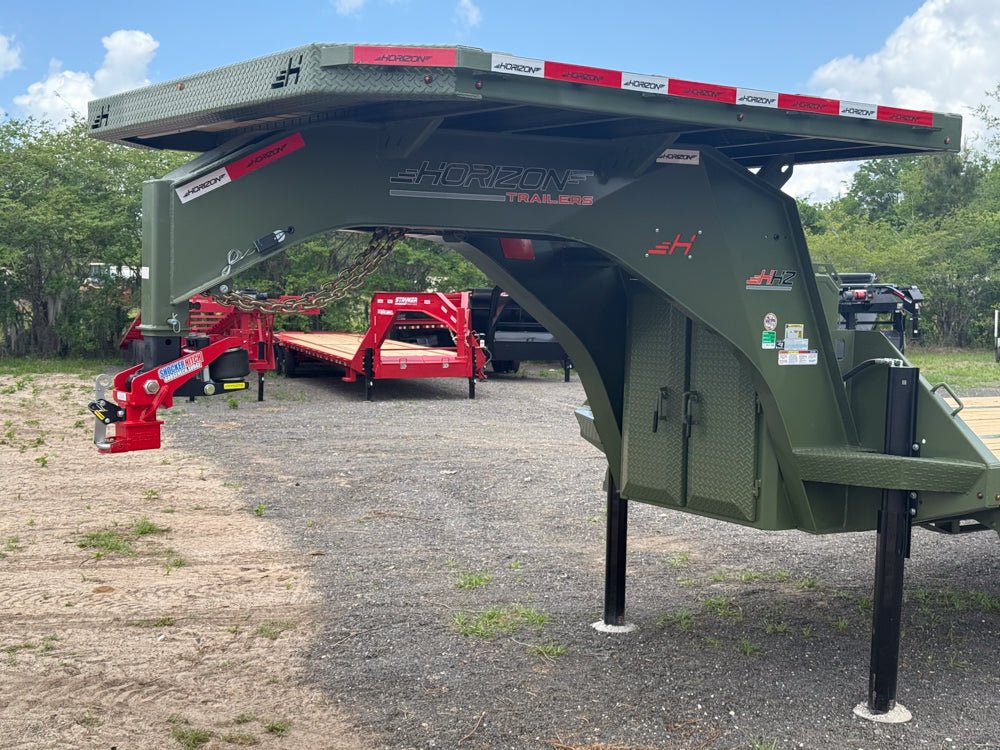

Deck-On-Neck Design
The deck-on-neck configuration maximizes usable deck space, providing extra room for equipment and allowing for safer, more efficient hauling.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 30' - 44'
- WIDTH:
- 102"
- DECK HEIGHT:
- 35"
WEIGHT RATINGS
- GAWR:
- 16,000 lbs
- GVWR:
- 40,000 lbs
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 108" Long
- HEIGHT:
- 70" (From Underneath Neck)
- COUPLER:
- Adjustable 3" Coupler (40,000 lbs)

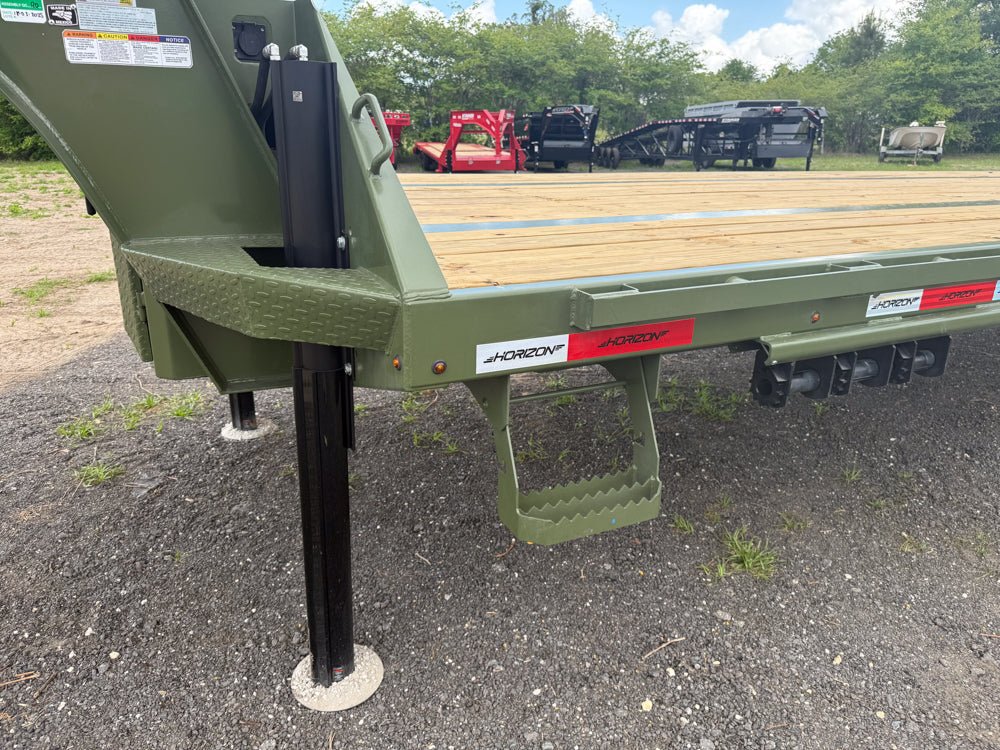

- JACKS:
- 2 Side Wind Jost 2 Speed Drop Jack (17,500 lbs)
STORAGE
- TOOLBOX:
- Mega Lockable Toolbox
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit

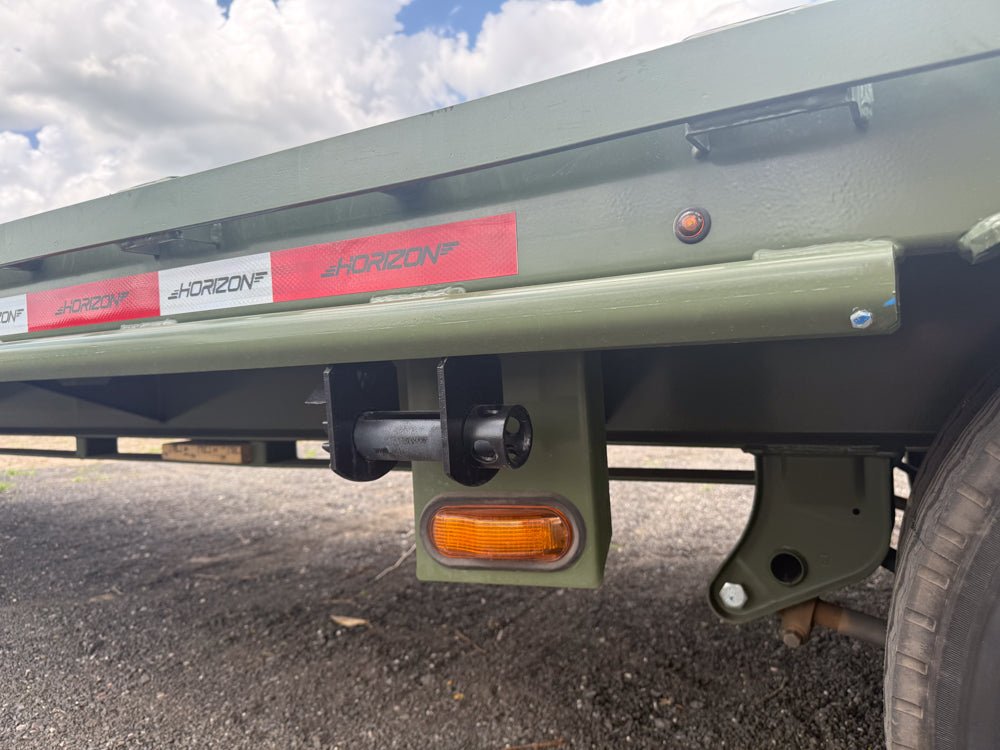

- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 1/2" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

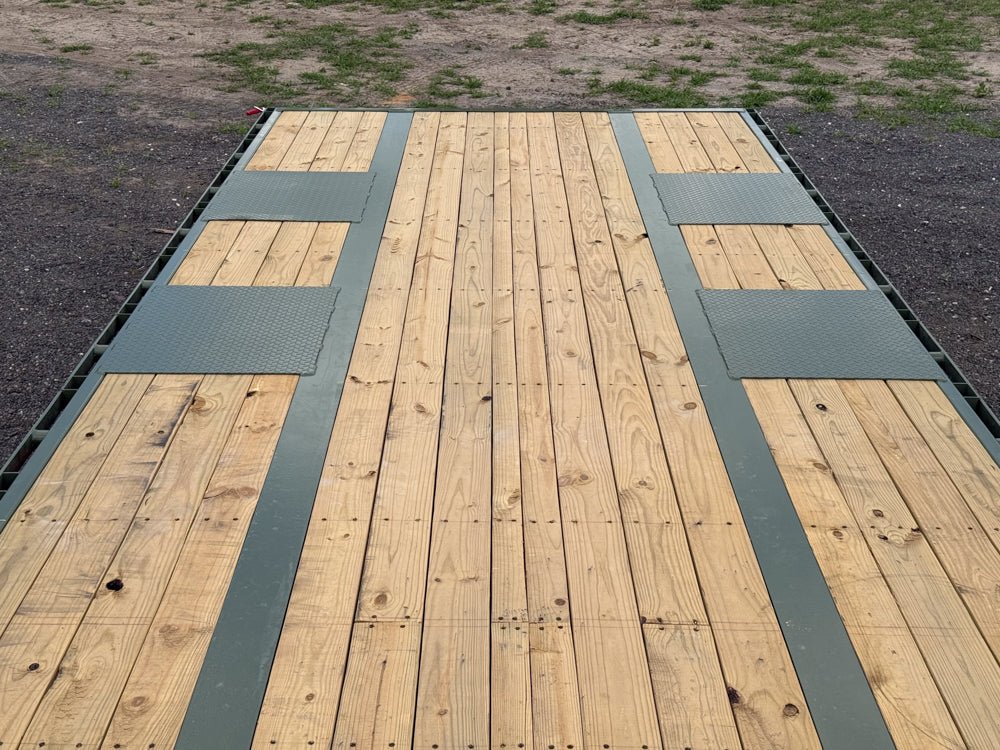

DECK & LOADING
- DECK TYPE:
- Wood
- RAMPS:
- 8' Slide In Ramps
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, ST235/75R17.5, 18 Ply, 5,675 lbs Rating
- RIMS:
- 17.5" Black Mod Wheels
- AXLES:
- 2 - 16k Electric Brake Dual Oil Bath Axles
- BOLT PATTERN:
- 8 on 10.83"
- SUSPENSION TYPE:
- HD Double Slipper Mechanical Suspension
FRAME & CONSTRUCTION
- MAIN FRAME:
- 14" I-Beam (22 lbs/ft)
- CROSSMEMBERS:
- 3" I-Beam, 16" Spacing
OPTIONS
- JACK UPGRADE:
- 20k Hydraulic Jacks
- TOOLBOX UPGRADE:
- Locker Style Toolbox

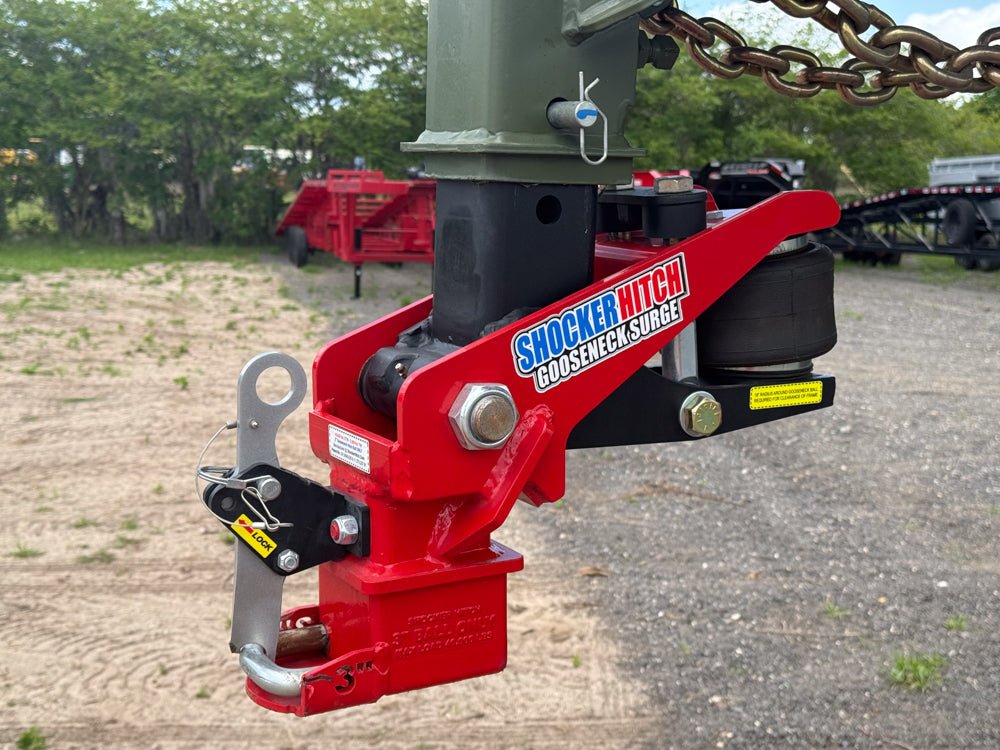

- COUPLER UPGRADE:
- Shocker Hitch 3" Coupler (40,000 lbs)
- SOLAR OPTION:
- 10 Watt Solar Panel
- LIGHTING OPTION:
- Cargo Lights on Riser
- CONTROLLER OPTION:
- TUFF Wireless 2 or 4 Button Remote
- TOOLBOX MOUNT:
- Side Mount Toolbox
- TIRE UPGRADE:
- 14 Ply Tires
- SPARE TIRE:
- Spare Tire
- RAIL SYSTEM:
- Slide Rails, Right Side, Left Side, or Both
- WELD ON RATCHETS:
- 6, 8, 10, 12 Weld On Ratchets
- SLIDE RATCHETS:
- 6, 8, 10, 12 Sliding Ratchets
- D-RINGS:
- 4, 6, 8, Additional D-Rings
- UNDERCOAT:
- Zinc Primer Undercoat

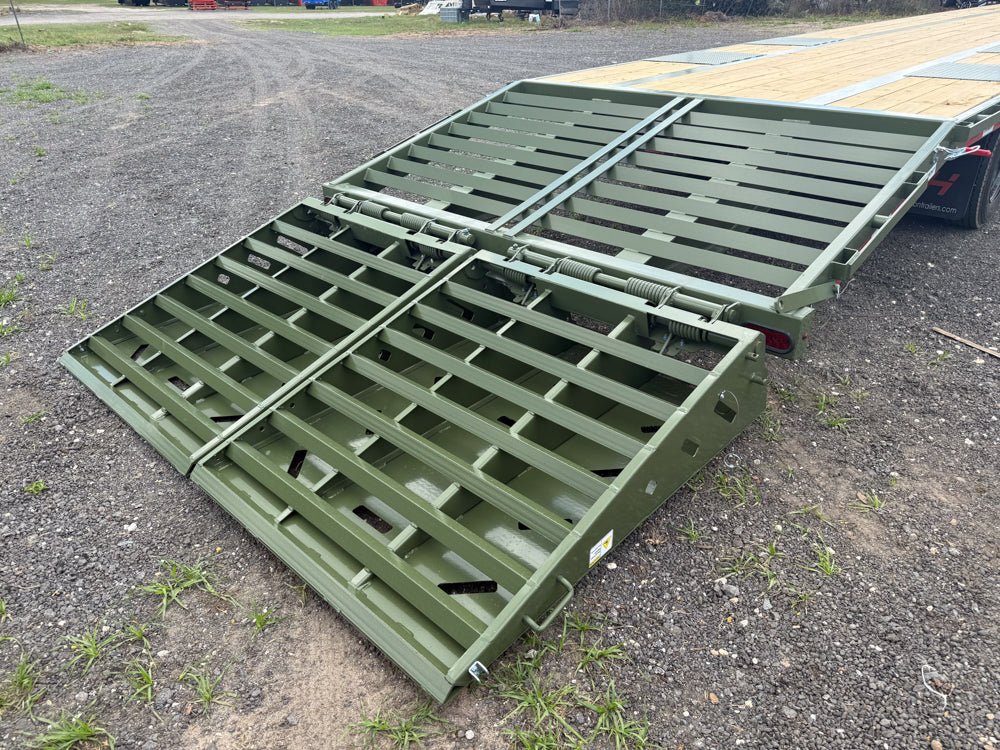

- RAMP UPGRADE:
- 5' Dovetail w/ 2 Mega Ramps
