At a Glance
- Colors:
-
BlackGrayWhteLight GreyRedBlueLime GreenGreenOrange
Featured Video
Product Features

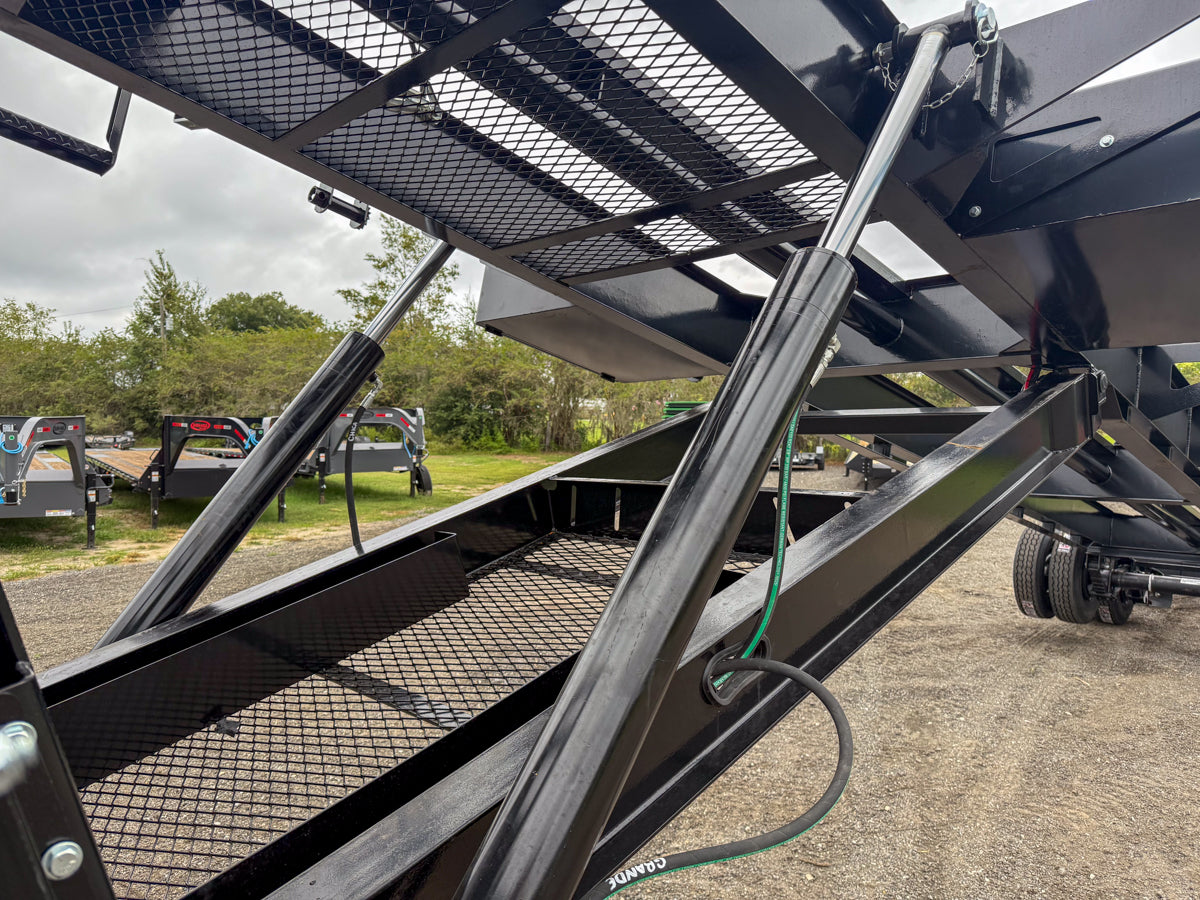

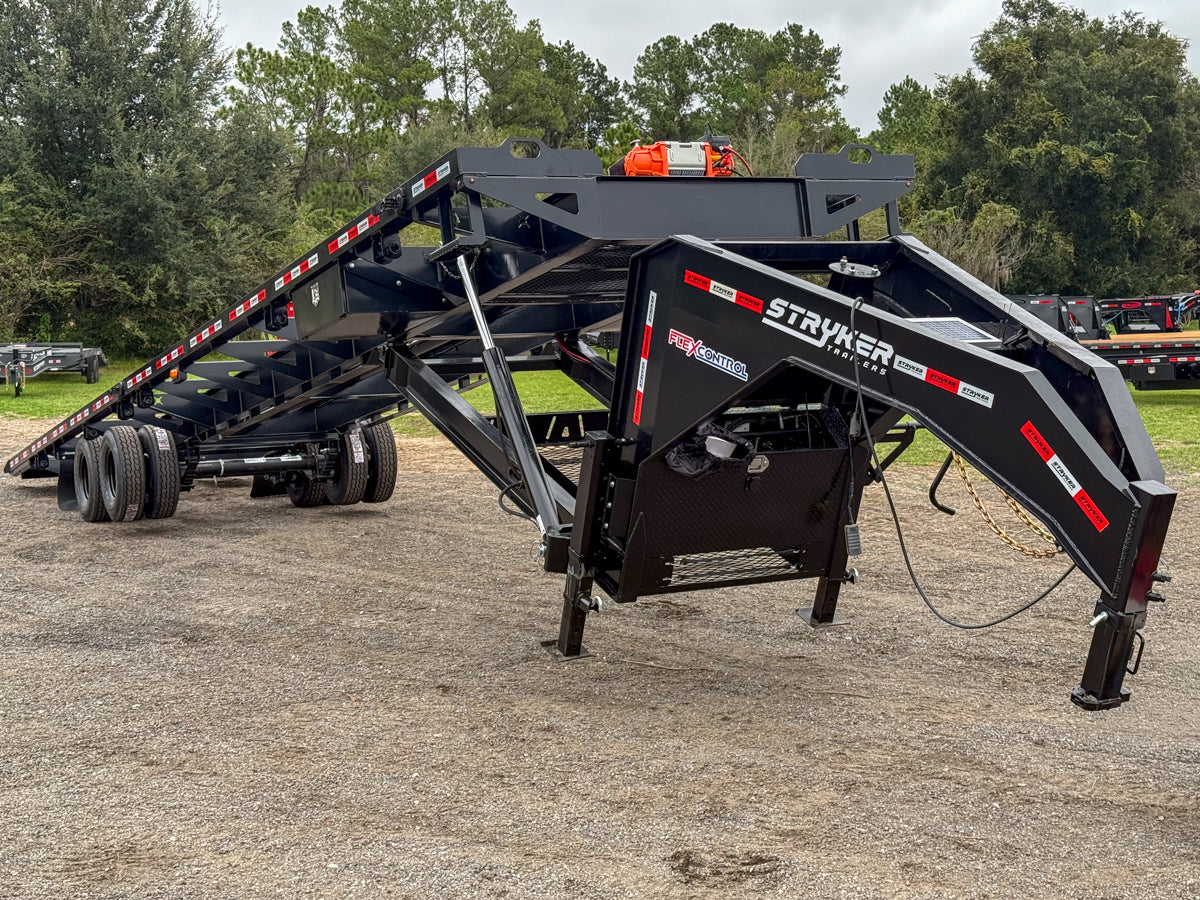

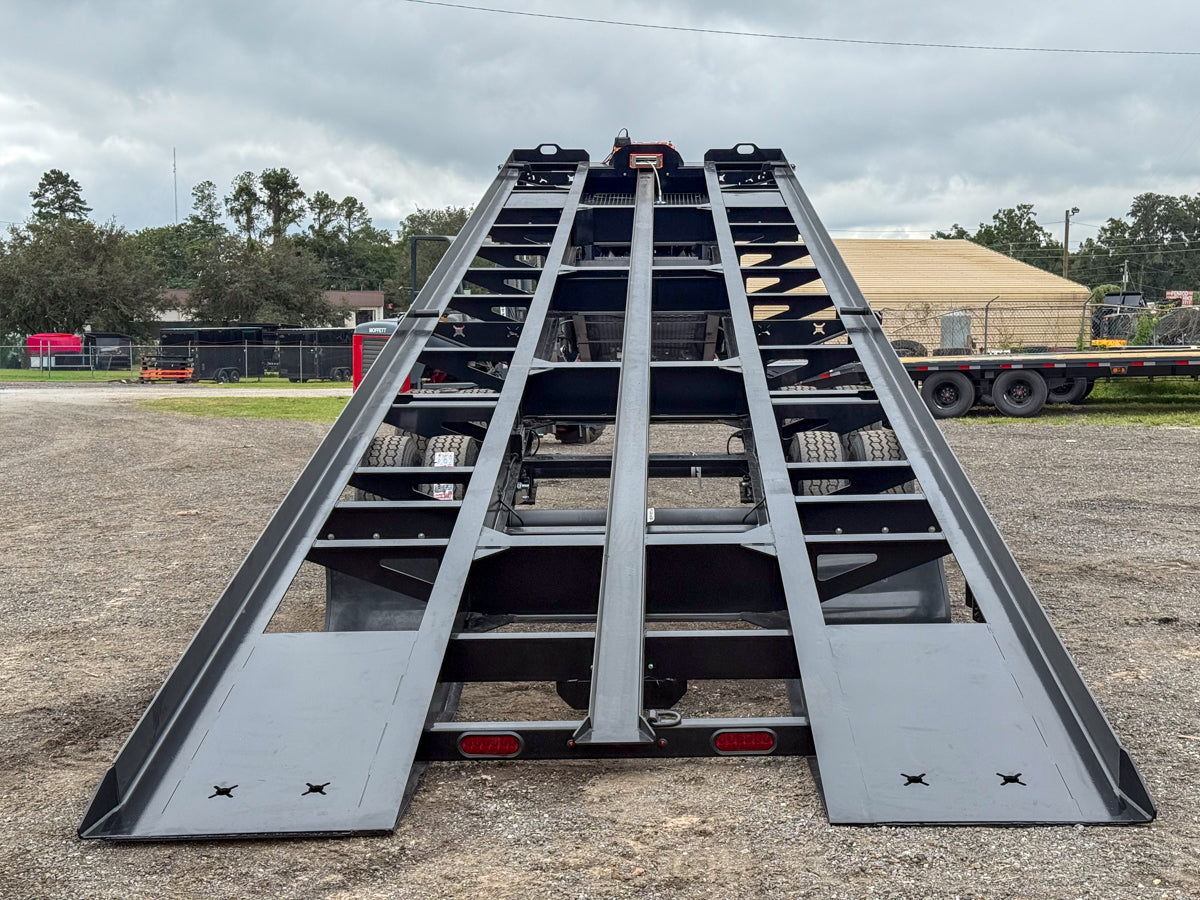

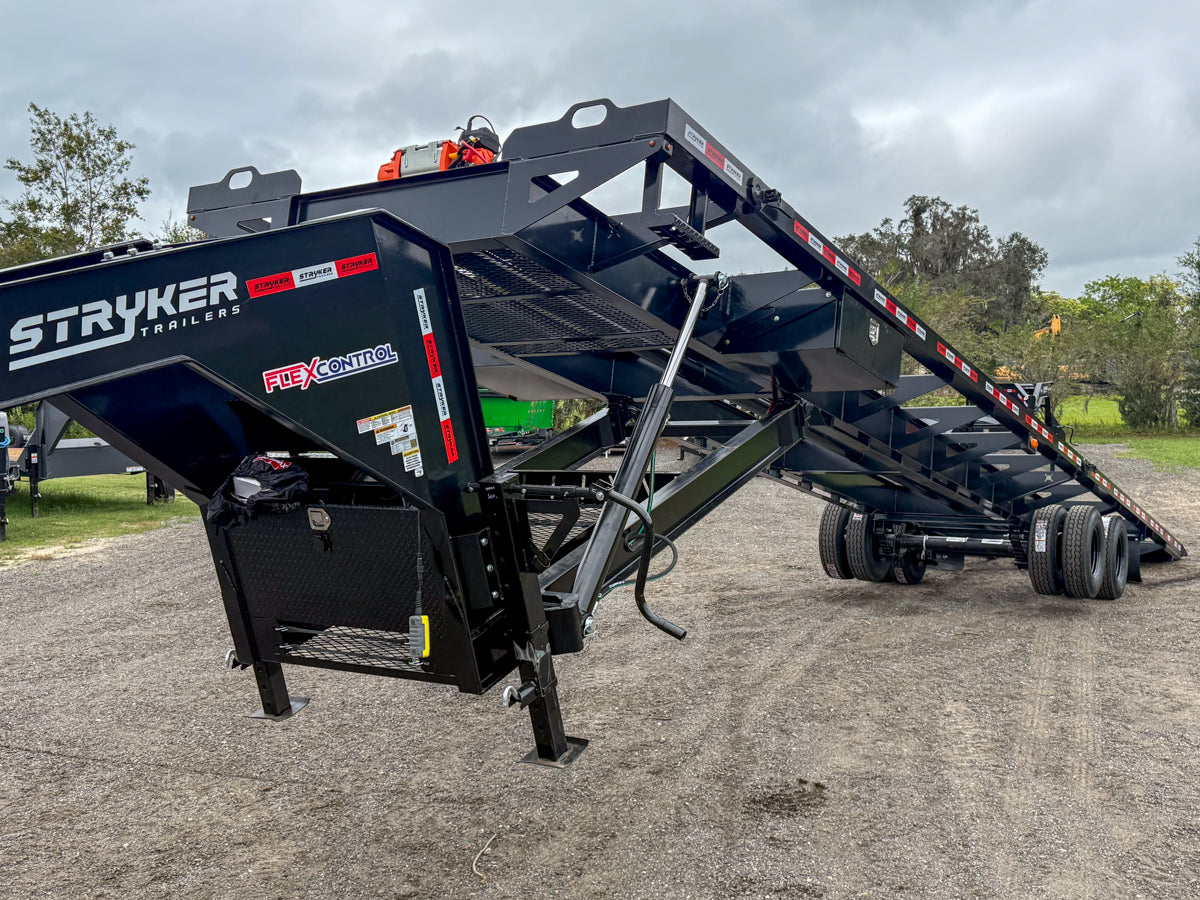

Powerful Hydraulic Tilt System
Experience effortless loading with a full-power hydraulic tilt system. The 12V hydraulic pump and dual cylinders provide smooth, reliable power-up and power-down operation, giving you complete control to easily create a loading ramp for any equipment or container.

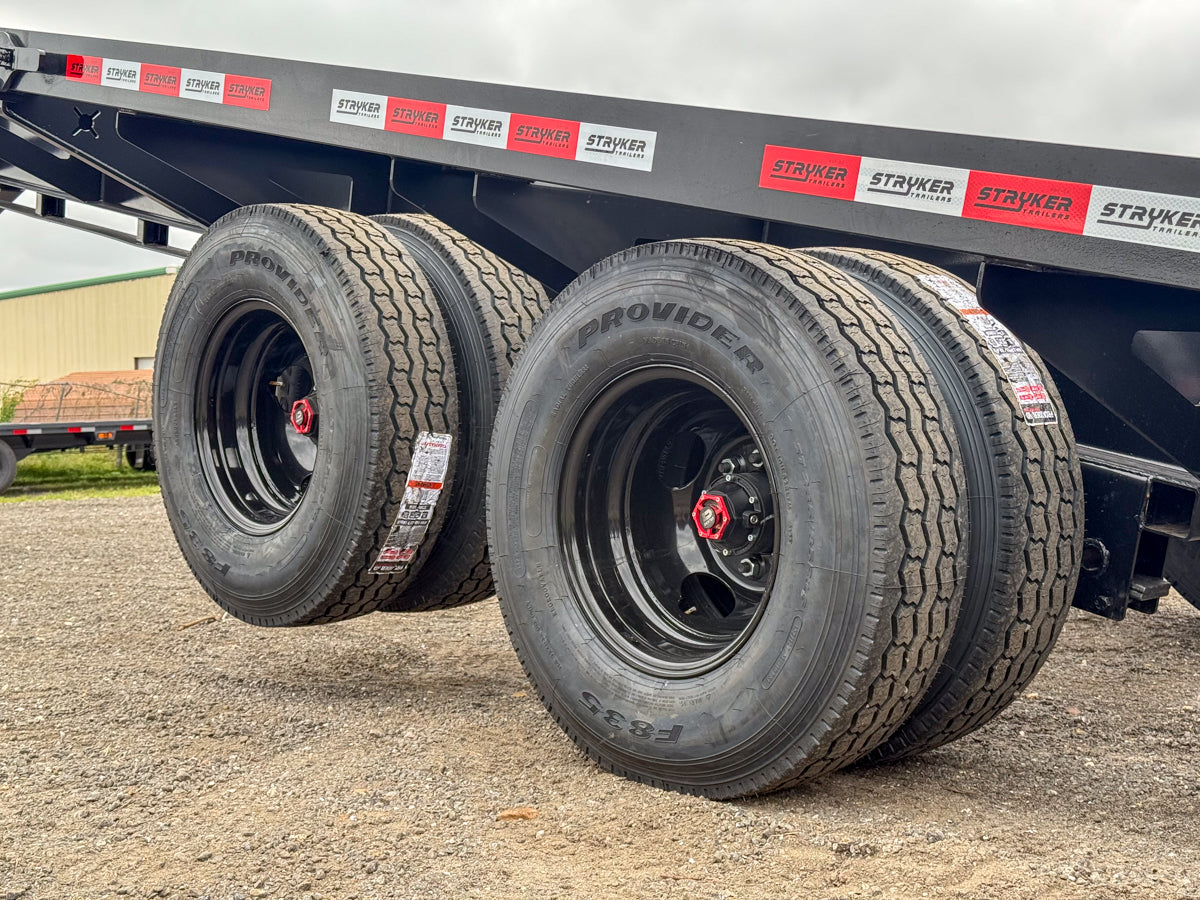

Heavy-Duty Oil Bath Axles
Built for reliability and smooth performance, this trailer features dual 12k Dexter Oil Bath Axles. The sealed oil bath system ensures constant lubrication for the hubs, running cooler and lasting longer than traditional grease-packed systems, which means less maintenance and more dependable hauling.

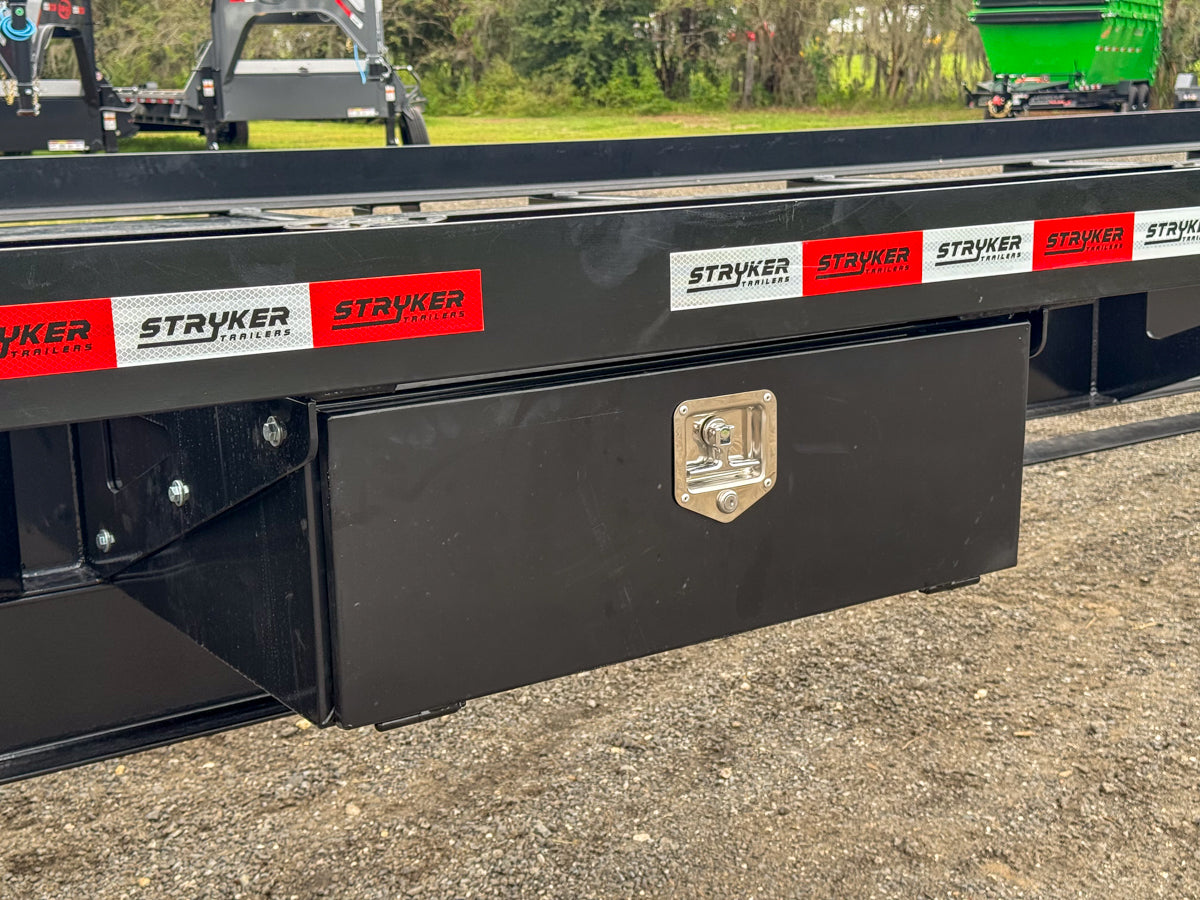

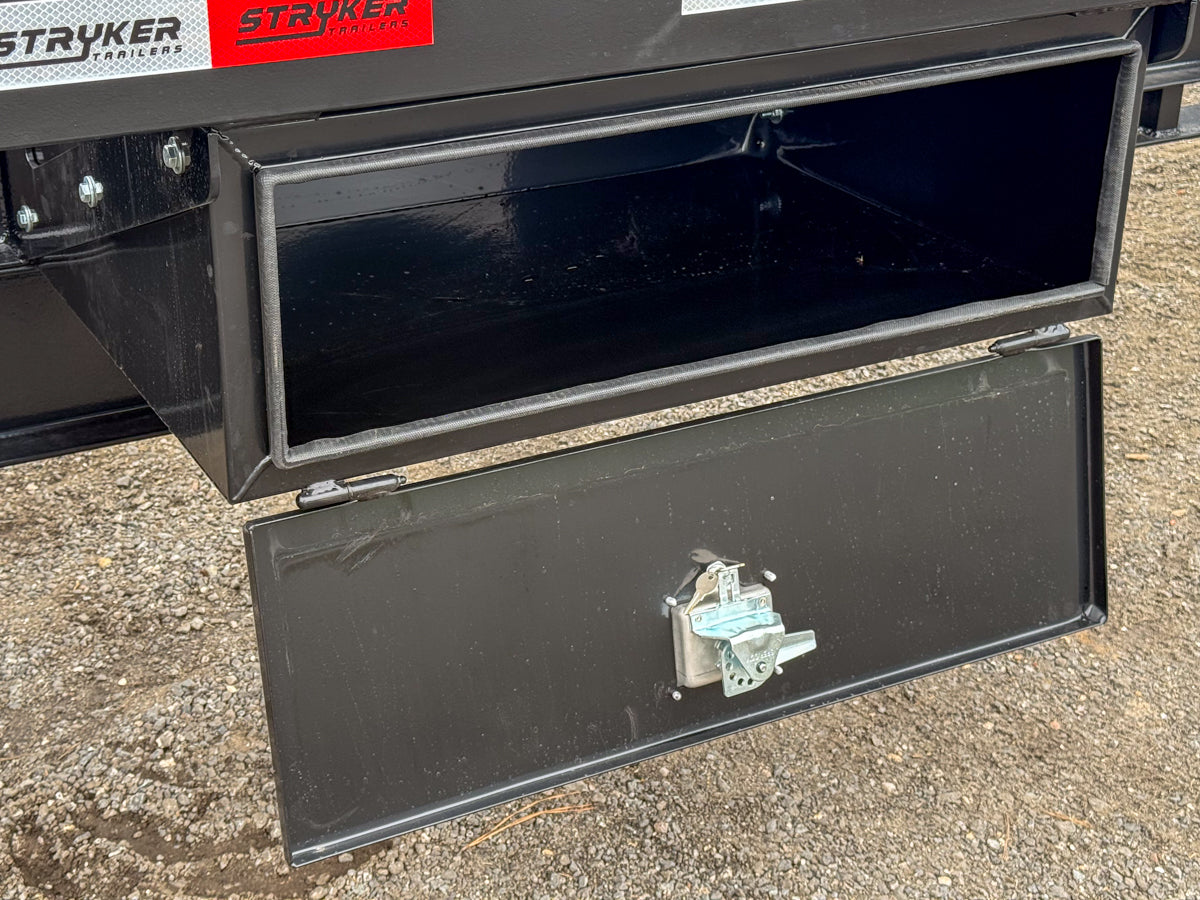

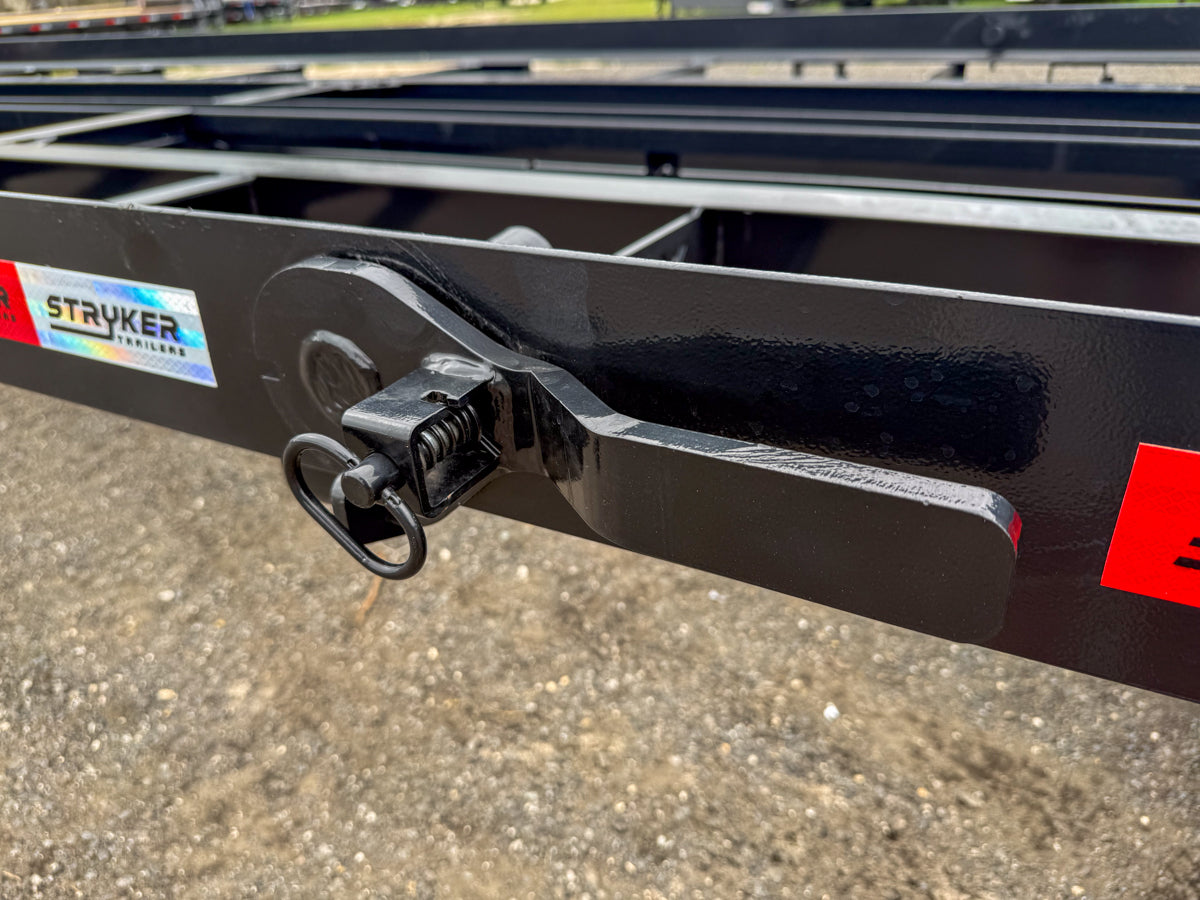

Versatile Side-Mount Toolbox & Container Locks
Our container tilt model includes two standard container locks. Configured for a single 40-foot container or two 20-foot containers. A rugged, lockable side-mount toolbox is also available for tool storage.
Rugged Powdercoat Defense
We prepare the surface with steel grit blasting before applying a tough powdercoat finish, ensuring maximum adhesion and longevity. This superior process, combined with a wide selection of 12 vibrant colors, provides a durable shield against rust, scratches, and the elements.

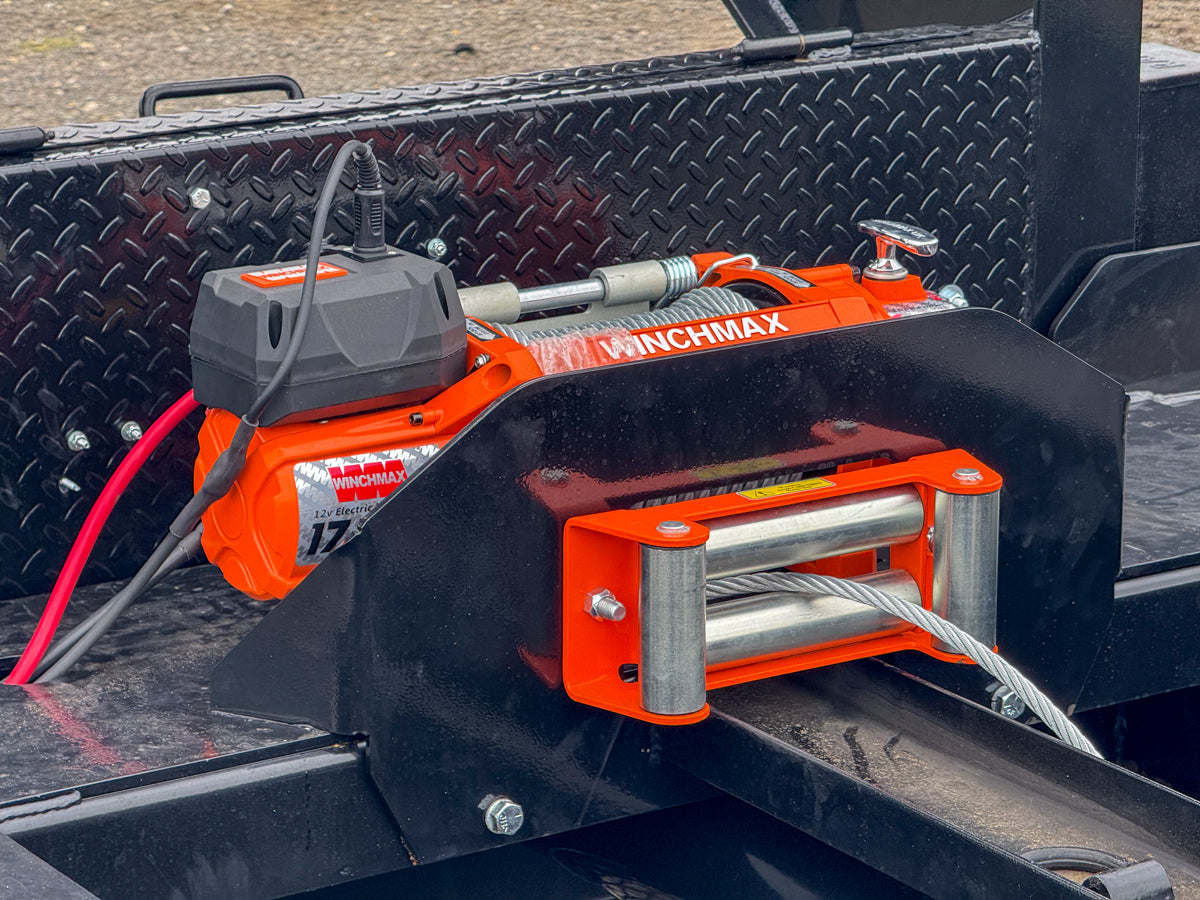

18,000 lb Wireless Winch
Dominate any loading situation with the massive 18,000 lb winch and convenient wireless remote. Mounted at the front of the deck, it provides the ultimate pulling power to effortlessly load heavy machinery or secure containers directly to the trailer.

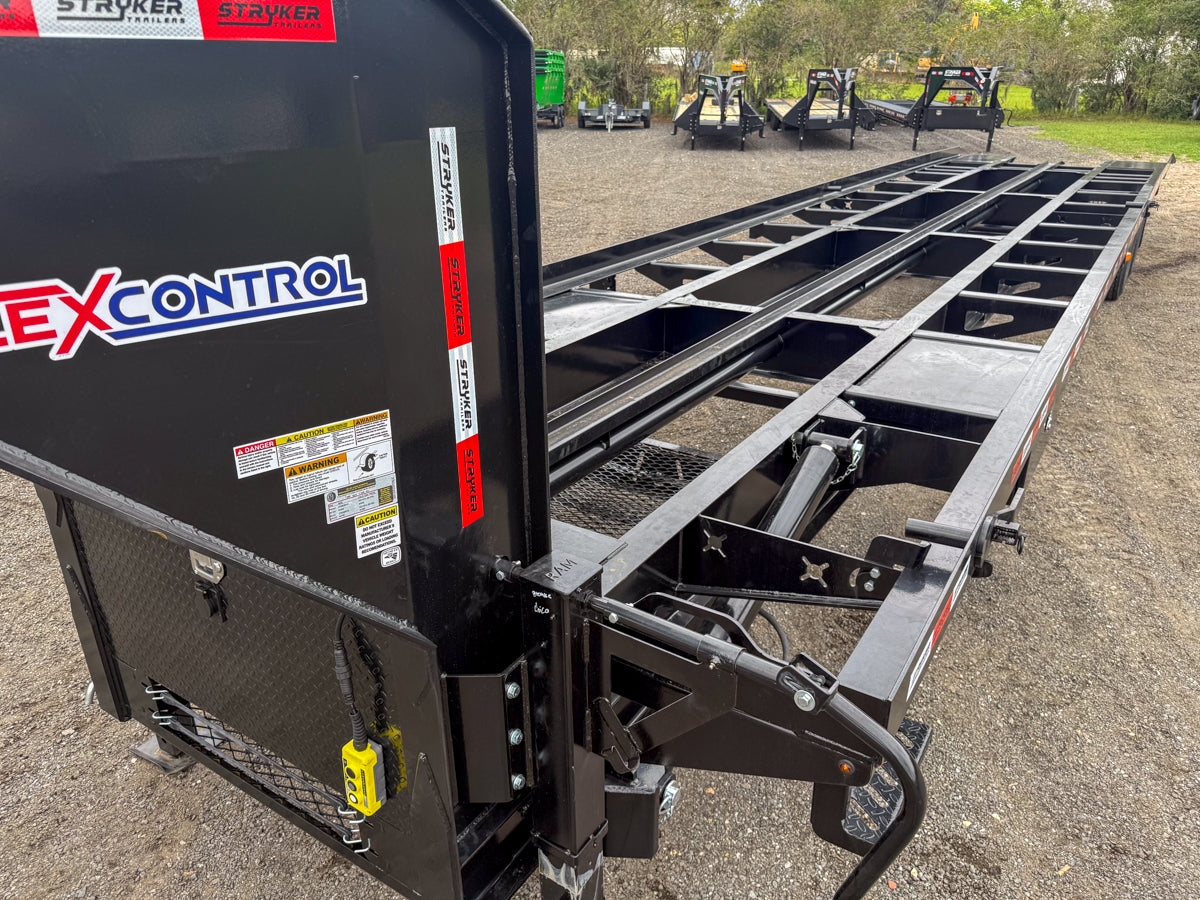

Engineered I-Beam Strength
The backbone of this trailer is its rugged 12" I-Beam main frame, providing the optimal balance of strength and weight for a smooth tilt function. Combined with 3" channel crossmembers on 16" centers, it delivers a solid, dependable platform for heavy containers and equipment.
Product Details
DIMENSIONS
- LENGTH:
- 40'
- WIDTH:
- 102"
- DECK HEIGHT:
- 38"
WEIGHT RATINGS
- AXLE OPTIONS:
- 12k
- GVWR:
- 25k
- GAWR:
- 12k
RUNNING GEAR
- TIRES:
- ST235/80R16
- TIRE PLY:
- 10 Ply
- RIMS:
- 16" Black Wheels
- AXLE TYPE:
- 2 - 12k Dual Dexter Oil Bath Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric Brakes

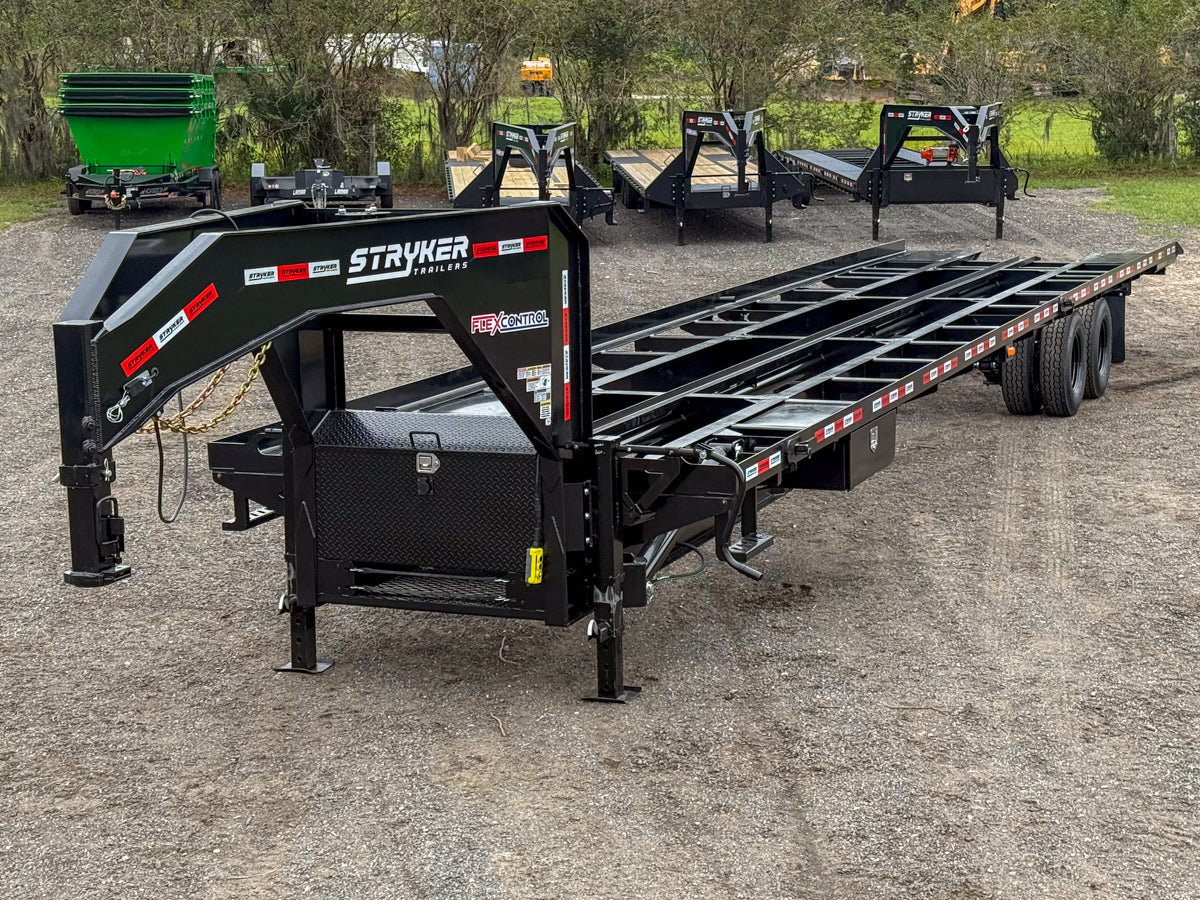

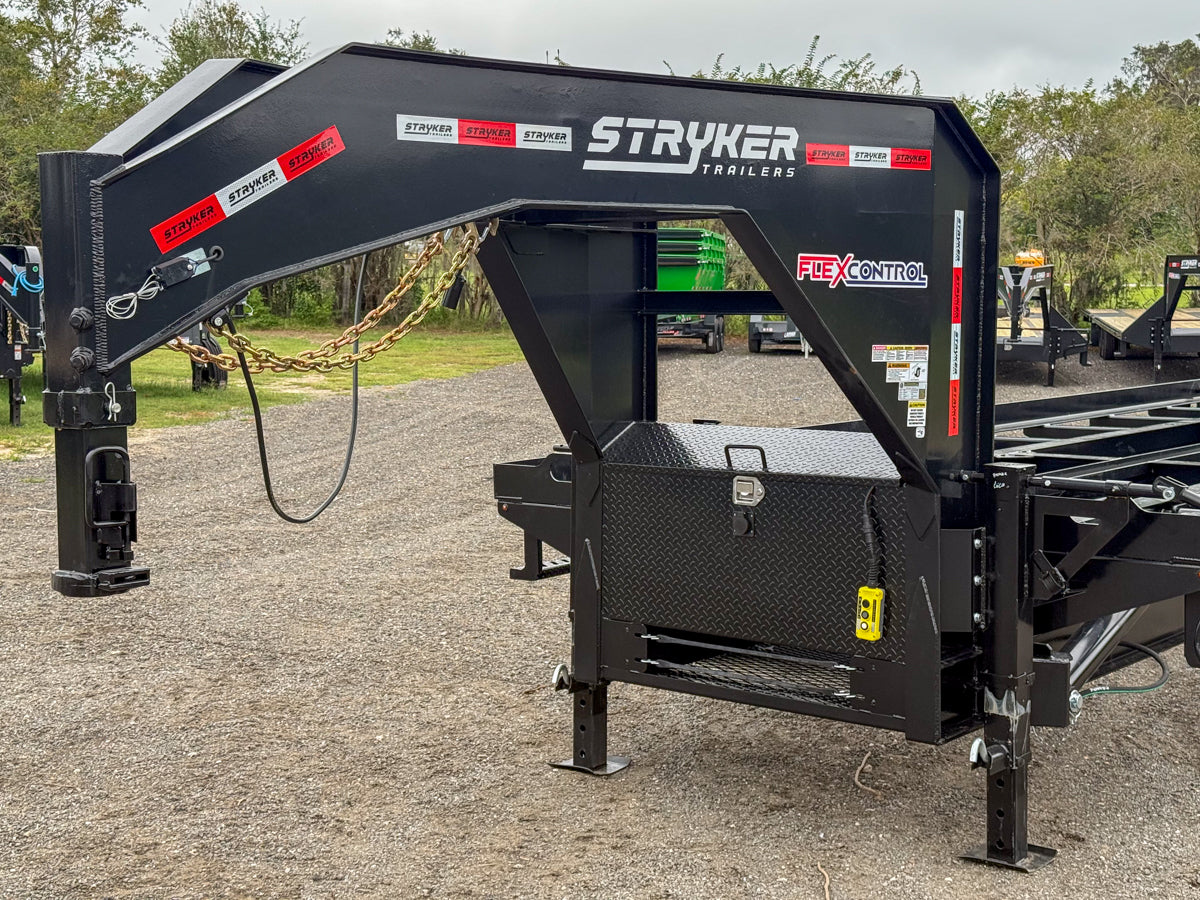

GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Fabricated I-Beam
- JACKS:
- 2 - 12k Drop-Leg Jacks
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)

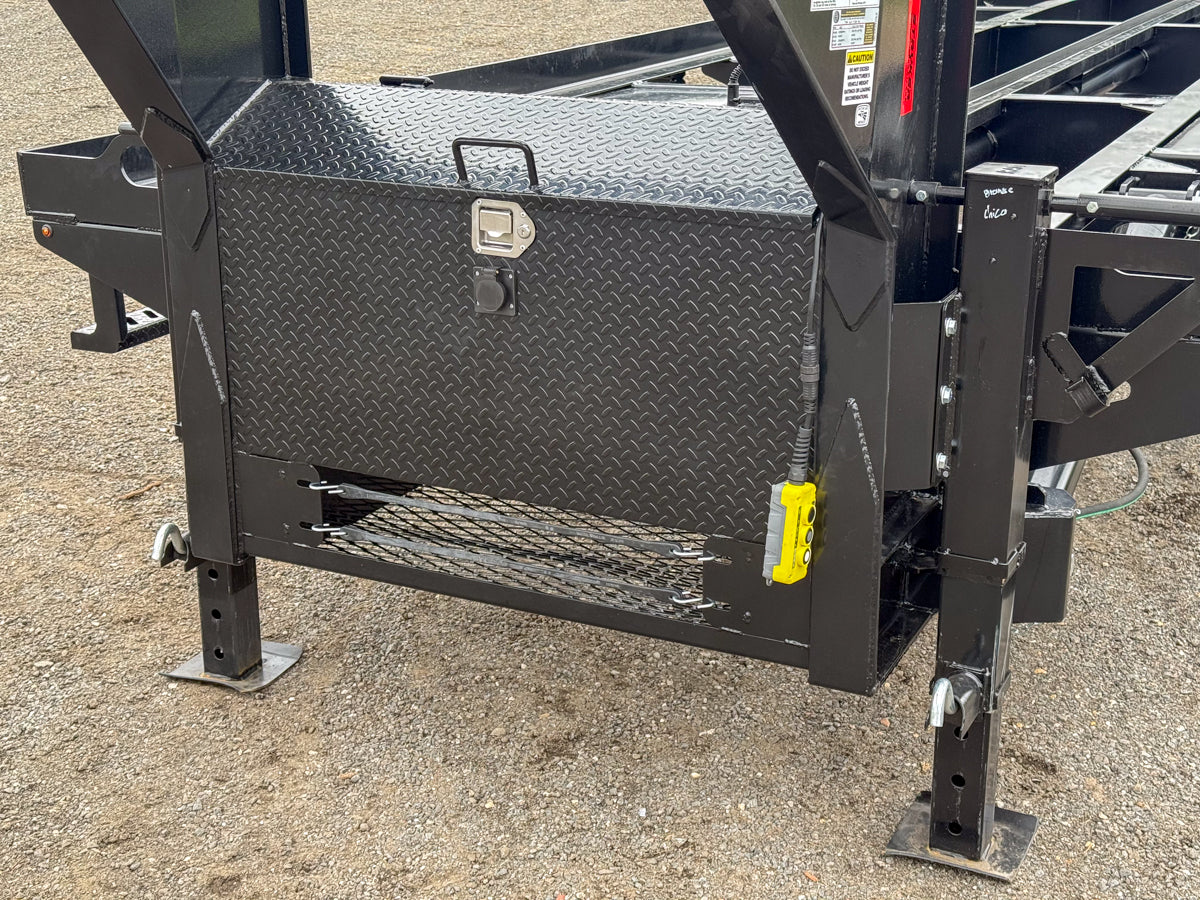

- TOOLBOX:
- Front Toolbox w/ Gas Shock Assisted Lid
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Metal Mesh Deck
- TORQUE TUBE:
- Standard On All Stryker Container Tilts
- CHAIN SLOTS:
- Multiple Front & Rear Slots For Chains
- RATCHETS:
- Six Ratchets On Passenger Side
- CONTAINER LOCKS:
- Standard w/ Two Container Locks
- CONTAINER CONFIGURATION:
- (1) 40' or (2) 20' Containers
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
ELECTRICAL & LIGHTING

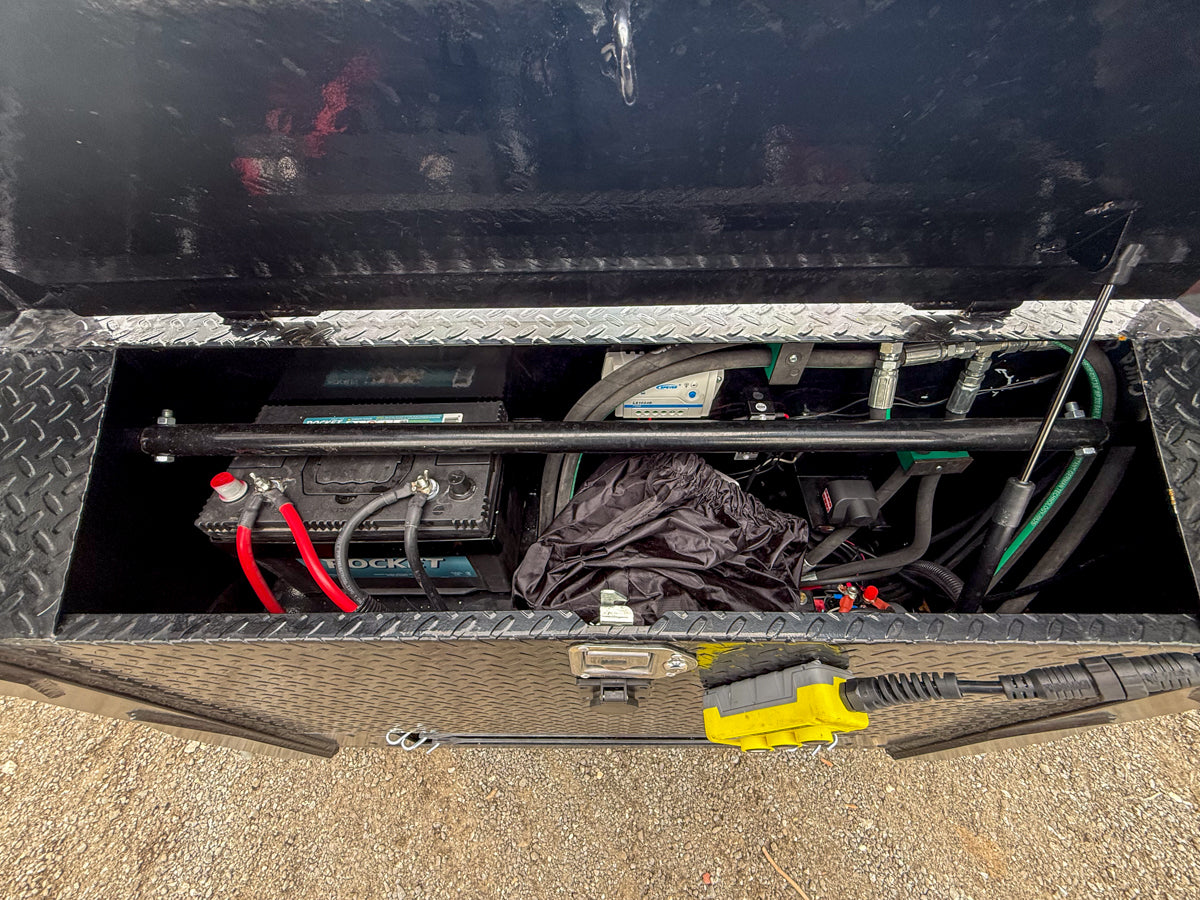

- BATTERY:
- Group 27 Series Battery
- CHARGING SYSTEM:
- Solar Panel For Battery Charging
- WIRING HARNESS:
- Weather Resistant Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
HYDRAULIC TILT SYSTEM
- TILT METHOD:
- Power Up & Power Down
- TILT DECK:
- Full Tilt
- PUMP:
- 12 V Hydraulic Pump
- LIFT CYLINDERS:
- 2 Hydraulic Cylinders
- WINCH:
- 18,000 lb Winch w/ Wireless Remote
- WINCH PLATE:
- Front of Deck
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Black (#000000), Gray (#808080), White (#FFFFFF), Light Grey (#D3D3D3), Red (#E20000), Blue (#1D1DBB), Lime Green (#32CD32), Green (#008000), Orange (#FF5414)
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
