Product Features
Frame and Crossmembers
The trailer is built with a robust 12" 22 lb. I-beam frame, offering exceptional strength and durability. Standard features include 16" spaced crossmembers and a treated yellow pine floor, ensuring a solid and reliable platform. Additional options include a 5' or 9' hydraulic dovetail, low-profile pierced-beam frame, and 12" spaced crossmembers for added flexibility and customization.
Jacks
Equipped with dual 10,000 lb. drop-leg jacks as standard, the Lamar FG Trailer ensures stable and easy leveling. For added convenience and strength, you can upgrade to dual 10,000 lb. 2-speed jacks, dual 10,000 lb. hydraulic jacks, or even dual 25,000 lb. 2-speed Jost jacks, depending on your specific needs.
Cargo Loading and Storage
For cargo loading, the Lamar FG Trailer comes with standard stake pockets, a rub rail, and a pair of slide-in ramps. You can enhance its functionality with a 4' side mount toolbox, weld-on D-rings, strap winches, and a lockable chain rack. Other options include a winch plate with a 12,500 lb. Warrior winch and a receiver hitch with plug for additional versatility and secure cargo handling.
Axles and Brakes
The Lamar FG Trailer comes with 10,000 lb. electric brake spring axles as standard, ensuring reliable stopping power and durability. For enhanced performance, you can opt for 15,000 lb. electric brake spring axles. The trailer also offers several suspension options, including electric brake hutch suspension axles and electric hydraulic disc brake axles, providing versatility for different load requirements.
Powder Coat Finish
Featuring a high-quality powder coat finish in Lamar Charcoal Gray, the Lamar FG Trailer offers superior durability and protection against the elements. This finish involves grit blasting the surface to ensure maximum adhesion and longevity. Resistant to corrosion, chipping, and fading, the powder coat helps maintain the trailer's appearance and structural integrity even under harsh conditions.
Warranty
This Lamar trailer offers a 3-year structural warranty and a 1-year component warranty, protecting against manufacturing defects and maintaining appearance. This comprehensive coverage reflects Lamar's commitment to quality and customer satisfaction, ensuring peace of mind for owners.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Lamar FG Gooseneck Trailer
- TYPE:
- Gooseneck
- WIDTH:
- 102"
30K TANDEM AXLE SIZES & PAYLOAD:
- 32' LENGTH:
- Weight: 9,735 lbs, Payload: 20,265 lbs
- 36' LENGTH:
- Weight: 10,300 lbs, Payload: 19,700 lbs
- 40' LENGTH:
- Weight: 11,300 lbs, Payload: 18,700 lbs
30K TRIPLE AXLE SIZES & PAYLOAD:
- 25' LENGTH:
- Weight: 8,890 lbs, Payload: 21,110 lbs
- 32' LENGTH:
- Weight: 9,735 lbs, Payload: 20,265 lbs
- 36' LENGTH:
- Weight: 10,300 lbs, Payload: 19,700 lbs
- 40' LENGTH:
- Weight: 11,300 lbs, Payload: 18,700 lbs
WEIGHT RATINGS:
- GVWR:
- 30,000 lbs
FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 12" x 22 lb I-Beam Frame
- CROSSMEMBERS:
- 16" Spaced Crossmembers
- FLOORING:
- Treated Yellow Pine Floor
- TORQUE TUBE:
- Standard on 36'+
- UNDER-FRAME BRIDGE:
- Standard on 30'+
LOADING:
- DECK TYPE:
- Straight Deck
- LOADING ANGLE:
- 22°
GOOSENECK & CARGO LOADING

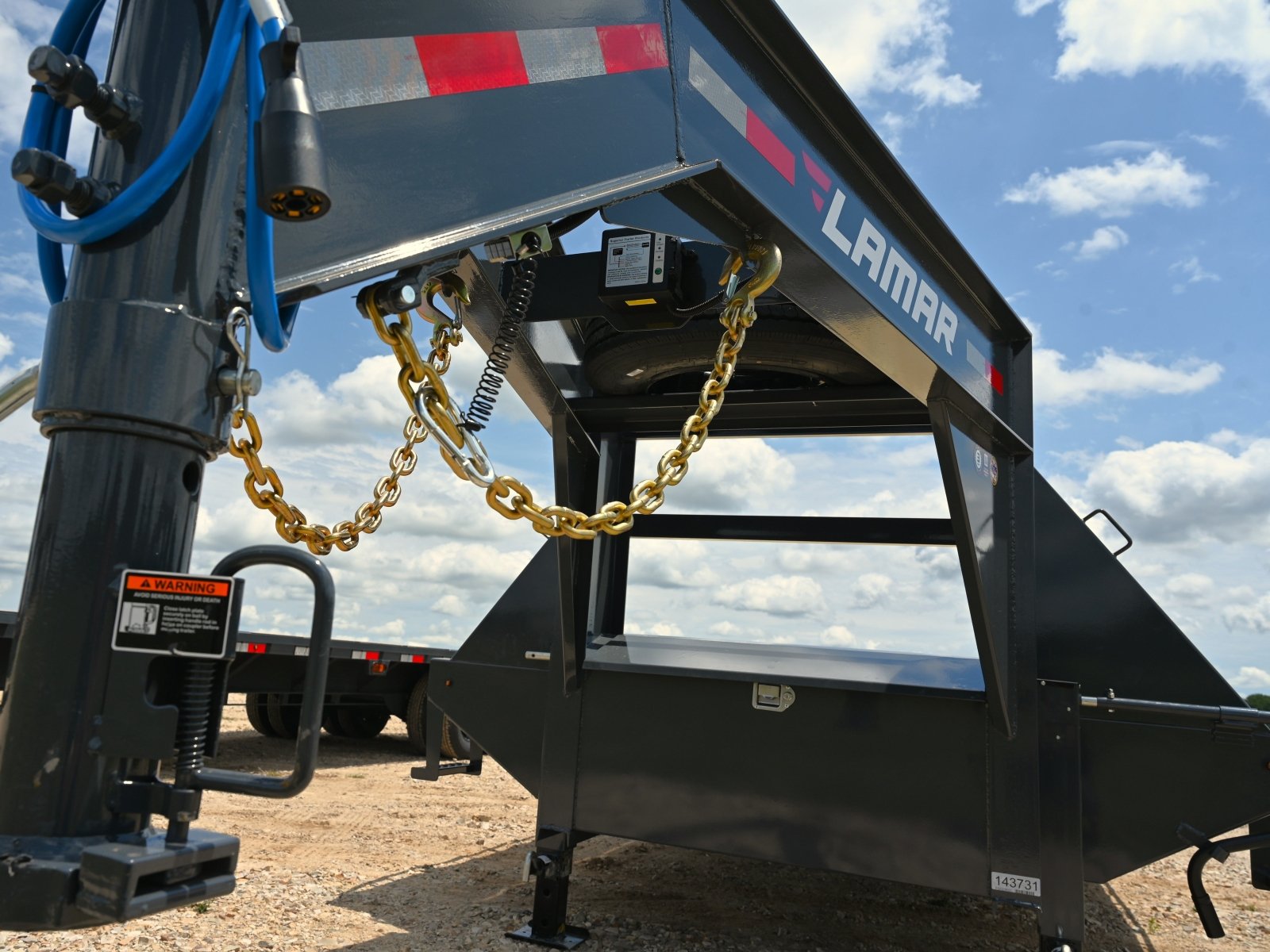

GOOSENECK:
- COUPLER:
- 2-5/16" 30K Gooseneck Coupler
- GROUND TO COUPLER HEIGHT:
- 25" - 33"
- JACKS:
- Dual 10K Drop-Leg Jacks
- FRONT TOOL BOX:
- Standard
CARGO LOADING:
- RUB RAIL:
- Standard
- STAKE POCKETS:
- Standard Stake Pockets
RUNNING GEAR

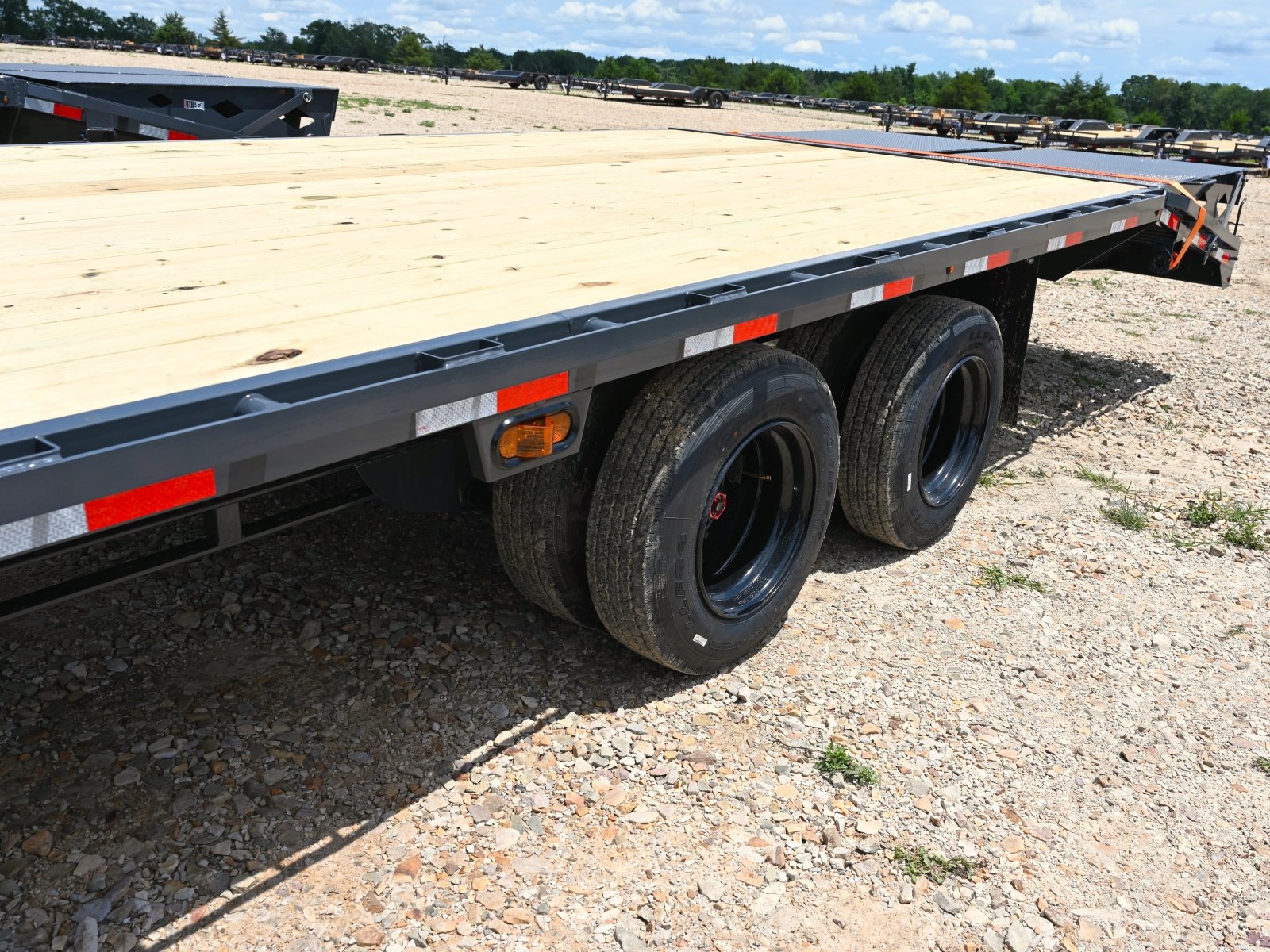

AXLES:
- TYPE:
- 10K Electric Brake Spring Axles
TIRES:
- TYPE:
- 215/75 R17.5 (H) 16 Ply Tire Black Dual Wheel

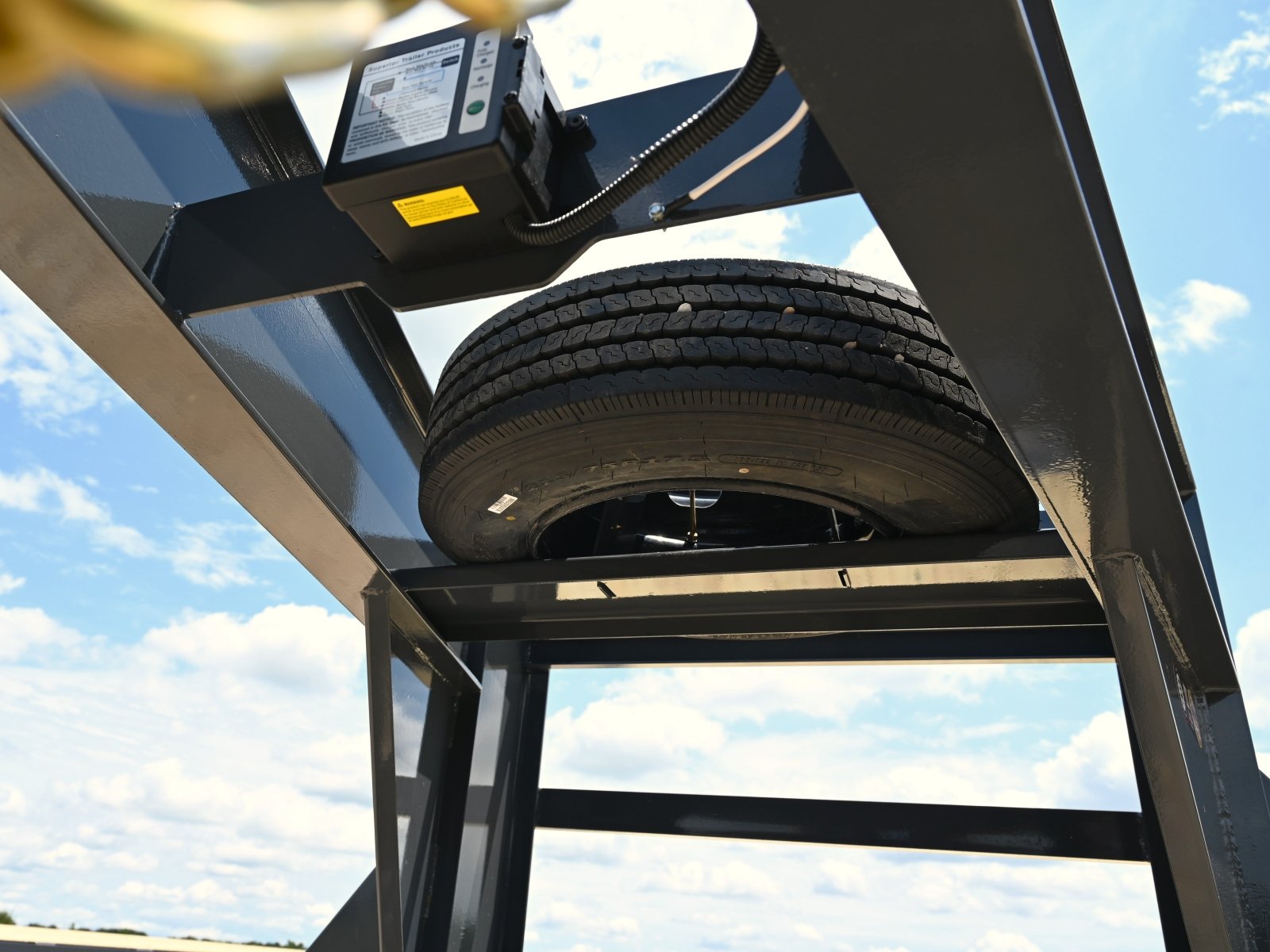

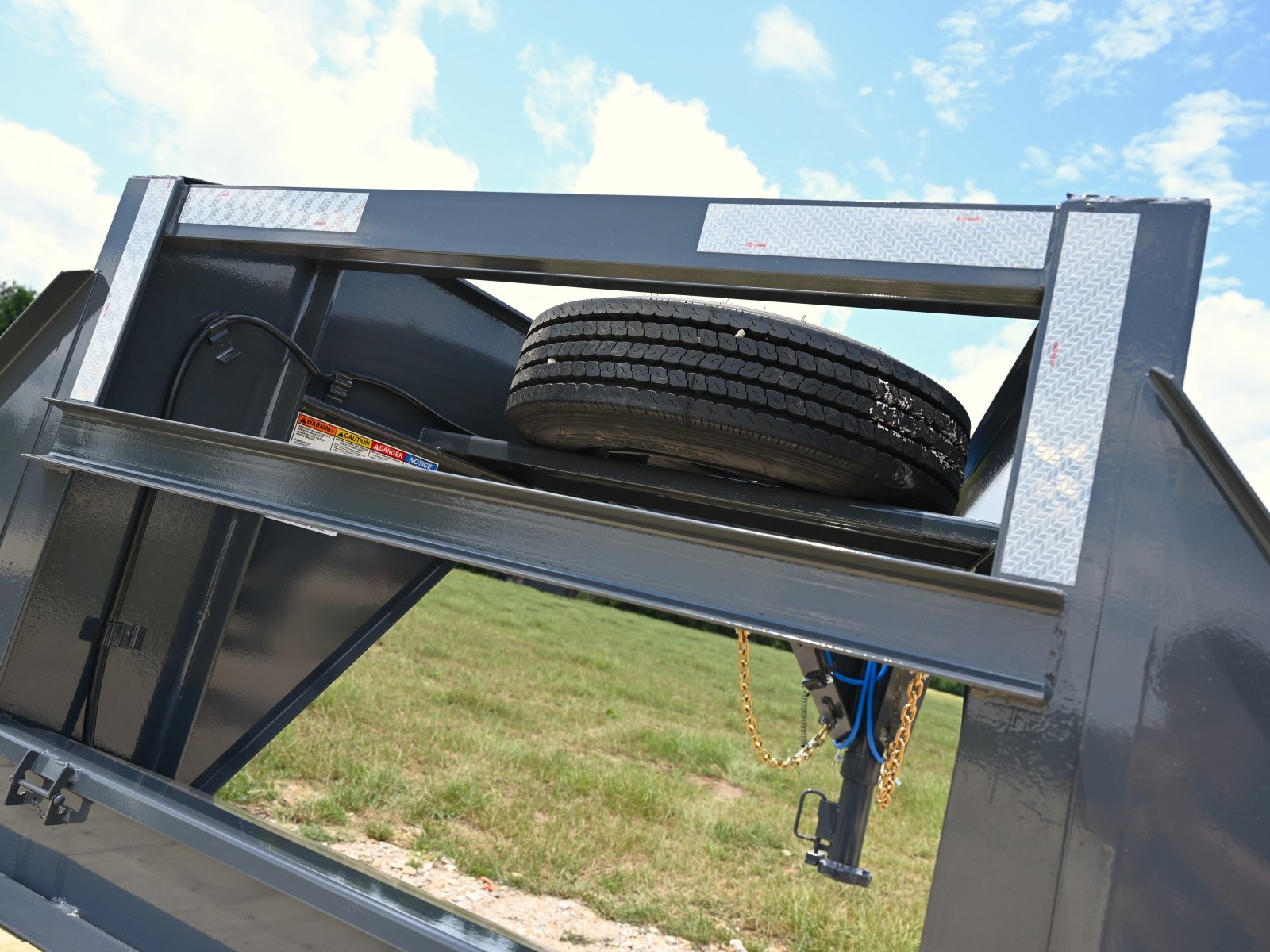

- SPARE MOUNT:
- Standard
ELECTRICAL & LIGHTING
ELECTRICAL:
- LIGHTING:
- LED Lights
- SIDE TURN FLASHERS:
- Pair of Side Turn Flashers (Standard on 30'+)
- WIRING HARNESS:
- Weather Resistant Harness (-65°F)
FINISH
FINISH:
- COLOR:
- Lamar Charcoal Gray Powder Coat
OPTIONS
LOADING OPTIONS:
- RAMPS:
- Pair of Slide-In Ramps
- Pair of Mega Ramps
