Product Features

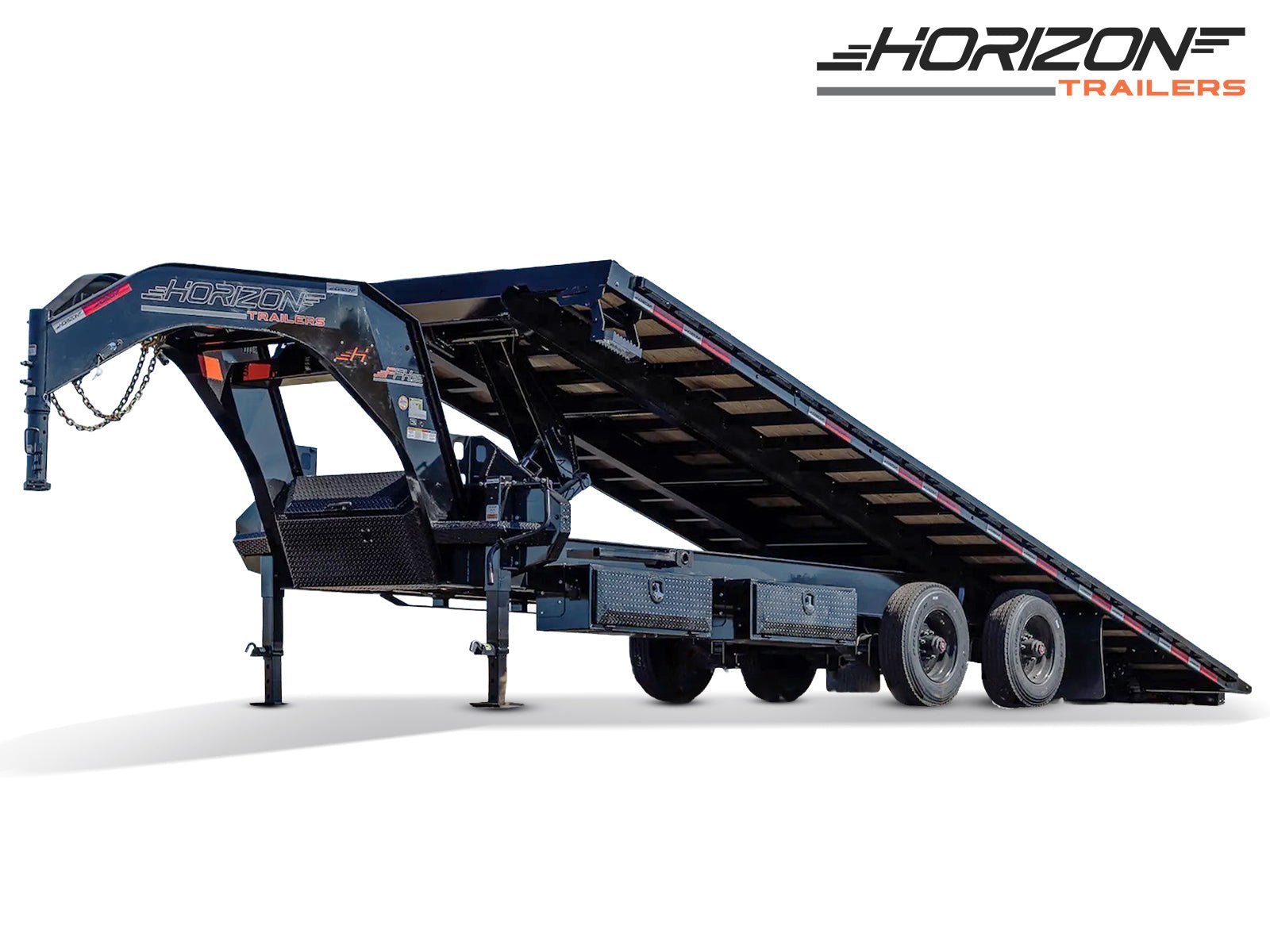

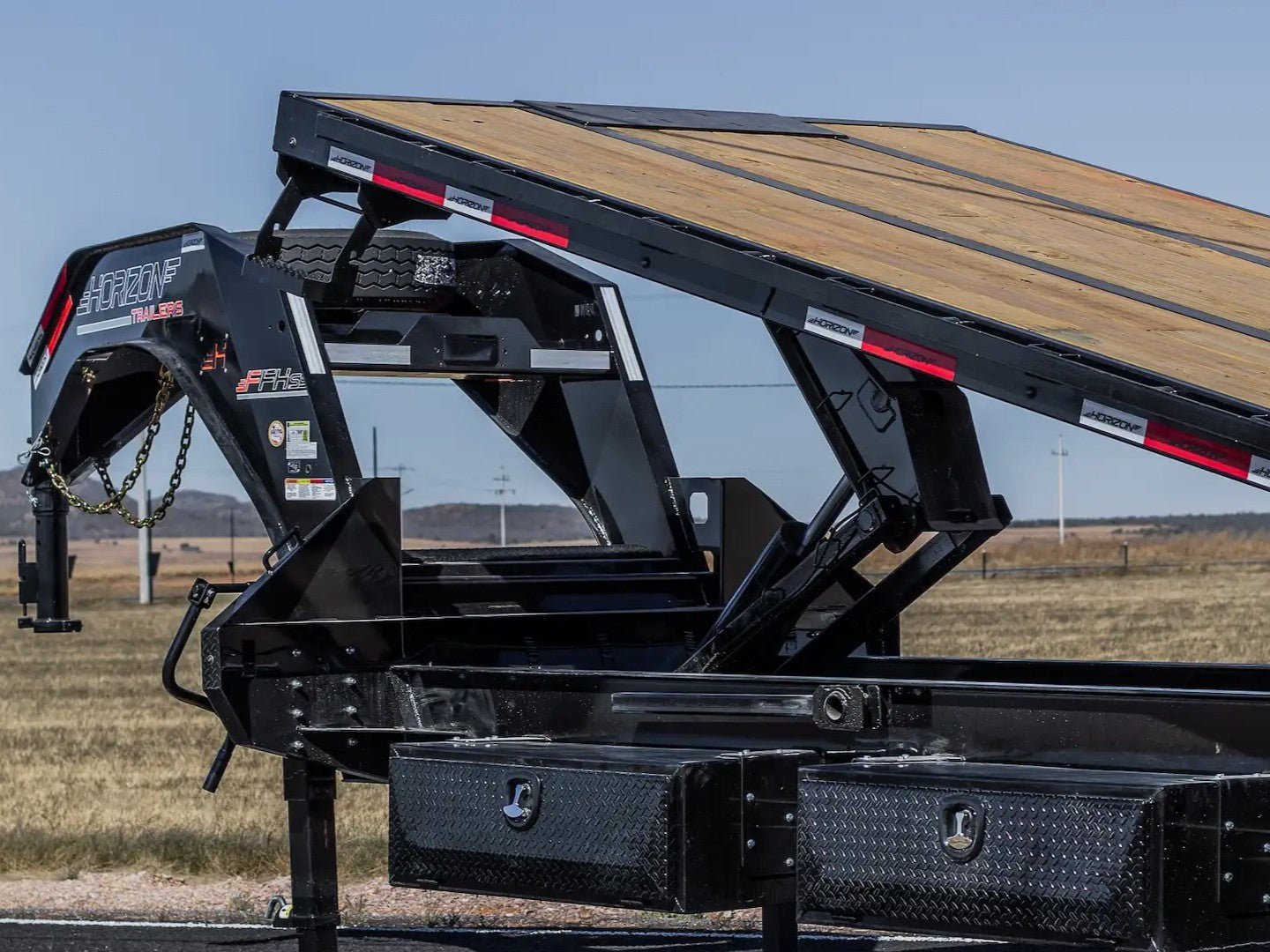

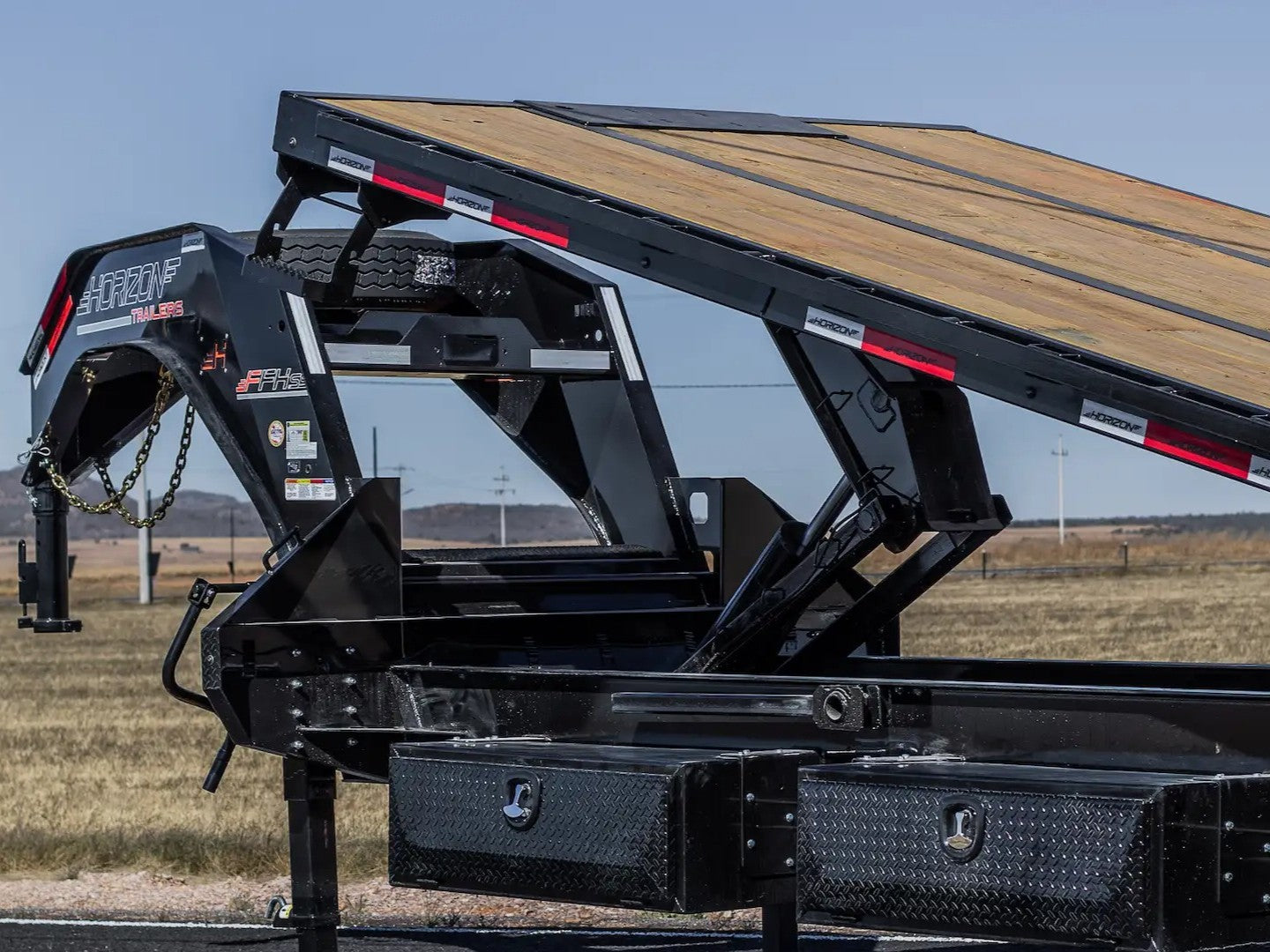

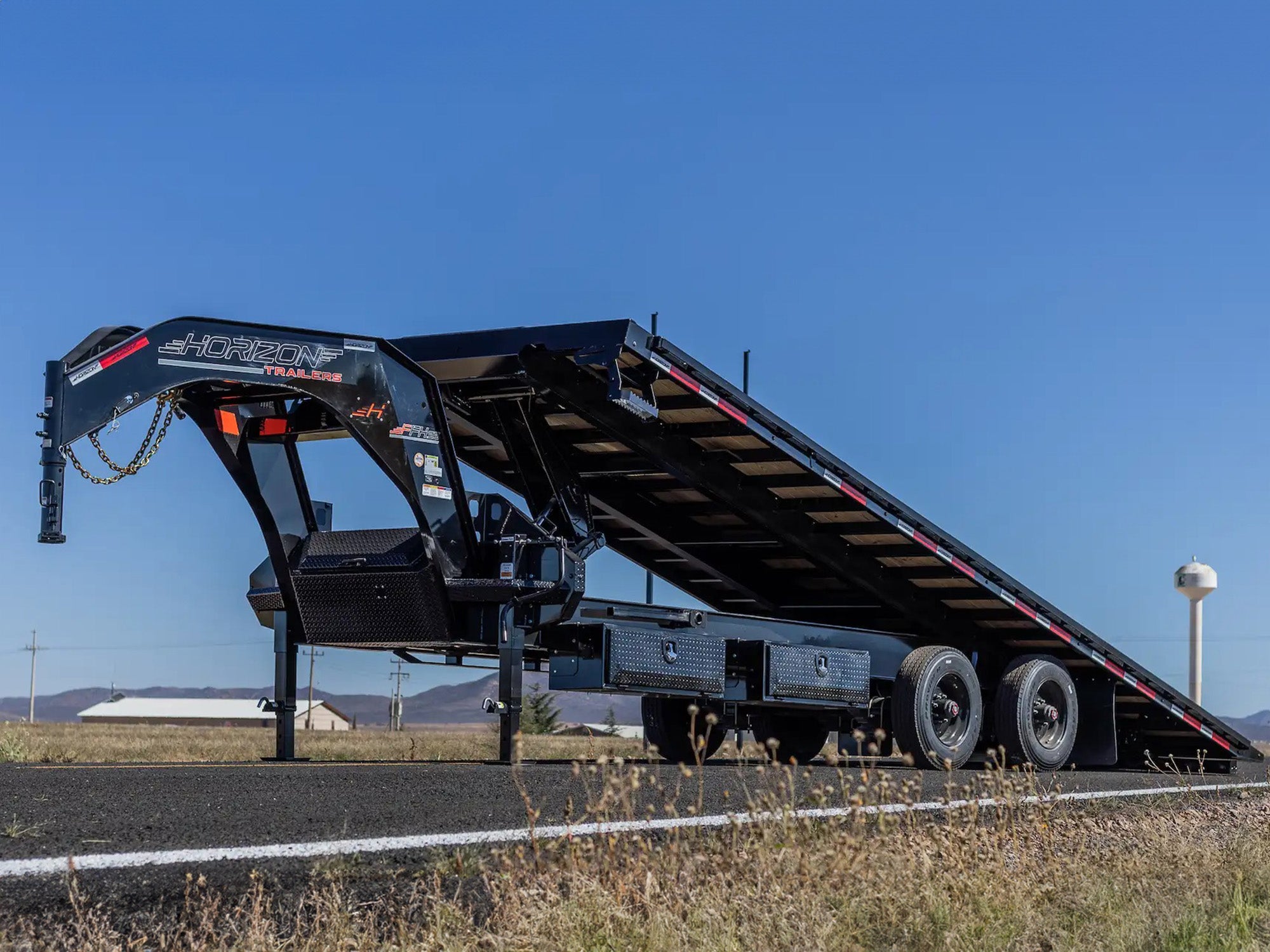

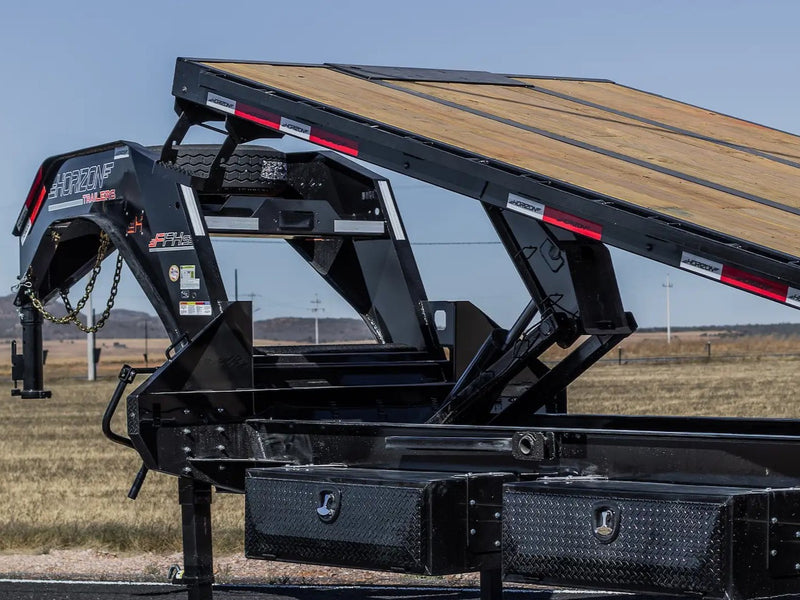

24' Split Tilt Deck with Full Hydraulic Power

Features a heavy-duty 24-foot hydraulic split tilt deck. Powered by a KTI 12V pump and a 6"x21" cylinder (20,000 lb capacity), the system provides full power-up and power-down control for easy, precise loading.

38" Deckover Height & 102" Width

Built as a true deckover with a 38-inch deck height and a full 102-inch width. This design provides an unobstructed load surface for wide equipment without wheel well interference.

98" Engineered Gooseneck & Dual Battery System

Features a 98-inch long engineered I-beam gooseneck. The trailer includes two Interstate 27 deep cycle batteries for reliable power to the hydraulic tilt system.

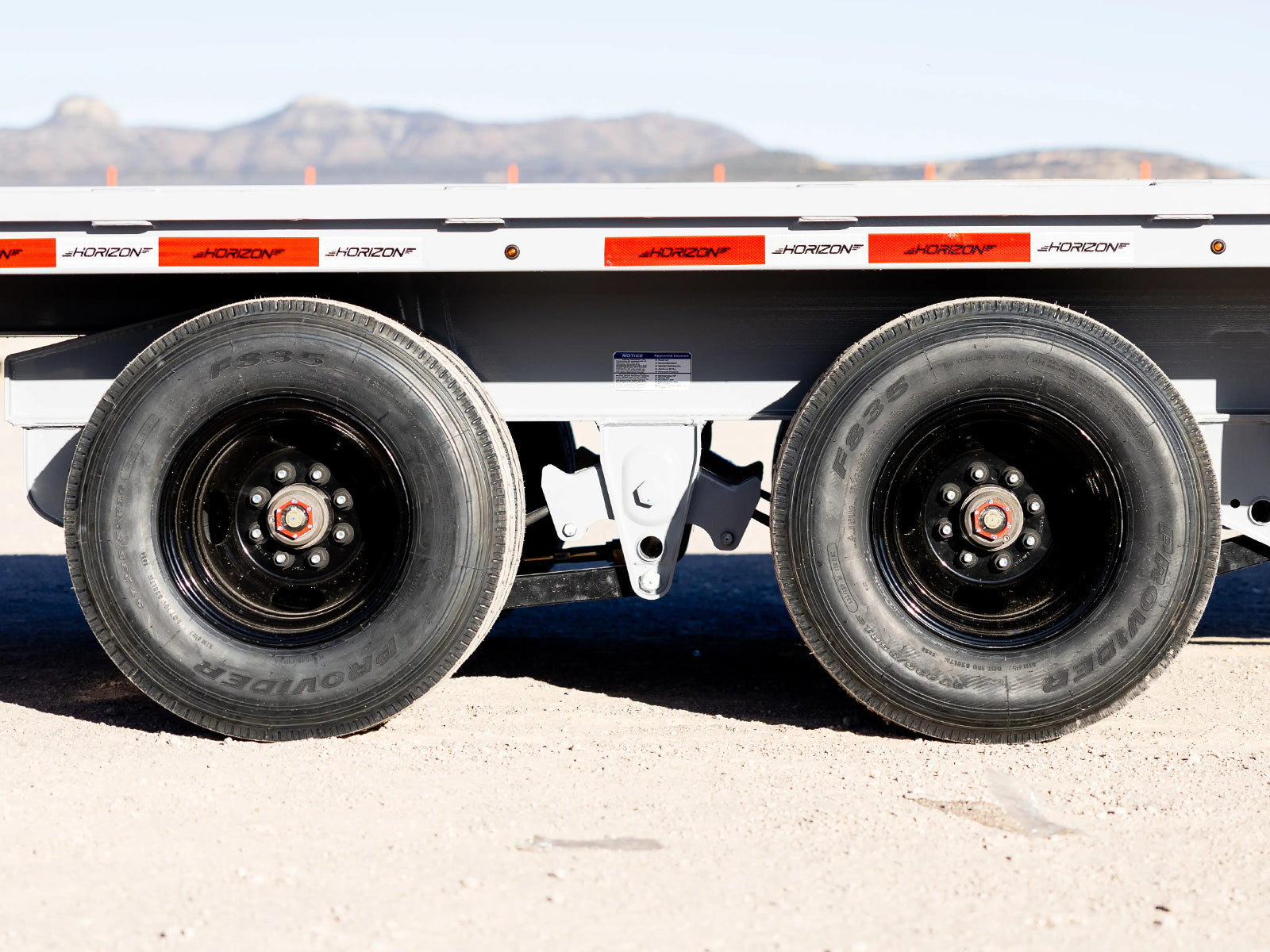

10k or 12k Oil Bath Axles

Equipped with 10k or 12k oil bath axles with electric brakes. The running gear uses 235/75R17.5 (18-ply) radial tires mounted on 17.5-inch black mod wheels.

12" I-Beam Frame & 4.5" Torque Tube

Constructed with a 12-inch (19 lbs/ft) I-beam main frame. Trailers 30 feet and longer include a 4.5-inch torque tube for maximum structural rigidity and towing stability.

Hutch Suspension & Air Ride Option

Available with a premium Hutch suspension upgrade for a smoother ride. An air ride suspension system is offered as an option for superior load protection and towing comfort.

Product Details

DIMENSIONS

LENGTH:

28' - 40'

TILT DECK LENGTH:

24'

WIDTH:

102"

DECK HEIGHT:

38"

WEIGHT RATINGS

GAWR:

10k, 12k SS

GVWR:

25k - 25.9k

FINISH

PAINT TYPE:

Powdercoat

PREP:

Steel Grit Blasted

COLORS:

Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue

SAFETY

BREAKAWAY SYSTEM:

2382 Brightway Group Electric Breakaway Kit

REFLECTIVE TAPE:

3M DOT Compliant Reflective Tape

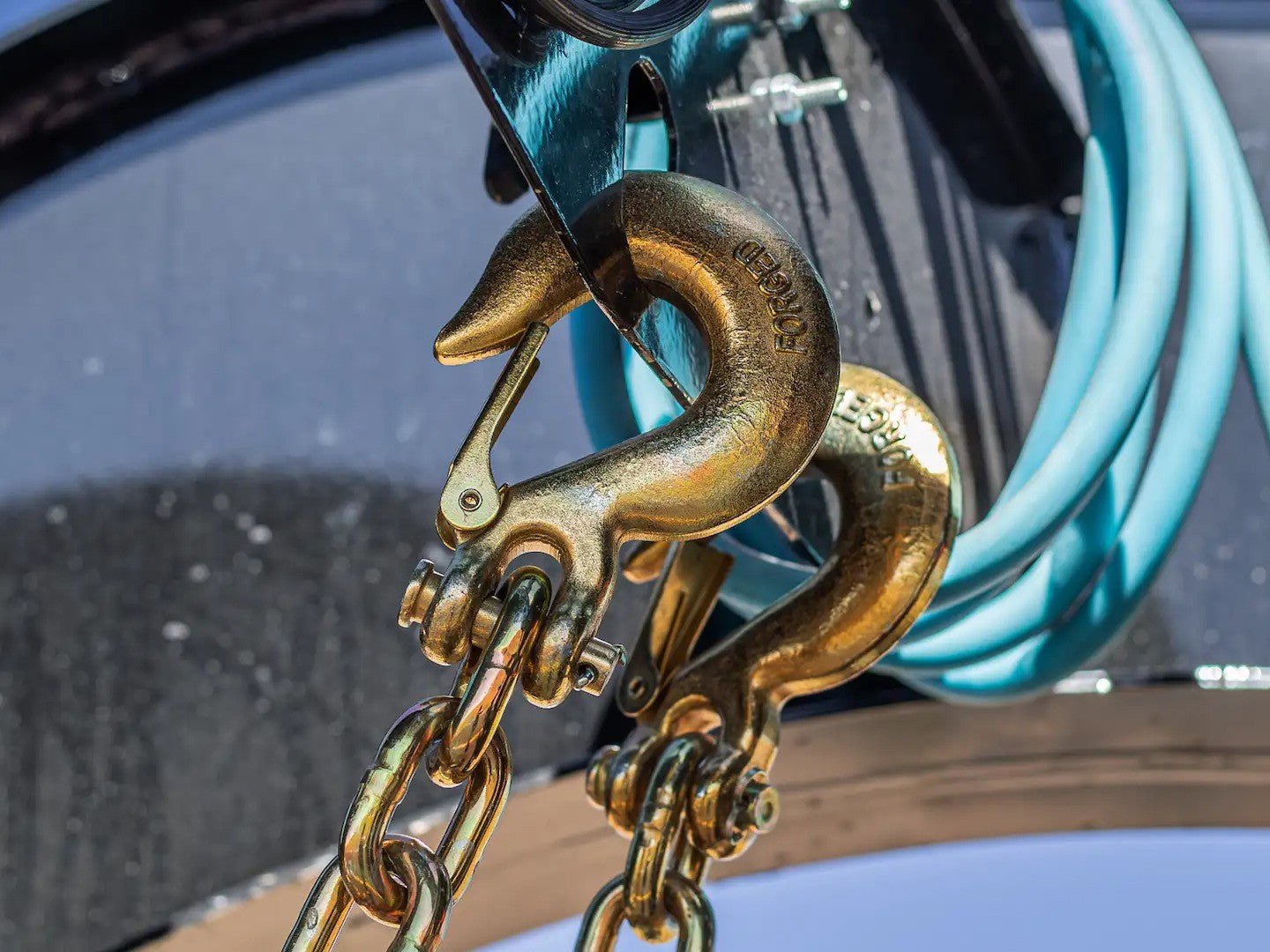

SAFETY CHAINS:

3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

TORQUE TUBE:

4 1/2" Tube (30'+)

TONGUE

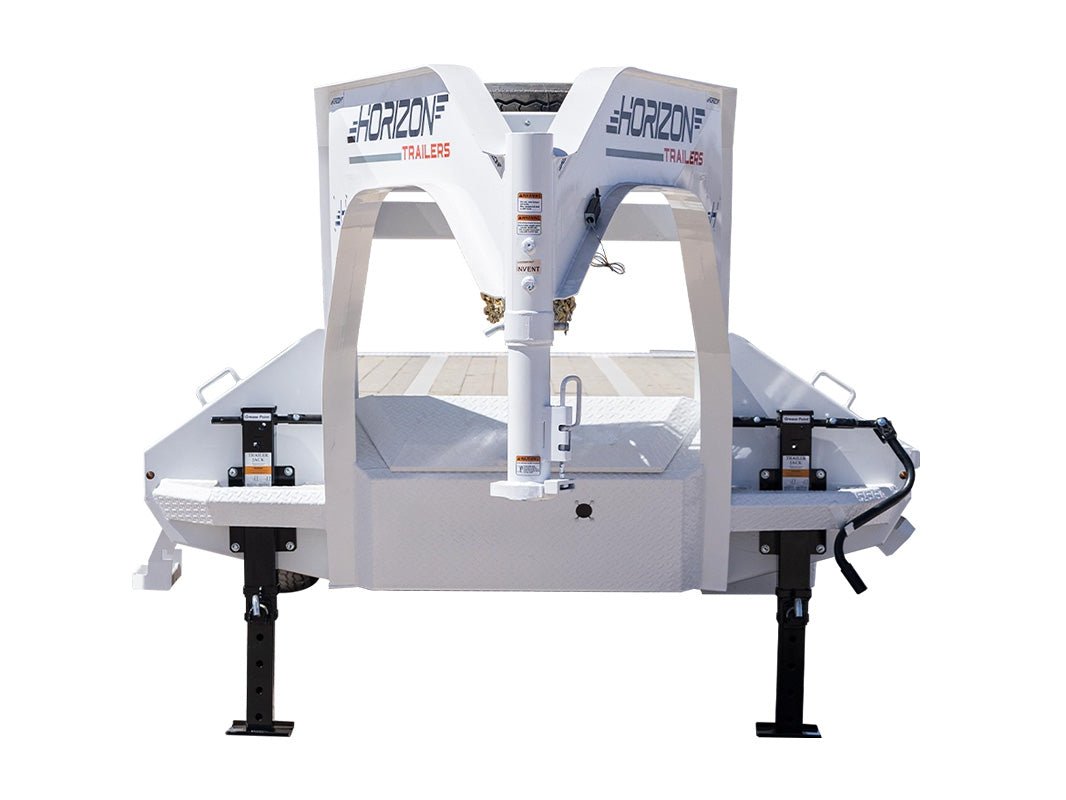

TONGUE GOOSENECK:

Engineered I-Beam, 98" Long

HEIGHT:

70" (From Underneath Neck)

STANDARD COUPLER GN:

Adjustable 2-5/16" Coupler (30,000 lbs)

FRONT JACKS GN:

2 Side Wind Drop Jack Legs (12,000 lbs)

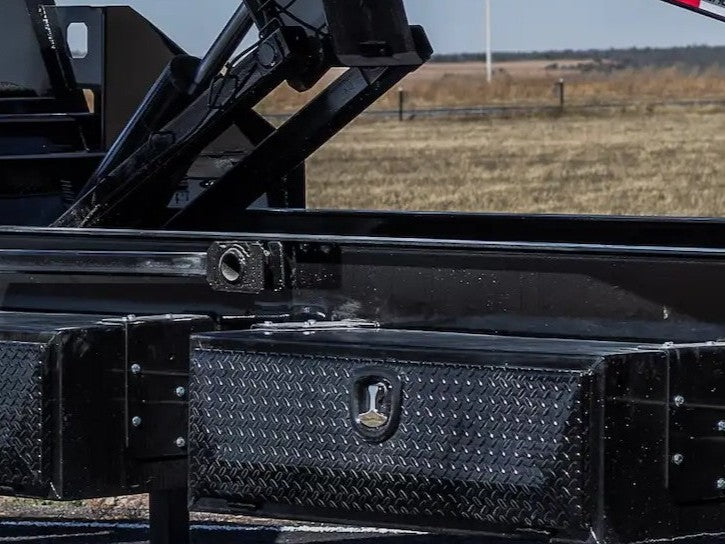

TOOLBOX GN:

Mega Lockable Toolbox

ELECTRICAL & LIGHTING

BATTERY:

2 - Interstate 27 Deep Cycle Batteries

WIRING HARNESS:

All-Weather Wiring Harness (7-Way RV)

FRAME WIRING:

Double Insulated Wiring Harness

REAR LIGHTS:

DOT Approved LED Lighting

TILT FUNCTIONS

TILT METHOD:

Power Up & Power Down

TILT DECK:

24' Tilt Deck

RUNNING GEAR

TIRES:

Radial Tires, 235/75R17.5, 18 Ply

RIMS:

17.5" Black Mod Wheels

BRAKES:

Electric Brakes

AXLE TYPE:

2 - 10k SS Oil Bath Axles
2 - 12k SS Oil Bath Axles

AXLE COUNT:

2

BOLT PATTERN:

8 on 6.5"

SUSPENSION TYPE:

Spring

HYDRAULIC SYSTEM

PUMP:

KTI 12V Hydraulic Pump

LIFT CYLINDER:

Hoist w/ 6"x21" Single Cylinder (20,000 lbs)

FRAME & CONSTRUCTION

MAIN FRAME:

12" I-Beam (19lbs/ft)

CROSSMEMBERS:

3" Channel, 16" Spacing

DECK TYPE:

Wood

WARRANTY

AXLE WARRANTY:

5 Year Dexter Axle Warranty

TRAILER WARRANTY:

3 Year Frame / 1 Year Parts Warranty

OPTIONS

JACKS

JACKS:

12k Ram 2-Speed Jacks

HYDRAULIC JACKS:

12k Hydraulic Jacks

COUPLER

COUPLER:

Shocker Hitch Coupler Upgrade

TOOLBOX

TOOLBOX:

Locker Style Toolbox

ELECTRICAL

SOLAR:

10 Watt Solar Panel

CONTROLLER:

Wireless TUFF Remote

LIGHTING

LIGHTS:

Cargo Lights on Riser

FRAME

NECK:

Deck On Neck

TOOLBOX:

Side Mount Toolbox

UNDERCOAT:

Zinc Primer Undercoat

RUNNING GEAR

SPARE TIRE:

Spare Tire

SUSPENSION:

Hutch Suspension
Air Ride Upgrade

CARGO

RAIL SYSTEM:

Slide Rails, Right Side, Left Side, or Both

WELD ON RATCHETS:

Weld On Ratchets

SLIDE RATCHETS:

Sliding Ratchets

D-RINGS:

Additional D-Rings
