At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features

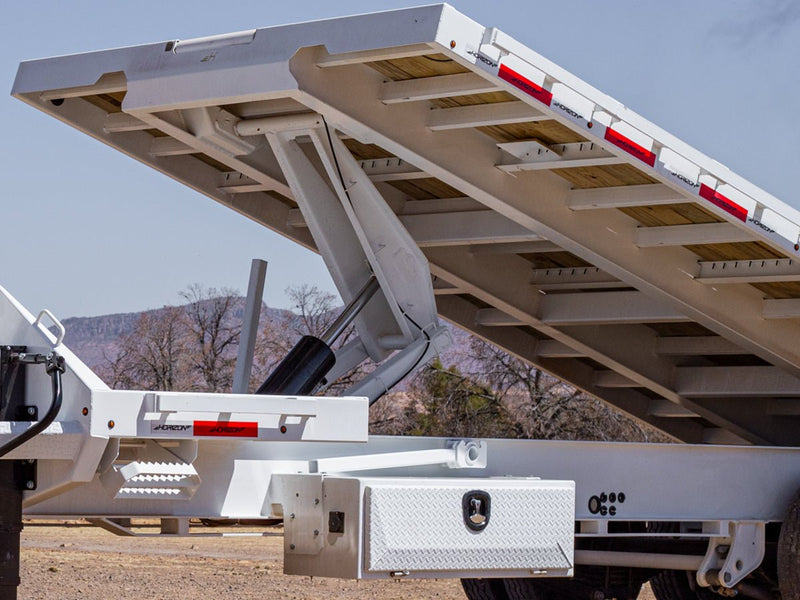

Heavy-Duty Hydraulic Tilt System
Experience effortless loading with a robust 20,000 lb capacity hydraulic tilt system. The KTI 12V pump and large 6"x21" cylinder provide reliable power-up and power-down operation for the full 24-foot tilt deck, making tough loading jobs simple and efficient.

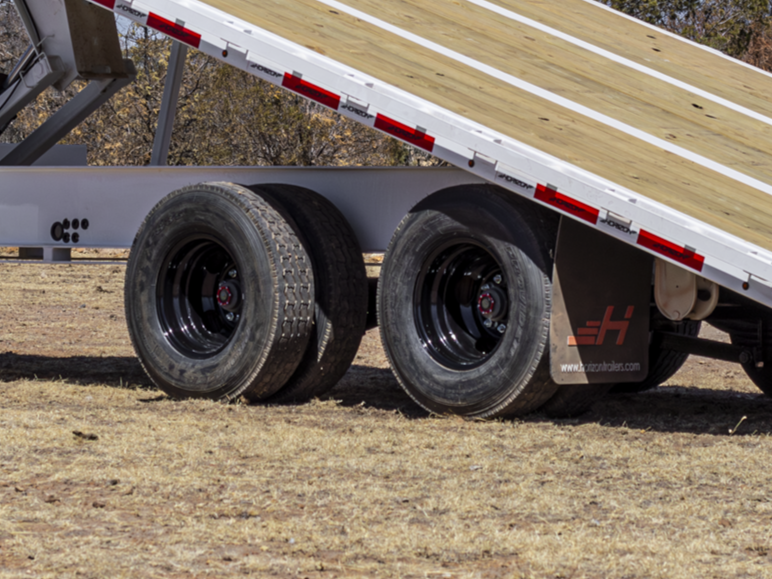

Heavy-Duty Oil Bath Axles
Configure your trailer with 10k, 12k, or 16k dual oil bath axles. This robust system delivers reliable performance and is built to handle heavy loads with ease.

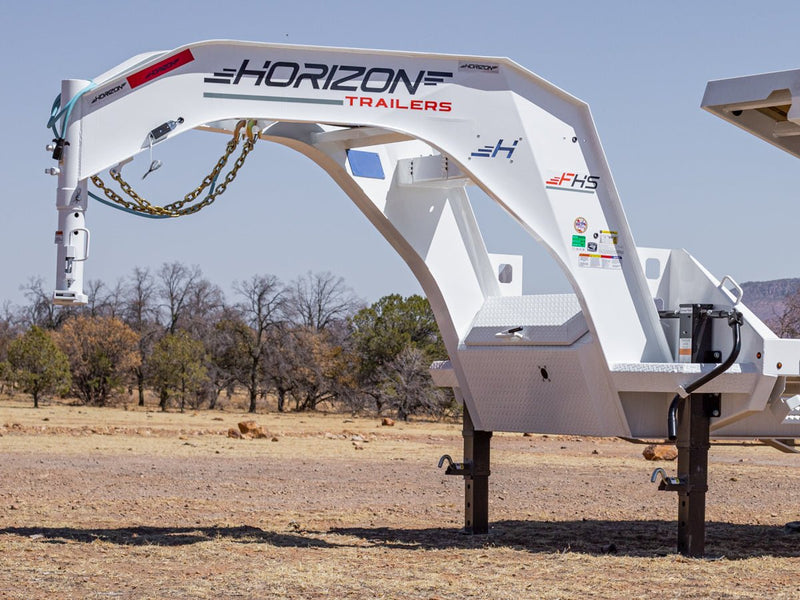

Heavy-Duty Engineered Gooseneck
A 98-inch engineered I-beam gooseneck provides a solid connection to your truck. Paired with a 30,000 lb adjustable coupler, it ensures stable towing and precise control with heavy loads.

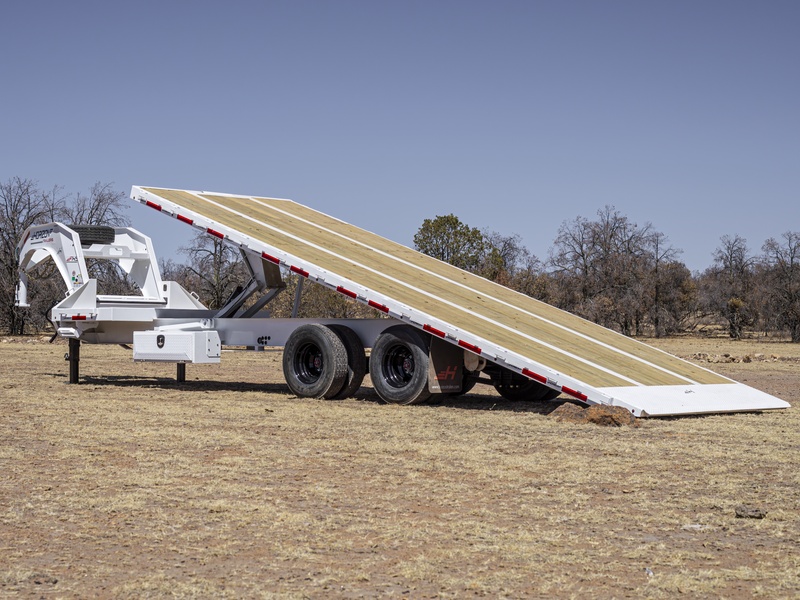

Deck Performance
The FHS deck is built on a rigid grid of 3" channel crossmembers spaced 16" on center. This robust foundation creates an incredibly stable surface that handles heavy, concentrated loads with ease, giving you confidence with every piece of equipment you haul.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 28' - 40'
- WIDTH:
- 102"
- DECK HEIGHT:
- 38"
WEIGHT RATINGS
- GAWR:
- 10k, 12k, 16k
- GVWR:
- 25k - 30k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
TONGUE
- TONGUE GOOSENECK:
- Engineered I-Beam, 98" Long
- HEIGHT:
- 70" (From Underneath Neck)
- STANDARD COUPLER GN:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- FRONT JACKS GN:
- 2 Side Wind Drop Jack Legs (12,000 lbs)
ELECTRICAL & LIGHTING
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting
RUNNING GEAR
- TIRES:
- Radial Tires, 235/80R16, 10 Ply
- RIMS:
- 16" Black Mod Wheels
- BRAKES:
- Electric Brakes
- AXLE TYPE:
- 2 - 10k Dual Oil Bath Axles
2 - 12k Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
HYDRAULIC SYSTEM
- PUMP:
- KTI 12V Hydraulic Pump
- LIFT CYLINDER:
- Hoist w/ 6"x21" Single Cylinder (20,000 lbs)
TILT FUNCTIONS
- TILT METHOD:
- Power Up & Power Down
- TILT DECK:
- 24' Tilt Deck

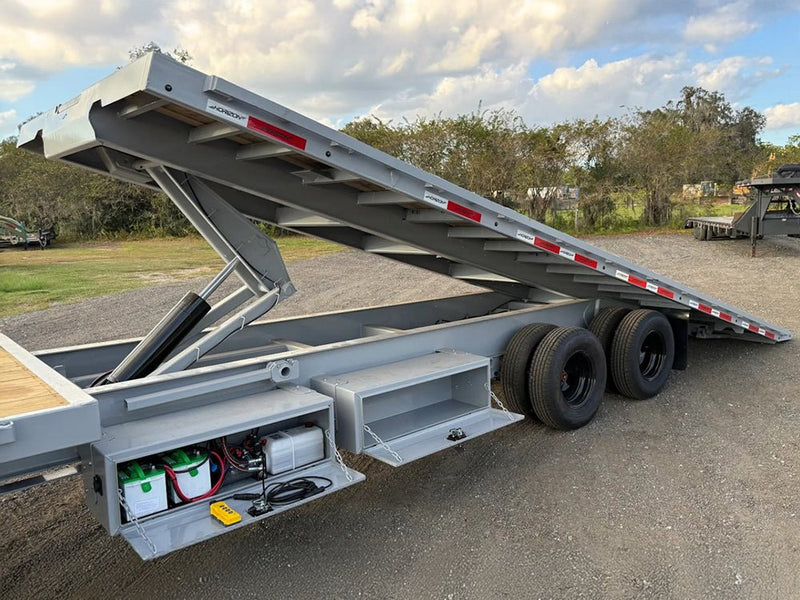

FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK TYPE:
- Wood
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
