At a Glance
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Featured Video
Product Features

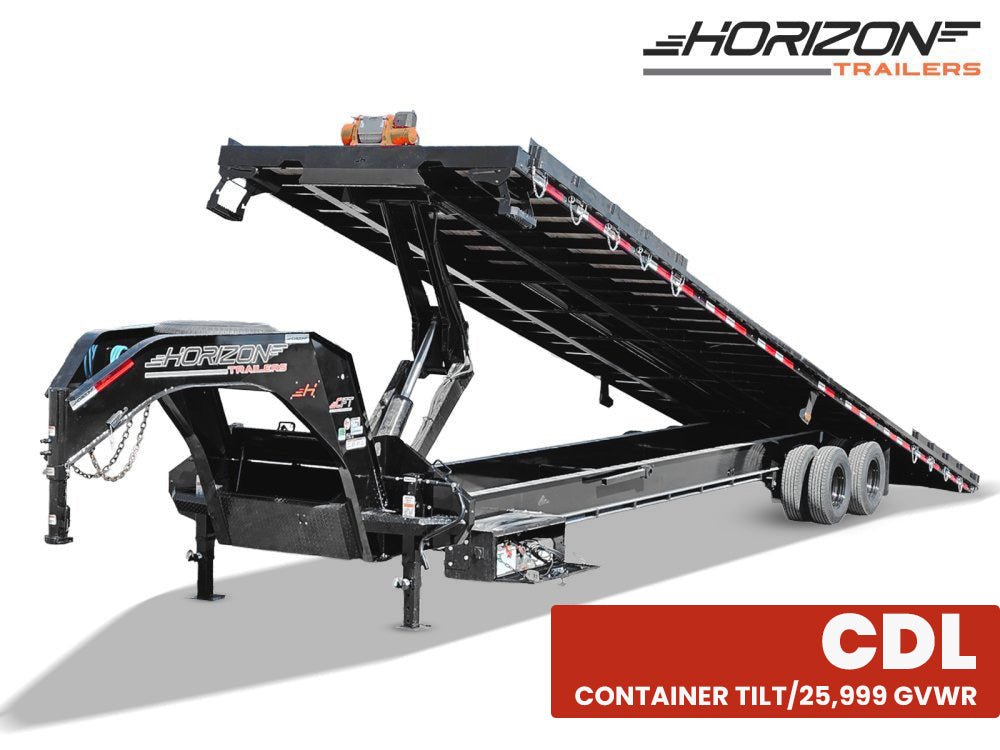

Dual-Purpose Design: Container Tilt & Deckover
This trailer offers premium versatility. It functions as a dedicated container hauler and easily converts to a standard deckover tilt trailer, providing two heavy-duty hauling solutions in one unit.

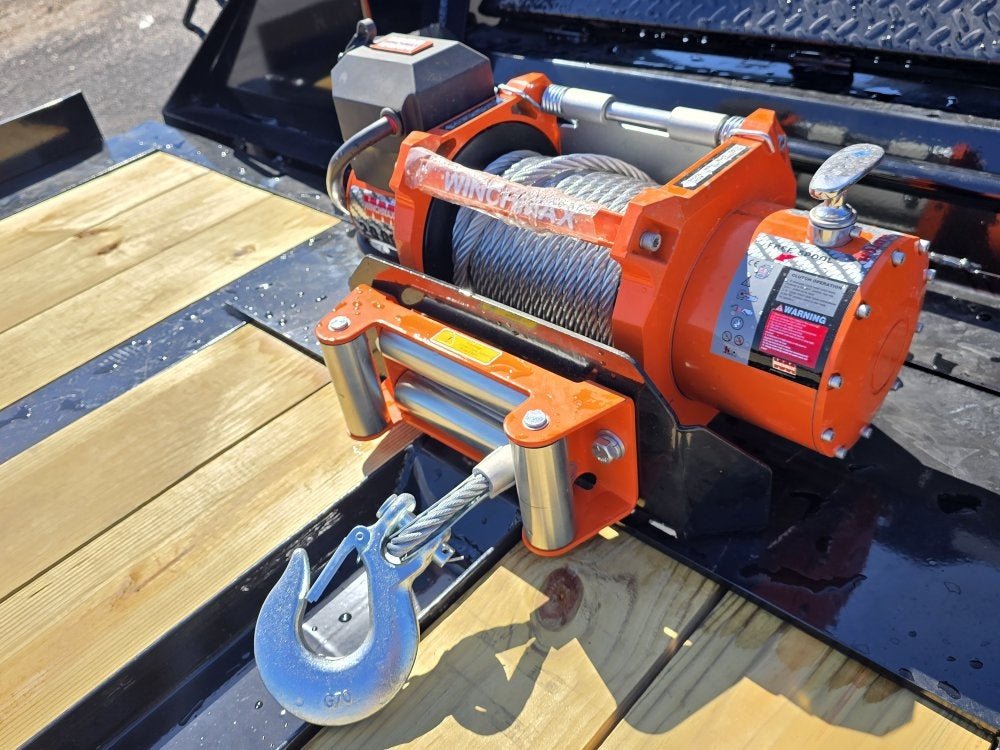

Integrated 6" Winch Guide Channel
The deck features a full-length, 6-inch steel guide channel running down the center. This precision track is essential for container hauling, ensuring the container and winch cable are perfectly aligned for smooth, controlled loading every time.
Premium Dexter Axles with High-Capacity Options
Equipped with premium Dexter axles as standard. Choose from 10k or 12k dual oil bath axles, with an upgrade available to massive 16k dual oil bath axles to support the full 30,000 lb GVWR capacity.

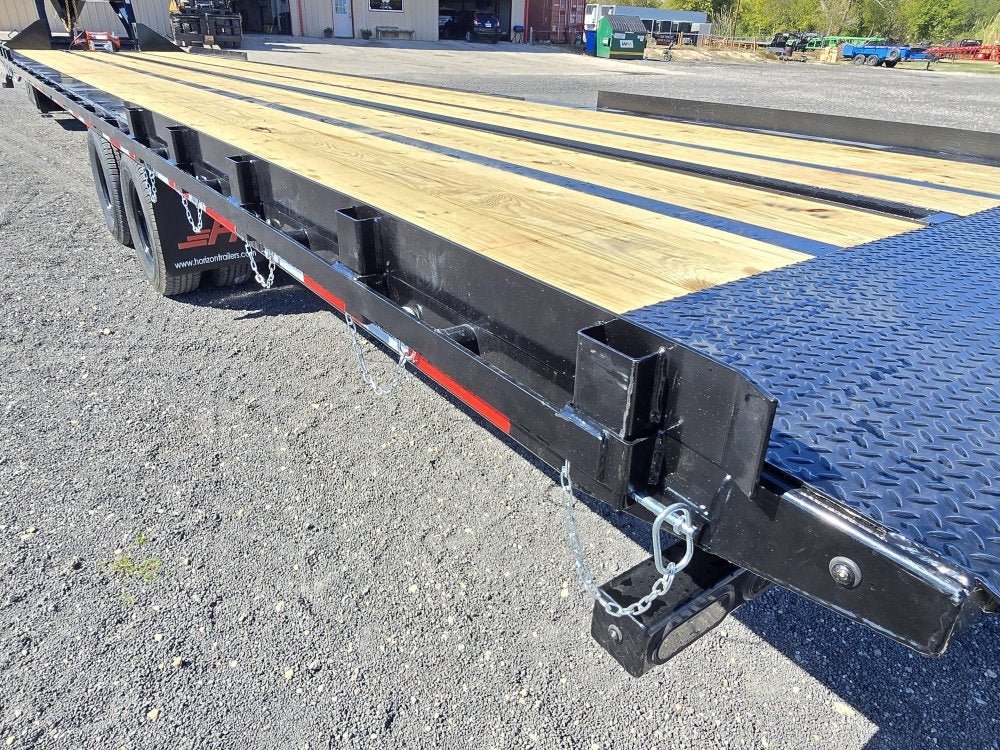

Removable Side Guides for Maximum Versatility
The side guide rails are fully removable. Take them off to transform the trailer into a clear-deck tilt for equipment, or leave them on for secure container transport, giving you ultimate flexibility for any job.

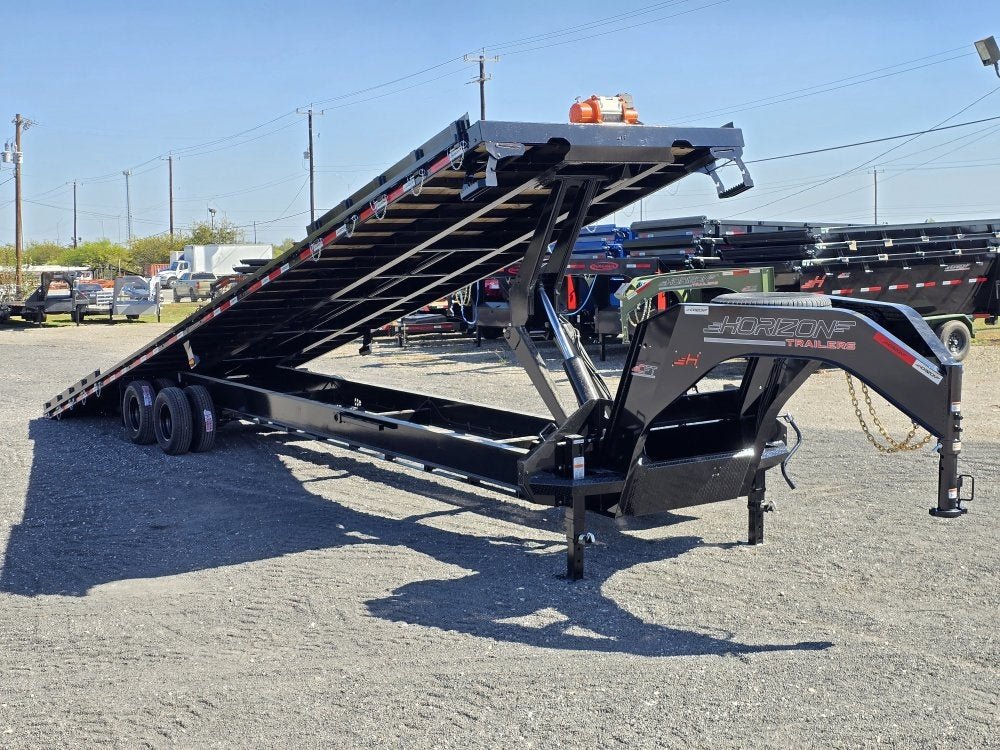

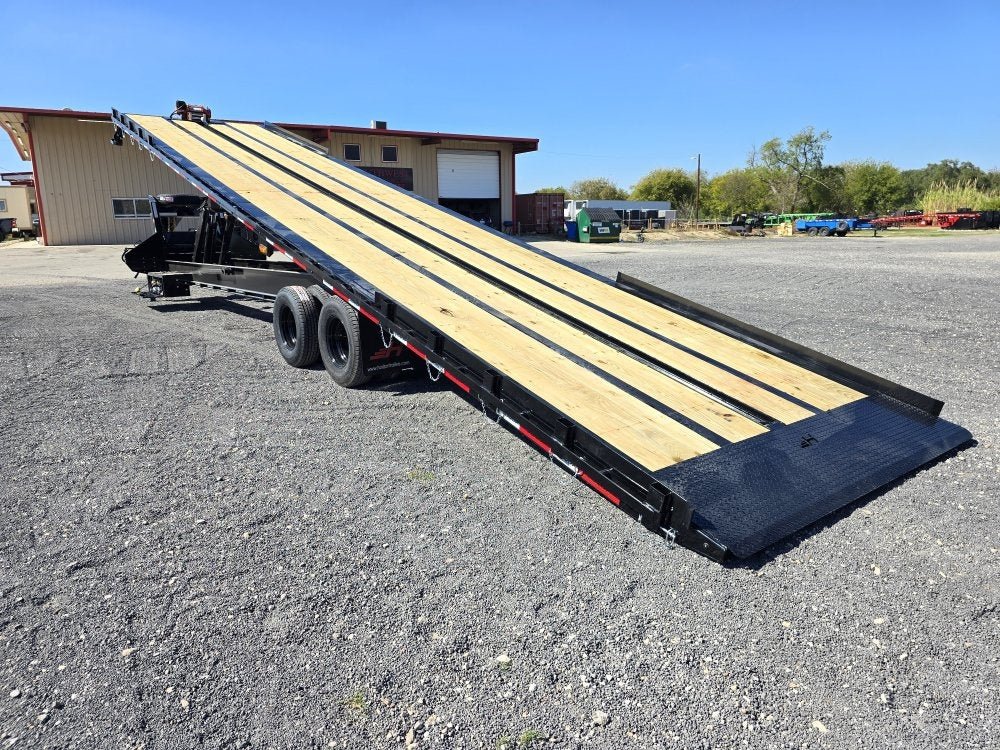

Optimized Full-Tilt Loading Angle
Engineered for an optimal full-tilt loading angle. Depending on the trailer length (24' to 40'), the deck achieves a tilt between 14 and 19 degrees, creating a gradual, stable ramp for heavy equipment and containers.

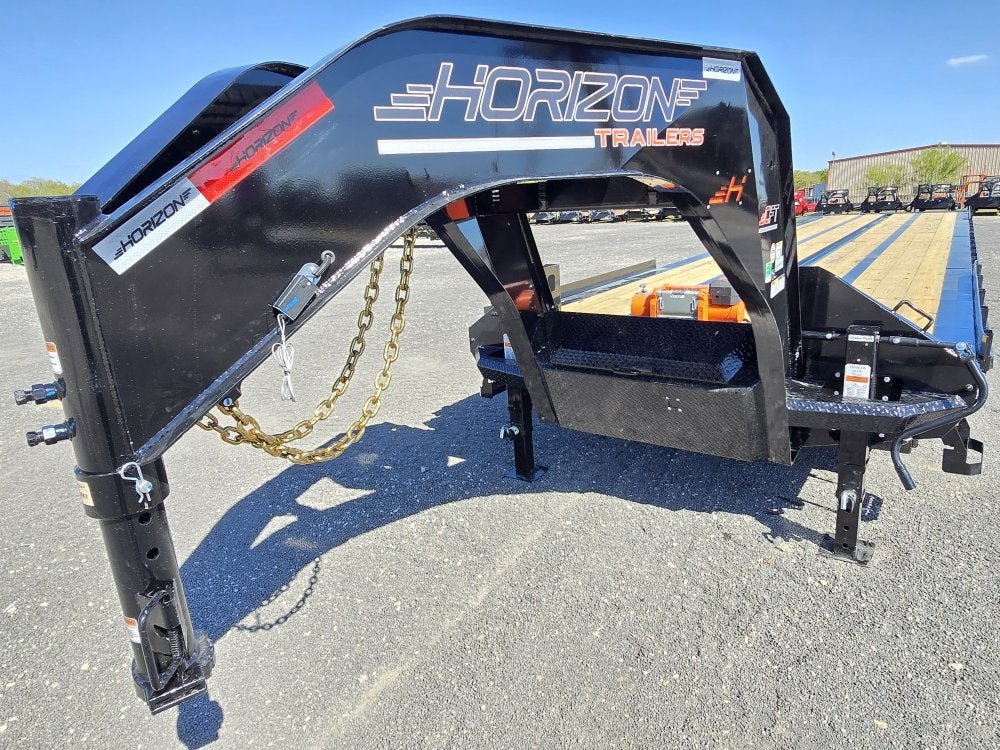

Extreme-Duty 12" Engineered I-Beam Neck
Built with an extreme-duty 12-inch engineered I-beam neck (22 lbs/ft on 30k models). This robust gooseneck provides the foundational strength and towing stability required for the trailer's high-capacity rating.
Product Details
DIMENSIONS
- LENGTH:
- 24' - 40'
- WIDTH:
- 102"
- DECK HEIGHT:
- 38"
- TILT DECK LENGTH:
- 24'
- TILT ANGLE:
- 14° - 19°
WEIGHT RATINGS
- GVWR:
- 25k - 30k
- AXLE OPTIONS:
- 10k, 12k, 16k Duals
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)
GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 98" Long
- TONGUE HEIGHT:
- 70" (From Underneath Neck)
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)

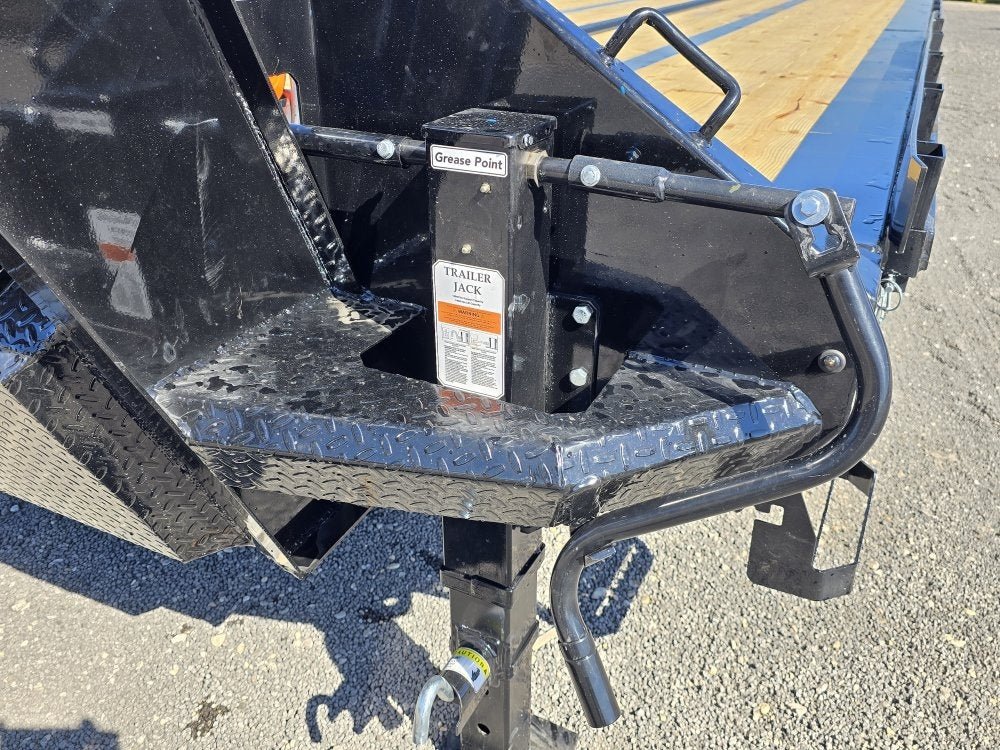

- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)

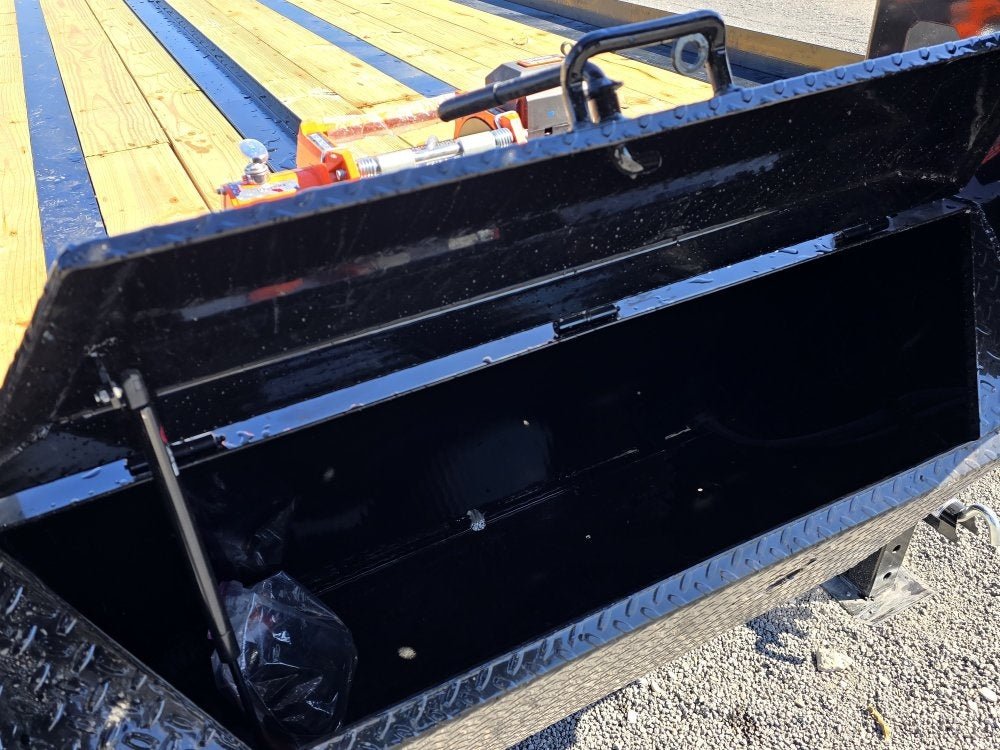

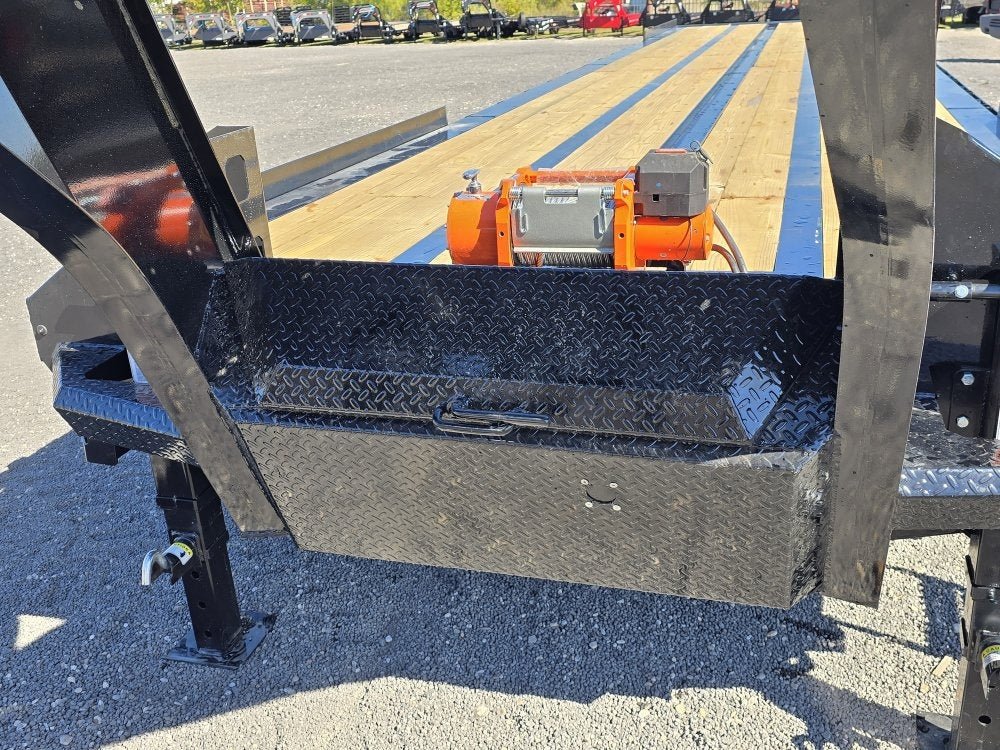

- TOOLBOX GN:
- Mega Lockable Toolbox
DECK & LOADING
- DECK TYPE:
- Wood
- TILT METHOD:
- Power Up & Power Down
- WINCH PLATE:
- Winch Plate w/ 6" Channel Guide
- SIDE GUIDES:
- Fully Removable Side Rails
ELECTRICAL & LIGHTING
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness

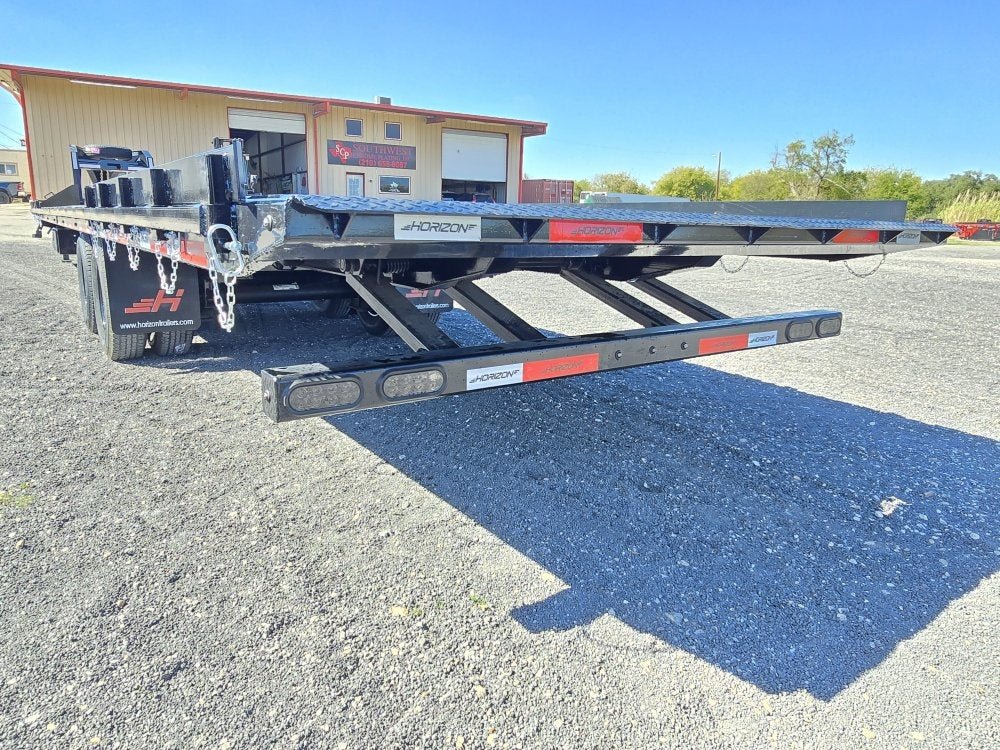

- REAR LIGHTS:
- DOT Approved LED Lighting

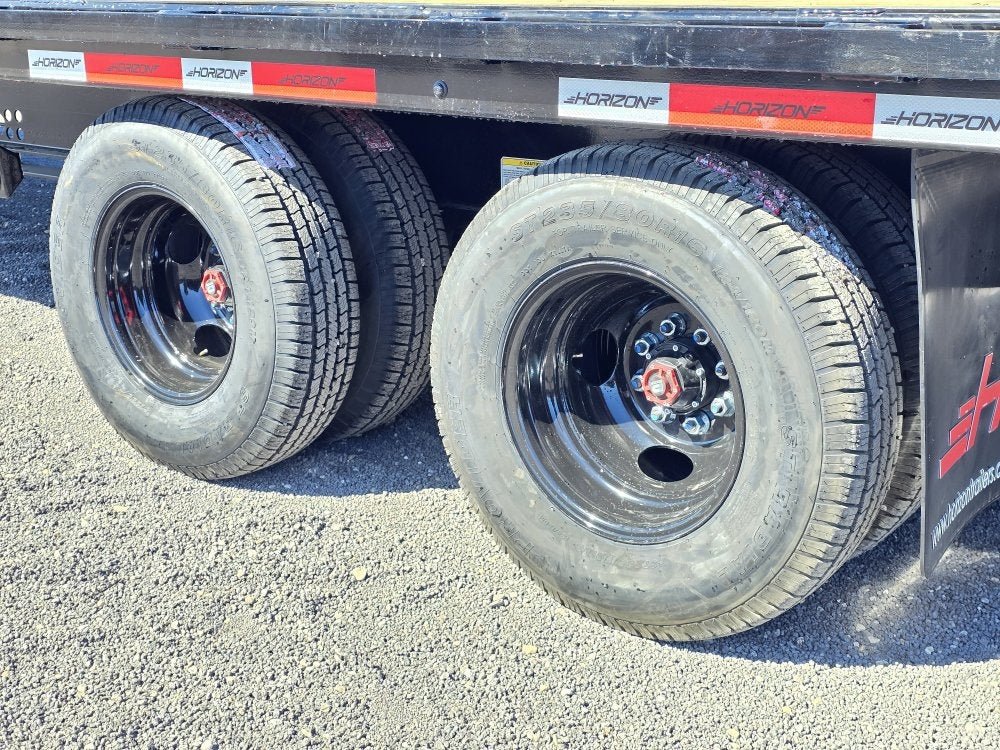

RUNNING GEAR
- TIRES:
- Radial Tires, 235/80R16, 10 Ply
- TIRE RATING:
- 3,080 lbs
- RIMS:
- 16" Black Mod Wheels
- BRAKES:
- Electric Brakes
- AXLE TYPE:
- 2 - 10k Dual Oil Bath Axles
2 - 12k Dual Oil Bath Axles
2 - 16k Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring

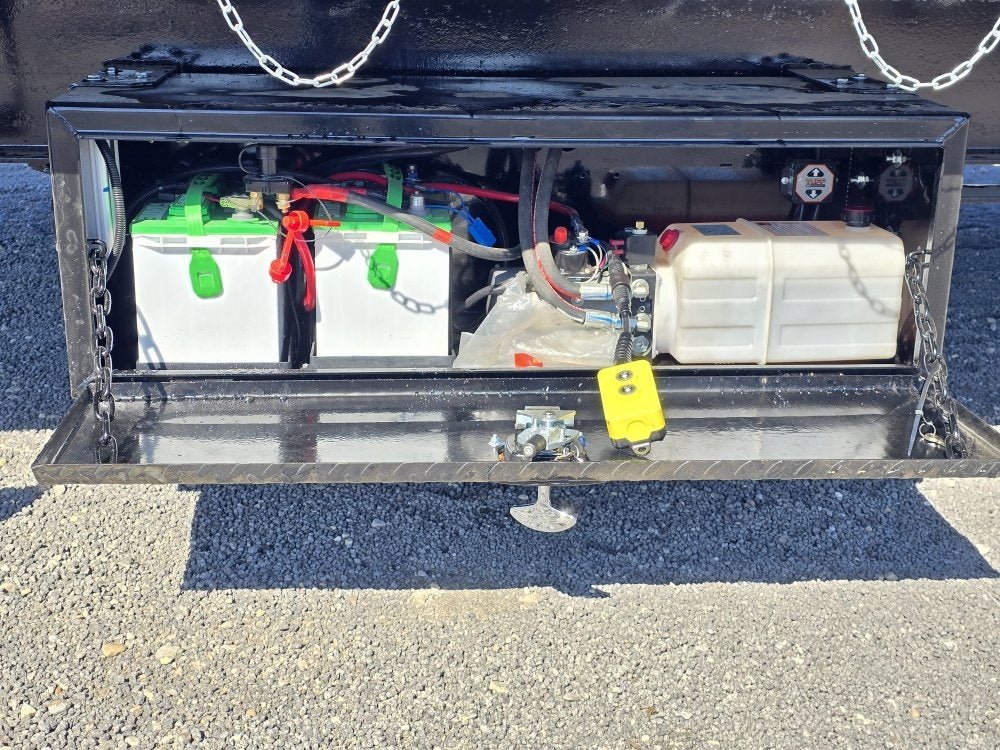

HYDRAULIC SYSTEM
- PUMP:
- KTI 12V Hydraulic Pump

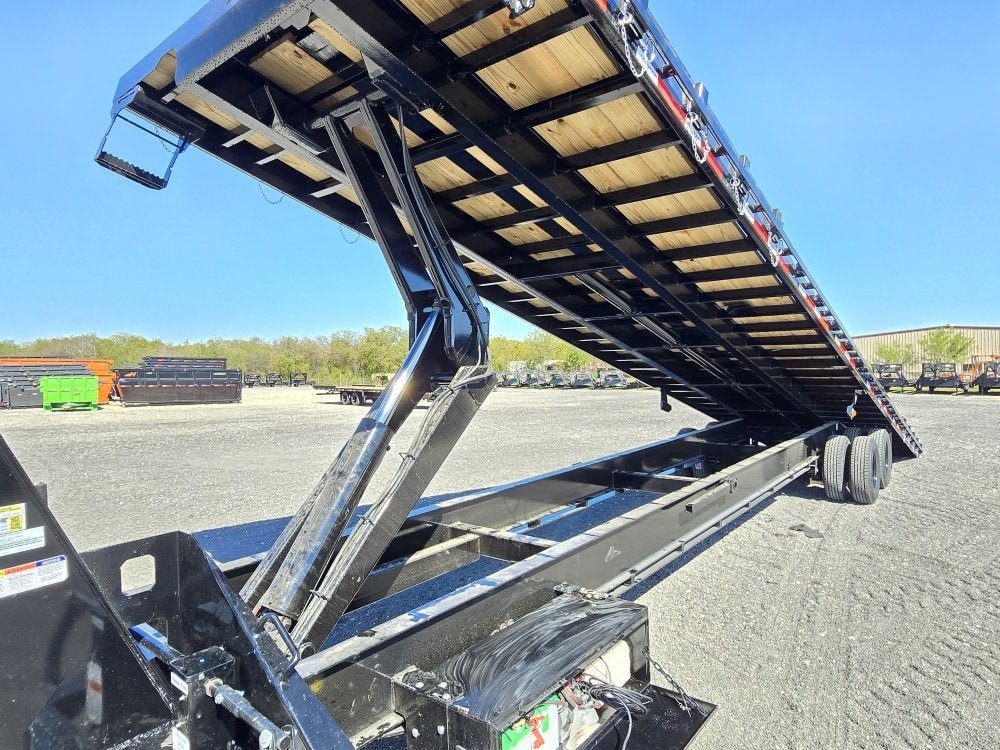

- LIFT CYLINDER (24'-36'):
- Hoist w/ 6"x21" Single Cylinder (20,000 lbs)
- LIFT CYLINDER (40'):
- Hoist w/ 6"x30" Single Cylinder (20,000 lbs)
- CONTROLLER:
- Wireless TUFF Remote
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19 - 22lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- TORQUE TUBE:
- 4 1/2" Tube (30'+)
- NECK:
- Deck On Neck
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
OPTIONS
