Build Summary
Aluminum Gooseneck Trailer
Build Summary
Aluminum Gooseneck Trailer
At a glance ValuesPRODUCT DETAILS
Description
Dimensions & Capacity

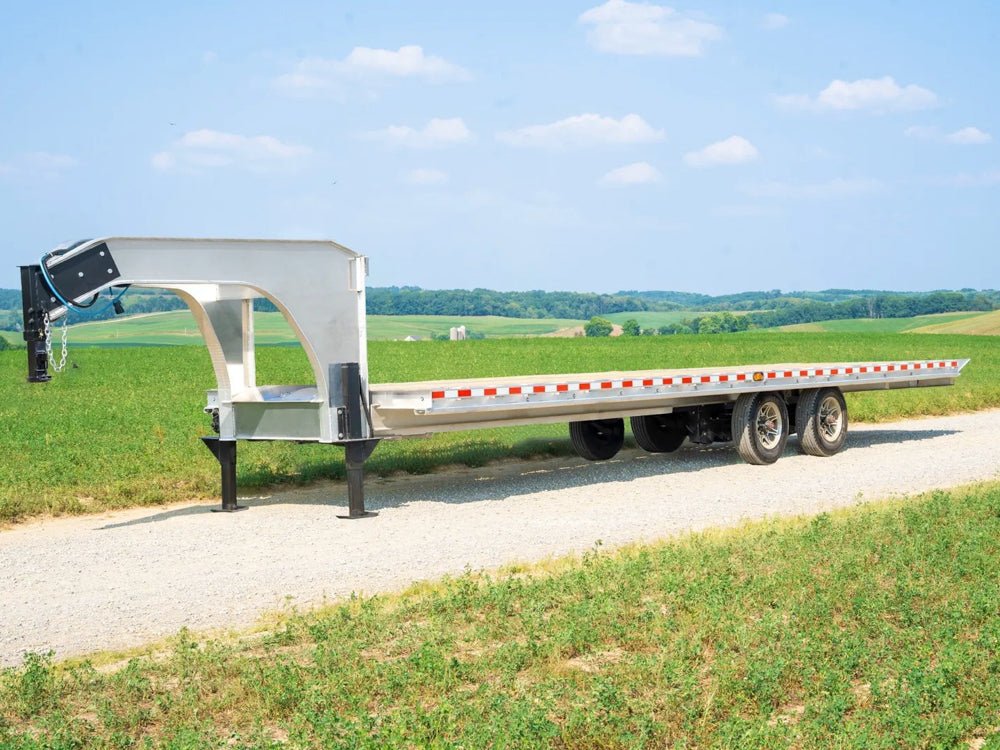

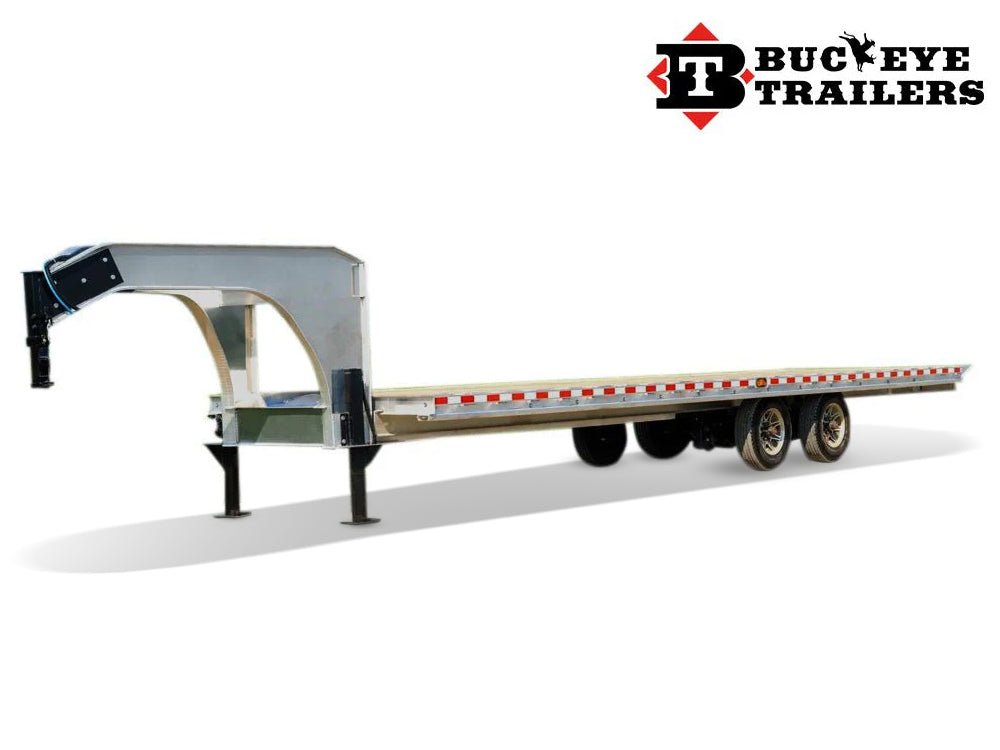

- Model: Aluminum Gooseneck Flatbed Trailer
- GVWR: 14,000 to 24,000 lbs
- Options - GVWR: Decks over 30' come standard with 8K axles and 20K GVWR
- Payload: 7,800 to 17,800 lbs
- Empty Weight: 5,700 lbs

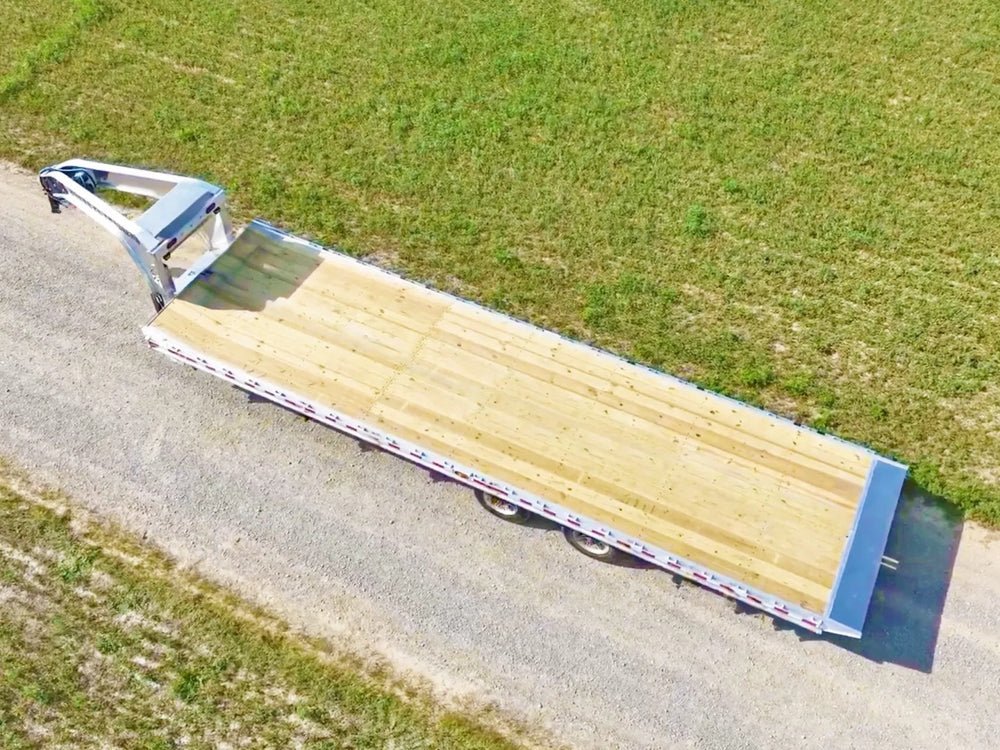

- Deck Length: 30'
- Options - Deck Length: 20' to 40' options; decks over 30' come standard with 8K axles
- Deck Width: 102"
- Deck Height: 36"
Frame & Suspension
- Frame: Heavy-Duty Extruded Aluminum
- Suspension: Heavy-Duty Slipper Spring W/48" axle spread
- Options - Suspension: Hutch or Ridewell Air-Ride suspensions

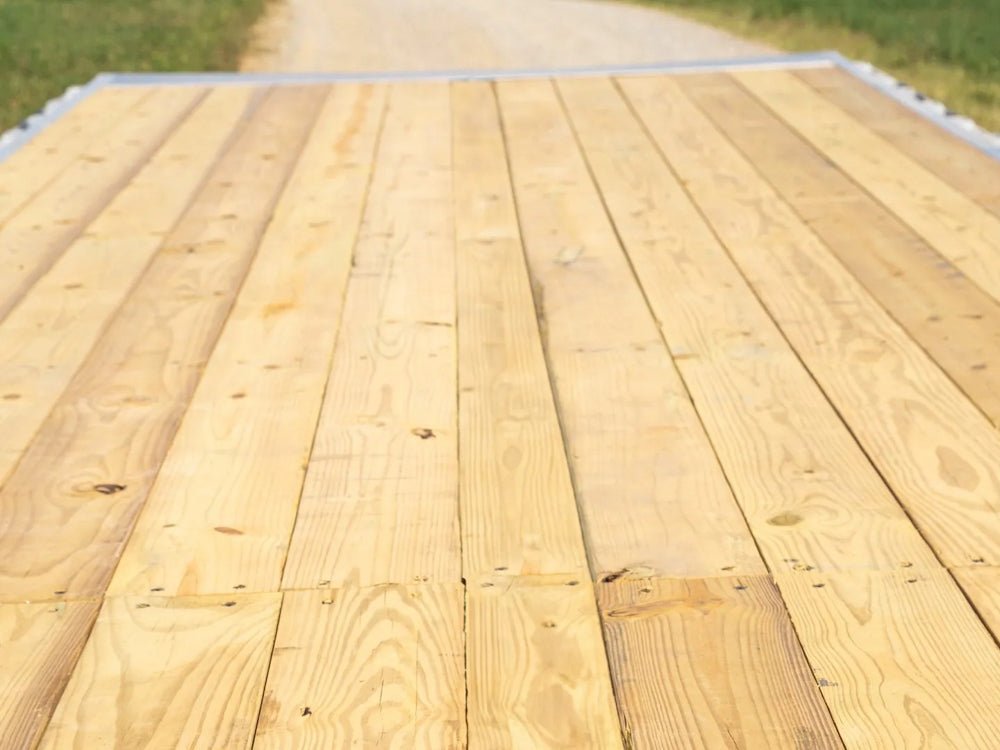

- Floor: Treated Yellow Pine
- Options - Floor: Oak Flooring

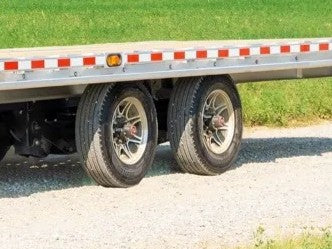

- Axles: Dual 10k HD Dexter Oil Bath Axles with a 5-Year Warranty
- Options - Axles: 12,000 lbs Spring Axles to 16K spring axles
Coupler & Accessories
- Coupler: 2"x5/16" Gooseneck Ball Coupler
- Options - Coupler: 2"x5/16" Gooseneck Ball Coupler with Shocker Hitch
- Jacks: 2 Dual Speed 12k Spring Loaded Drop Leg Jacks
- Options - Jacks: 2 Stillwell Hydraulic Jacks
- Stake Pockets & Rubrails: 3"x3/8" Rub Rail, Stake Pockets, and Chain Spools Along Both Sides
- Tie Downs: Sliding Ratchet Rail Full Deck with 5 Ratchets and 30' Straps

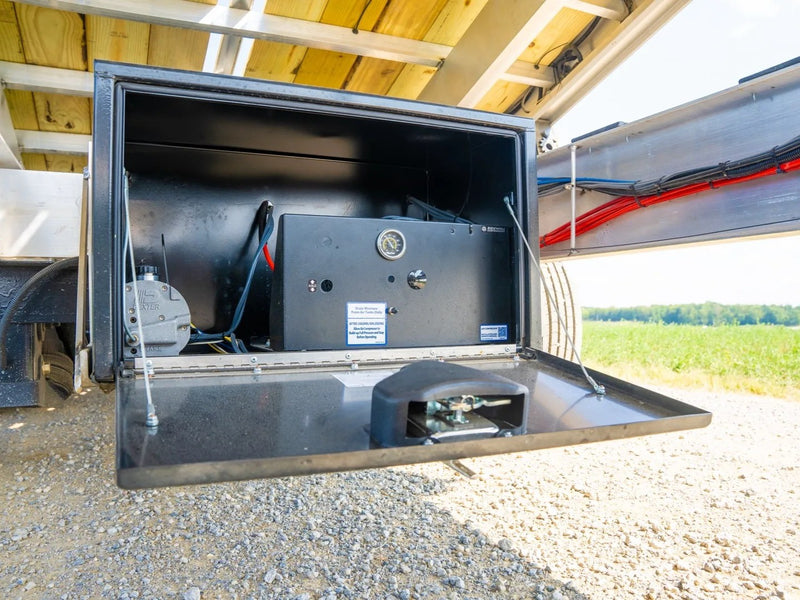

- Storage: 2 Steel Side Mount Toolboxes with Locks
- Finish: USA Finished Aluminum
- Warranty: 1 Year Structural Frame
Running Gear & Safety
- Tires: 235-80-R16 Load Range G Dual
- Options - Tires: 235-75-R17.5 Dual wheel
- Wheels: 235-80-R16 Load Range G Dual with aluminum outer wheels
- Bolt Pattern: 8 on 6.5"
- Spare Mount: 235-80-R16 Load Range G Dual steel wheel
- Options - Spare Mount: 235-75-R17.5 Tire and Wheel
- Brakes: Electric Brakes
- Options - Brakes: Hydraulic drum or disc brakes
- Ramps: 10' Aluminum Ramps rated for 10,000 lbs
- Options - Ramps: 12' or 14' Aluminum Ramps rated for 10,000 lbs

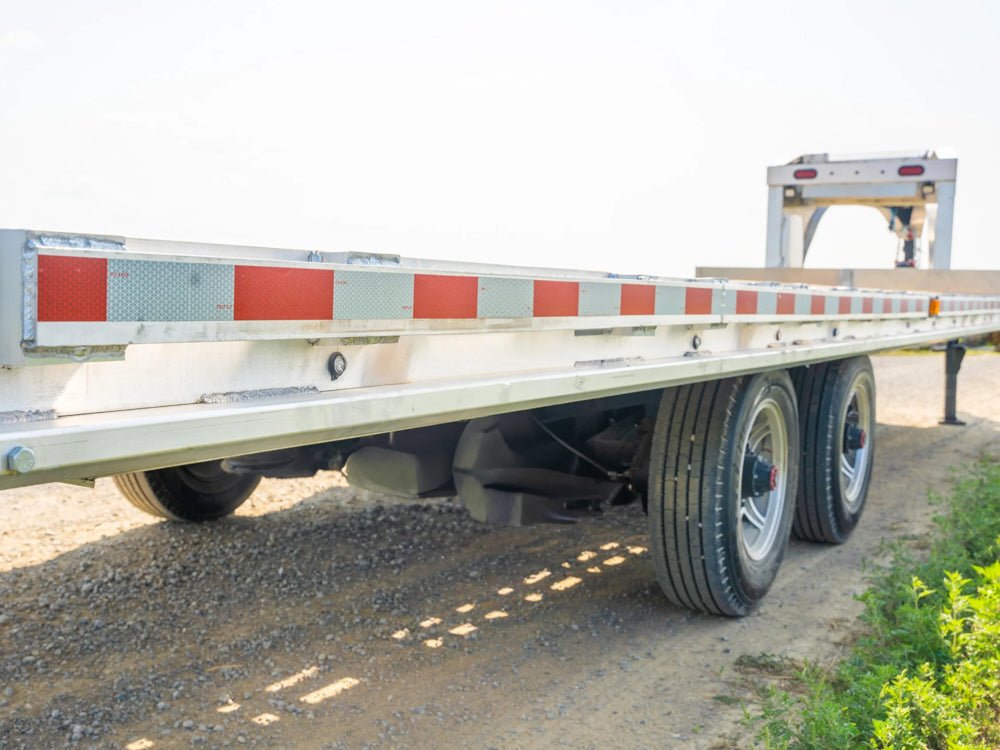

- Safety: DOT Approved Reflective Tape

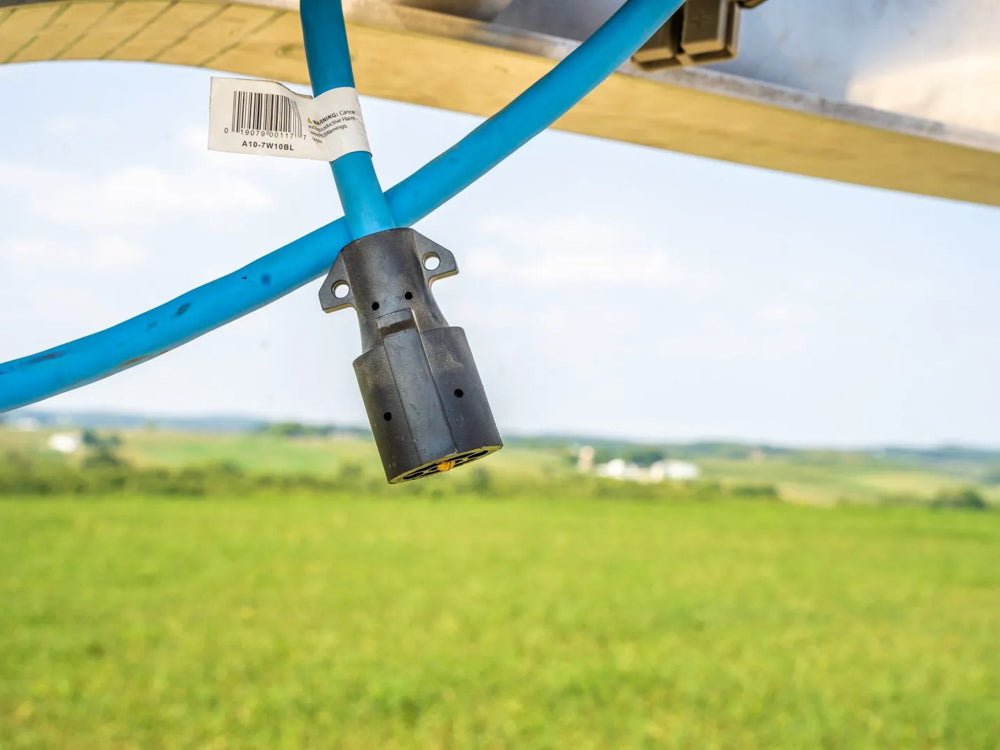

- Trailer Plug: 7-Way RV
- Break-Away Kit: Breakaway Kit & Battery Box
- Safety Chains: Heavy-Duty 3/8" Safety Chains

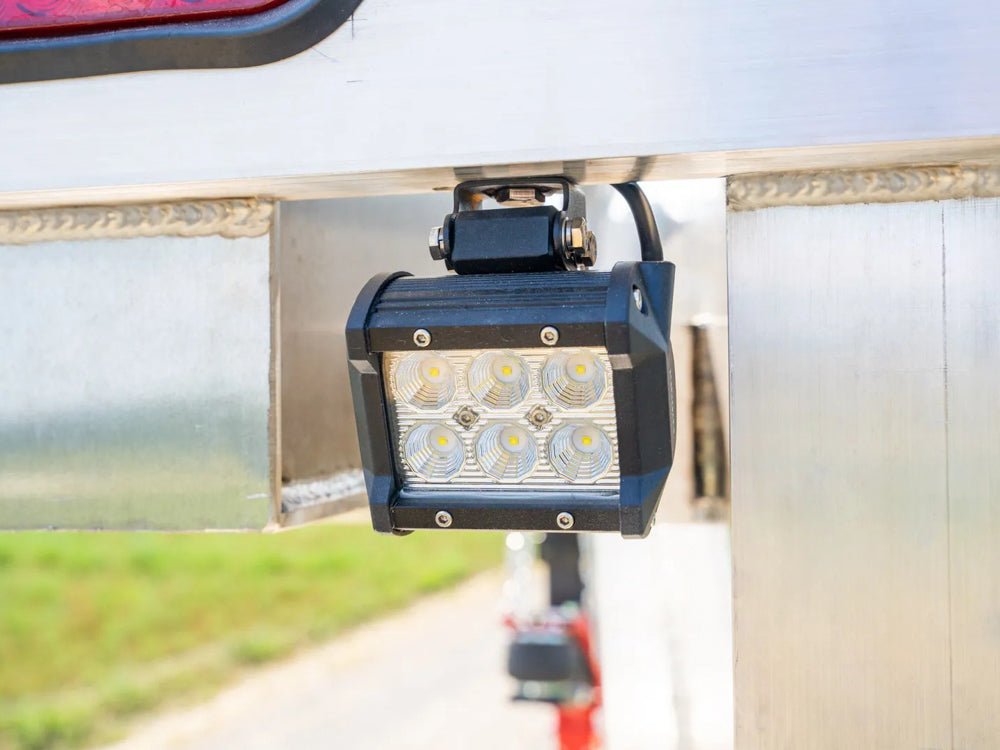

- Lights: DOT Approved LED Lighting with 6 Extra Bullet Markers and Flood Lights on the Neck
- Options - Lights: Additional Flood Lights and Bullet Lights
- Options - Winch: 12,000lb Winch Kit – wireless remote included
- Options - Package: Trailer Hauling Package (102" wide deck, Center Rail, 3 ball towers, 12,000lb winch kit)
