At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Product Features

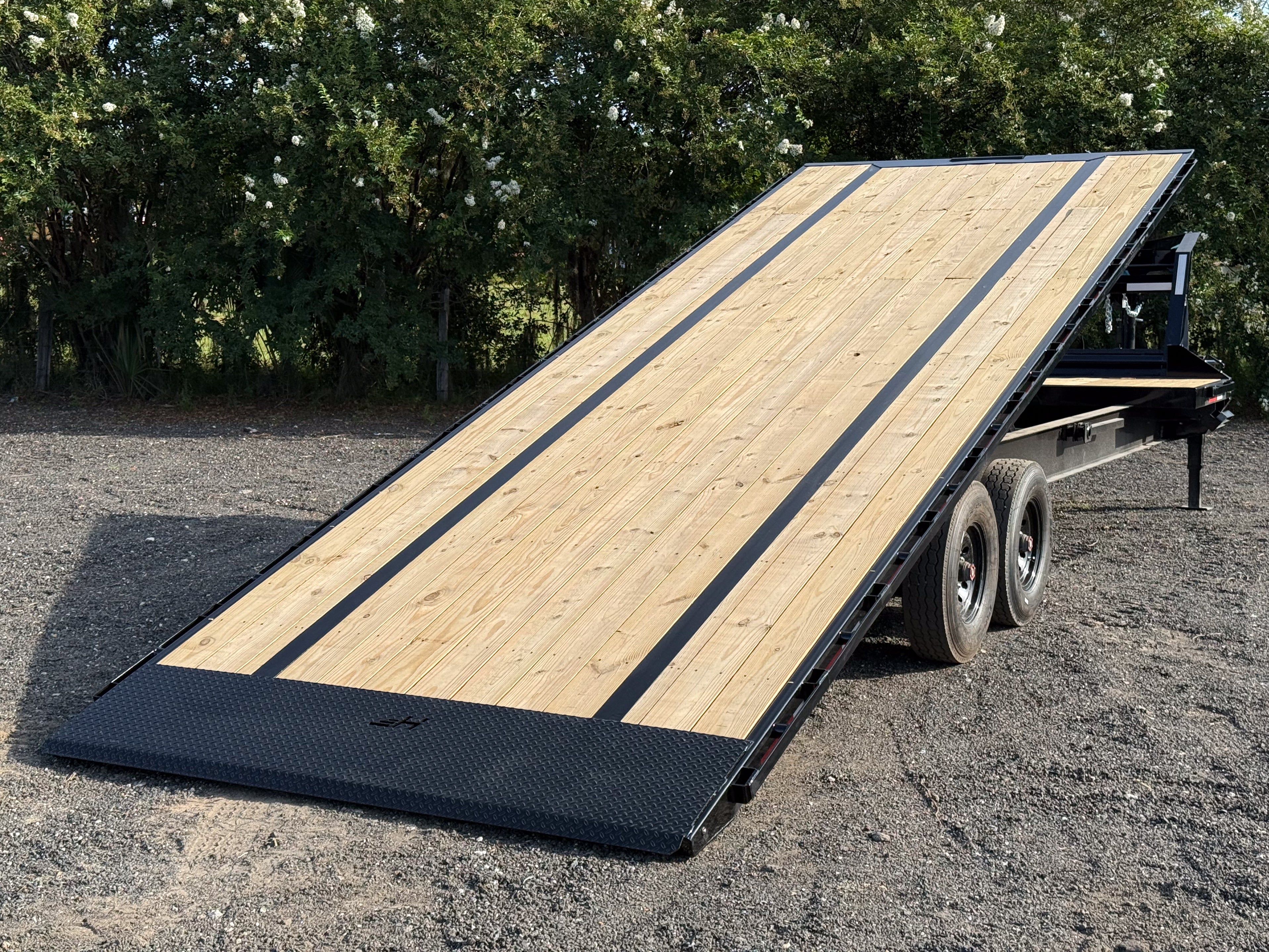

Power-Up Hydraulic Tilt Deck
Experience effortless loading with a 24-foot power-up and power-down hydraulic tilt deck. The robust KTI 12V pump and massive 20,000 lb capacity cylinder handle heavy equipment with ease, making loading a one-person job.
Heavy-Duty Axle Options
Choose from reliable 7k EZ Lube, durable 8k Oil Bath, or heavy-duty 10k Dual Oil Bath axles to match your hauling needs. All axles are backed by a solid 5-year warranty and feature spring suspension for proven performance.

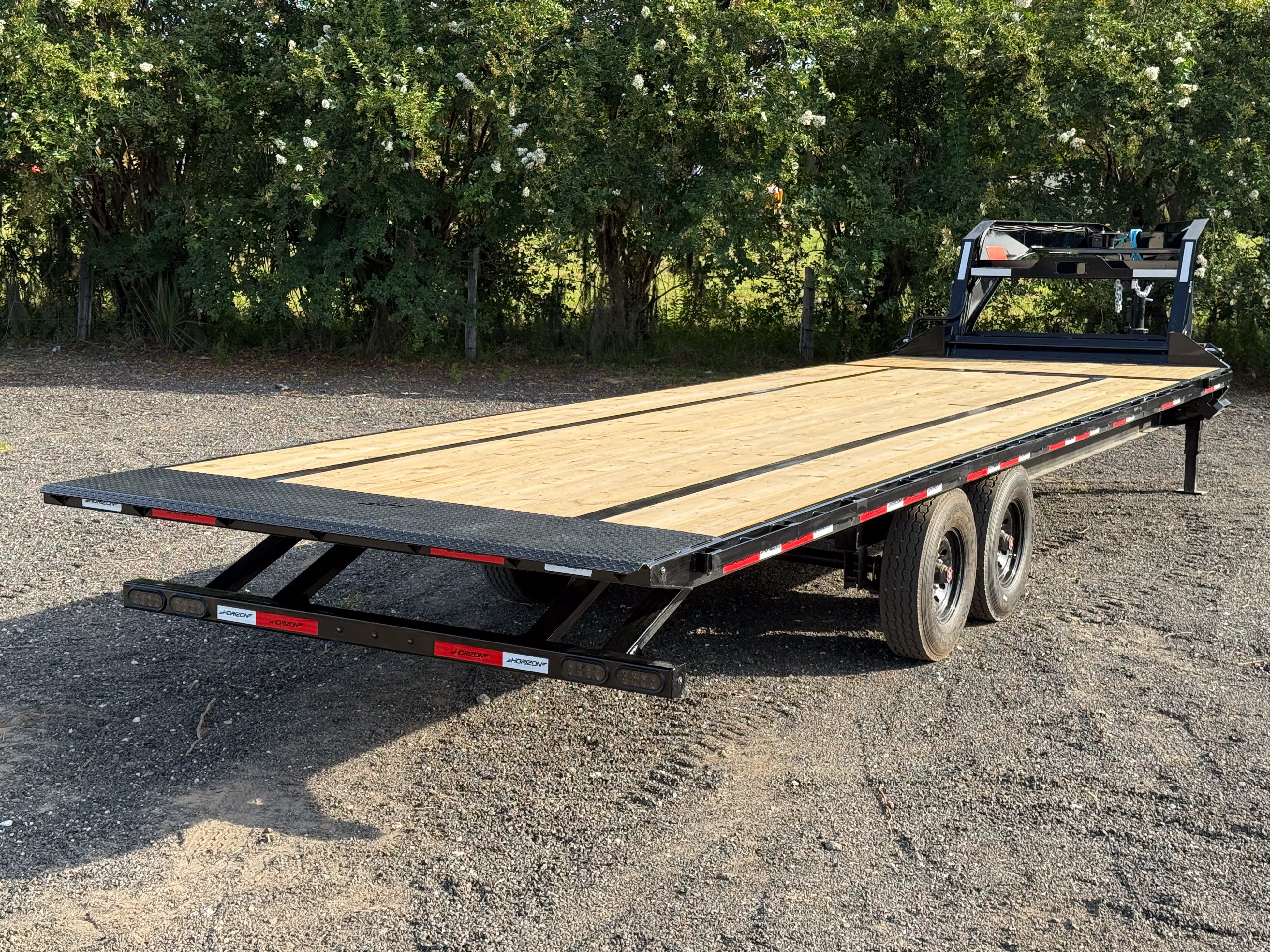

Industrial-Strength Frame Construction
Built around a massive 12" I-beam main frame (19lbs/ft) with 3" channel crossmembers on 16" centers, this trailer provides exceptional rigidity and strength. The robust construction ensures minimal deck flex when handling your heaviest loads.

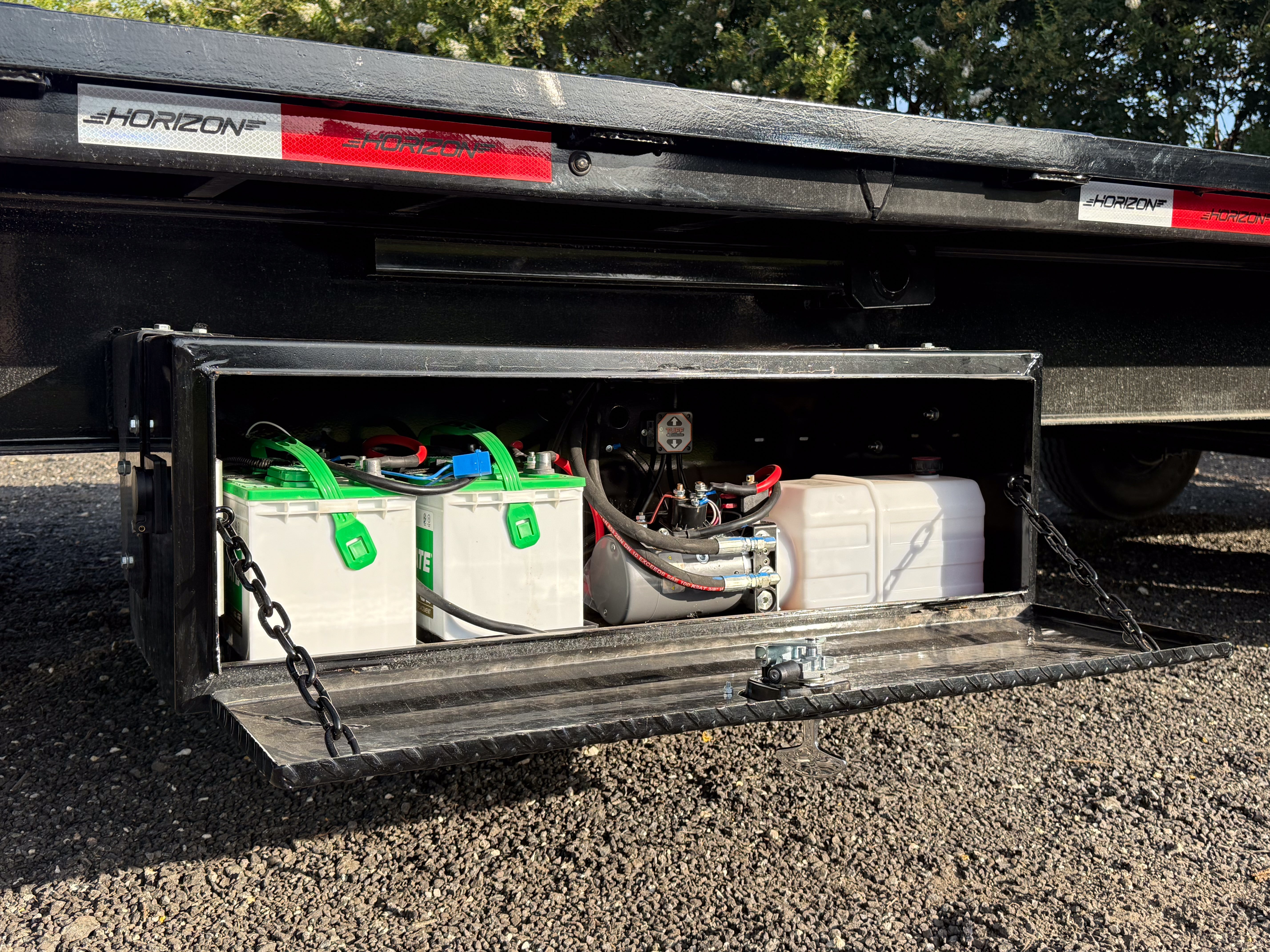

Integrated Hydraulic Side Locker
This secure side locker houses the entire hydraulic system, protecting the pump and components from the elements. It also offers convenient, organized storage for your tools and gear, all in one accessible location.
Durable Powdercoat Protection
The trailer's steel grit-blasted surface ensures optimal paint adhesion for a long-lasting powdercoat finish. Choose from 12 distinctive colors to get both the look you want and superior protection against rust and wear.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 28'
- WIDTH:
- 102"
- DECK HEIGHT:
- 36"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k
- GVWR:
- 15.7k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
SAFETY
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 Each)

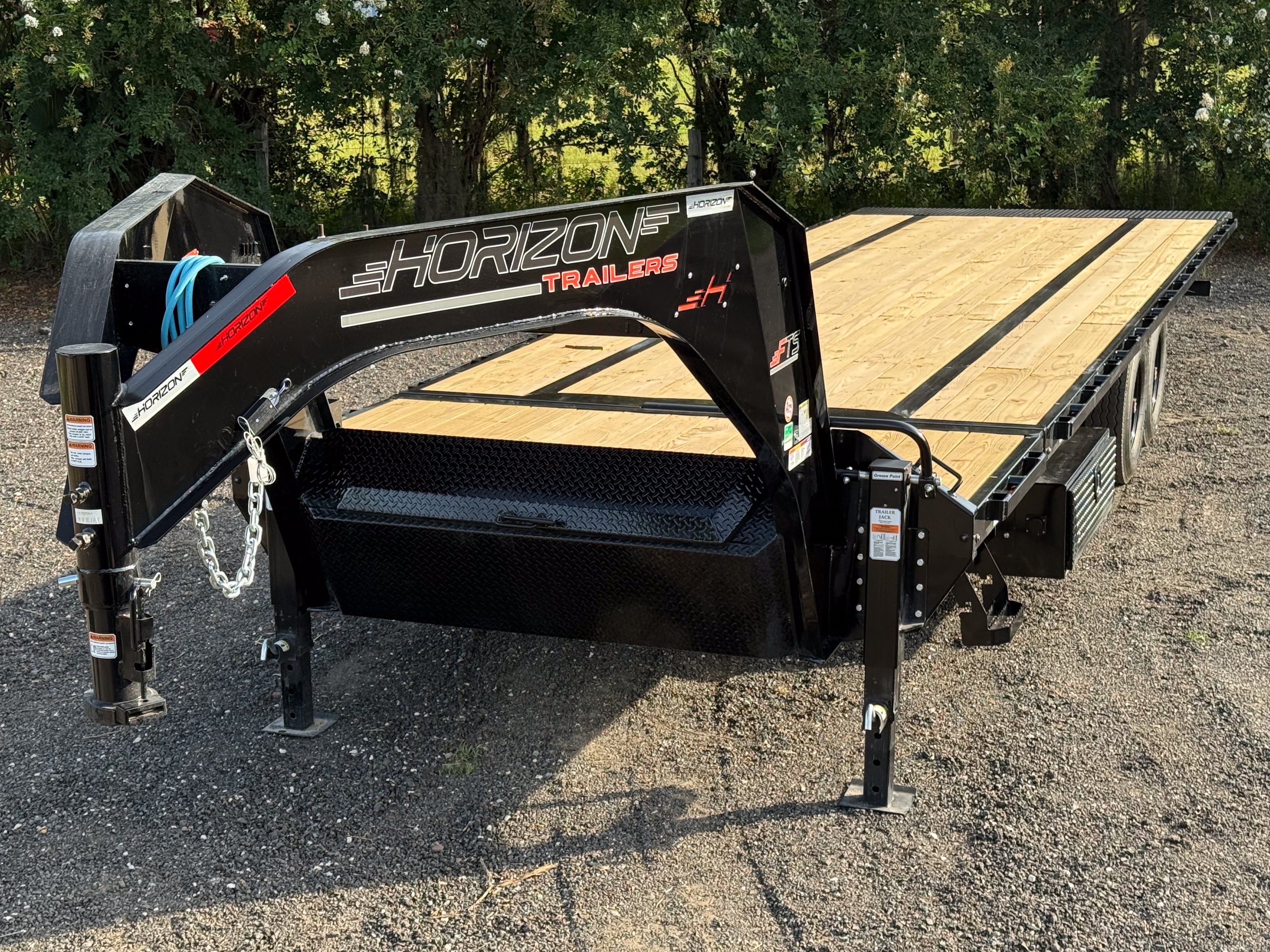

GOOSENECK
- PULL TYPE:
- Gooseneck
- TONGUE:
- Engineered I-Beam, 83" Long
- COUPLER:
- Adjustable 2-5/16" Coupler (30,000 lbs)
- JACKS:
- 2 Side Wind Drop Jack Legs (12,000 lbs)
- TOOLBOX GN:
- Mega Lockable Toolbox
DECK & LOADING
- DECK TYPE:
- Wood
- TILT METHOD:
- Power Up & Power Down
- TILT DECK:
- 24' Tilt Deck
ELECTRICAL & LIGHTING
- BATTERY:
- 2 - Interstate 27 Deep Cycle Batteries
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting

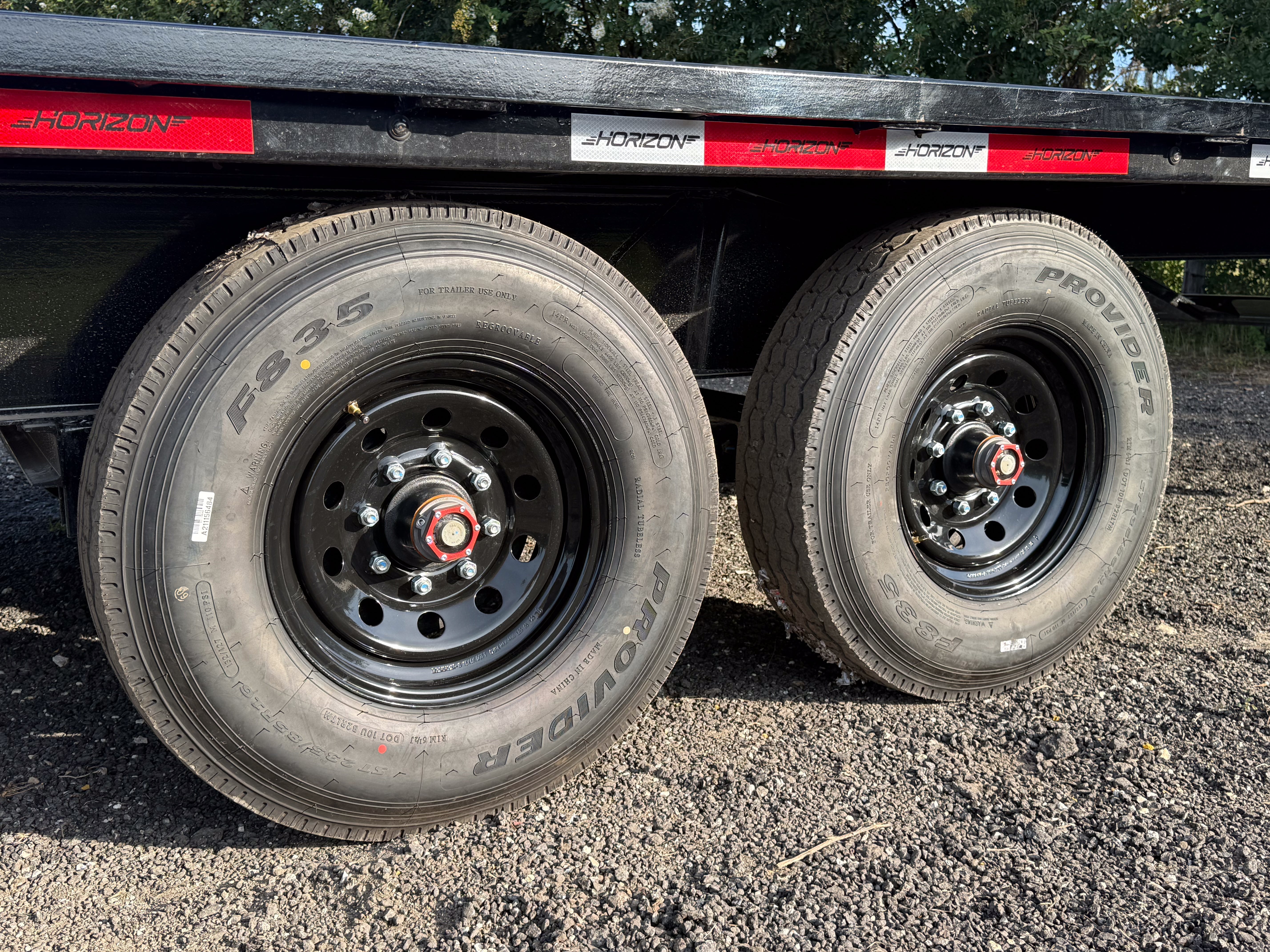

RUNNING GEAR
- TIRES:
- Radial Tires, 235/80R16, 10 Ply
- RIMS:
- 16" Black Mod Wheels
- BRAKES:
- Electric Brakes
- AXLE TYPE:
- 2 - 7k Electric Brake EZ Lube Axles
2 - 8k Oil Bath Spring Axles
2 - 10k Dual Oil Bath Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
HYDRAULIC SYSTEM
- PUMP:
- KTI 12V Hydraulic Pump
- LIFT CYLINDER:
- Hoist w/ 6"x21" Single Cylinder (20,000 lbs)
FRAME & CONSTRUCTION
- MAIN FRAME:
- 12" I-Beam (19lbs/ft)
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
