At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Onyx BlackMocha MetallicCarbon Metallic GrayDynamic Blue MetallicPlatinum Silver MetallicScarlet RedArctic WhiteCement Gray
Get a Custom Quote
Product Features
Premium Axle Options
Choose from reliable 7k Super Lube, durable 8k Oil-Bath, or heavy-duty 10k Oil-Bath axles to match your hauling needs. All axles feature advanced slipper roller or torsion suspension for smooth performance under load.

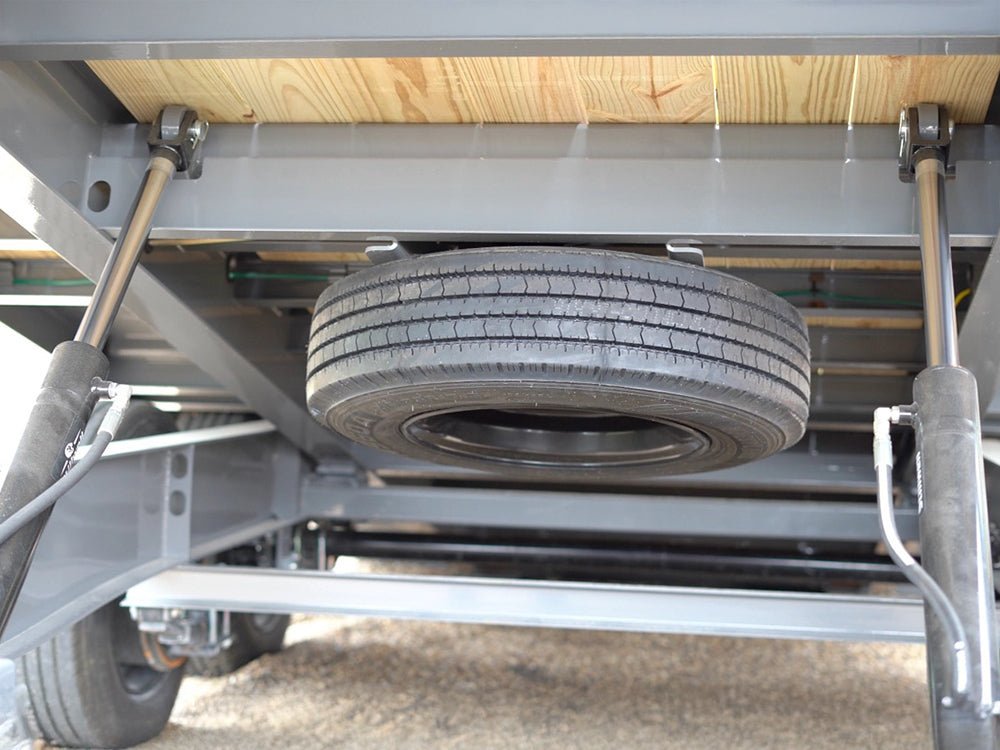

Electric/Hydraulic Tilt Deck
Experience effortless loading with a full-length electric/hydraulic powered tilt deck. With the push of a button, the entire deck lowers to the ground, creating a seamless ramp for easy equipment loading without manual effort.
Heavy-Duty Bumper Pull Design
Get tilt trailer convenience without a gooseneck hitch. This bumper pull features a robust 69-3/4" tongue and 21,000 lb coupler, providing excellent towing stability and making it accessible for half-ton and three-quarter-ton trucks.

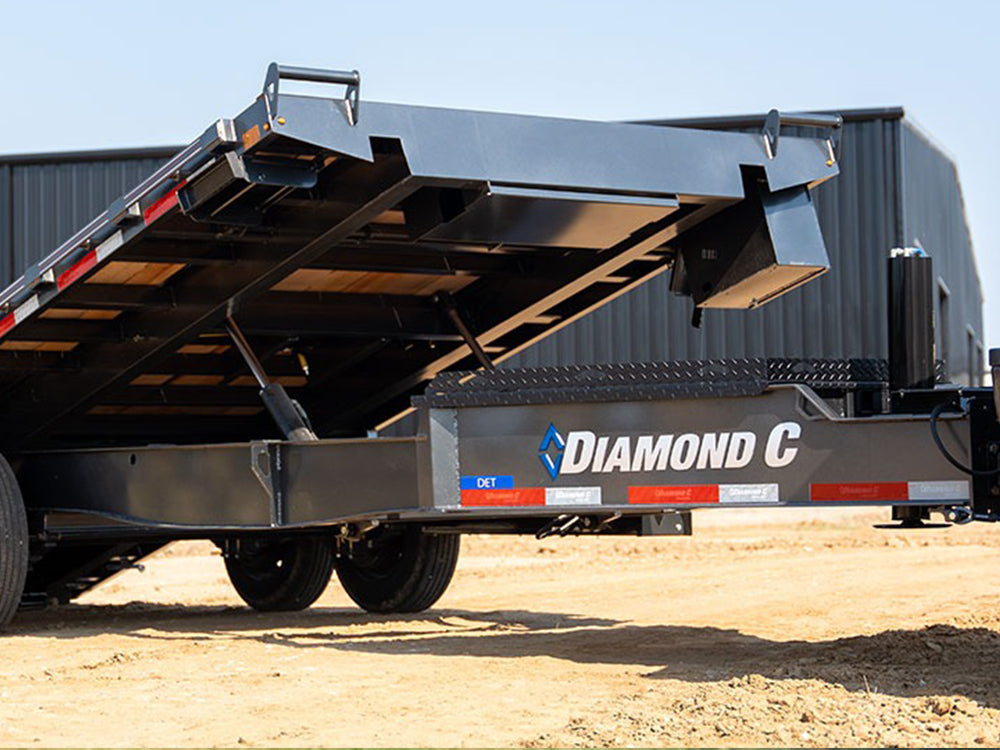

Rigid Tilt Frame Construction
Built with an 8" 15lb I-beam main frame and 3" I-beam crossmembers on tight 14" centers, this tilt trailer maintains exceptional rigidity. The robust construction ensures minimal flex during both loading and towing operations.

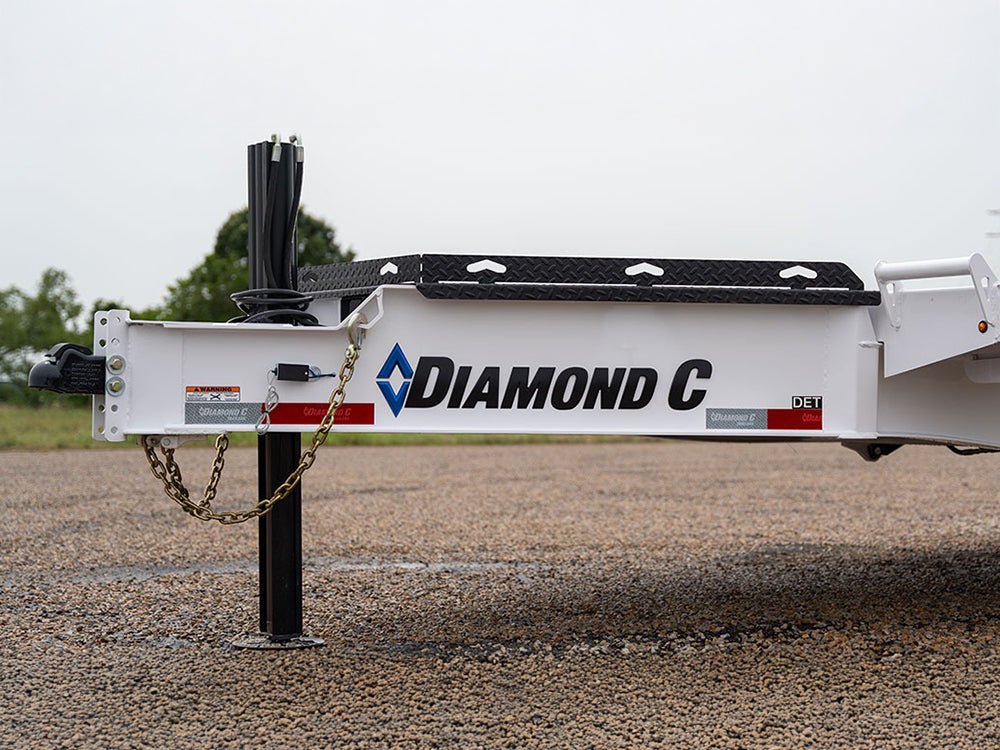

Jack System
The single 15k two-speed drop-leg jack provides reliable stability. Upgrade to a 20,000 lb hydraulic jack for push-button operation and maximum lifting capacity when dealing with heavy tongue weights.

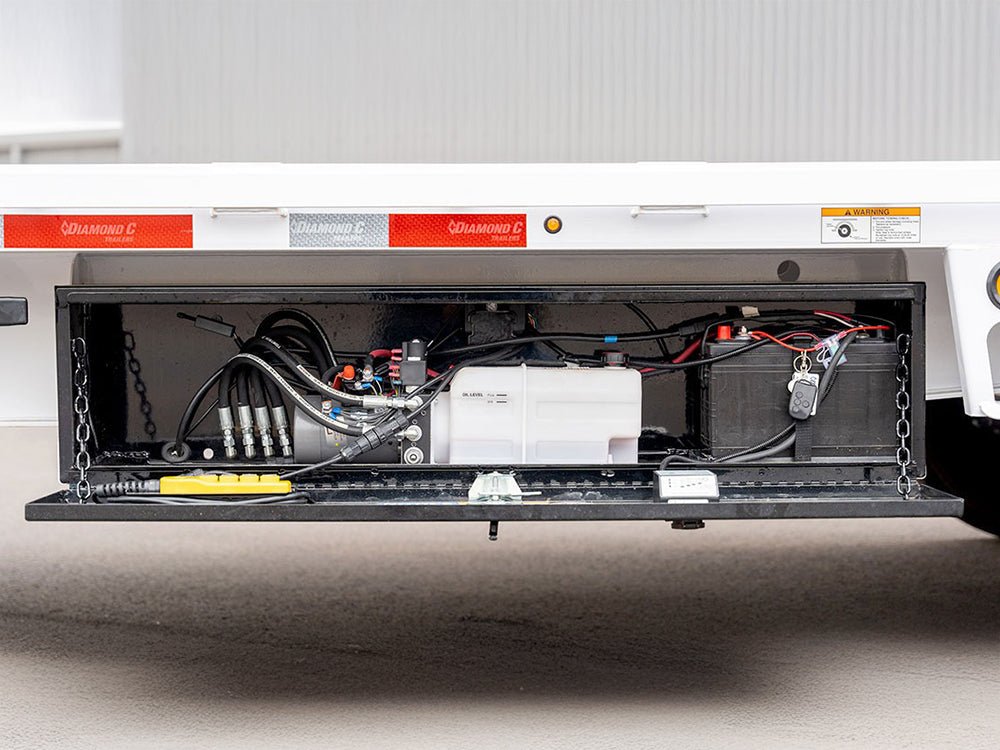

Integrated Power System
The tilt system is powered by a Group 27 battery with 110V charger, ensuring reliable operation wherever you work. The completely sealed wiring harness protects electrical components from moisture and road debris.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 30'
- WIDTH:
- 102"
- DECK HEIGHT:
- 33"
WEIGHT RATINGS
- GAWR:
- 7k, 8k, 10k SS
- GVWR:
- 14.9k - 20k
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- 5-Step Painting Process
- COLORS:
- Onyx Black, Mocha Metallic, Carbon Metallic Gray, Dynamic Blue Metallic, Platinum Silver Metallic, Scarlet Red, Arctic White, Cement Gray
SAFETY
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
TONGUE
- PULL TYPE:
- Bumper Pull
- LENGTH:
- 71 3/4" Long
- STANDARD COUPLER BP:
- Adjustable 2-5/16" Coupler (21,000 lbs)
- FRONT JACK BP:
- Single 15k 2 Speed Drop-Leg Jack

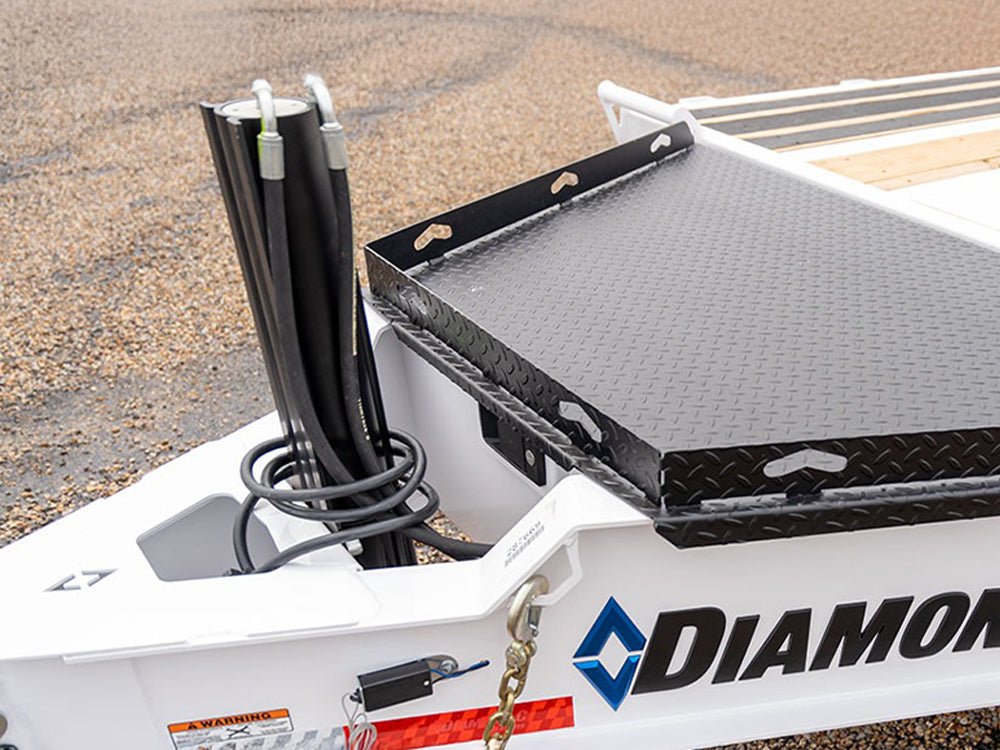

- TOOLBOX BP:
- HD V-Tongue Diamond Plate Toolbox
DECK & LOADING
- RAMPS:
- 96" Slide-In-Ramps
- RAMP TYPE:
- 60" Dove w/ HD Flip-Knee Spring Assist Ramps
60" Self Cleaning Dove w/ MAX RAMPS
- DECK TYPE:
- Wood
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- Sealed Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lighting

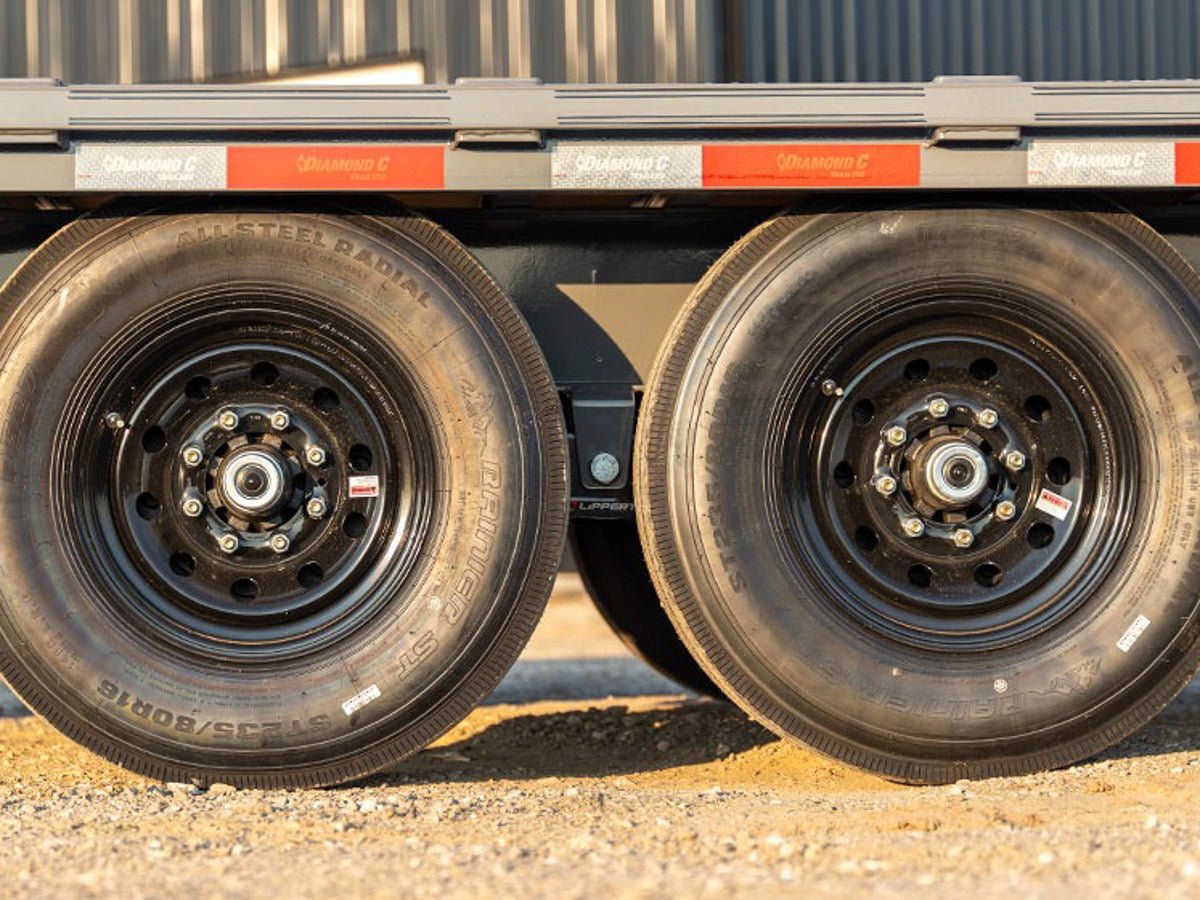

RUNNING GEAR
- TIRES:
- 235/80R16 / 215/75R17.5 (8k & 10k Axles)
- PLY:
- 14 Ply / 18 Ply (8k & 10k Axles)
- RIMS:
- 16" Black Wheels / 17.5" Black On 8k & 10k
- BRAKES:
- Electric Drum
- AXLE TYPE:
- 2 - 7k Lippert Super Lube Axles
2 - 8k Lippert Oil-Bath Axles
2 - 10k Lippert Oil-Bath Axles
- AXLE COUNT:
- 2
- SUSPENSION TYPE:
- Slipper Roller / Torsion Axles (on 10k)
FRAME & CONSTRUCTION
- MAIN FRAME:
- Engineered Beam Frame
- CROSSMEMBERS:
- 3" I-Beam, 16" Centers
WARRANTY
- TRAILER WARRANTY:
- 6 Year Structural / 2 Year Component Warranty
OPTIONS
