At a Glance
TRAILER SPECS:
Specifications
- Brand:
RawMaxx
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
20'-24'
Featured Video
Product Features
Durable Construction

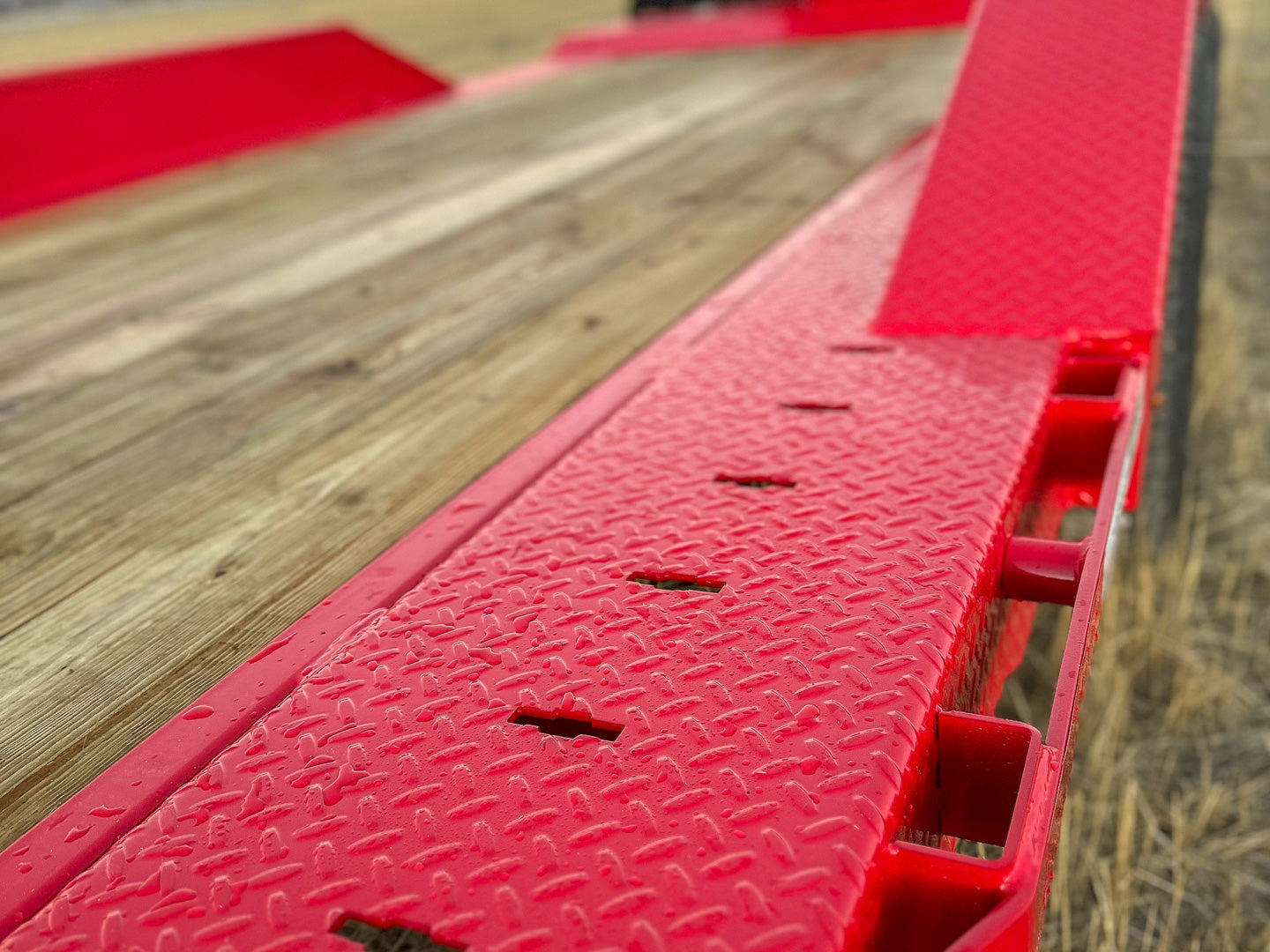

With an 8" x 13 lb. I-beam frame and 3" channel cross-members spaced 16" apart, the GTX prioritizes strength and durability. It includes a 3/16" formed tread plate side perimeter and 2" x 3/8" flat bar rub rail for added support and protection, with optional 12" center cross-members for structural enhancement.
DURABLE POWDER COAT FINISH
With its durable powder coat finish, the GTX trailer offers superior resistance to chipping, scratching, fading, and wear compared to traditional paint. This ensures long-lasting durability, excellent corrosion resistance, perfect for trailers exposed to harsh weather and heavy use.

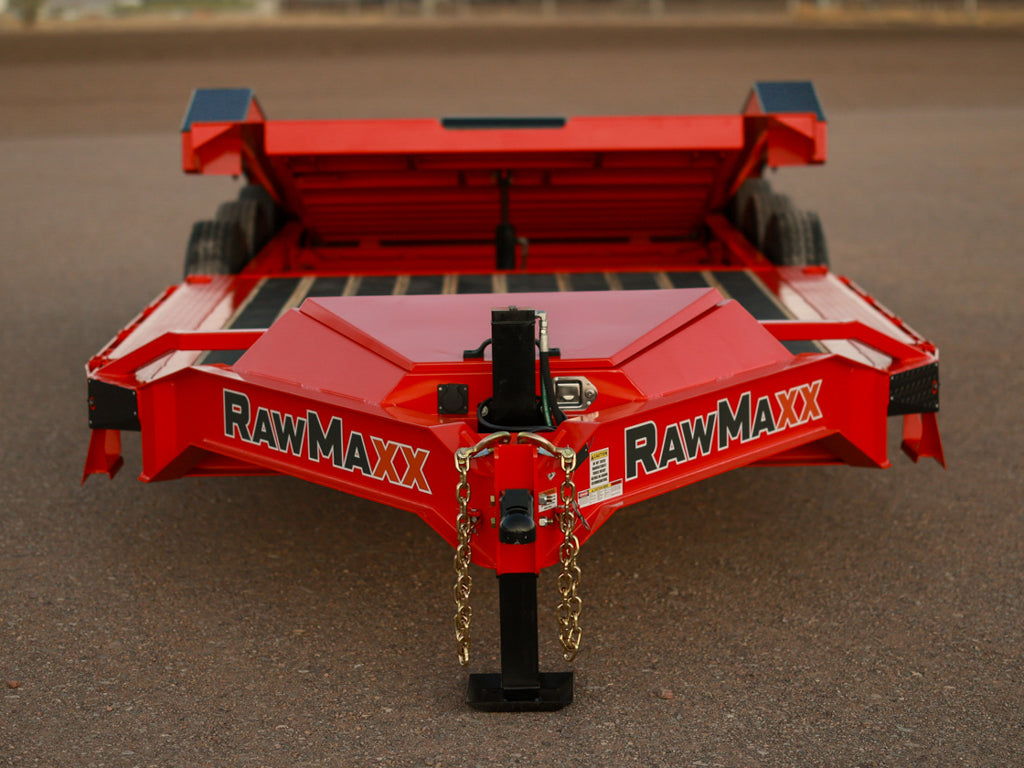

Reliable Tongue and Coupler
The GTX trailer includes a 2-5/16” adjustable ball coupler and a 60" tongue for secure connections. It features a front tongue tool box for convenient storage, with an optional upgrade to a 12,000 lbs. hydraulic jack for efficient operation.

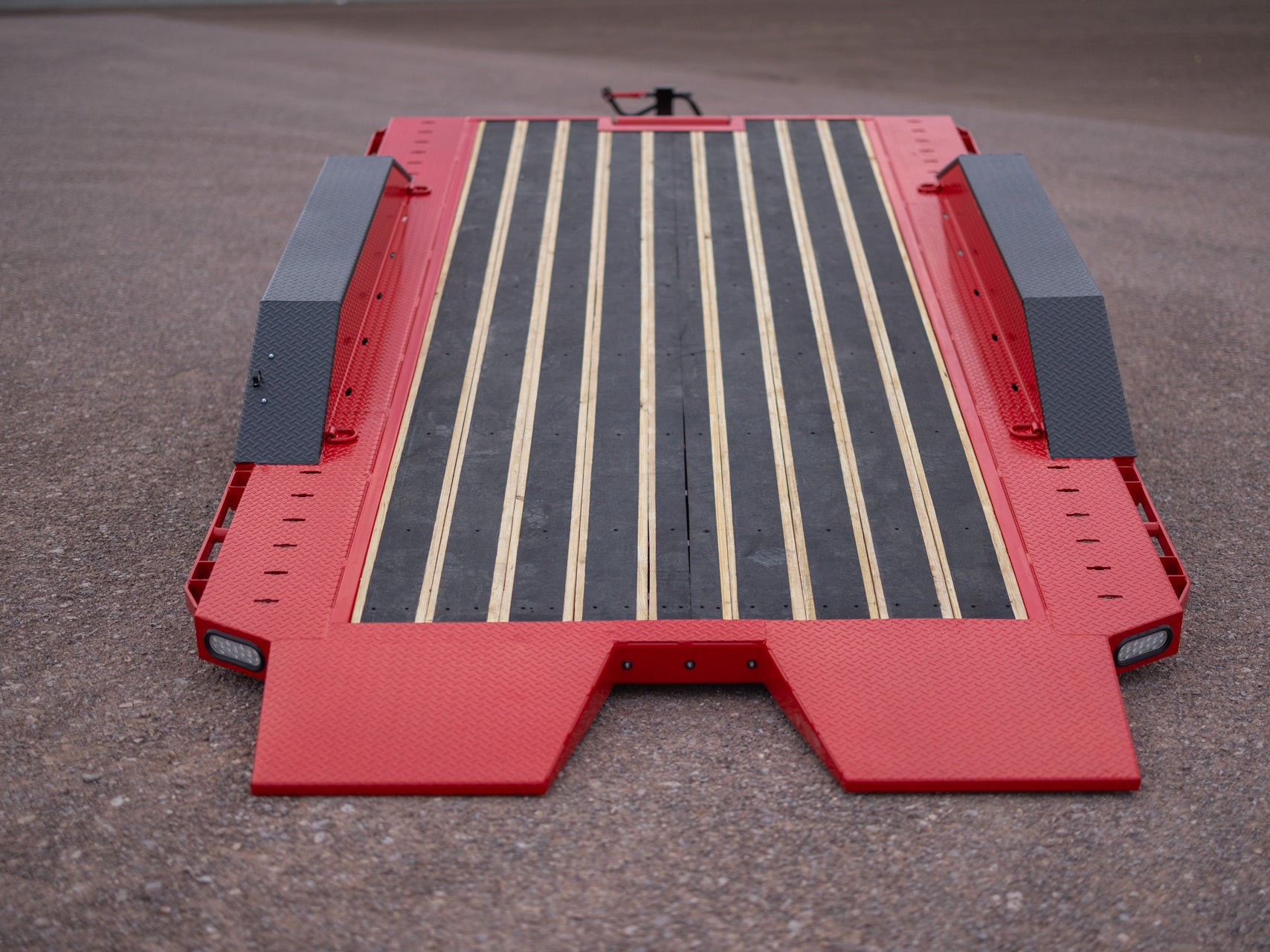

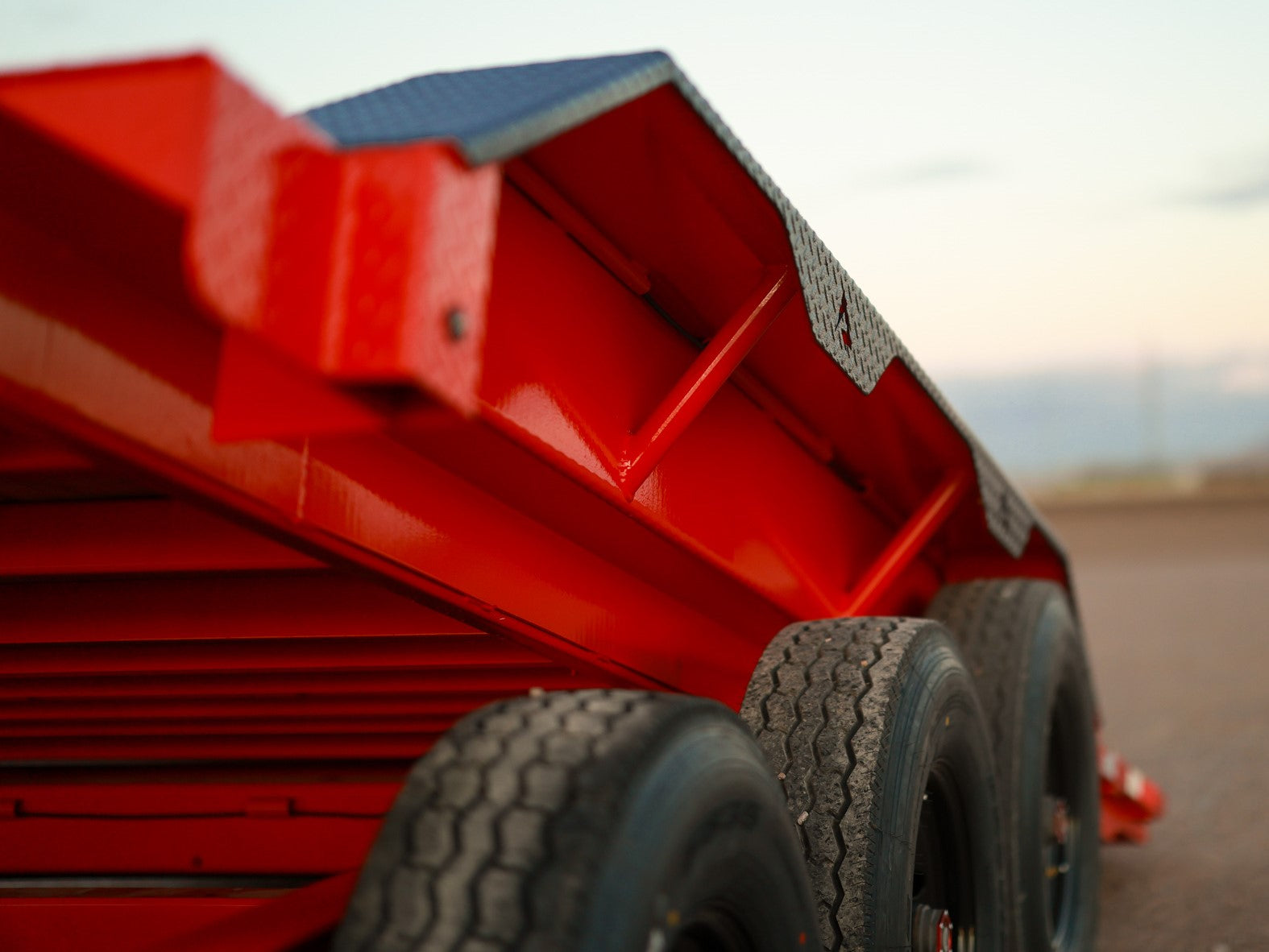

Gravity Tilt Deck
The GTX trailer features a gravity tilt deck with an 11° tilt angle, ensuring straightforward equipment loading and unloading. It includes a stationary front deck (4', 6', or 8' depending on model length) and robust 2” treated lumber flooring, providing a stable and durable surface for hauling needs.

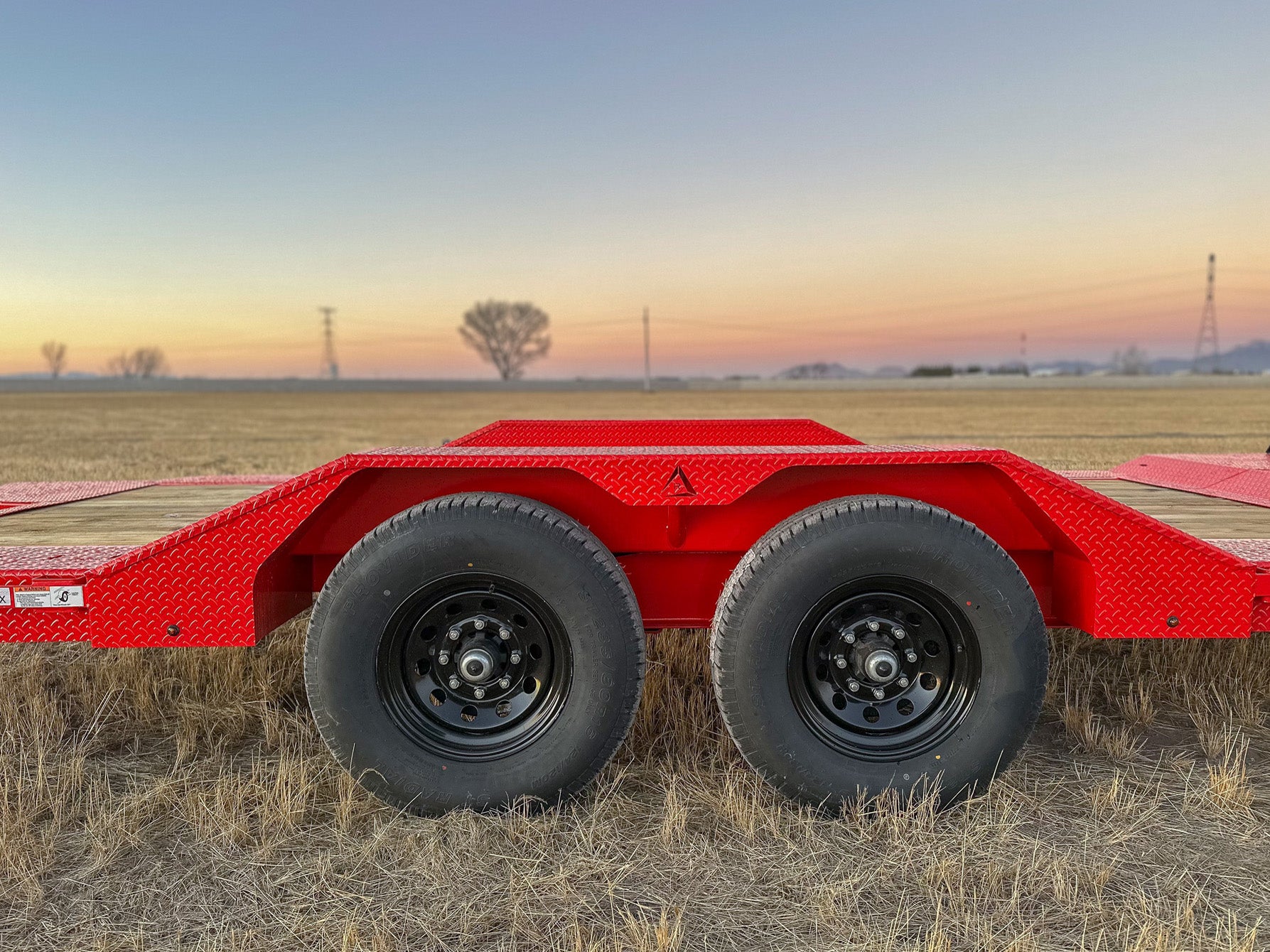

Axles & Tires
The GTX trailer's running gear includes radial tires (ST235/80R16, 10-ply) on 16” black mod wheels (8 on 6.5” bolt pattern), with 7,000 lbs. torsion axles and electric brakes for smooth, controlled rides. Optional upgrades feature 8,000 lbs. torsion axles and 14-ply tires for increased capacity and durability.
Reliable Warranty
This RawMaxx trailer is backed by a 5-year Dexter axle warranty, a 3-year structural warranty, and a 1-year paint warranty. This comprehensive warranty package ensures that users can trust in the trailer's quality and durability over time.
Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- RawMaxx GTX Bumper Pull Tilt Trailer
- LENGTHS:
- 20’, 22’, 24’
- WIDTH:
- 102"
- DECK HEIGHT:
- 24"
- GVWR:
- 14,000 lbs
- GAWR:
- 7,000 lbs
FRAME & SUSPENSION
STRUCTURE:
- MAIN FRAME:
- 8" x 13 lb. I-Beam Frame
- SIDE PERIMETER:
- 3/16" Formed Thread Plate
- CROSS-MEMBERS:
- 3" Channel / 16" Spacings
- FENDERS:
- 3/16" Treadplate Drive-Over Fenders
- RUB RAIL:
- 2" x 3/8" Flat Bar
- STAKE POCKETS:
- 3-7/8" x 1-13/16" (ID)
- CHAIN SPOOL:
- 1 5/8" OD
- SUSPENSION:
- Torflex Torsion Axles
- AXLES:
- 2 x 7,000 lb
- BRAKES:
- Electric
COUPLER & ACCESSORIES
COUPLER:
- TYPE:
- 2-5/16” Adjustable Ball Coupler
JACKS:
- TYPE:
- 1 Side Wind Drop Leg - 10,000 lbs
ACCESSORIES:
- STORAGE:
- Front Tongue Tool Box
- TONGUE LENGTH:
- 60"
- FINISH:
- Powder Coat - Grit Blast Prep, Jet Black
- WARRANTY:
- 5 Year Dexter Axle, 3 Year Structural / 1 Year Paint
RUNNING GEAR & SAFETY
TIRES & WHEELS:
- TIRES:
- ST235/80R16 Radial, 10 Ply
- RATING:
- 3,520 lbs
- WHEELS:
- 16” Black Mod Wheels
- BOLT PATTERN:
- 8 on 6.5”
SAFETY:
- SAFETY CHAINS:
- 3/8" G70 Safety Chains
- BREAKAWAY KIT:
- Electric Breakaway Kit
- REFLECTIVE TAPE:
- 3M DOT Compliant Reflective Tape
ELECTRICAL & LIGHTING
WIRING:
- FRONT PLUG:
- 7-Way RV Plug
- FRAME WIRING:
- All Weather Wiring Harness
LIGHTING:
- SIDE MARKERS:
- 3/4" LED Bullet Lights
- REAR LIGHTS:
- DOT Approved LED Lights
GRAVITY TILT DECK
- FRONT DECK:
- 4' Stationary Deck
- SPARE TIRE COMPARTMENT:
- In Stationary Deck
- TILT DECK:
- 16' Tilt Deck
- TILT SYSTEM:
- Gravity Up / Down
- TILT ANGLE:
- 11°
- FLOORING:
- 2” Treated Lumber
- D-RINGS:
- 4 Welded Inside Fenders
- SWIVEL D-RINGS:
- 2 Located at Front Corners
- X-TRACK READY:
- Snap D-Rings (Sold Separately)
- RAIL GUARD:
- 2" Square Tubing
