At a Glance
TRAILER SPECS:
Specifications
- Brand:
Buckeye
- Trailer Model:
StrykerTrailers
- Pull Type:
Fifth Wheel
Dimensions
- LENGTH:
48'
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenASH GreyTrue RedPearl White
Inquire About This Trailer
Product Features
Efficient Lightweight Build
Weighing only 5,200 lbs, this trailer delivers a 12,000-15,000 lbs GVWR and 7,000-9,800 lbs payload. The engineered truss frame ensures extreme durability in a single-axle, low-profile design. Built for maximum efficiency, it’s ideal for commercial haulers aiming to reduce tolls and maintenance while boosting profits with every load.

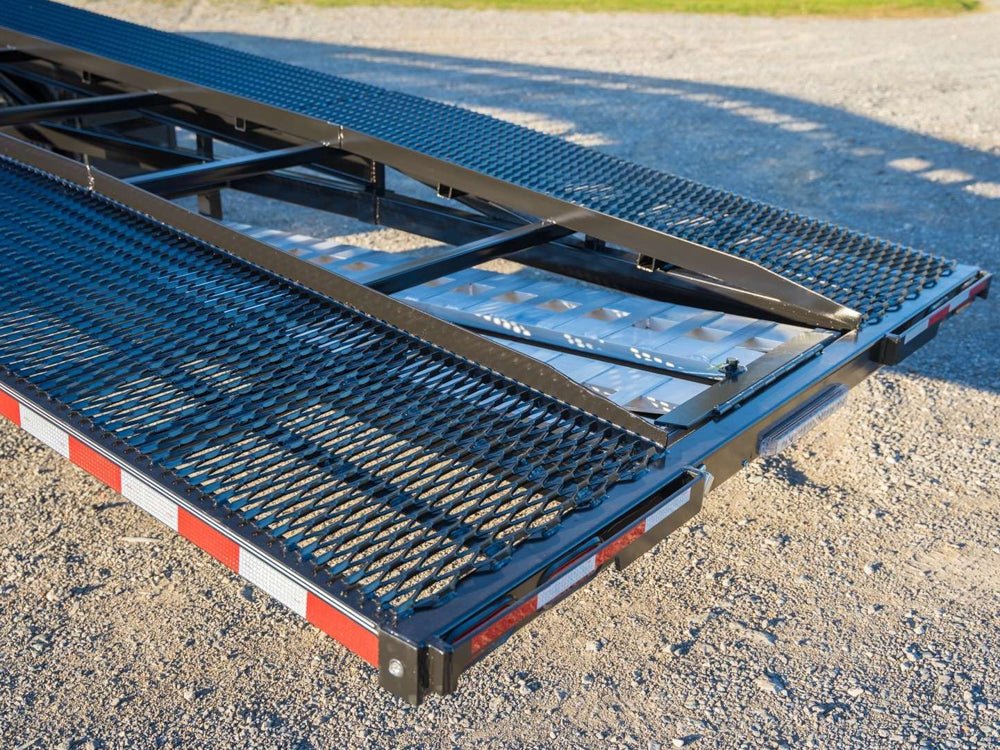

Generous Low-Profile Deck

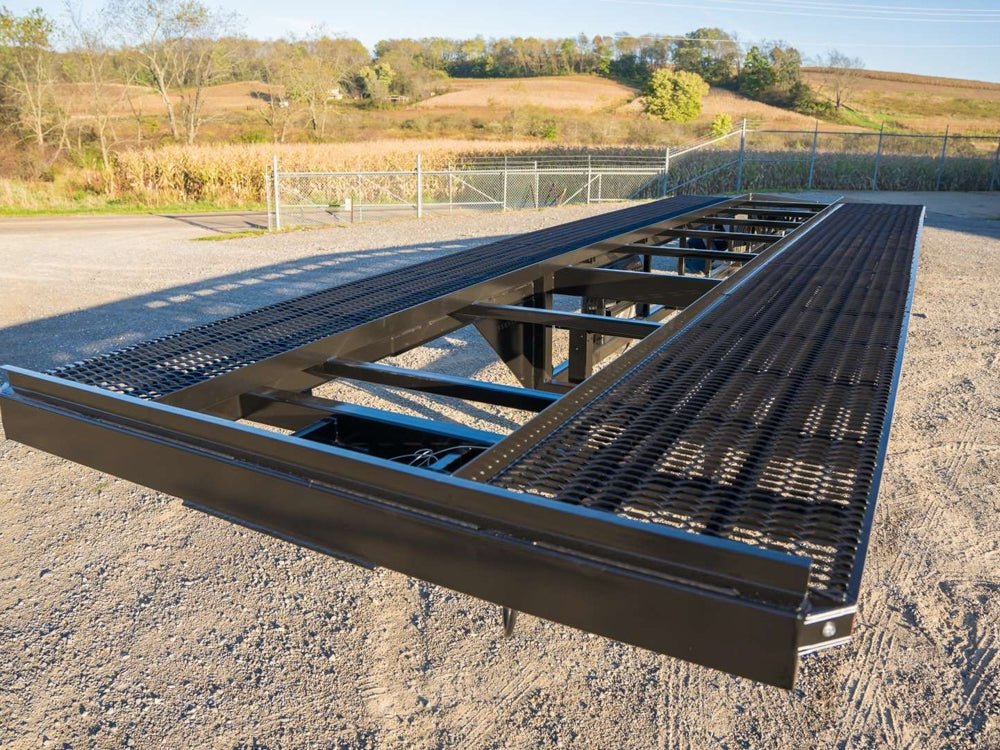

With a 48-foot deck length, 96-inch width, and 52-inch height, this trailer offers ample space for versatile hauling. The HD grate floor, equipped with a 3-point soft tie system, secures loads reliably. Its low-profile design enhances accessibility, making it perfect for efficient loading and unloading on the job.
Superior Hydraulic Braking

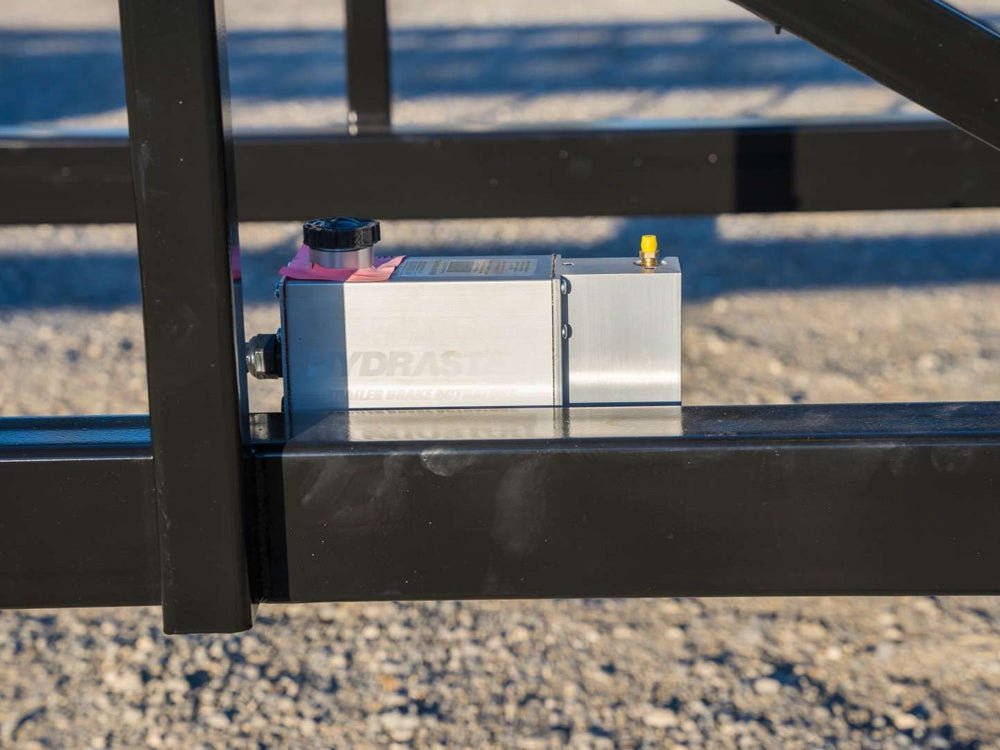

Featuring a single HD 12k Dexter axle with electric over hydraulic disc brakes, this trailer provides optimal stopping power. Unlike electric brakes, these require less maintenance, ensuring reliability with large axle bearings and oil bath hubs. It’s a durable, low-maintenance solution for safe, confident towing every time.
Enhanced Safety Systems
Equipped with DOT-approved reflective tape, a 7-way RV trailer plug, and a breakaway kit with battery box, this trailer prioritizes safety. Safety chains and DOT-approved LED lighting improve visibility and compliance, offering peace of mind for haulers operating day or night in commercial settings.

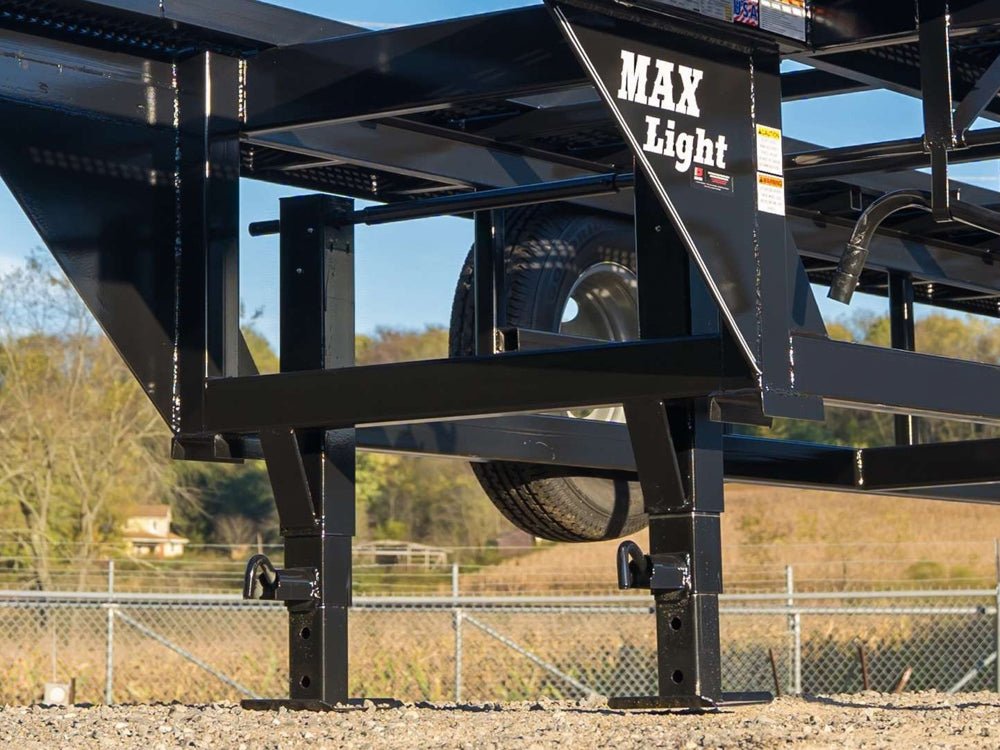

Sturdy Coupler & Jacks
The king pin with fifth wheel coupler ensures a secure tow, while the 12k spring-loaded drop leg jack provides robust support. Stake pockets, rubrails, and 25” wide HD engineered grate runners offer flexible tie-down options, making this trailer a practical choice for heavy-duty transport needs.

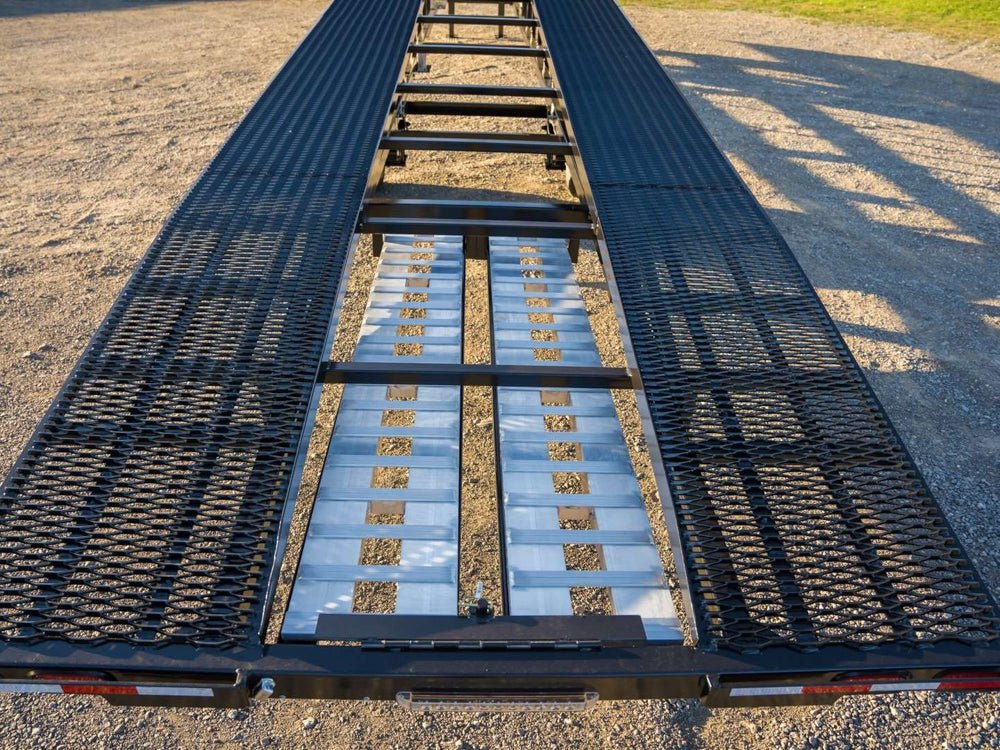

Durable Ramps & Storage
With 9-foot aluminum ramps rated for 10,000 lbs, this trailer ensures reliable loading for heavy cargo. A single aluminum side mount toolbox with lock provides secure storage, with an optional weatherproof upgrade. Finished in epoxy and urethane, it’s built to last with a 2-year structural warranty.Product Details
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:

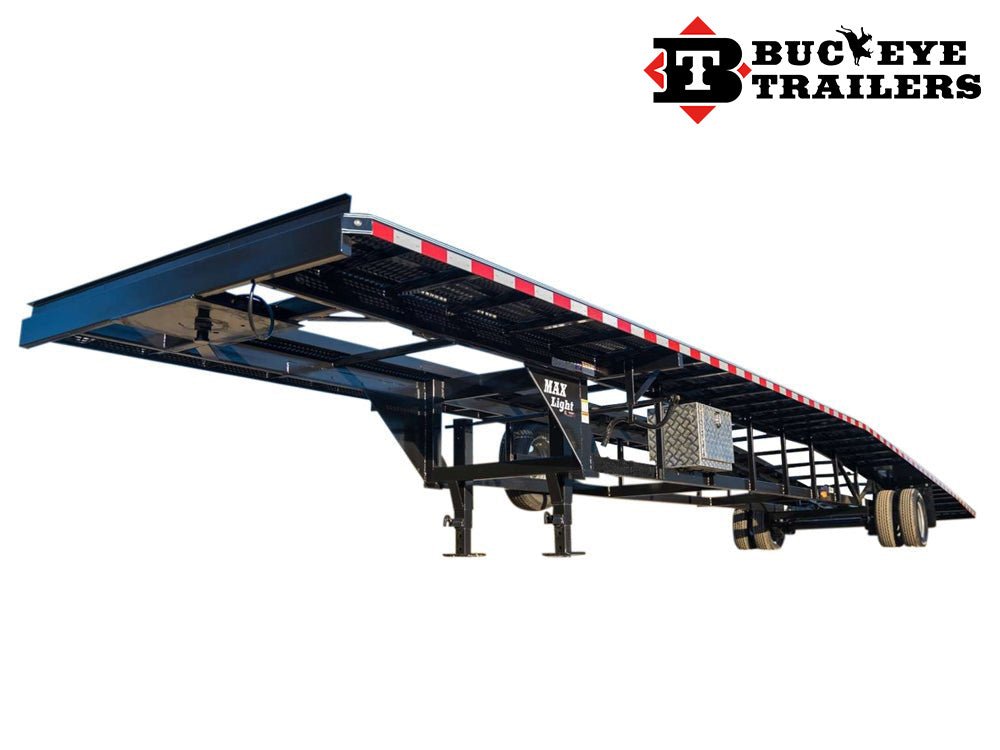

- Buckeye Max Light 48' Low Profile 12K Car Hauler
- GVWR:
- 12,000-15,000 lbs
- PAYLOAD:
- 7,000-9,800 lbs
- EMPTY WEIGHT:
- 5,200 lbs
- DECK LENGTH:
- 48'
- DECK WIDTH:
- 96"
- DECK HEIGHT:
- 52"
DIMENSIONS & CAPACITY OPTIONS:
- DECK WIDTH:
- 102" Wide Deck Option
FRAME & SUSPENSION
STRUCTURE:
- FRAME:
- Engineered Truss
- SUSPENSION:

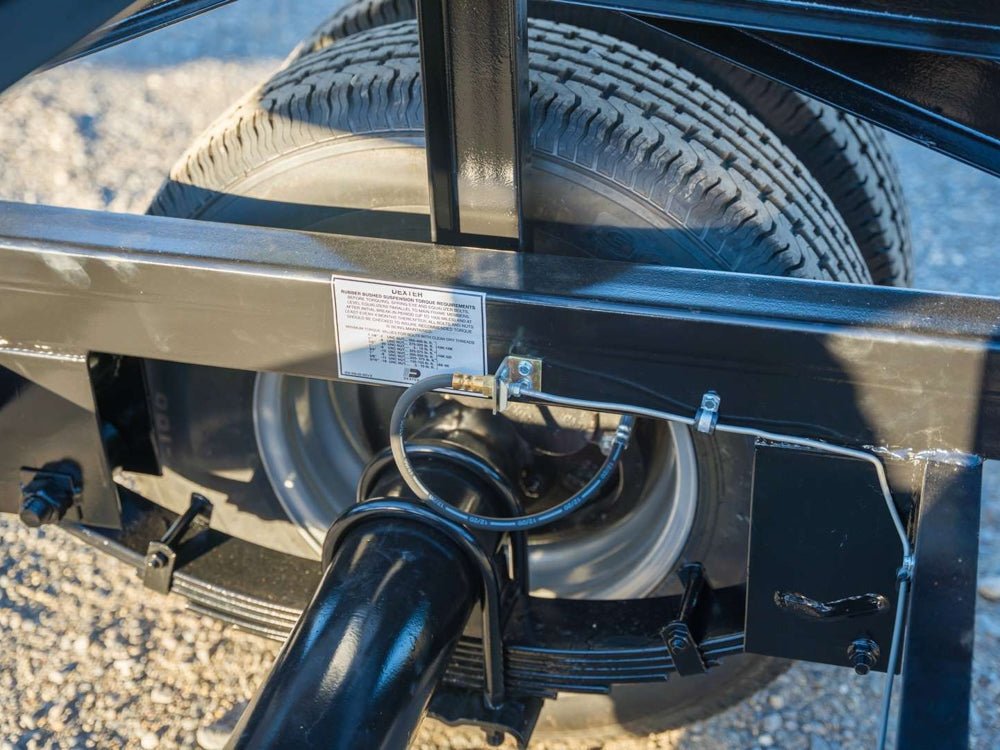

- Heavy-Duty Slipper Spring
- FLOOR:
- HD Grate Engineered for 3 Point Soft Tie System
- AXLES:
- HD 12K HYD Disc Brake Axle
- RUNNERS:
- 25" Wide HD Engineered Grate
FRAME & SUSPENSION OPTIONS:
- RUNNERS:
- 30" Wide HD Engineered Grate
COUPLER & ACCESSORIES
COUPLER:
- TYPE:
- King Pin with a Fifth Wheel
JACKS:
- TYPE:
- 12k Spring Loaded Drop Leg Jack
ACCESSORIES:
- STAKE POCKETS & RUBRAILS:
- Included
- TIE DOWNS:
- Included
- STORAGE:
- 1 Aluminum Side Mount Toolbox With Lock
- FINISH:
- Automotive Grade Epoxy Primer With Two Top Coats of Industrial Urethane
- WARRANTY:
- 2 Year Structural Frame
COUPLER & ACCESSORIES OPTIONS:
- JACKS:
- 2 Speed Dual 12k Spring Loaded Drop Leg Jacks
- STORAGE:
- Toolbox - Weatherproof, Locking
WINCH UPGRADE
WINCH:
- UPGRADE:
- 12,000lb Winch Kit – Wireless Remote Included
RUNNING GEAR & SAFETY
TIRES & WHEELS:
- TIRES:

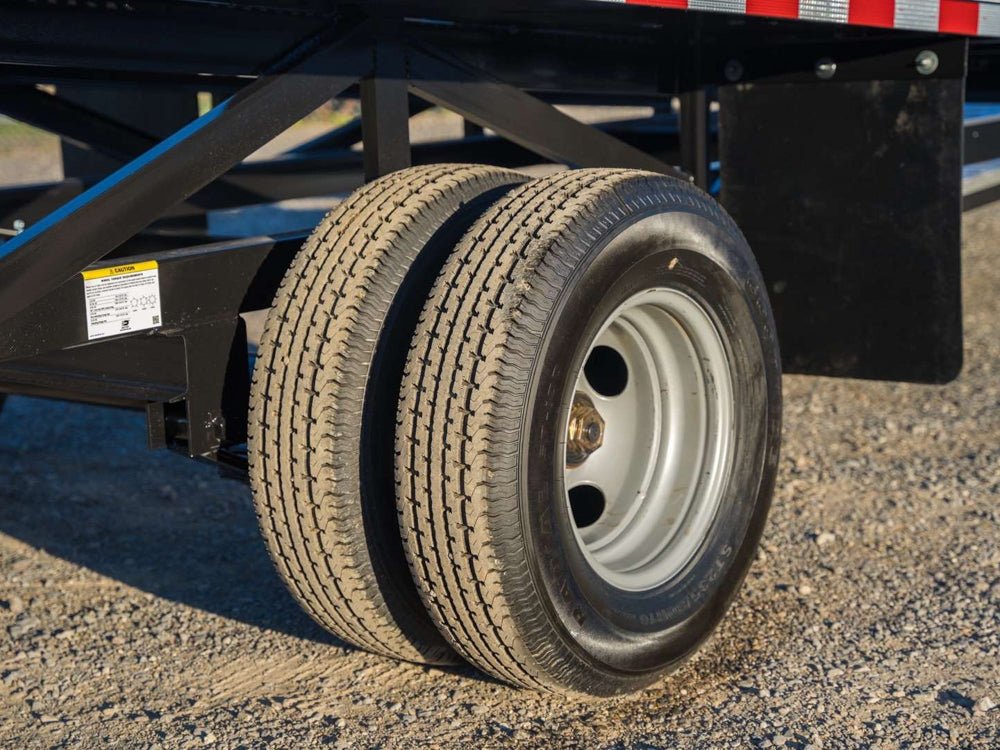

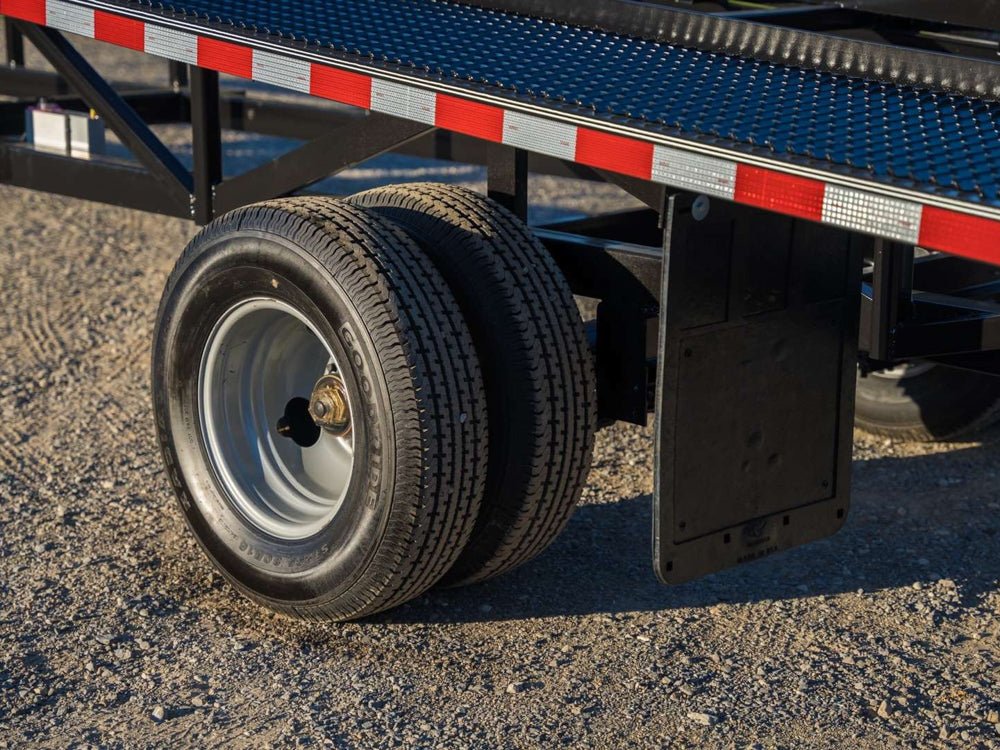

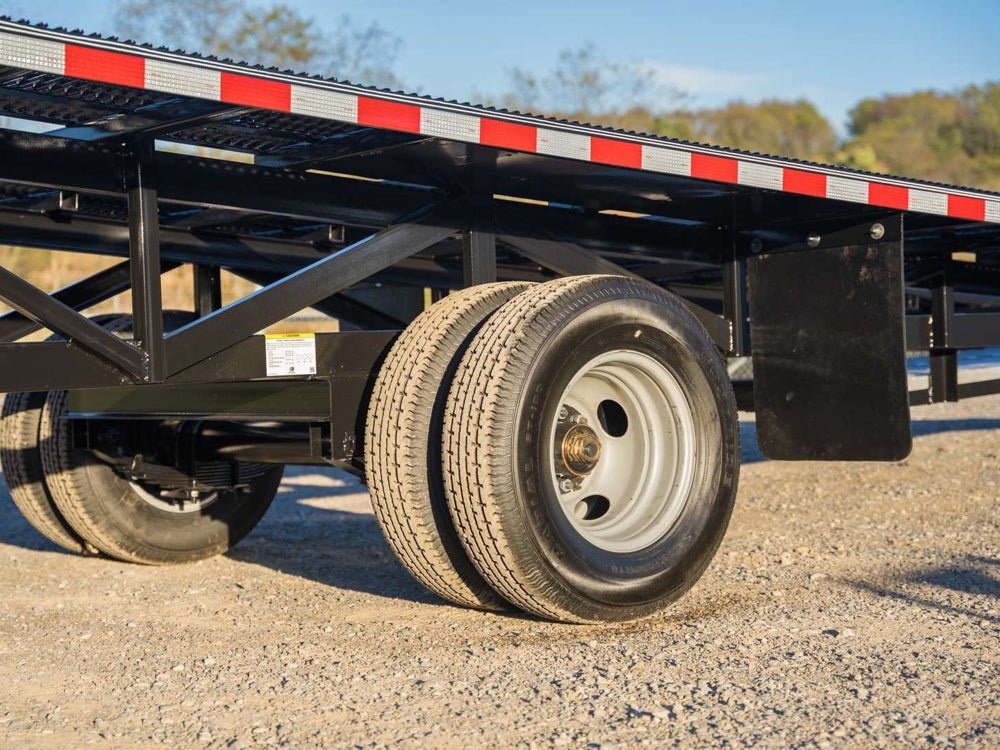

- 215-75-R17.5 Load Range J
- WHEELS:
- Dual Steel 17.5" Rim 8 on 6.5" Bolt Pattern
- BOLT PATTERN:
- 8 on 6.5" Bolt Pattern

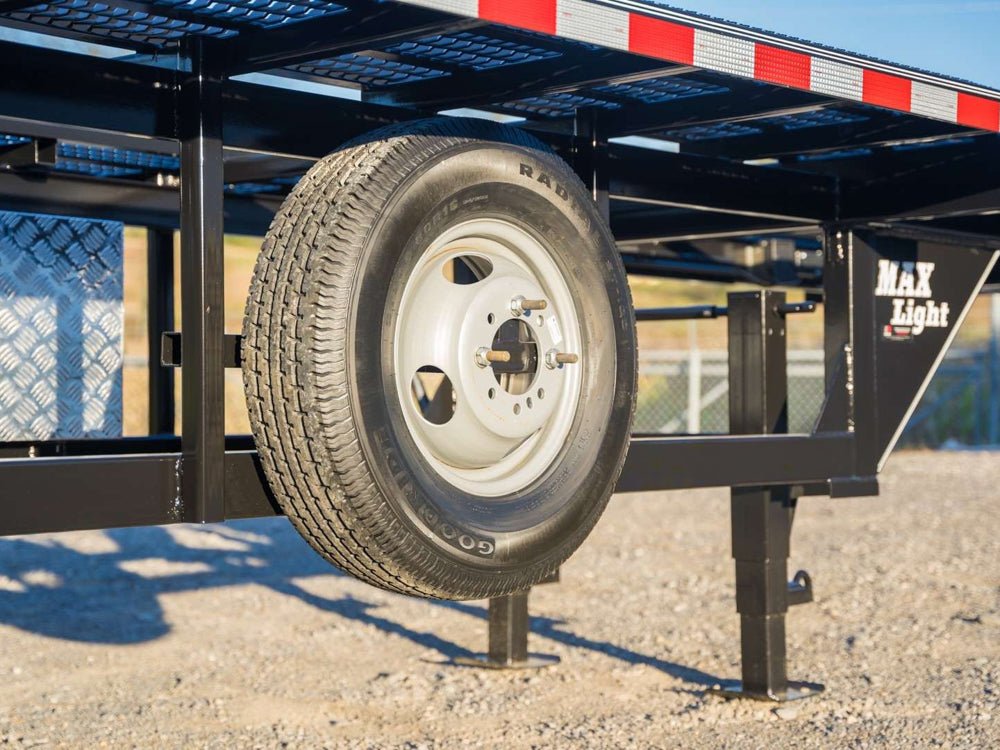

- SPARE MOUNT:
- 215-75-R17.5 Load Range J
RUNNING GEAR:
- BRAKES:
- Electric Brakes
- RAMPS:
- 9' Aluminum Ramps Rated for 10,000 lbs
SAFETY:
- REFLECTIVE TAPE:
- DOT Approved Reflective Tape
- TRAILER PLUG:
- 7-Way RV
- BREAK-AWAY KIT:
- Breakaway Kit & Battery Box
- SAFETY CHAINS:
- Included
- LIGHTS:

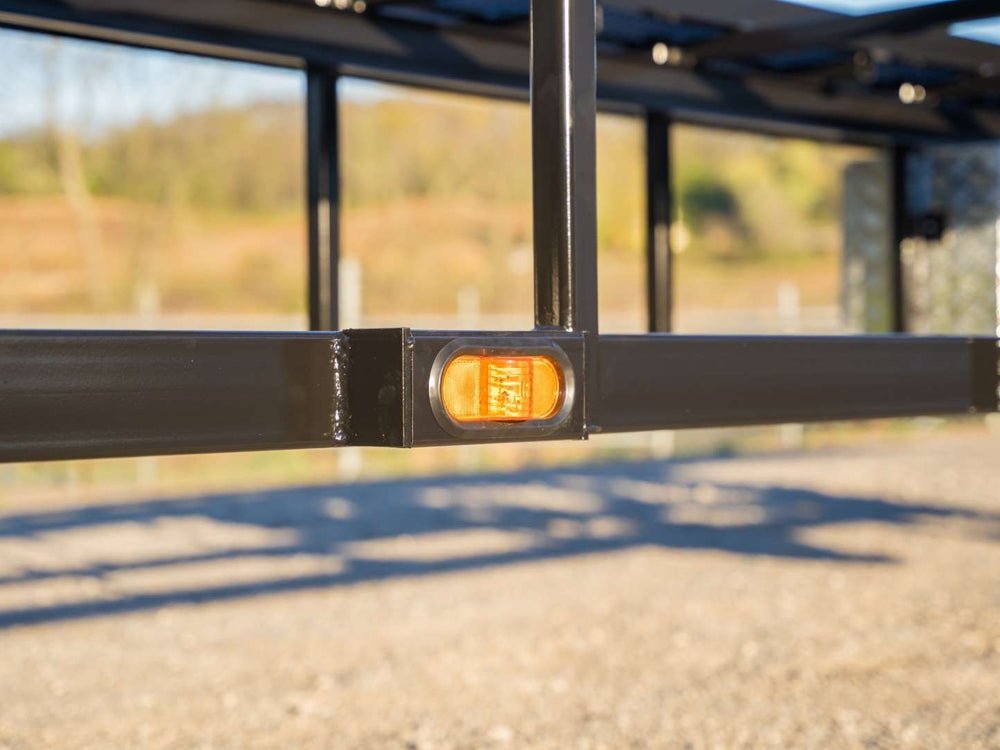

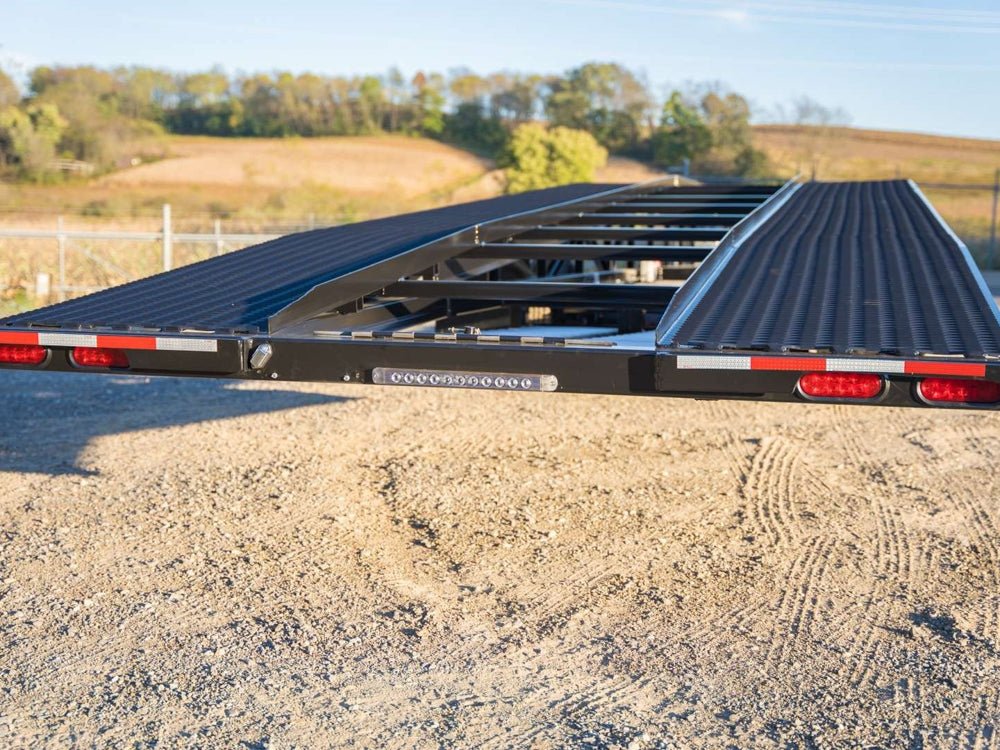

- DOT Approved LED Lighting
RUNNING GEAR & SAFETY OPTIONS:
- TIRES:
- 215-75-R17.5 Load Range J on Aluminum Wheel
- TIRE UPGRADE:
- 14 Ply Tire Upgrade
- SPARE MOUNT:
- 215-75-R17.5 Load Range J on Aluminum Wheel
- SPARE TIRE:
- 10 Ply Spare Tire
- SPARE TIRE:
- 14 Ply Spare Tire
- RAMPS:
- 10' or 12' Aluminum Ramps Rated for 10,000 lbs
- LIGHTS:
- LED Flood Lights
- PACKAGE:
- Trailer Hauling Package (102" Wide Deck, Center Rail, 3 Ball Towers, 12,000lb Winch Kit)
