At a Glance
TRAILER SPECS:
Specifications
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
14' - 20'
- SIDE HEIGHT:
2-4'
Inquire About This Trailer
Product Features

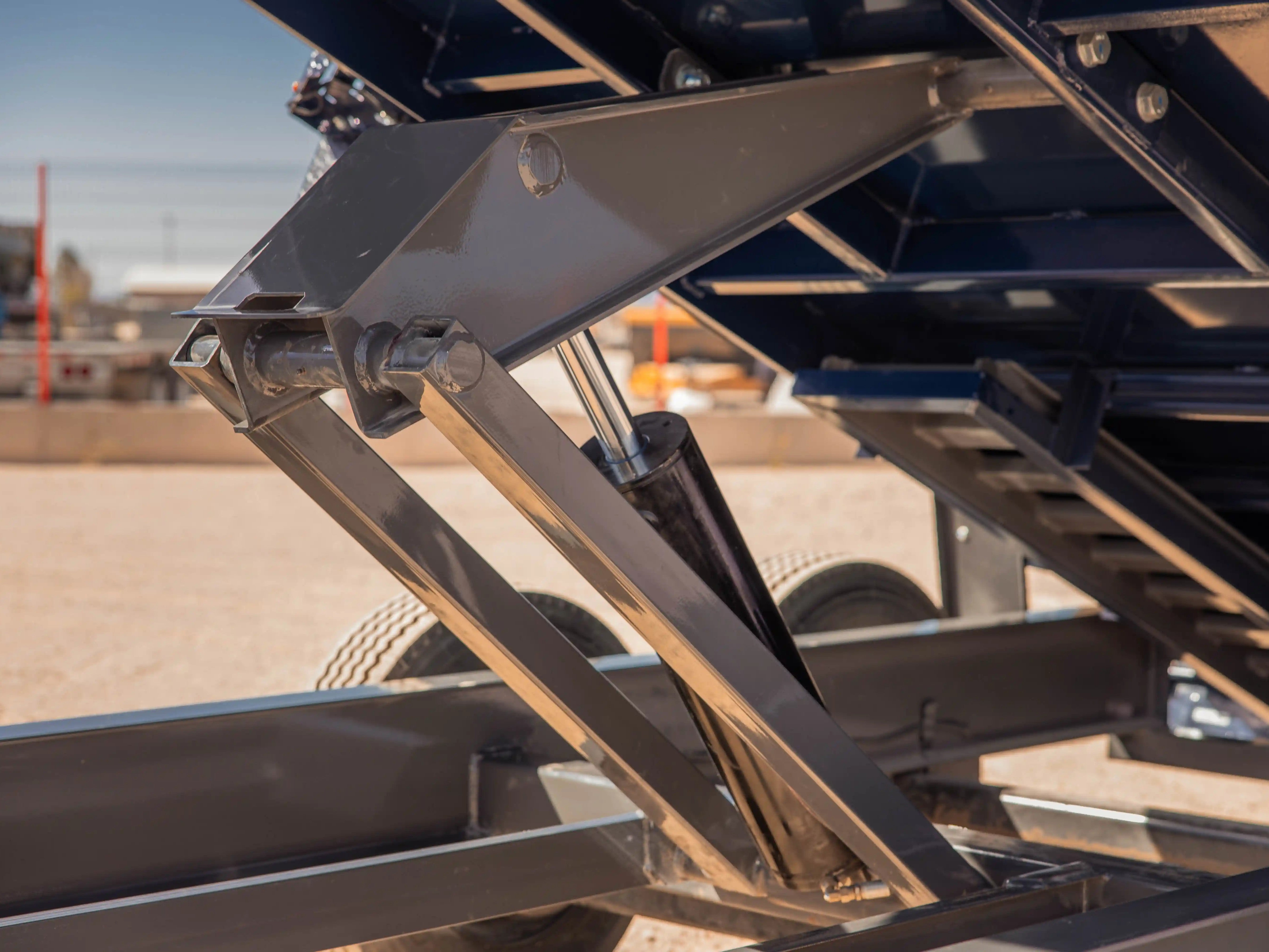

Powerful Hydraulic Dump System
A 7–12 ton telescopic cylinder and KTI 12V hydraulic pump enable smooth dumping at a 44°–48° angle. The 2-button controller with power-up and gravity-down functionality simplifies operation.

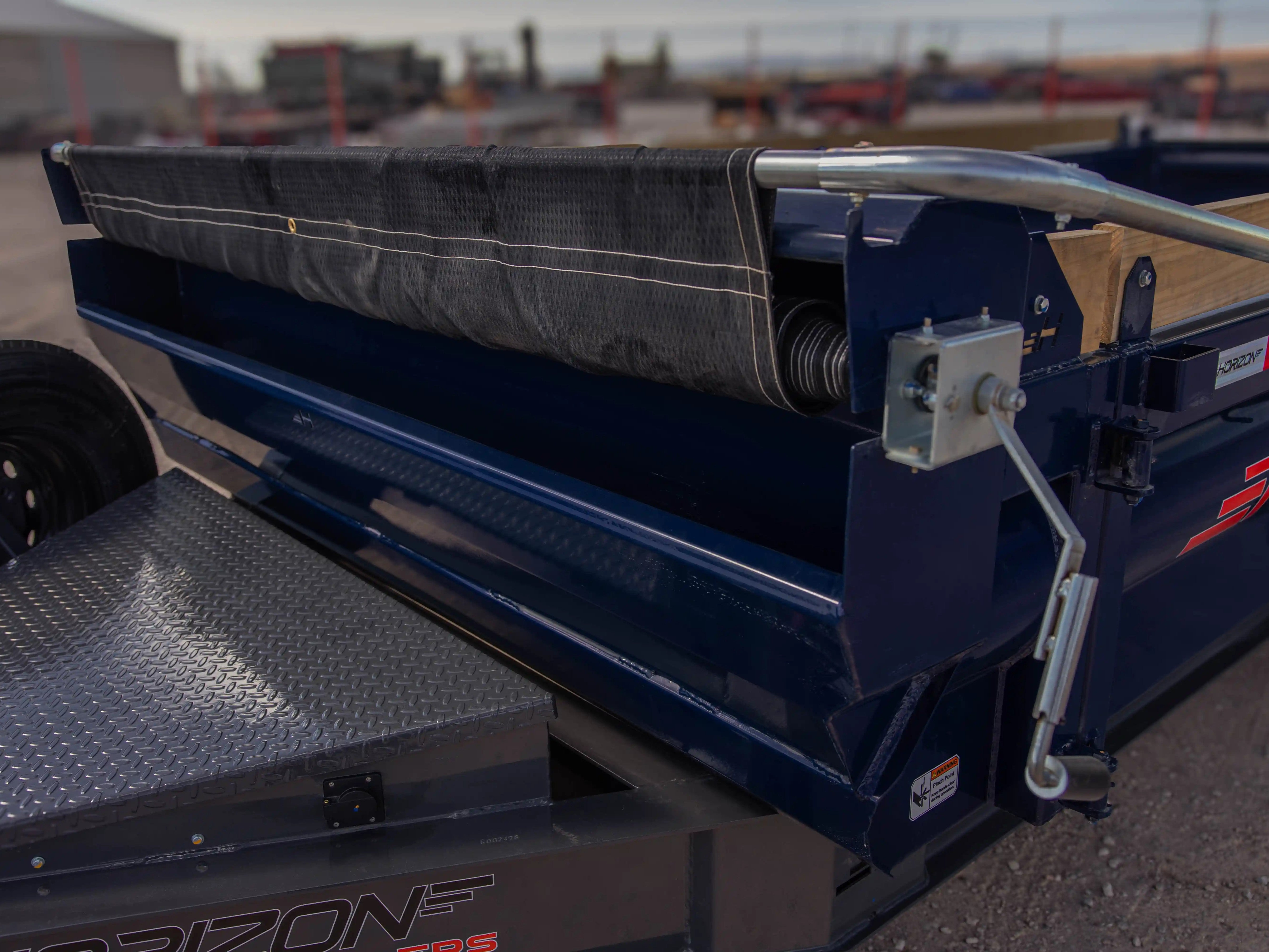

Protective Manual Tarp Kit
The included manual tarp kit securely covers loads to protect them from weather and debris. This feature ensures your cargo stays safe and secure during transport.

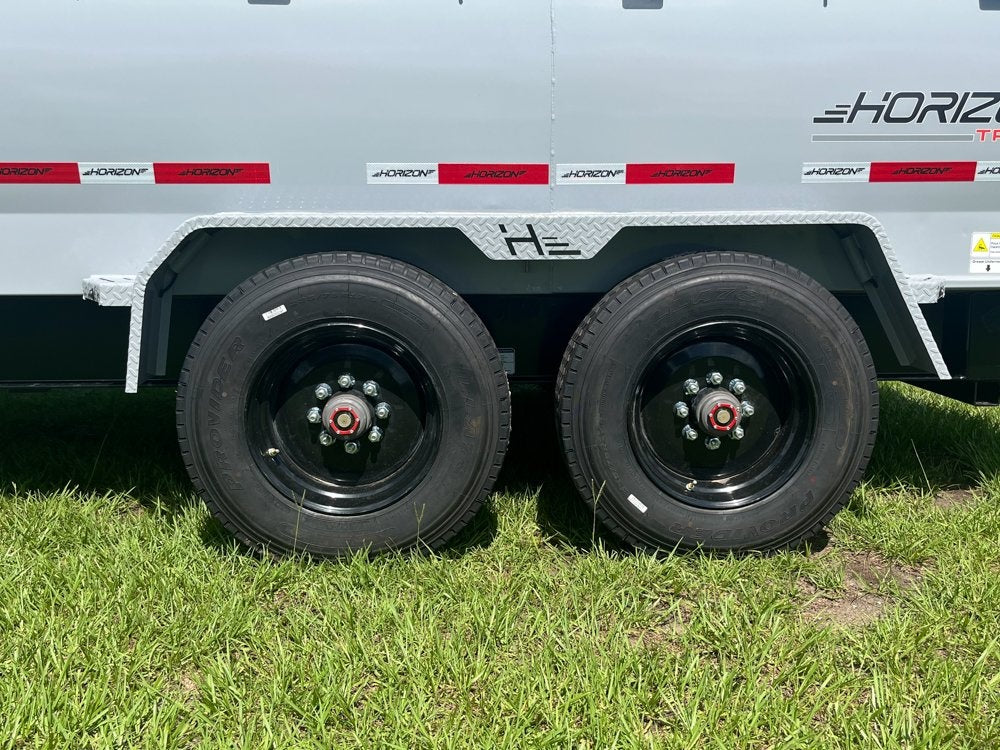

High-Performance Torsion Axles
Dual 10K Lippert torsion axles with electric brakes and oil bath lubrication deliver smooth, reliable performance. Backed by an 11-year Lippert torsion axle warranty, they ensure long-lasting dependability.
Customizable Powder-Coated Finish
Choose from 12 vibrant color options, including 2-tone chassis/dump designs, with a durable powder-coated finish. Steel grit-blasted prep provides a corrosion-resistant look.Product Details
DIMENSIONS & CAPACITY
- AVAILABLE LENGTHS:
- 14', 16', 18', 20'
- SIDE HEIGHTS:
- 2', 3', 4'
- BED WIDTH:
- 83"
- BED HEIGHT:
- 28"
- GVWR:
- 22,400 lbs
- AXLE RATING:
- 2 × 10,000 lbs
FRAME & STRUCTURE
- MAIN FRAME:
- 10" I-Beam (17 lbs/ft)
- FLOOR:
- 7ga. Steel
- CROSSMEMBERS:
- 3" Channel @ 16" OC
- D-RINGS:
- 4 Welded Inside Bed
- DUMP ANGLE:
- 44° – 48°
COUPLER & ACCESSORIES
COUPLER:
- TYPE:
- Adjustable 2-5/16" Bumper Pull Coupler (21,000 lbs)
JACKS:
- TYPE:
- 2 × 12,000 lb Side Wind Drop-Leg Jacks
ACCESSORIES:
- TOOLBOX:
- Mega Lockable Toolbox (Houses Battery & Pump)
- TARP KIT:
- Manual Tarp Kit
- SAFETY CHAINS:
- 3/8" Grade 70 with Clevis Hooks
- STEP:
- Side Step on Both Sides
- MARKER LIGHTS:
- Extra Marker Lights for Visibility
RUNNING GEAR & SUSPENSION
AXLES:
- TYPE:
- 10K Lippert Torsion, Electric Brake, Oil Bath
- AXLE WARRANTY:
- 11-Year Lippert Torsion Axle Warranty
SUSPENSION:
- TYPE:
- Torsion
HYDRAULICS
- LIFT SYSTEM:
- Telescopic Cylinder (7–12 Ton)
- PUMP:
- KTI 12V Hydraulic Pump
- CONTROLLER:
- 2-Button – Power Up / Gravity Down
BATTERY & ELECTRICAL
- BATTERY:
- Interstate 27 Deep Cycle
- CHARGER:
- 110V Integrated Trickle Charger
- WIRING:
- All-Weather 7-Way RV with Double Insulation
- LIGHTING:
- DOT-Approved Tecniq LED
- REFLECTIVE TAPE:
- 3M DOT Compliant
TIRES & RAMPS
- TIRES:
- ST235/75R17.5 Super Single 18PR (6,005 lbs each)
- WHEELS:
- 17.5" Black Mod Steel
- SPARE MOUNT:
- Weld-On Mount
- RAMPS:
- 6' 4" Heavy-Duty Slide-In (4" Channel)
SIDES & BODY
- SIDE HEIGHTS:
- 2', 3', 4'
- SIDE MATERIAL:
- 10ga. Rounded Steel
- TOP RAIL:
- 3" × 5" × 11ga Tubing
- STAKE POCKETS:
- 1-5/8" × 3-5/8" (ID)
- HOOKS:
- 3/8" Round "J" Hooks
- FENDERS:
- 12ga Diamond Plate Steel
- REAR GATE:
- 3-Way Spreader Gate
FINISH & WARRANTY
- PAINT:
- Powder Coat
- PREP:
- Steel Grit Blasted
- COLOR OPTIONS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
- 2-TONE OPTION:
- Available – Chassis / Dump
- FRAME WARRANTY:
- 3-Year
- PARTS WARRANTY:
- 1-Year
AXLE WARRANTY:
- LIPPERT:
- 11-Year Torsion Axle Warranty
