At a Glance
TRAILER SPECS:
Specifications
- Brand:
Horizon
- Pull Type:
Bumper Pull
Dimensions
- LENGTH:
12'-16'
Featured Video
Product Features

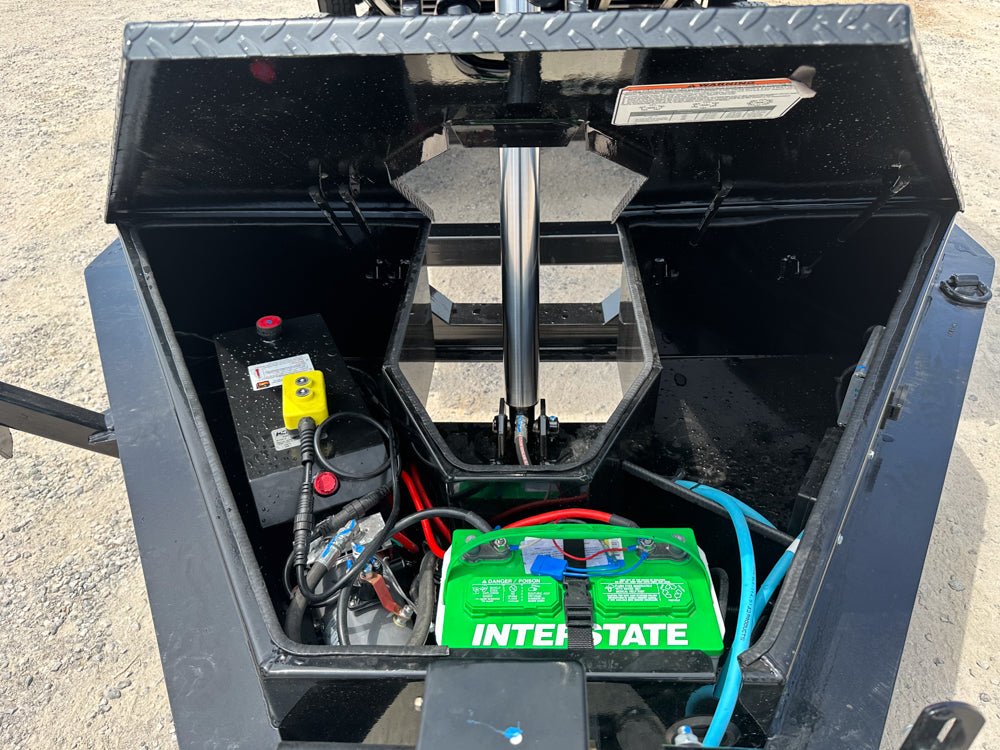

HZ7 Tongue
The trailer’s tongue includes a lockable toolbox and pump box, offering secure storage for tools and equipment. This convenient feature ensures peace of mind and easy access, making it ideal for hauling both construction materials and recreational gear.
Chassis Frame
The robust 8" I-Beam (10 lbs/ft) chassis frame forms the backbone of this trailer. Built for heavy-duty use, it can handle substantial loads without compromising stability. Whether you’re transporting gravel, firewood, or other heavy items, the chassis frame ensures durability and reliability.

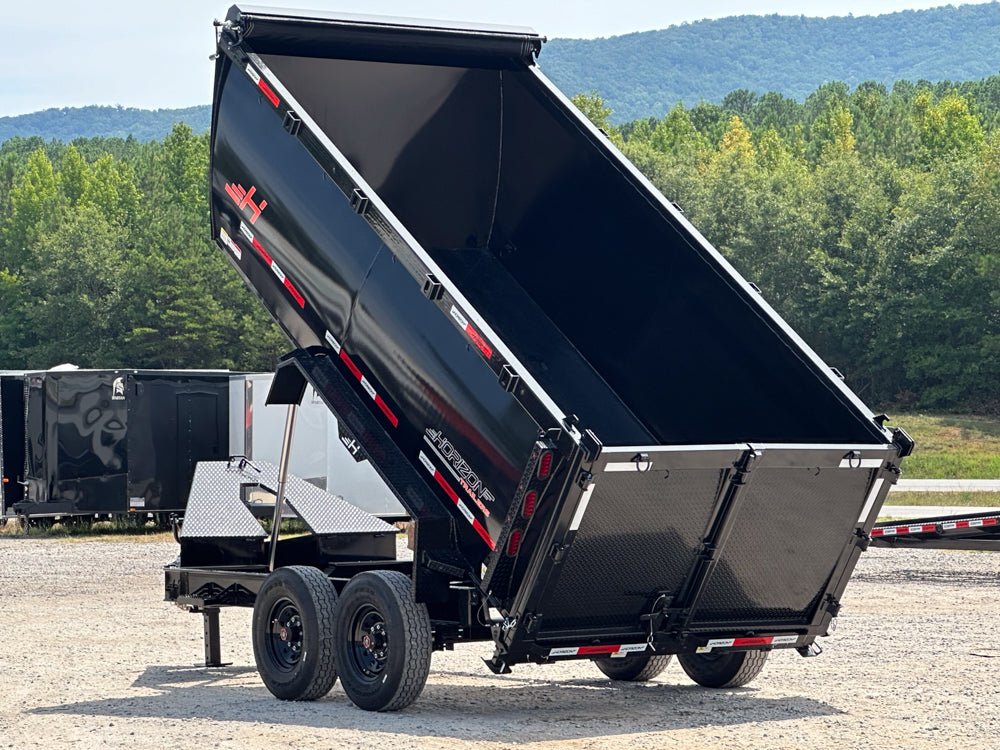

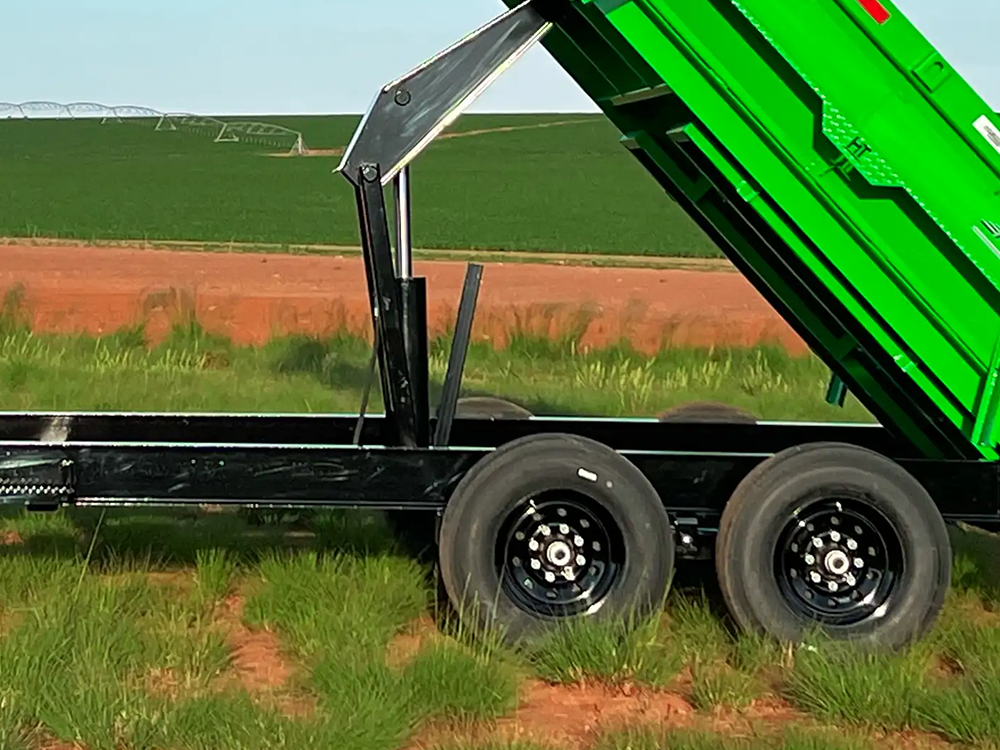

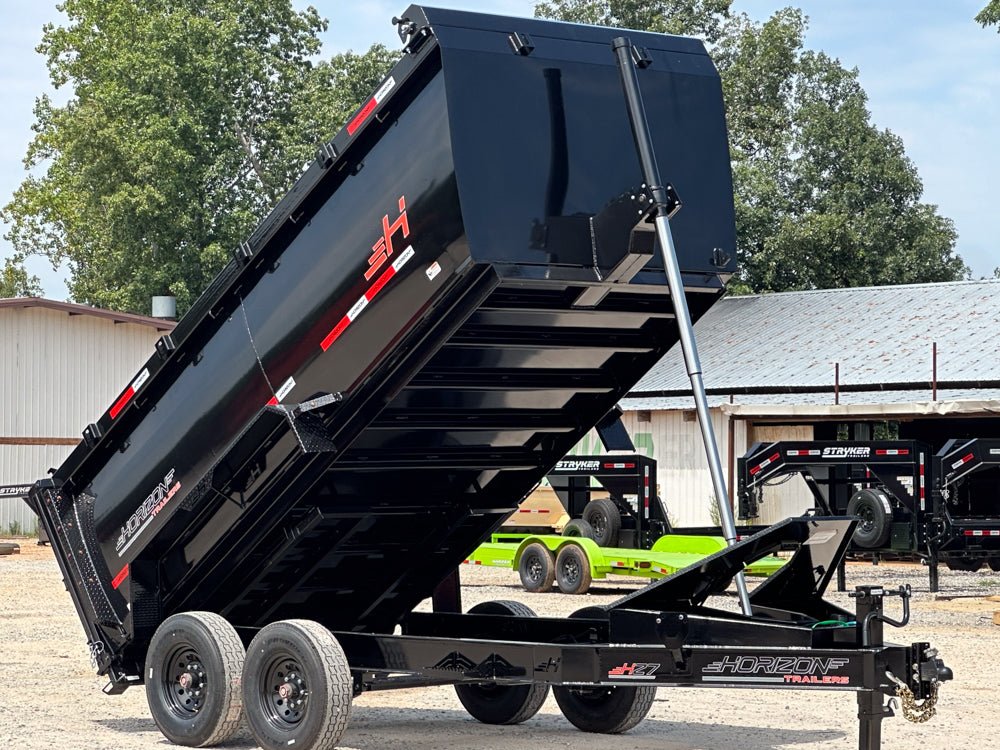

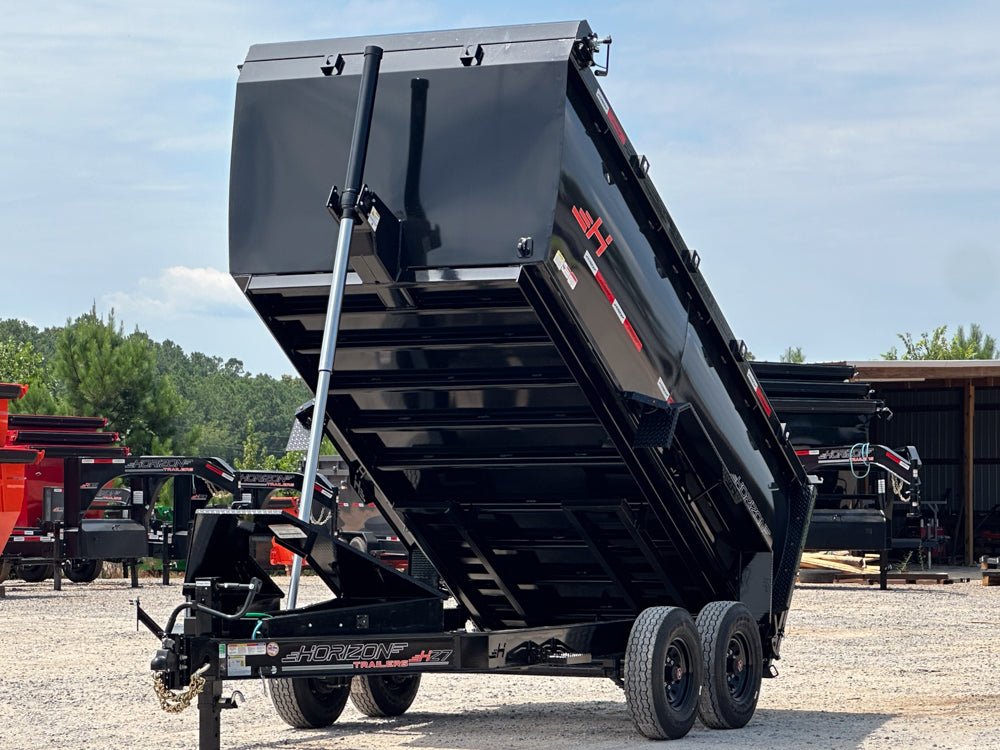

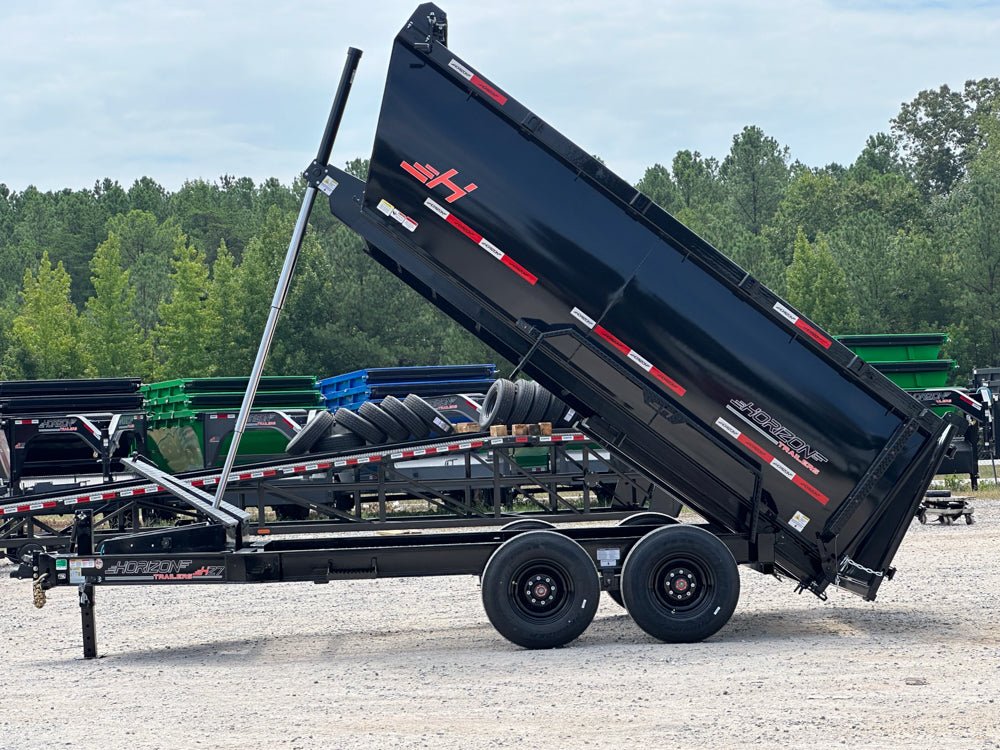

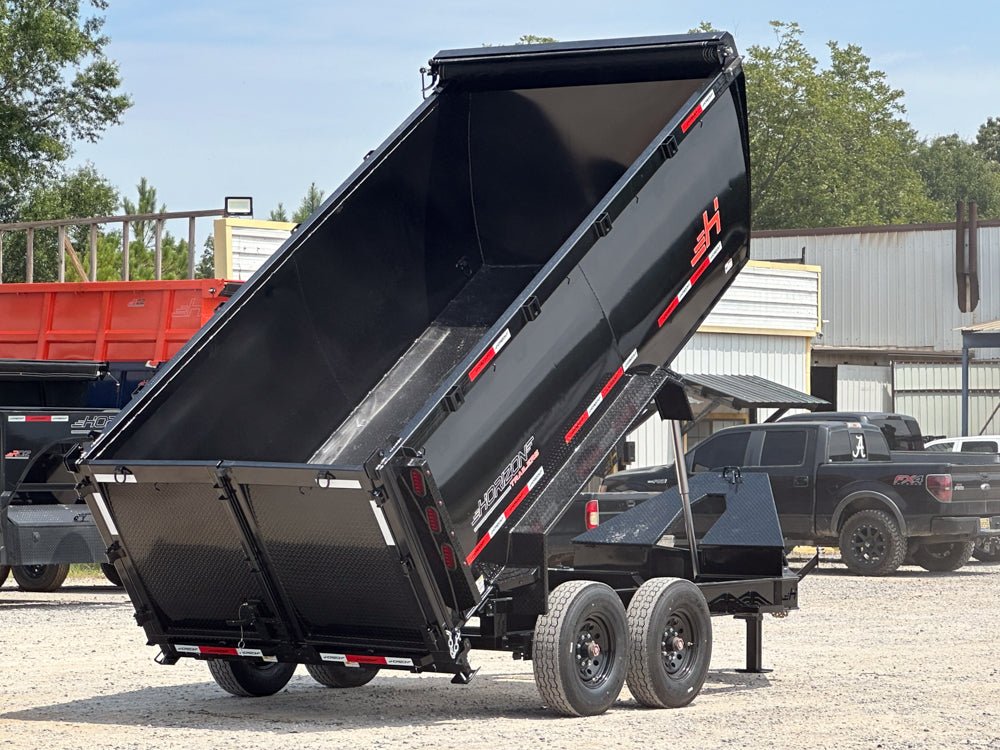

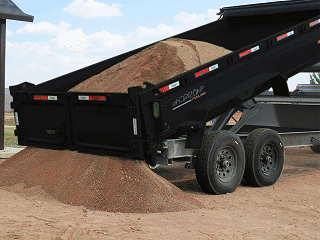

Dump
The HZ7 trailer features a Hydraulic Power Up/Gravity Down system with a KTI 12V hydraulic pump and 14' control cable. The 12' platform uses a 5" x 15" single push cylinder with a 15,000 lb hoist capacity. The 14' and 16' platforms utilize a 6" x 21" single push cylinder, offering a 20,000 lb capacity, ensuring efficient and reliable dumping.

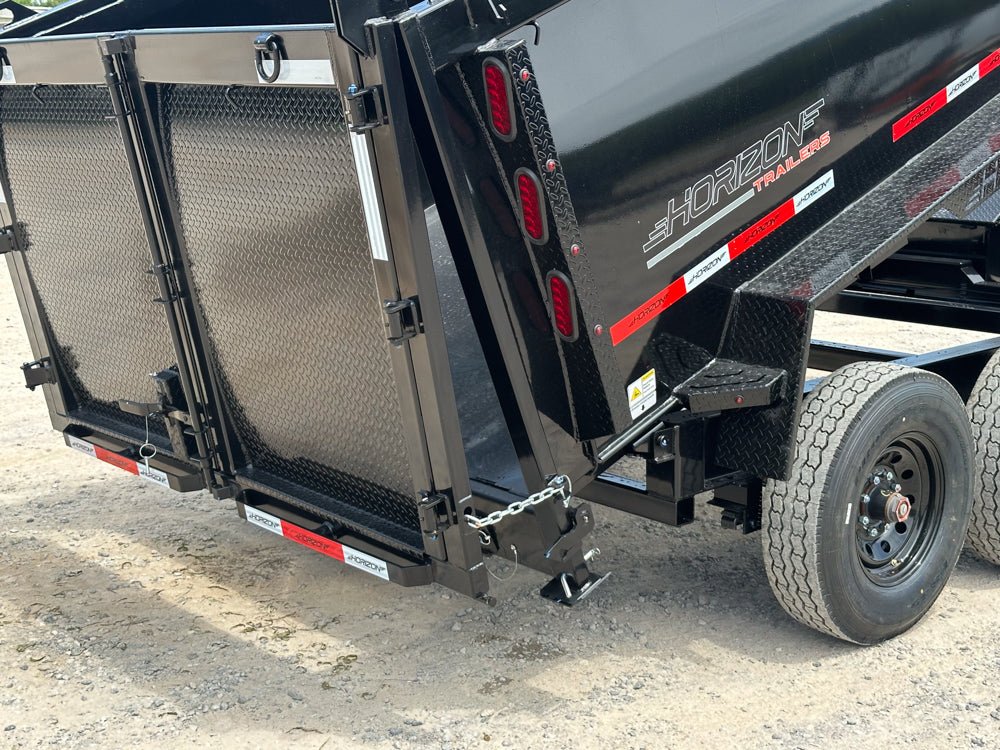

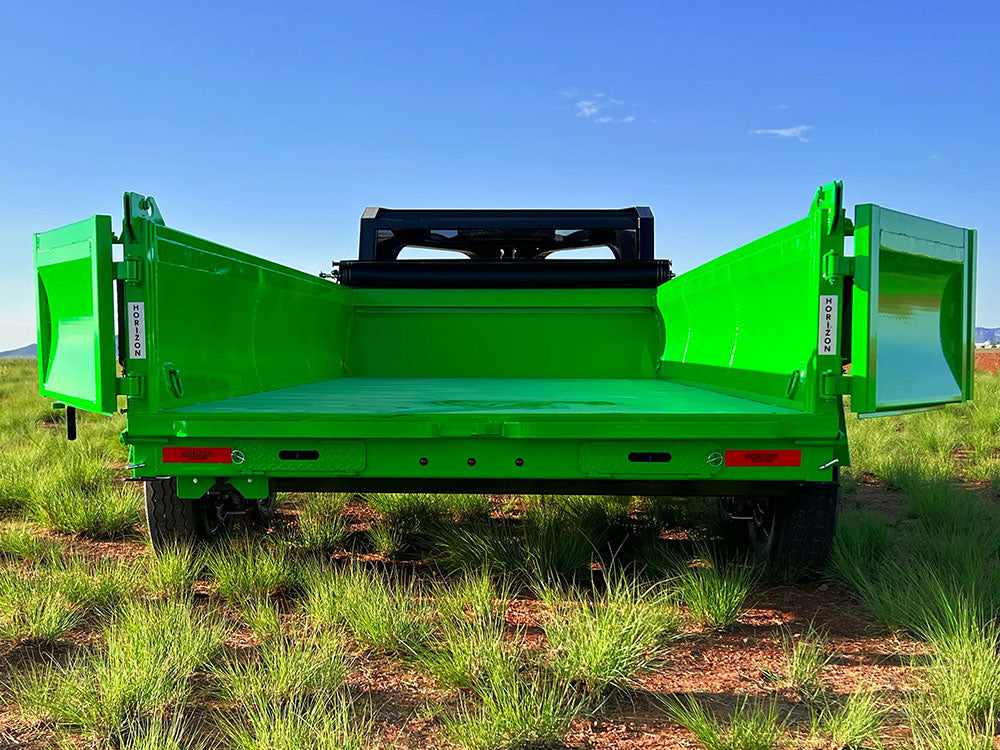

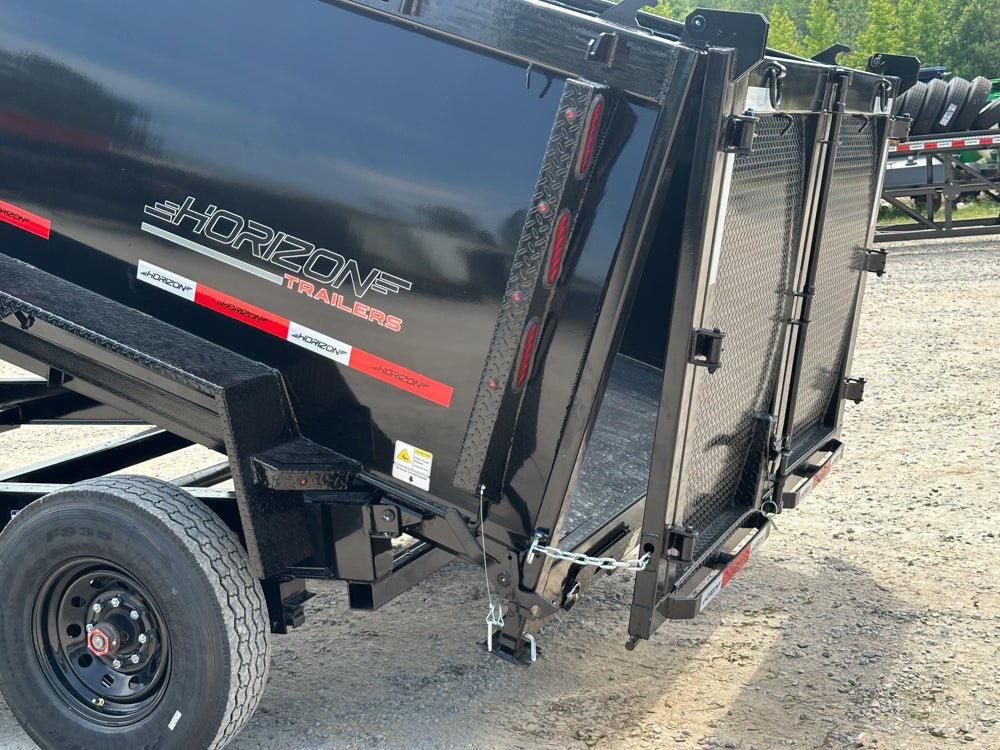

HZ7 Door
This model features a versatile 2-way door for both swinging and spreader-style unloading. It efficiently discharges various materials, accommodating different job requirements with ease. Whether handling soil, debris, or landscaping supplies, the 2-way door enhances the trailer's functionality and efficiency.

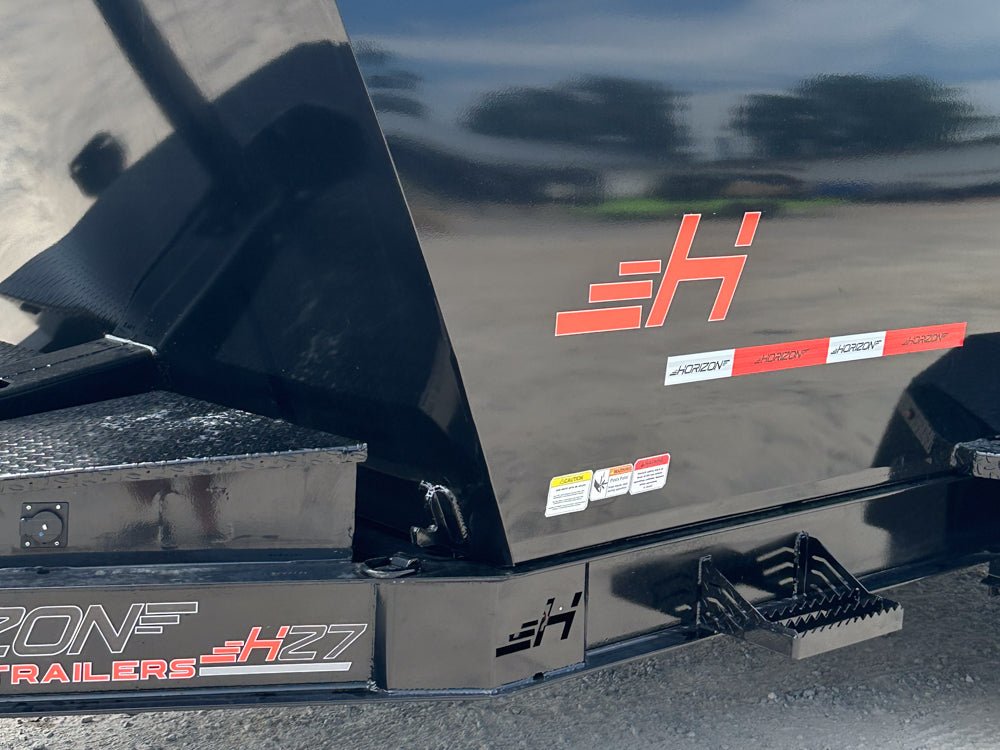

DURABLE POWDER COAT FINISH
Finished with a powder coat for superior durability and corrosion resistance, the HZ7 dump trailer is built to withstand the elements. Its rugged construction and premium finish ensure long-lasting performance, even in the harshest environments, making it a reliable asset for years to come.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 6-year Lippert Spring Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.Product Details
WARRANTY
WARRANTY:
- AXLE WARRANTY:
- 6 Year Lippert Spring Axle Warranty
- TRAILER WARRANTY:
- Three (3) Year Frame / One (1) Year Parts Warranty
DIMENSIONS & CAPACITY
TRAILER:
- MODEL:
- Horizon 7 Ft Wide Dump Trailer
- TYPE:
- Bumper Pull
- LENGTHS:
- 12', 14', 16'
- SIDE HEIGHT:
- 2'
- SIDE HEIGHT OPTIONS:
- 3', 4'
- EXTENSION OPTIONS:
- 8" Extension Boards, 8" Integrated Wood Extension Brackets
- BED WIDTH:
- 83"
- BED HEIGHT:
- 28"
- GAWR:
- 7,000 lbs
- GVWR:
- 15,200 - 17,000 lbs
- AXLE UPGRADE:
- 8,000 lbs

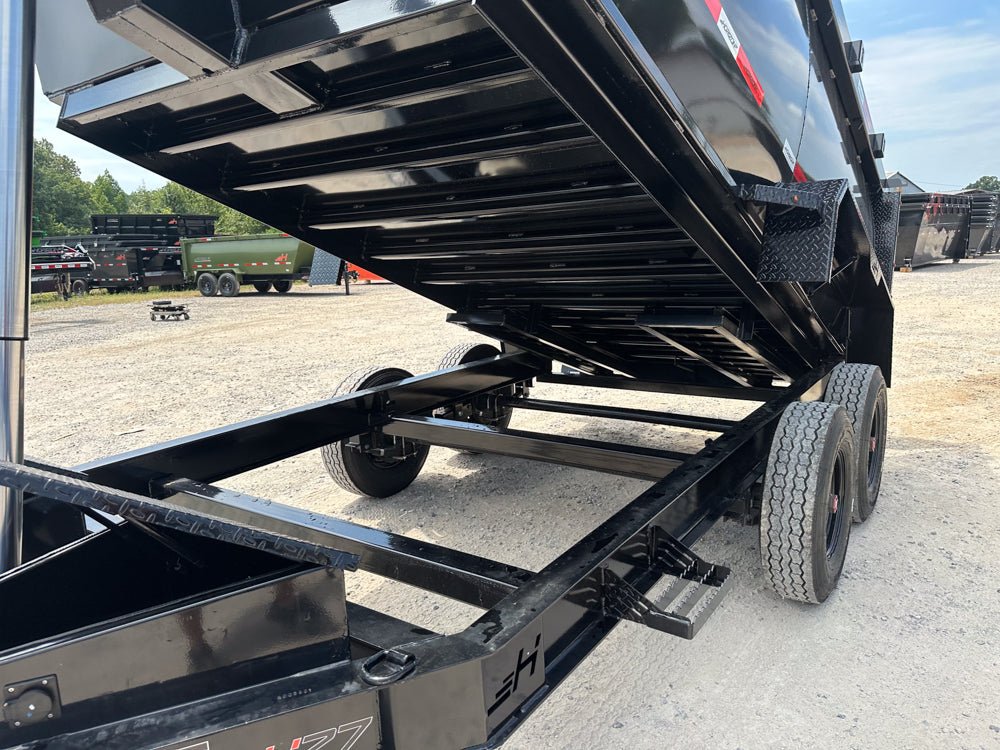

FRAME & CONSTRUCTION
FRAME:
- MAIN FRAME:
- 6" I-Beam (13 lbs/ft)
- BED FRAME:
- 5" x 5" x 5/16" Angle Iron (10.3 lbs/ft)
- FLOORING:
- 7ga. Steel Bed
- FRAME OPTIONS:
- 12" Crossmember Spacing
FINISH:
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue, Sunset Orange
- STYLE:
- 2 Tone Colors Available (Chassis / Dump)
BUMPER PULL & STORAGE
BUMPER PULL:
- TONGUE:
- 8" I-Beam (13 lbs/ft), 60" Length
- COUPLER:
- Adjustable Demco EZ Latch 2-5/16"
- JACK:
- 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
STORAGE:
- TOOLBOX:
- Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
- SPARE TIRE MOUNT:
- Weld On Spare Tire Mount
- STORAGE OPTIONS:
- Storage Box in Front of Dump Box (Compatible with Wood Extension Option Only), Pair of Rear Stabilizer Stands
SAFETY
SAFETY:
- BREAKAWAY SYSTEM:
- 2382 Brightway Group Electric Breakaway Kit
- SAFETY CHAINS:
- 3/8" Grade 70 Safety Chain w/ Clevis Hook (2 each)
OPTIONS
ADDITIONAL FEATURES:
- SIDE DOOR:
- 42" Side Door (14' & 16' Dumps Only, Left Side)
- TARP SYSTEM:
- Crank Over Tarp Kit
LIFT SYSTEM:
- REMOTE CONTROL:
- Tuff Wireless 2 Button Remote (Hoist or Telescopic), Tuff Wireless 2 Button Remote (Hoist - Hydraulic Jacks)

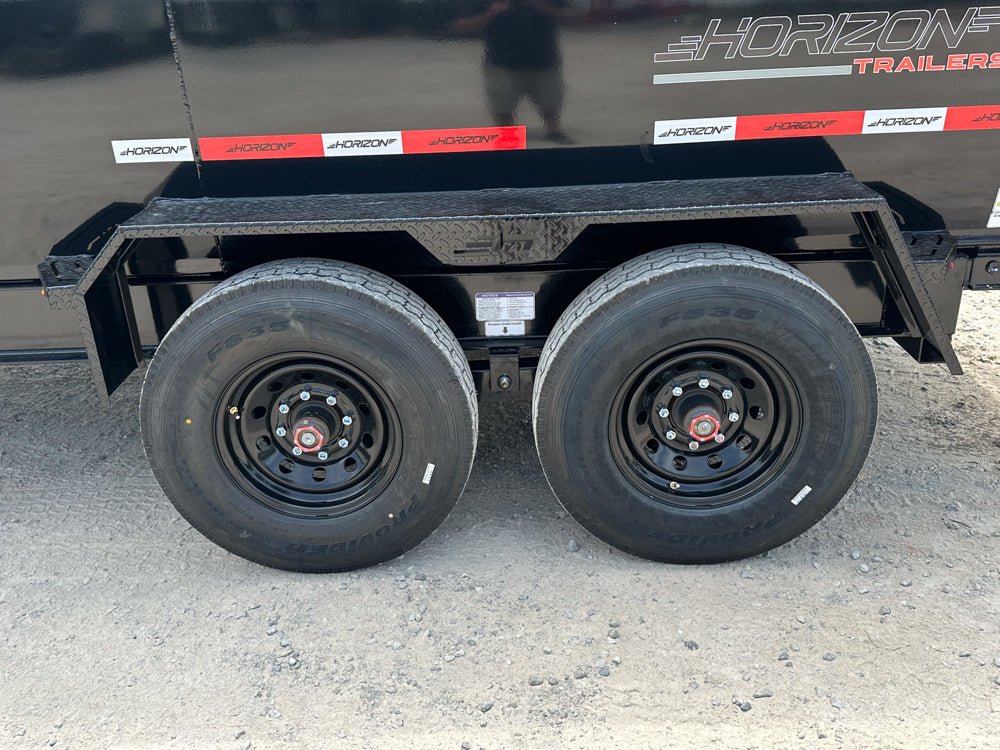

RUNNING GEAR:
- TIRE UPGRADE:
- 4 - ST235/75R17.5 18 Ply Tires Super Singles (6,005 lbs)
- SPARE TIRE OPTIONS:
- ST235/85R16 14 Ply Tire Single (4,400 lbs), ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
ELECTRICAL AND LIGHTING:
- SOLAR PANEL:
- 10 Watt Solar Panel
