At a Glance
TRAILER SPECS:
Finish
- Colors:
-
Military GreenDesert TanFlame OrangeMidnight BlackSpectra YellowBlue HorizonLime GreenAsh GreyTrue RedPearl WhiteCloud GreyNavy Blue
Get a Custom Quote
Featured Video
Product Features

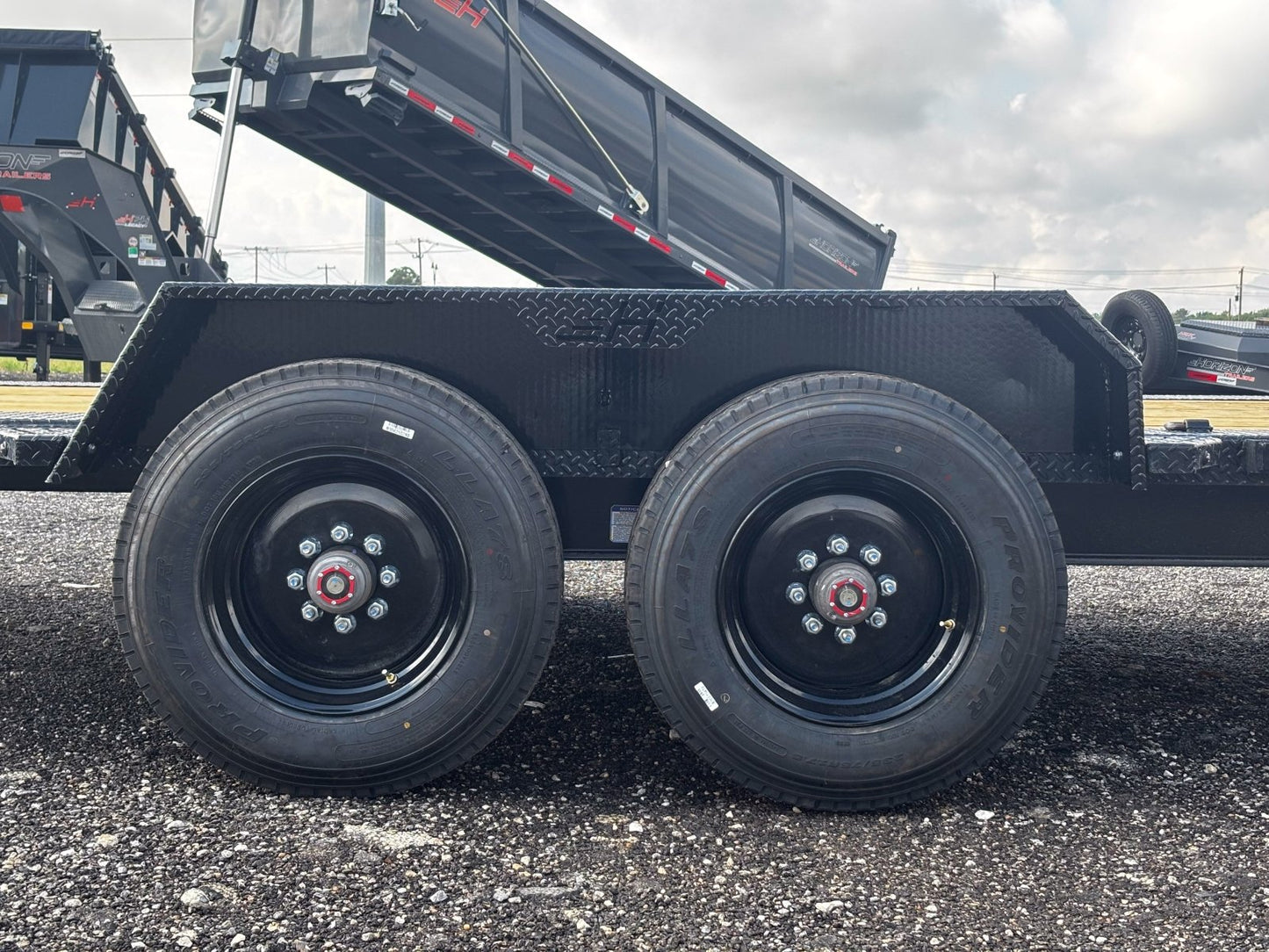

10k Super Single Axles with Torsion Suspension
Equipped with two 10k oil bath super single axles on a torsion suspension. The combination provides high weight capacity, a smooth ride, and the stability of a single-wheel setup.

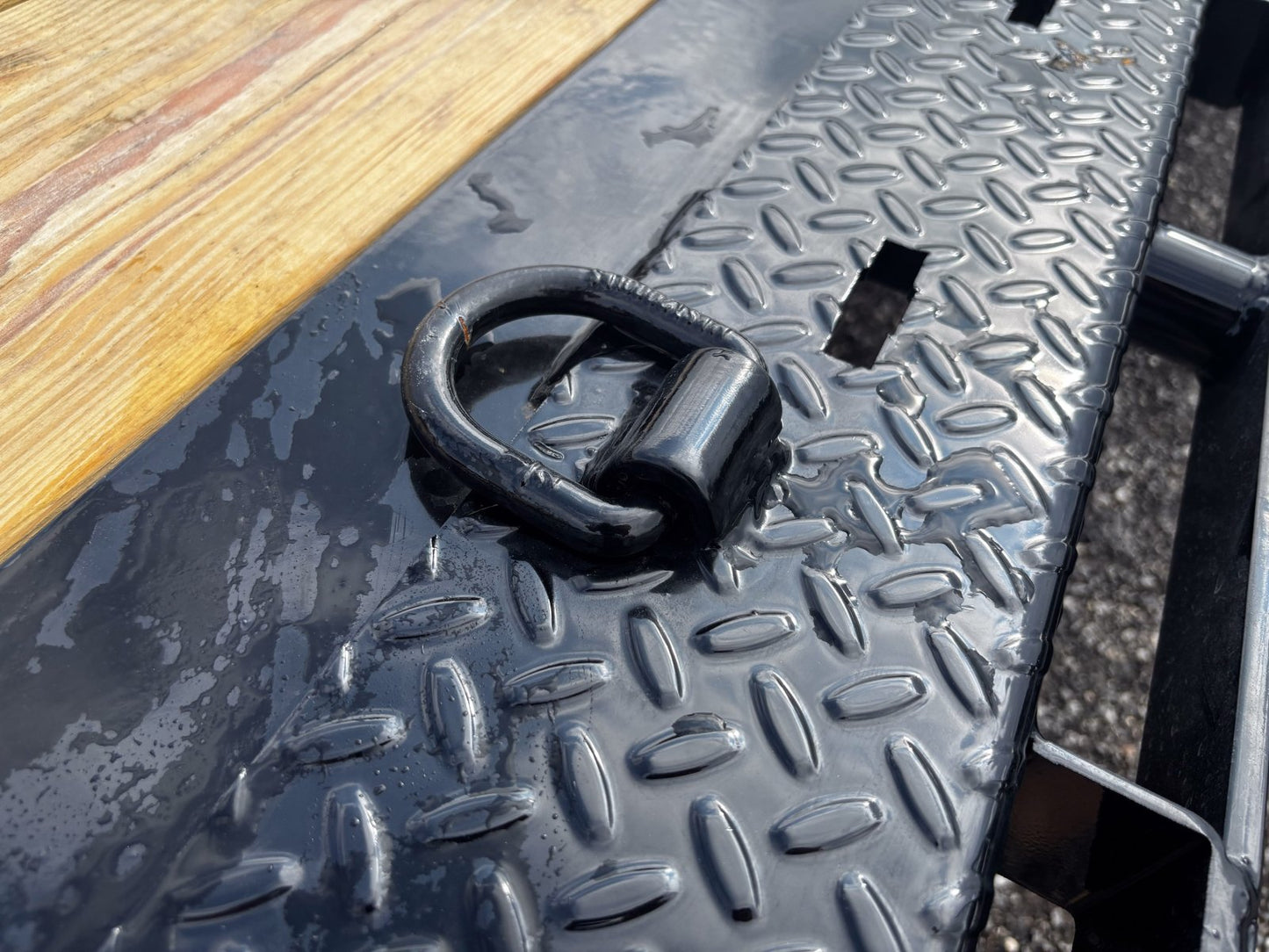

1/4-Inch Diamond Plate Drive-Over Fenders
Available with 1/4-inch thick diamond plate drive-over fenders. The extra thickness provides maximum durability for frequent driving over by heavy tracked equipment.

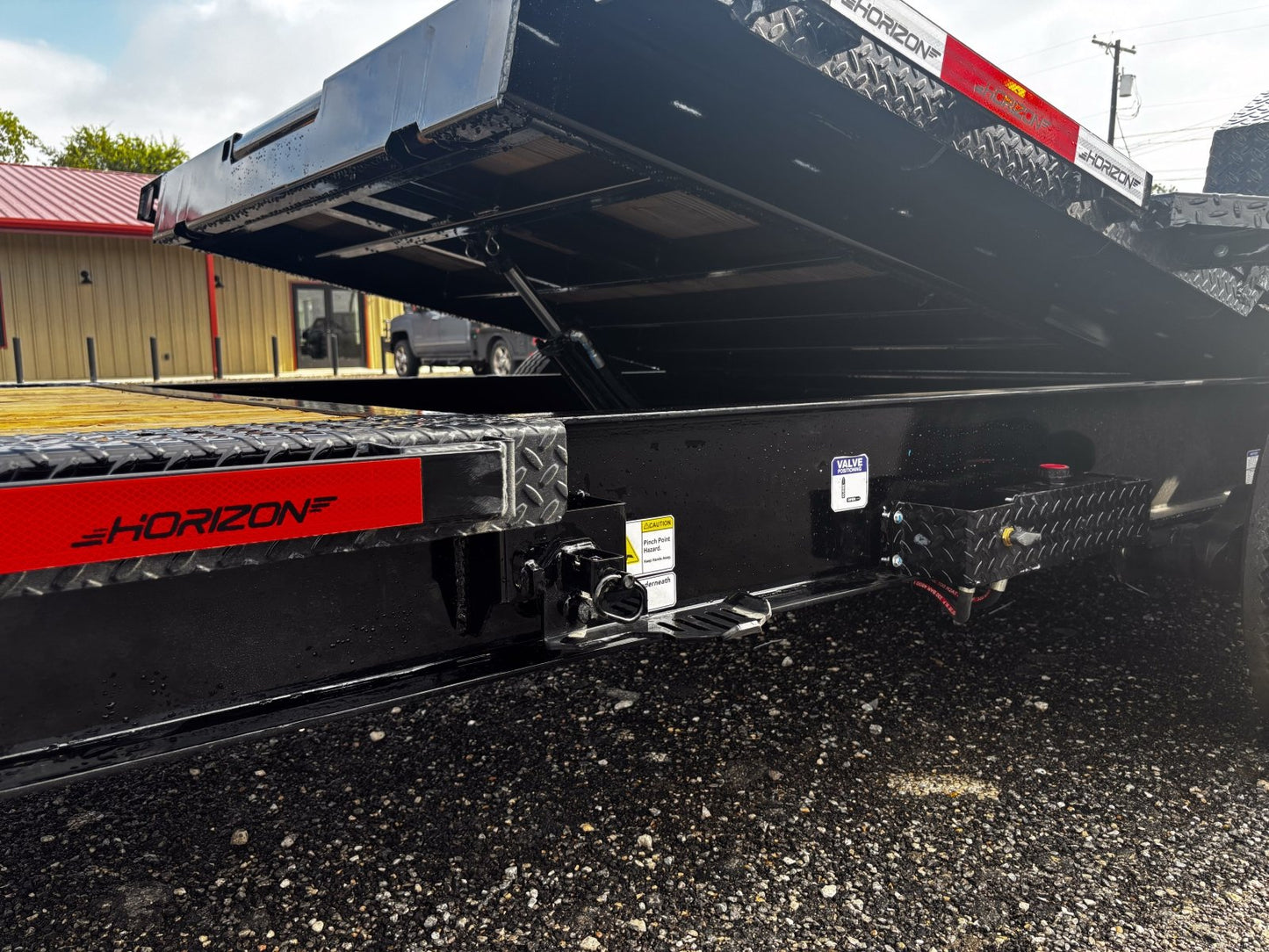

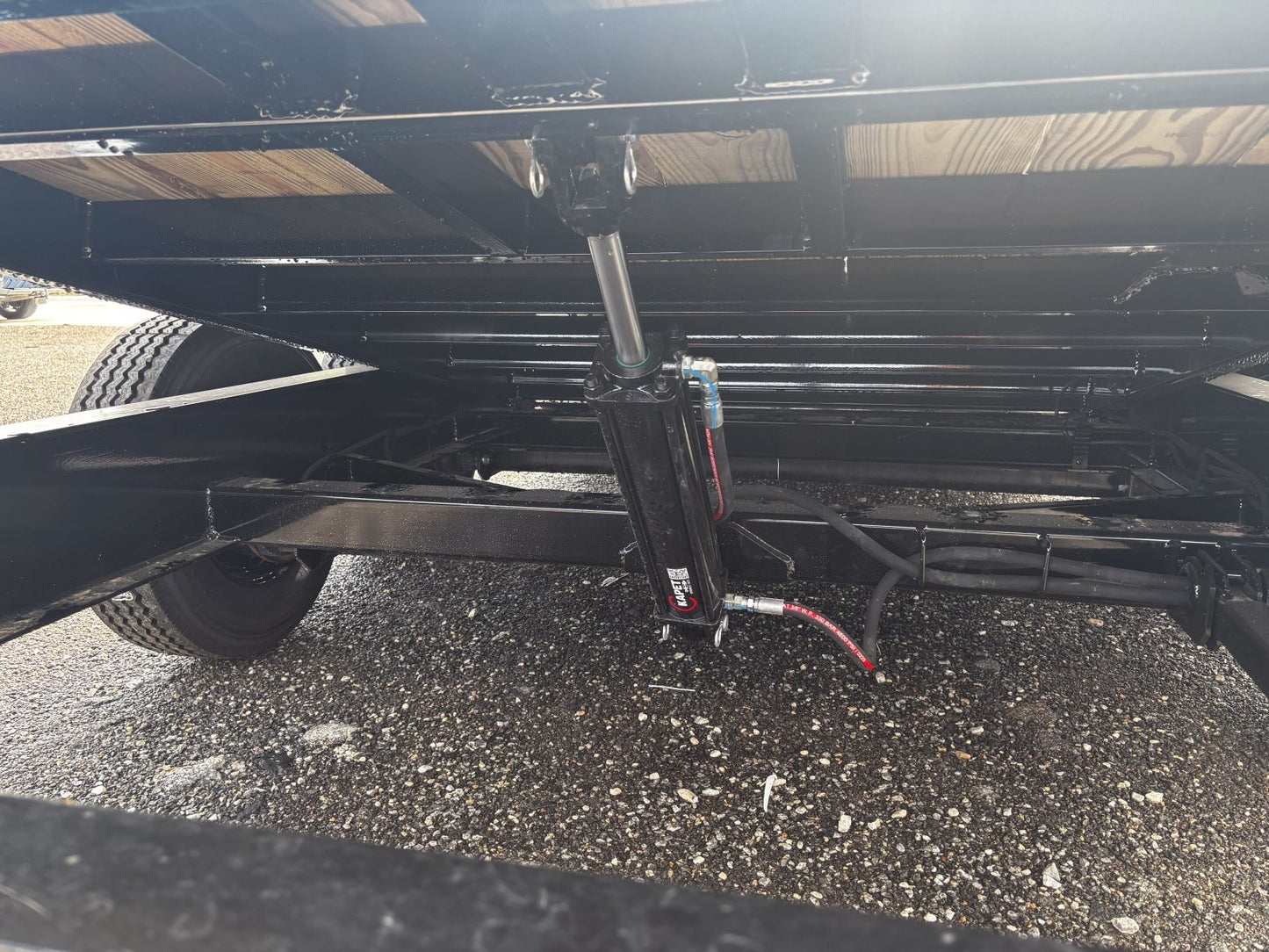

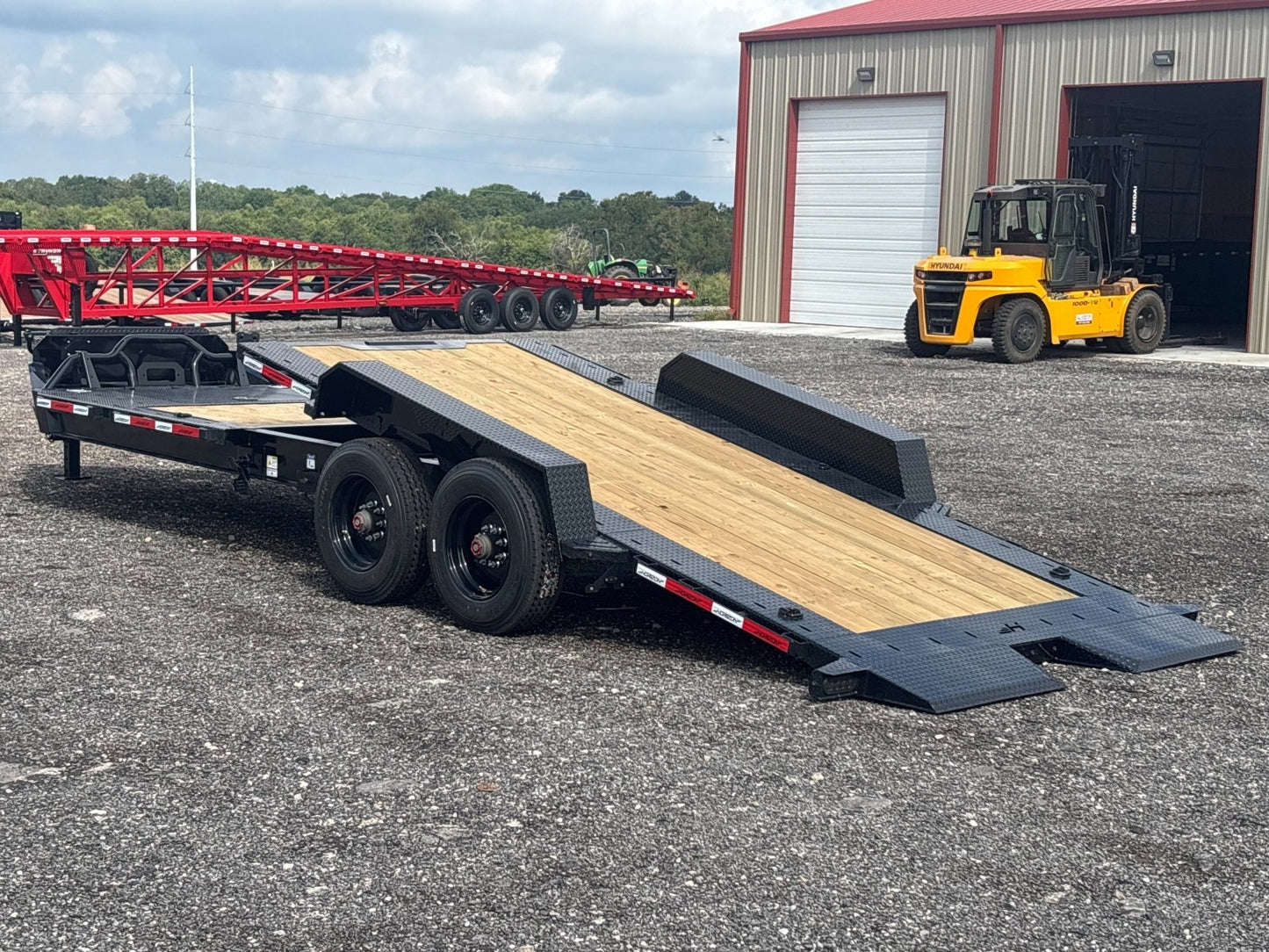

Gravity Tilt with Single 3" Cylinder
Uses a gravity tilt system operated by a single 3"x16" hydraulic cylinder. The simple, robust mechanism provides reliable tilting for the 16-foot deck section with minimal maintenance.
22,400 lb GVWR Bumper Pull Capacity
Rated for 22,400 lbs GVWR, this is a high-capacity bumper pull tilt trailer. The 10-inch I-beam frame and 21k coupler are built to handle substantial weight without a gooseneck hitch.
Powdercoat Finish Over Grit-Blasted Steel
A powdercoat finish is applied over a steel grit-blasted surface. This preparation ensures strong paint adhesion and long-term corrosion resistance. Available in 12 colors.
Warranty
Horizon's warranty coverage guarantees comprehensive protection for your trailer investment. With a 5-year Dexter Axle Warranty, Three (3) Year Frame Warranty, and One (1) Year Parts Warranty. Trust in our commitment to quality and reliability, allowing you to focus on your tasks worry-free.
Product Details
DIMENSIONS
- LENGTH:
- 20' - 26'
- WIDTH:
- 82" - 102"
- DECK HEIGHT:
- 25"
WEIGHT RATINGS
- AXLE OPTIONS:
- 10k SS
- GVWR:
- 22.4k
TILT SYSTEM
- TILT METHOD:
- Gravity Tilt System
- TILT DECK:
- Split Deck (16' Tilt Section)
- LIFT CYLINDER:
- 1 - 3"x16" Cylinder
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- 10" (17lbs/ft) I-Beam
- LENGTH:
- 60"

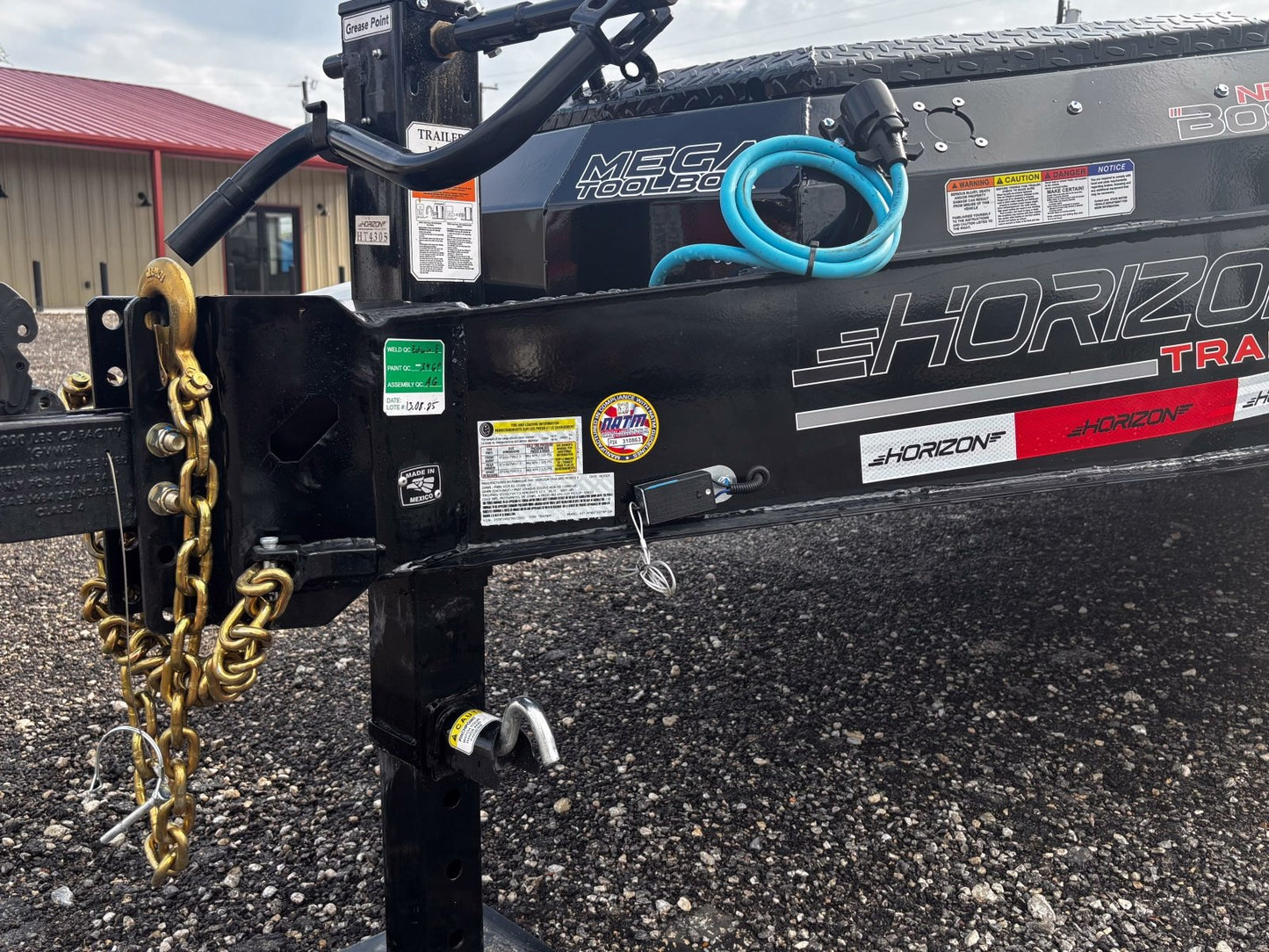

- STANDARD COUPLER BP:
- Adjustable 2 5/16" (21,000 lbs) Coupler
- FRONT JACK BP:
- Single 12k Drop-Leg Jack

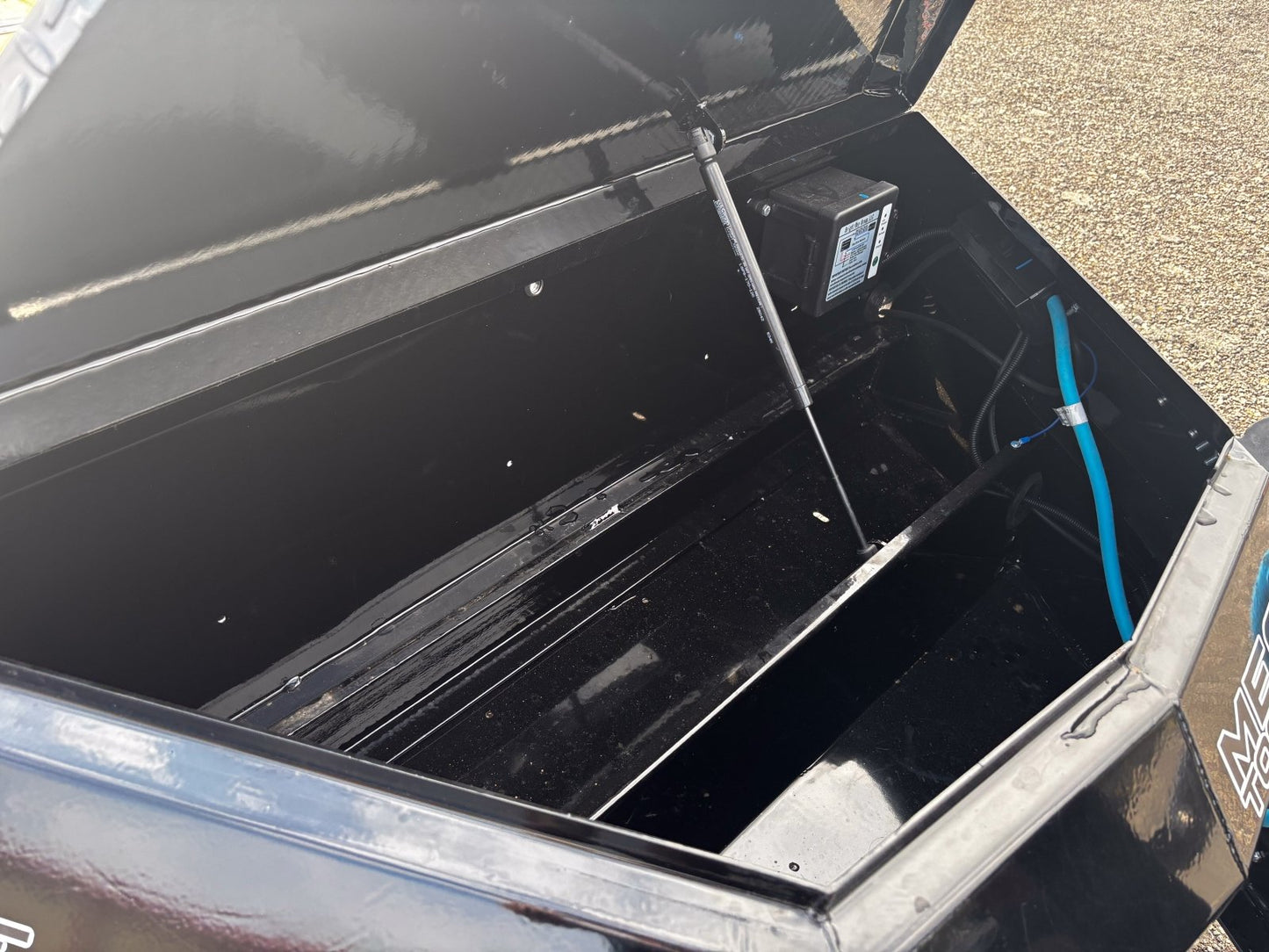

- TOOLBOX BP:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- FRAME:
- 10" (17lbs/ft) I-Beam
- CROSSMEMBERS:
- 3" Channel, 16" Spacing
- DECK:
- Wood
- FENDERS:
- 12 Ga. Removable Fenders
1/4" Diamond Plate DOF
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
RUNNING GEAR
- TIRES:
- ST235/75R17.5
- TIRE PLY:
- 18 Ply
- TIRE RATING:
- 6005 lbs
- RIMS:
- 17.5" Black Mod Wheels
- BRAKES:
- Electric Brake
- AXLE TYPE:
- 2 - 10k SS Oil Bath Dexter Axles
- AXLE COUNT:
- 2
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Torsion
ELECTRICAL & LIGHTING
- WIRING HARNESS:
- All-Weather Wiring Harness (7-Way RV)
- FRAME WIRING:
- Double Insulated Wiring Harness

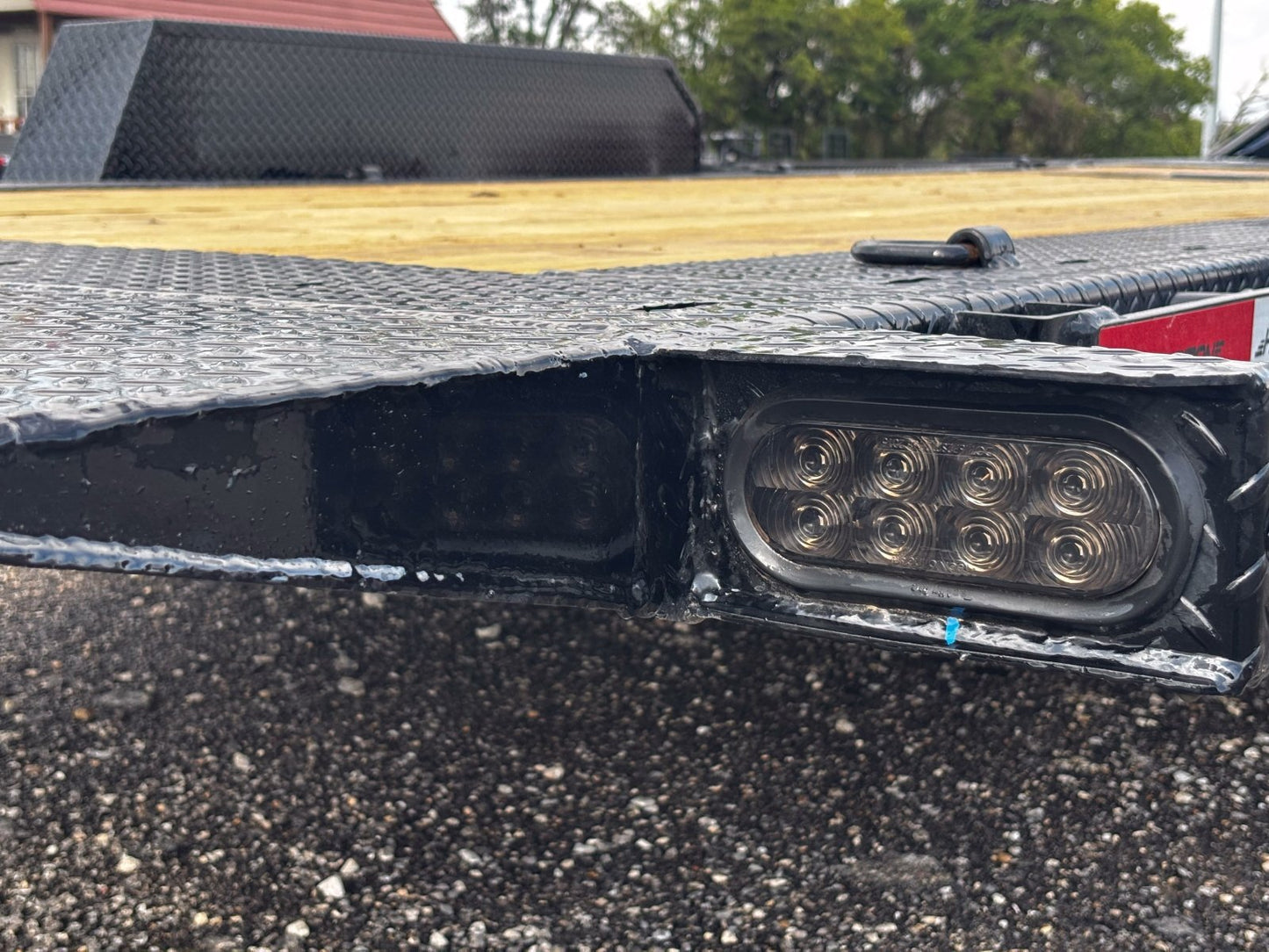

- REAR LIGHTS:
- DOT Approved LED Lighting
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
