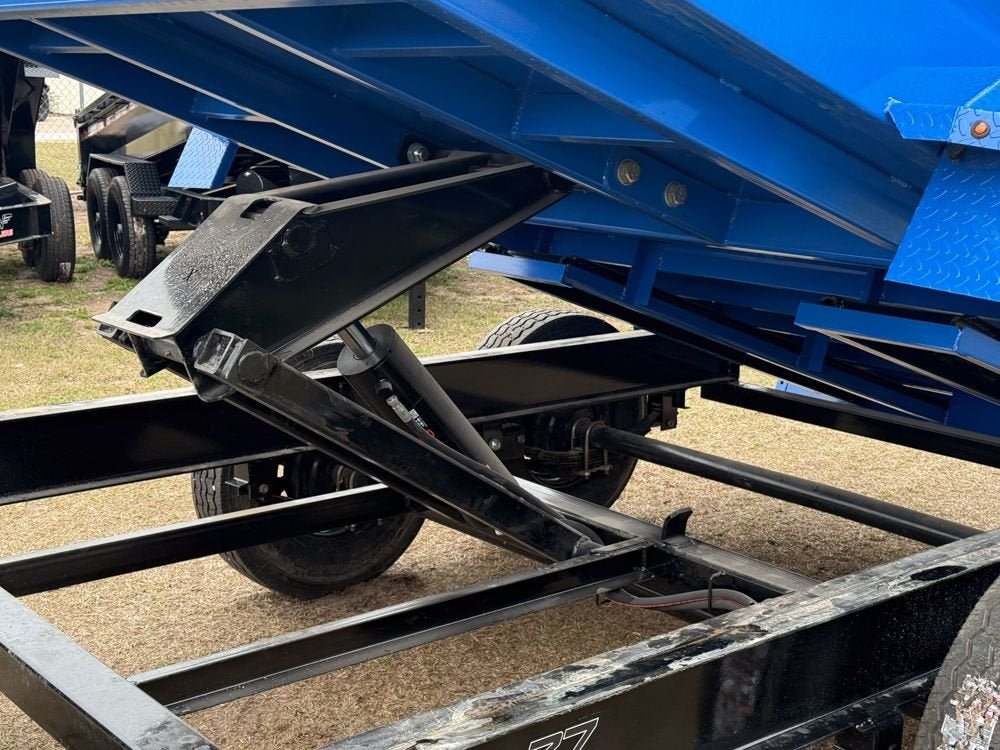

Gooseneck Hoist System with Options
Equipped with a 5" x 16" or 5" x 21" single push cylinder providing 15,000 lbs of lift. An optional telescopic cylinder is available for increased dump height and capacity.
6-Foot 4-Inch Slide-In Ramps
Utilizes 6-foot 4-inch slide-in ramps rated for a 4,000 lb transfer weight. The ramps store under the bed and provide a sturdy, reliable loading path for equipment.

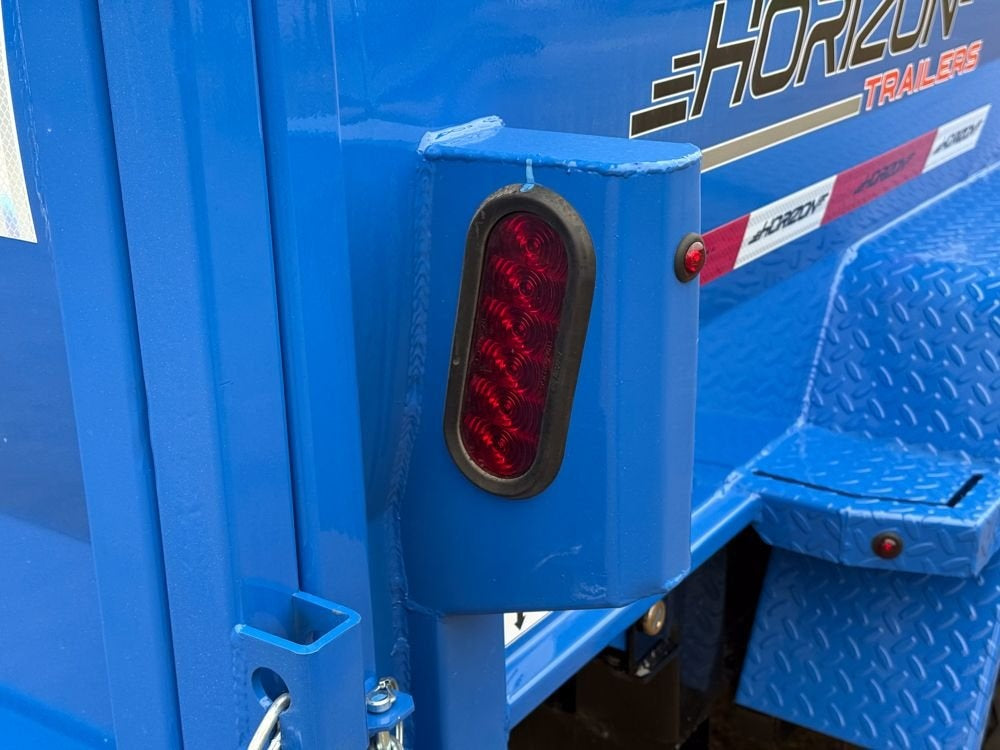

Side-Mounted LED Light Boxes
Features welded, side-mounted light boxes on the dump bed. This placement protects the DOT-approved LED lights from damage during loading and provides optimal rearward visibility, unlike traditional lights mounted low near the ramps.

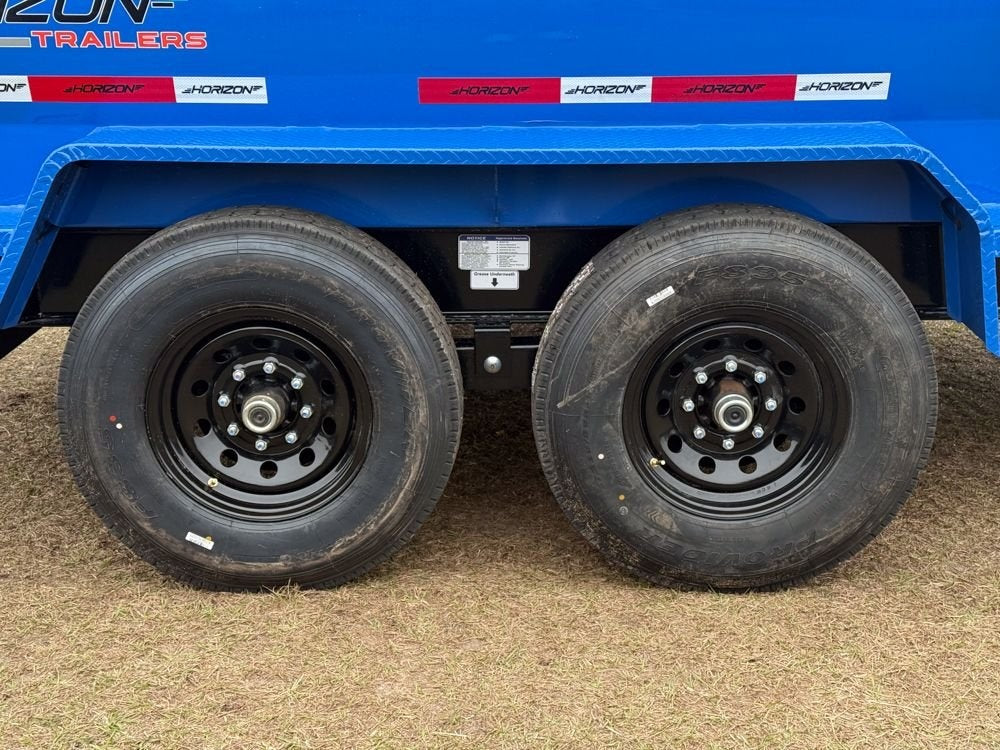

Axles and Running Gear
Engineered for reliable towing performance, the LZ7 dump trailer features a 7k tandem axle system with electric brakes for smooth and stable operation. With a GVWR of 14,000 lbs. and sturdy 16-inch radial tires, it offers exceptional towing capacity and maneuverability, whether on highways or job sites.
Rounded Steel Sides with Configurable Height
Built with strong, rounded 12-gauge steel sides. The side height is adjustable from 24 to 42 inches, allowing the same trailer to haul dense materials like dirt at low height or bulky materials like leaves and mulch at high height.

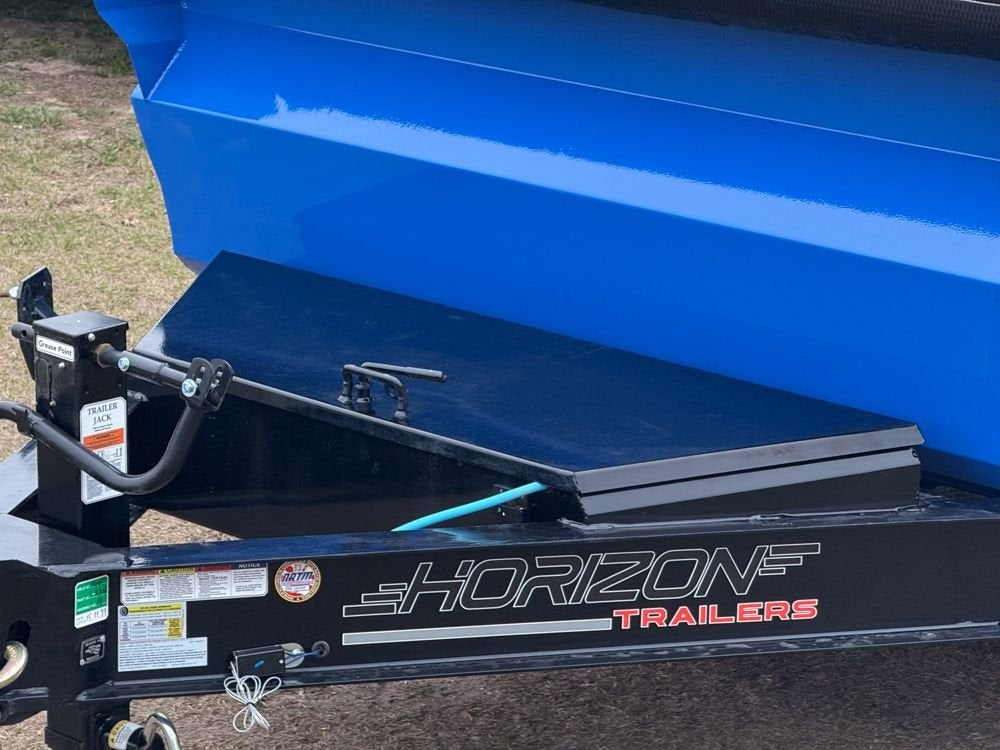

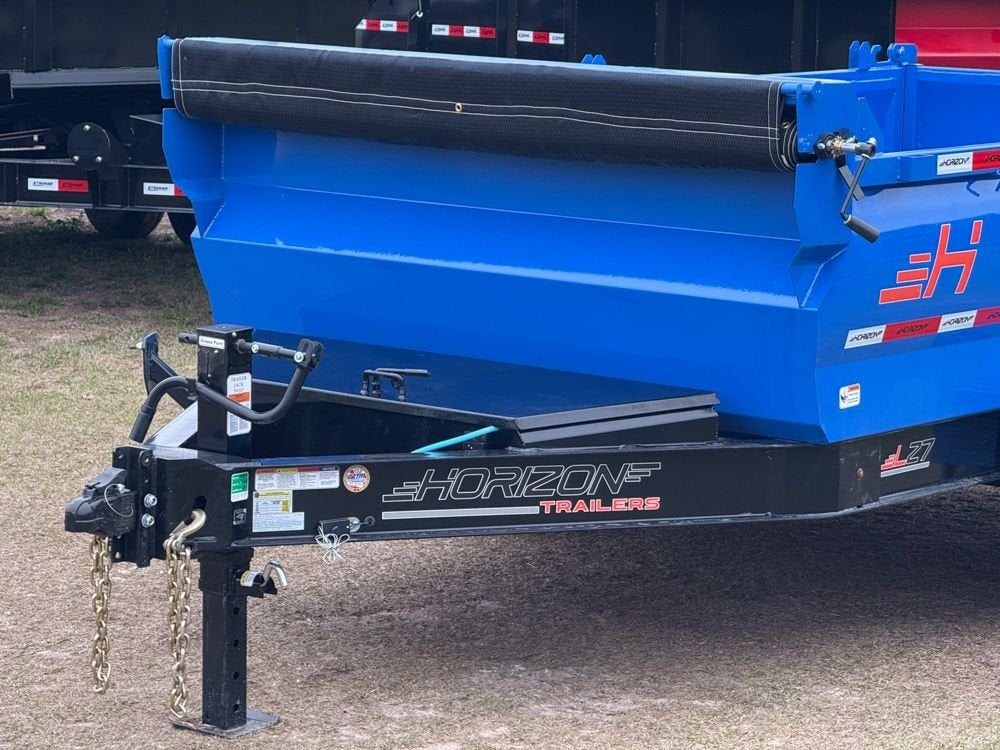

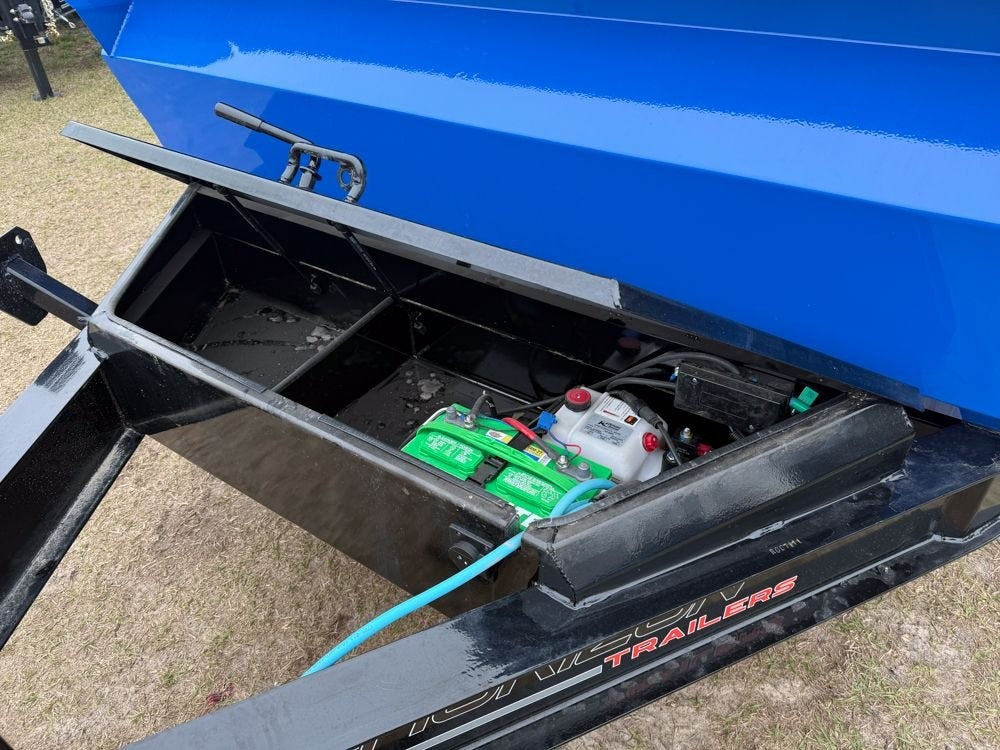

Mega Lockable Front Toolbox
Includes a large, lockable "Mega" toolbox mounted on the tongue. The new design provides significant secure storage for straps, chains, tools, and the hydraulic controller, keeping them organized and protected.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 24" - 42"
- DECK HEIGHT:
- 27"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k
- GVWR:
- 14k
RUNNING GEAR
- TIRES:
- ST235/80R16 Radial
- TIRE PLY:
- 10 Ply
- RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter EZ Lube Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION:
- Spring

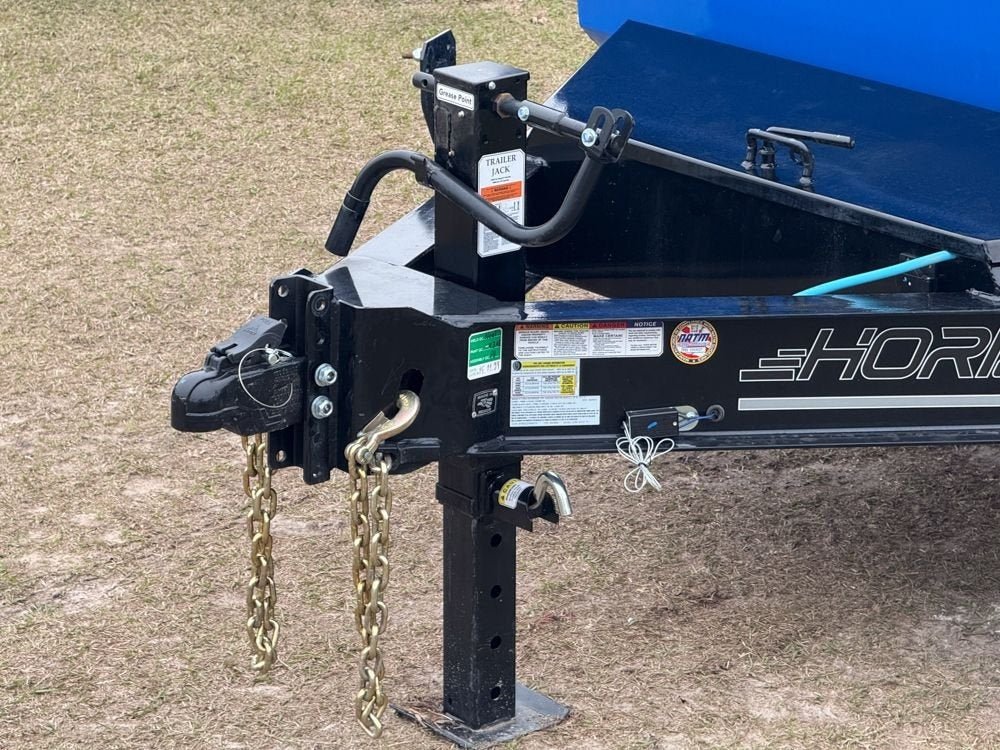

BUMPER PULL
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" Engineered I Beam
- LENGTH:
- 60"
- JACK:
- Single 12k Drop-Leg Jack
- COUPLER:
- Adjustable 2 5/16" (17,000 lbs)
- TOOLBOX:
- Mega Lockable Toolbox
FRAME & CONSTRUCTION
- MAIN FRAME:
- 8" I-Beam (13lb/ft)
- BED FRAME:
- 3" x 5" x 1/4" Angle Iron
- CROSSMEMBERS:
- 3" Channel, 16" Centers
- FLOORING:
- 9ga. Steel Bed
- SIDES:
- 12 Ga. Rounded Steel
- FENDERS:
- 14 Ga. Diamond Plate
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- D-RINGS:
- 4 D-Rings
SAFETY SYSTEM
- BREAKAWAY SYSTEM:
- Safety System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CONTROLLER:
- Wired
- 12' CYLINDER:
- 5" x 16" Single Push
- 12' CAPACITY:
- 15,000 lbs
- 14', 16'+ CYLINDER:
- 5" x 21" Single Push
- 14', 16'+ CAPACITY:
- 15,000 lbs
- DUMP ANGLE:
- 40 - 48 Degrees
CARGO & BODY
- GATE:
- 3 Way Spreader Gate
- RAMPS:
- 6'4" Slide In Ramps
- TARP:
- Crank Style Roll-Up Tarp
- HOOKS:
- 3/8" Round J Hooks
ELECTRICAL & LIGHTING
- REAR LIGHTS:
- DOT Approved LED Lights
- WIRING:
- Double Insulated Harness
- BATTERY:
- 27M Deep-Cycle Marine
- CHARGER:
- 110V Trickle Charger
WARRANTY
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts
OPTIONS
