Product Features
5-Foot Slide-In Ramps
Utilizes 5-foot slide-in ramps rated for a 4,000 lb transfer weight. The ramps store neatly under the bed and provide a stable path for loading compact equipment.
Dexter Axle and Frame Warranty
Built with your choice of 3.5k or 5.2k Dexter EZ Lube axles, backed by a 5-year warranty. The trailer frame itself is protected by a 3-year structural and 1-year parts warranty.
Lockable Tongue Toolbox
Includes a lockable toolbox mounted on the tongue. This secure storage compartment keeps the battery, hydraulic controller, and smaller tools organized and protected from the elements.
Rounded Steel Sides with 7 Gauge Floor
Built with strong, rounded 12-gauge steel sides ranging from 18 to 48 inches in height. The rounded corners prevent material from catching and make for faster, cleaner dumping cycles.
Single Push Cylinder Hoist
Equipped with a 3" x 24" single push cylinder providing 7,000 lbs of lift. An optional telescopic cylinder is available for increased dump height and lifting power.
Side-Mounted LED Light Boxes
Features welded, side-mounted light boxes on the dump bed. This placement protects the DOT-approved LED lights from damage during loading and provides optimal rearward visibility, unlike traditional lights mounted low near the ramps.
Product Details
DIMENSIONS
- LENGTH:
- 8' - 10'
- BED WIDTH:
- 60"
- SIDE HEIGHT:
- 18" - 4'
- DECK HEIGHT:
- 28"
WEIGHT RATINGS
- AXLE OPTIONS:
- 3.5k - 5.2k
- GVWR:
- 3.8k - 11.3k
SAFETY & FEATURES
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
- TARP:
- Crank Style Roll-Up Tarp
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- Bumper Pull
- LENGTH:
- 50"
- STANDARD COUPLER BP:
- Adjustable 2" Coupler (10,000 lbs)
- FRONT JACK BP:
- Single 7k Drop-Leg Jack
- TOOLBOX BP:
- Lockable Toolbox
CARGO AREA
- FLOORING:
- 9ga. Steel Bed
- GATE:
- 3 Way Spreader Gate
- D-RINGS:
- 4 D-Rings
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- RAMPS:
- 5' Slide In Ramps
- HOOKS:
- 3/8" Round J Hooks
- FENDERS:
- 14 Ga. Diamond Plate Fenders
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- 3" x 24" Single Push Cylinder
- CONTROLLER:
- Wired
- HOIST CAPACITY:
- 7,000 lbs
- DUMP ANGLE:
- 40 Degrees
RUNNING GEAR

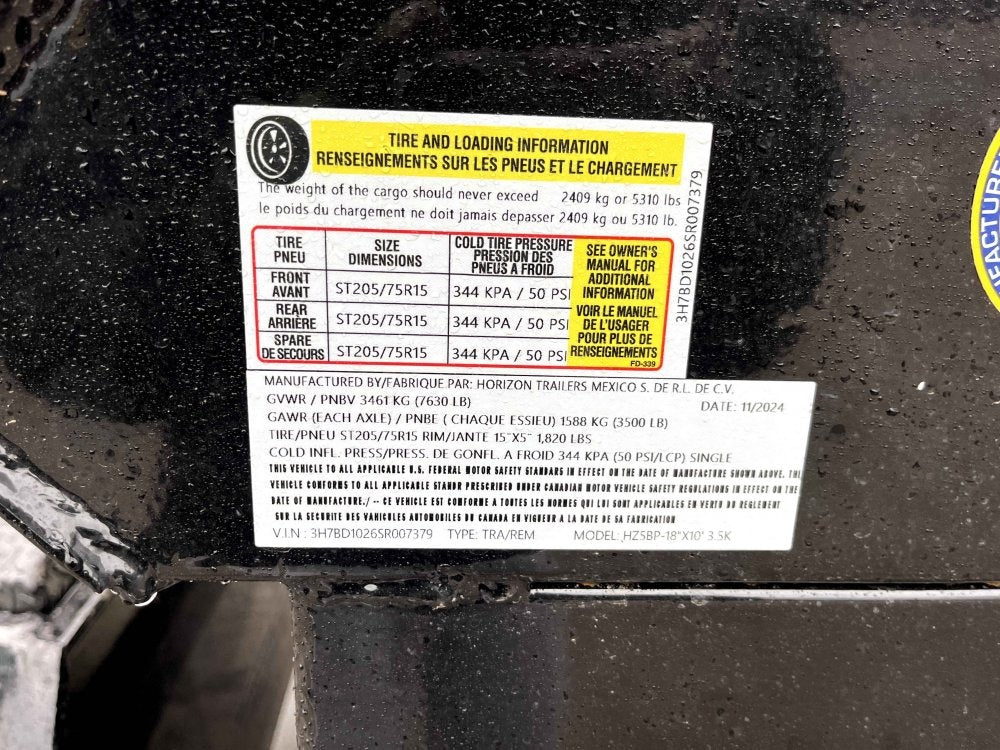

- TIRES:
- ST205/75R15 (3.5k) / ST225/75R15 (5.2k)
- TIRE PLY:
- 8 Ply (3.5k) / 10 Ply (5.2k)
- TIRE RATING:
- 2,150 lbs
- RIMS:
- 15" Black Mod Wheels
- AXLE TYPE:
- 1 or 2 - 3.5k Dexter EZ Lube Axles
2 - 5.2k Dexter EZ Lube Axles
- AXLE COUNT:
- 1 or 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 5 on 5" (3.5k) / 6 on 5.5" (5.2k)
- SUSPENSION TYPE:
- Spring
ELECTRICAL & LIGHTING
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- 110V Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lights
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
