Product Features

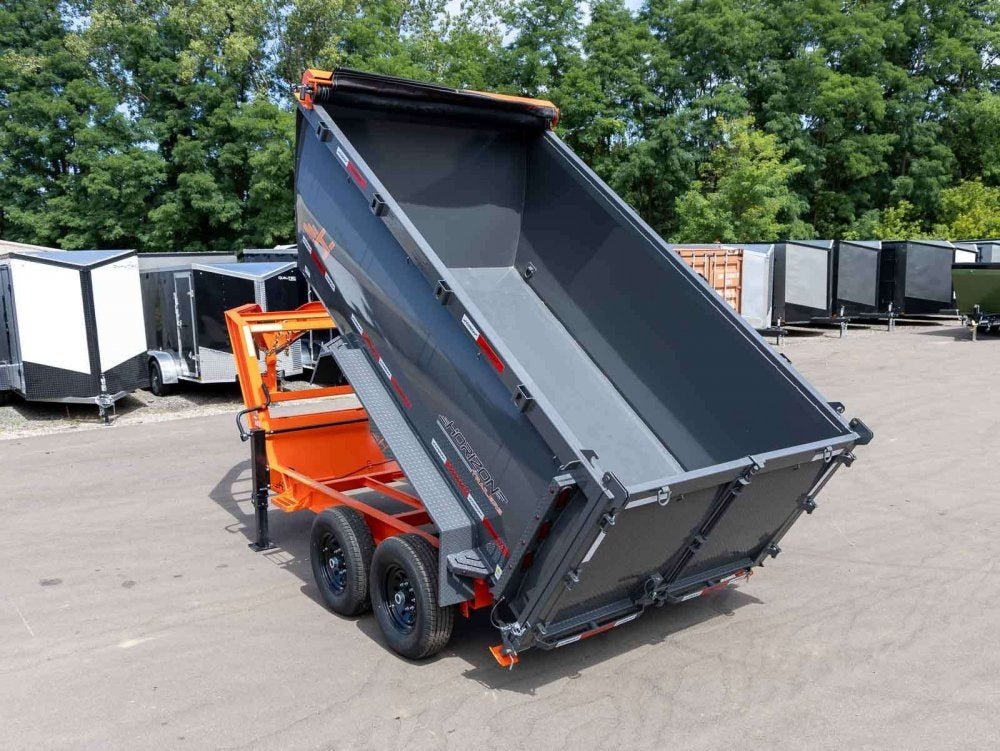

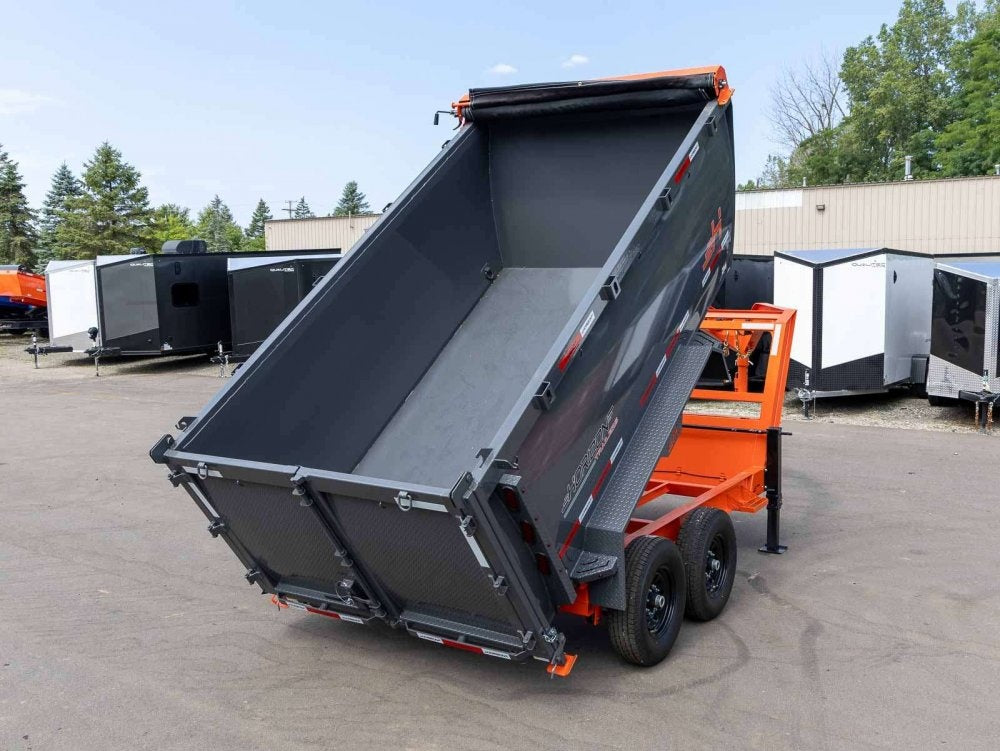

Rounded Steel Sides with 7 Gauge Floor
Built with heavy-duty 7 gauge steel flooring for maximum durability against abrasion and impact. Combined with rounded 10 gauge steel sides, the design increases strength and resists material hang-up for faster, cleaner dumping.
Side-Mounted LED Light Boxes
Features welded, side-mounted light boxes on the dump bed. This placement protects the DOT-approved LED lights from damage during loading and provides optimal rearward visibility, unlike traditional lights mounted low near the ramps

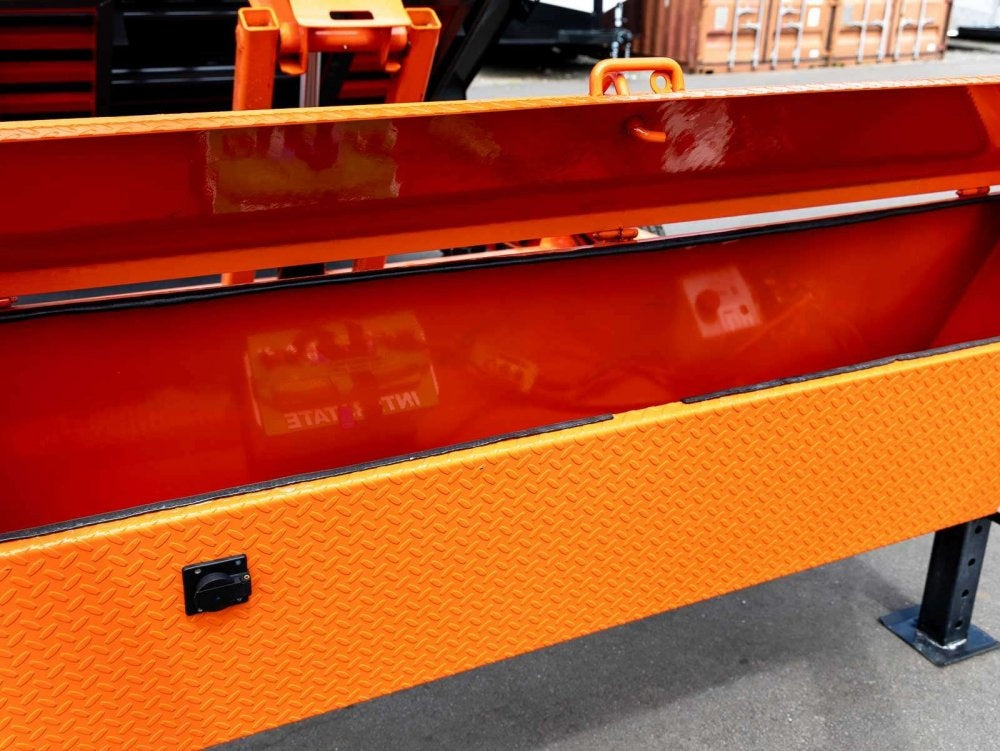

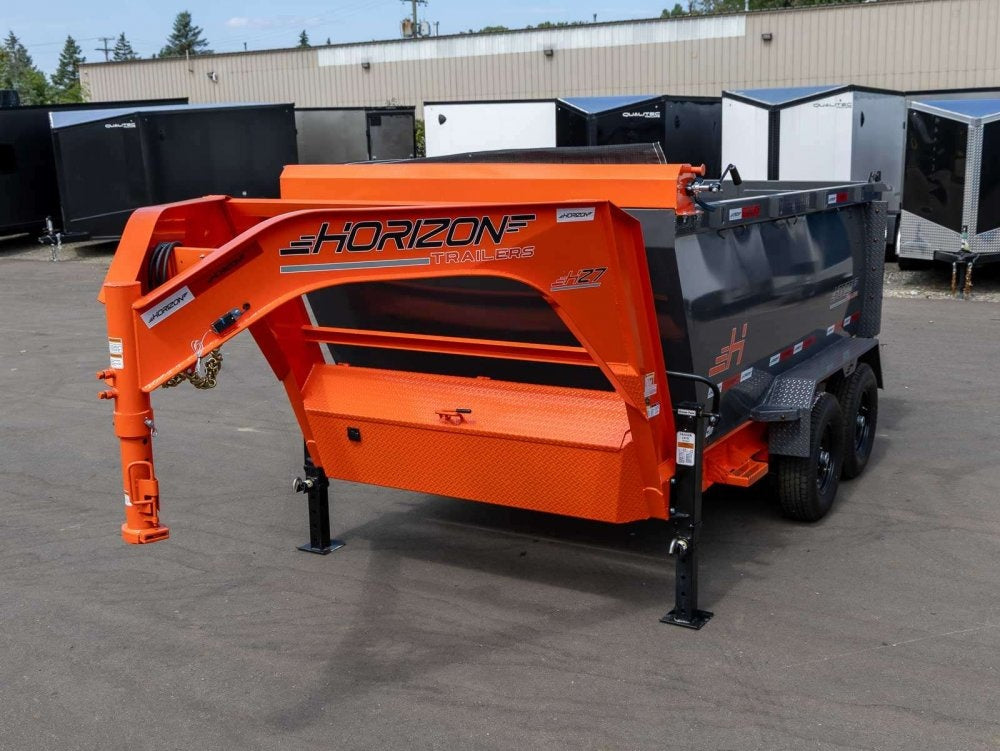

Mega Lockable Front Toolbox
Includes a large, lockable "Mega" toolbox mounted on the tongue. The new design provides significant secure storage for straps, chains, tools, and the hydraulic controller, keeping them organized and protected.

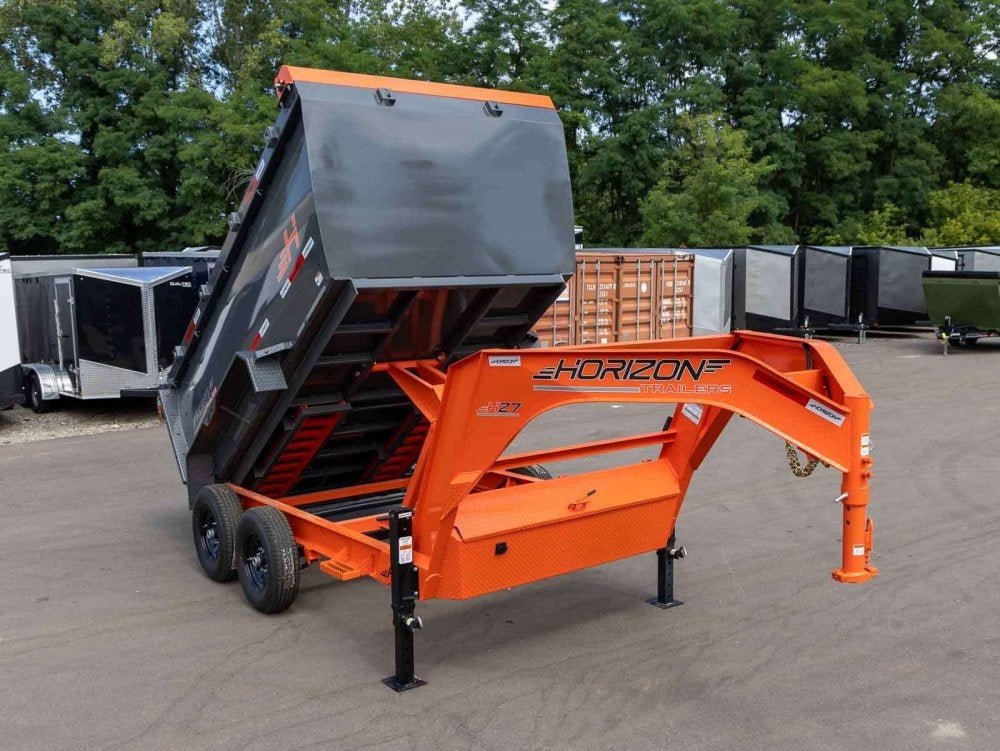

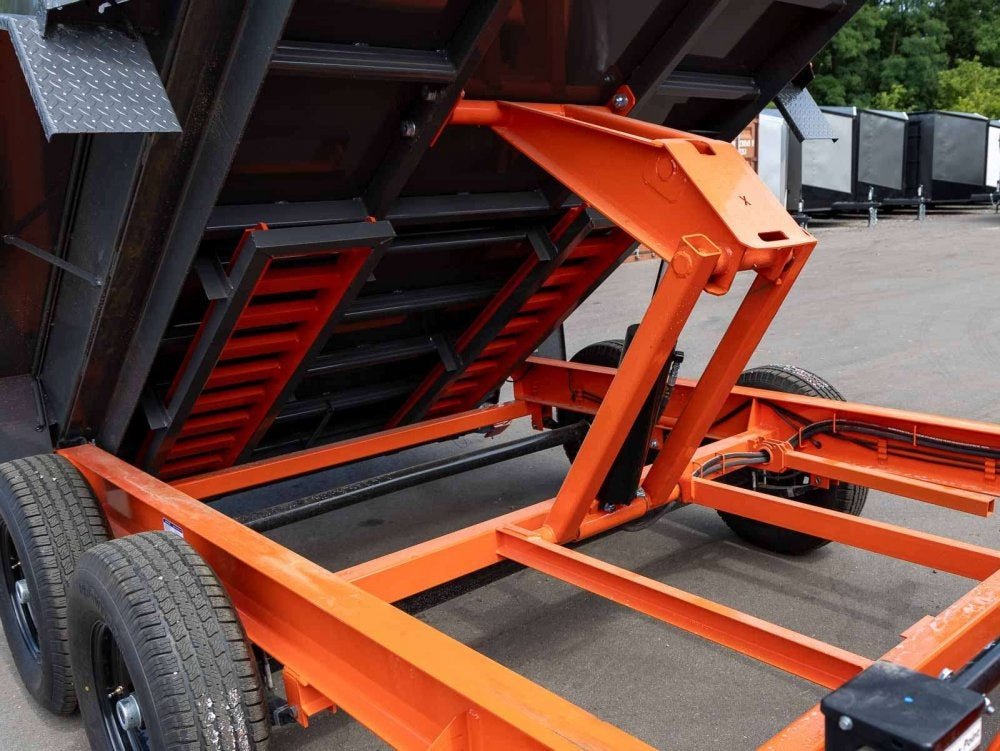

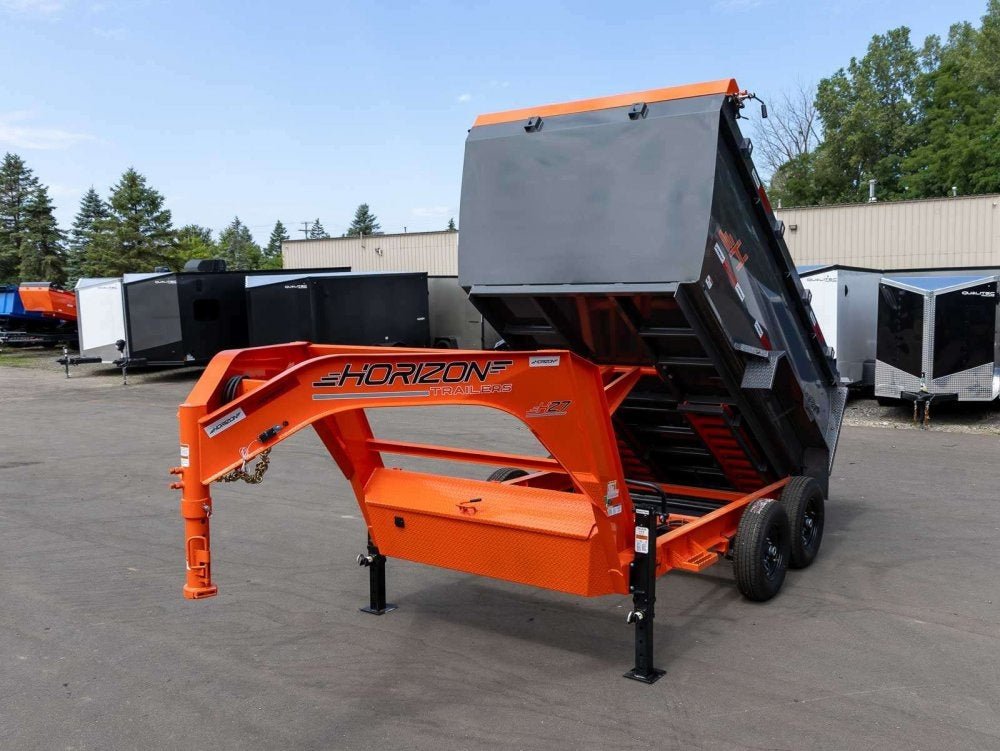

Hoist System and Capacity Options
Equipped with a 5" x 16" cylinder providing 15,000 lbs of lift on 12' models, and a 6" x 21" cylinder for 20,000 lbs on 14'-16' models. An optional telescopic cylinder is available for increased dump height and lift capacity.
6-Foot 4-Inch Slide-In Ramps
Utilizes 6-foot 4-inch slide-in ramps rated for a 7,000 lb transfer weight. The ramps store under the bed and provide a sturdy, reliable loading path for equipment like skid steers and compact tractors.
Dexter Axle and Frame Warranty
Built with your choice of 7k EZ Lube or 8k Oil Bath Dexter axles, backed by a 5-year warranty. The trailer frame itself is protected by a 3-year structural and 1-year parts warranty.
Product Details
DIMENSIONS
- LENGTH:
- 12' - 16'
- BED WIDTH:
- 83"
- SIDE HEIGHT:
- 2' - 4'
- DECK HEIGHT:
- 27"
WEIGHT RATINGS
- AXLE OPTIONS:
- 7k, 8k
- GVWR:
- 15.2k - 17k
SAFETY & FEATURES
- BREAKAWAY SYSTEM:
- Safety Breakaway System w/ Cable
- REFLECTIVE TAPE:
- DOT Approved Safety Tape
- SAFETY CHAINS:
- 2 Safety Chains
- TARP:
- Crank Style Roll-Up Tarp
TONGUE
- PULL TYPE:
- Bumper Pull
- TYPE:
- 8" Engineered I Beam
- LENGTH:
- 60"
- STANDARD COUPLER BP:
- Adjustable 2 5/16" Coupler (17,000 lbs)
- FRONT JACK BP:
- Single 12k Drop-Leg Jack
- TOOLBOX BP:
- Mega Lockable Toolbox
CARGO AREA
- FLOORING:
- 7ga. Steel Bed

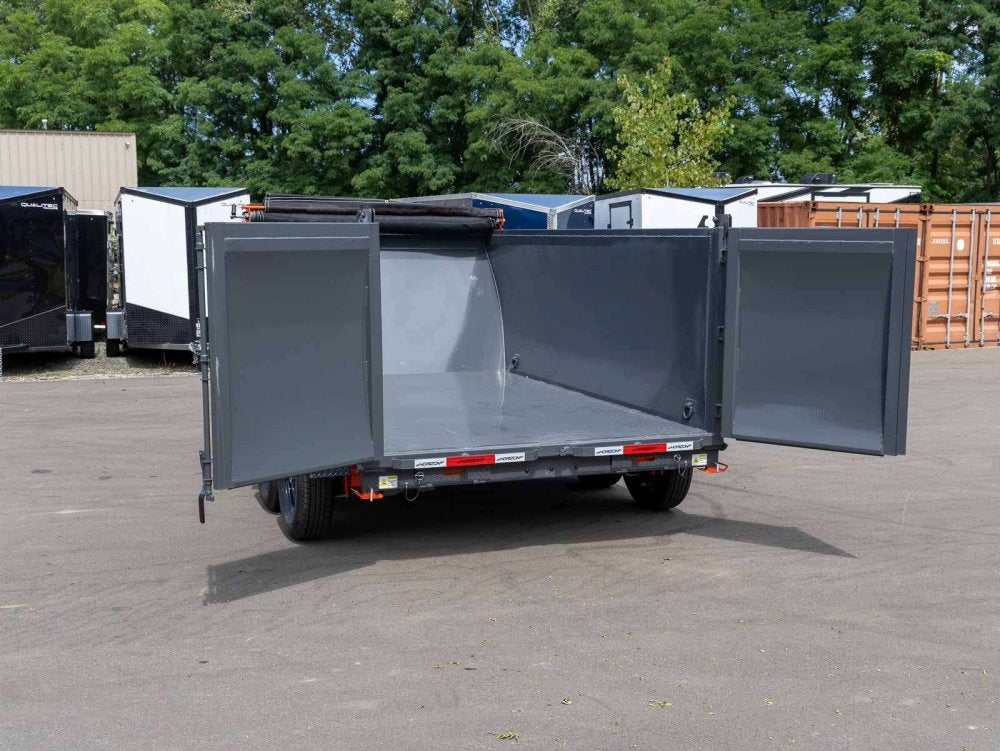

- GATE:
- 3 Way Spreader Gate
- D-RINGS:
- 4 D-Rings
- STAKE POCKETS:
- 1 5/8" x 3 5/8"
- RAMPS:
- 6'4" Slide In Ramps
- HOOKS:
- 3/8" Round J Hooks
- FENDERS:
- 12 Ga. Diamond Plate Fenders
FINISH
- PAINT TYPE:
- Powdercoat
- PREP:
- Steel Grit Blasted
- COLORS:
- Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White, Cloud Grey, Navy Blue
LIFT SYSTEM
- SYSTEM:
- Hydraulic
- PUMP:
- KTI Hydraulic Pump
- CYLINDER:
- Hoist w/ 5" x 16" Single Push Cylinder
Hoist w/ 6" x 21" Single Push Cylinder (14'+)
- CONTROLLER:
- Wired
- HOIST CAPACITY:
- 15,000 lbs
20,000 lbs (14'+)
- DUMP ANGLE:
- 39 - 49 Degrees
RUNNING GEAR

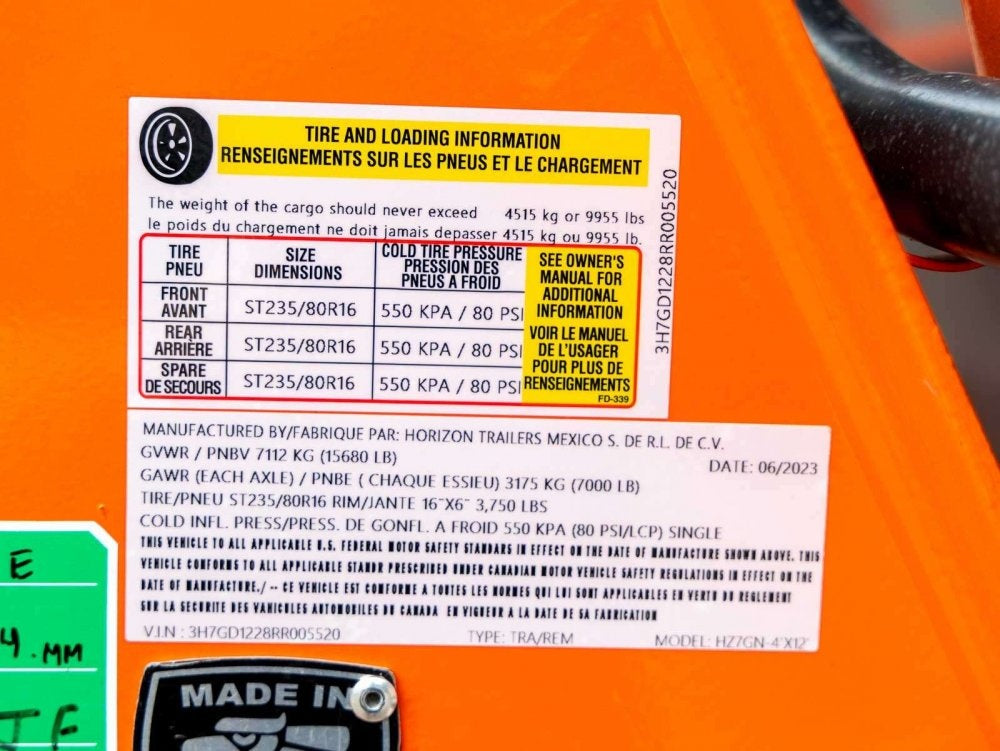

- TIRES:
- ST235/80R16
- TIRE PLY:
- 10
- TIRE RATING:
- 3,520 lbs
- RIMS:
- 16" Black Mod Wheels
- AXLE TYPE:
- 2 - 7k Dexter EZ Lube Axles
2 - 8k Dexter Oil Bath Axles
- AXLE COUNT:
- 2
- BRAKES:
- Electric
- BOLT PATTERN:
- 8 on 6.5"
- SUSPENSION TYPE:
- Spring
ELECTRICAL & LIGHTING
- BATTERY:
- 27M Deep-Cycle Marine Battery
- CHARGING SYSTEM:
- 110V Trickle Charger
- WIRING HARNESS:
- Sealed Wiring Harness
- FRAME WIRING:
- Double Insulated Wiring Harness
- REAR LIGHTS:
- DOT Approved LED Lights
WARRANTY
- TRAILER WARRANTY:
- 3 Year Frame / 1 Year Parts Warranty
- AXLE WARRANTY:
- 5 Year Dexter Axle Warranty
OPTIONS
